Lockwood 4603 Square End Plate With Emergency Turn & 41 Lever Right Hand Polyester Powdercoat 4603/41RPC
Lockwood 4603 Square End Plate With Emergency Turn & 41 Lever Right Hand Polyester Powdercoat 4603/41RPC

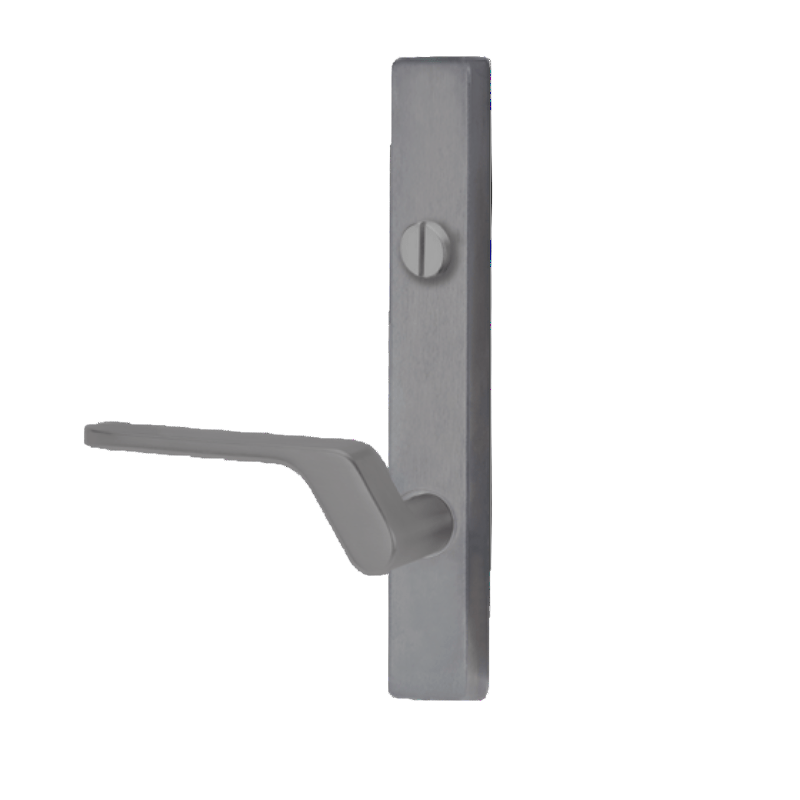

The Lockwood 4603 Square End Plate With Emergency Turn & 41 Lever Right Hand Polyester Powdercoat is a polyester powdercoat exterior narrow (slimline) fire-rated rectangular brass plate from the Lockwood 4600 Series (Fire Rated). The plate measures 185 x 26 x 11.5 mm and suits door thicknesses of 32–50 mm. It is fitted with Lever 41 (130 mm long, 61.5 mm projection), which meets AS1428.1 for access and mobility.
Plate Function: Emergency Turn & Lever (4603)
This is the Emergency Turn & Lever function (code 4603) — the plate has a lever plus an emergency turn — locked from inside, with a coin-release override from the other side. Suited to bathrooms and ensuites.
Lockwood plate functions explained (with codes):
Standards & Compliance
- Fire tested up to 4 hours on fire-rated door assemblies (AS1905.1:2005) on fire-rated door assemblies.
- Tested to Level D8 (500,000 cycles) under AS4145.2-2008 for locksets and hardware.
- Brushed satin chrome tested to Level C10 (1,000 hours) salt-spray under AS4145.2-2008.
- Lever 41 meets AS1428.1-2009 for design for access and mobility.
- Designed, assembled and customised in Australia.
Complete Your Door Set
Lockwood plates are supplied as a single face. To make a working set you may also need (sold separately):
- A Lockwood mortice lock — a Selector 3770 or Synergy 3570 Series mortice lock to suit the 4600 Series and your door.
- A Lockwood cylinder — a 570 Series oval cylinder to key the door.
Warranty
Mechanical parts are warranted against defects in materials and workmanship under normal use, when correctly installed.
Lacquered and plated finishes are covered against finish defects; unlacquered and living brass finishes patina naturally and are excluded from finish cover. Manufactured by ASSA ABLOY Australia. Lockwood warranty →
Available Finishes
Swatch range for the 4600 Series. Unlacquered and living finishes develop a natural patina over time.
What is the Lockwood 4603 Square End Plate With Emergency Turn & 41 Lever Right Hand Polyester Powdercoat?
It is a Lockwood 4600 Series (Fire Rated) exterior narrow (slimline) fire-rated rectangular brass plate with the Emergency Turn & Lever function, finished in polyester powdercoat.
What does the Emergency Turn & Lever function do?
The plate has a lever plus an emergency turn — locked from inside, with a coin-release override from the other side. Suited to bathrooms and ensuites.
What size is the plate and what door thickness does it suit?
The plate measures 185 x 26 x 11.5 mm and suits doors 32–50 mm thick. Longer fixing screws are available for thicker doors.
What lever does it use?
Lever 41, which is 130 mm long with 61.5 mm projection and meets AS1428.1 for access and mobility.
What finishes are available?
The 4600 Series is available in Satin Chrome, Chrome Plate, Polished Brass, Satin Brass, Polyester Powdercoat and special finishes including Architectural Bronze, Antique Copper, Oil Rubbed Bronze and Aged Brass. Unlacquered and living finishes patina naturally over time.
What else do I need to complete the door set?
Lockwood plates are supplied as a single face. To make a working set you may also need a Lockwood Selector 3770 or Synergy 3570 Series mortice lock, a Lockwood 570 Series cylinder — all sold separately.
What warranty applies?
Lockwood plate door furniture carries a 25-Year Mechanical Warranty against defects in materials and workmanship. Unlacquered and living brass finishes patina naturally and are excluded from finish cover. Manufactured by ASSA ABLOY Australia.
How long does delivery take?
This item is made to order — please allow 2–3 weeks for delivery, depending on the supplier.
