Lockwood 4605 Square End Plate With 70 Lever Satin Chrome 4605/70SC

DESCRIPTION

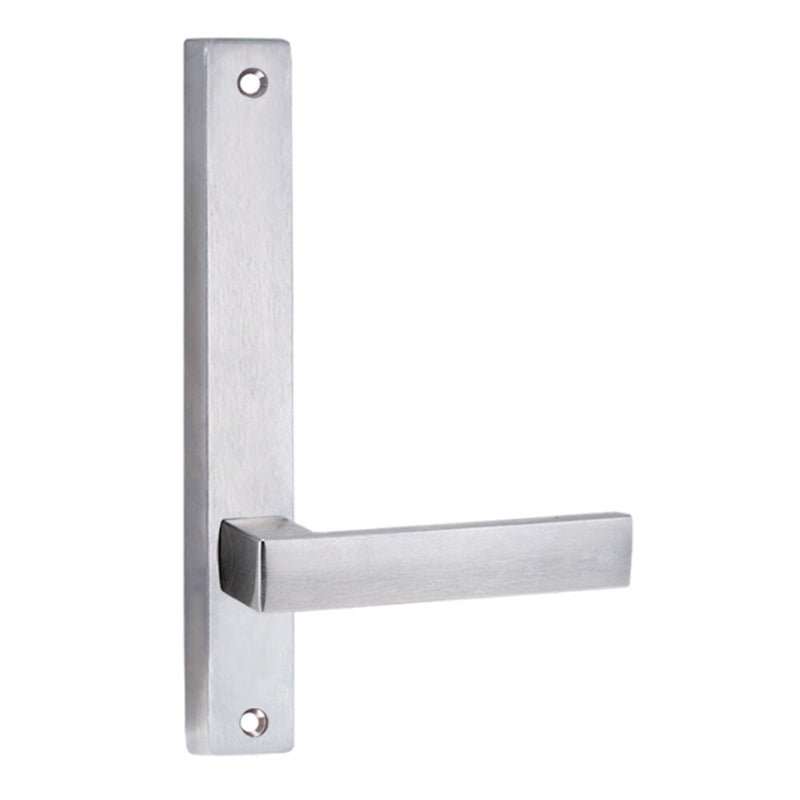

The Lockwood 4605 Square End Plate with 70 Lever in Satin Chrome finish is designed for commercial and institutional doors, offering a slim, rectangular brass plate measuring approximately 166mm in height, 48mm in width, and 12mm in depth. It fits Lockwood Selector and Synergy Series short and standard backset mortice locks, suitable for doors 32mm to 45mm thick. The 70 lever is 121mm long and ergonomically designed for easy and comfortable operation. This plate features concealed fixing externally and visible fixing internally for secure installation. The satin chrome finish provides a corrosion-resistant, brushed surface ideal for architectural applications. It is backed by a 25-year mechanical warranty, ensuring durability and reliable performance for architects, builders, and facility managers.Here is the product description for the Lockwood 4601/74PC Square End Plate with Cylinder Hole & 74 Lever Polyester Powdercoat.

This Lockwood square end plate door furniture set features a 70 series tubular lever. It is part of the Lockwood 4600 series, designed for narrow stile applications in commercial, institutional, and high-traffic environments.

Key Features:

• Plate Type: Slim-line rectangular brass plate with bevelled edges.
• Lever Type: 70 series tubular lever, offering a clean and functional design.
• Fixing: Concealed fixing on external plates; internal plates must be visible fixed if paired.
• Compliance: AS1428.1 compliant for disabled access.
• Compatibility: Designed for use with:
• Lockwood 3570 Series Mortice Latches
• Lockwood 3580/3780 Series Mortice Locks
• Lockwood 3540 Series short backset mortice deadbolts

Specifications:

• Plate Dimensions: 185mm (H) × 26mm (W) × 11.5mm (D)
• Fixing Hole Centres: 160mm
• Lever Dimensions: Length: 121mm, Projection: 53mm, Finger Clearance: 37mm
• Door Thickness Range: 32mm – 50mm
• Material: Brass
• Finish Options: Satin Chrome and other finishes available upon request.
