Lockwood 8014 Series Cam Action Concealed Door Closer Size 1-4 Satin Stainless Steel 8014SIL
Lockwood 8014 Series Cam Action Concealed Door Closer Size 1-4 Satin Stainless Steel 8014SIL

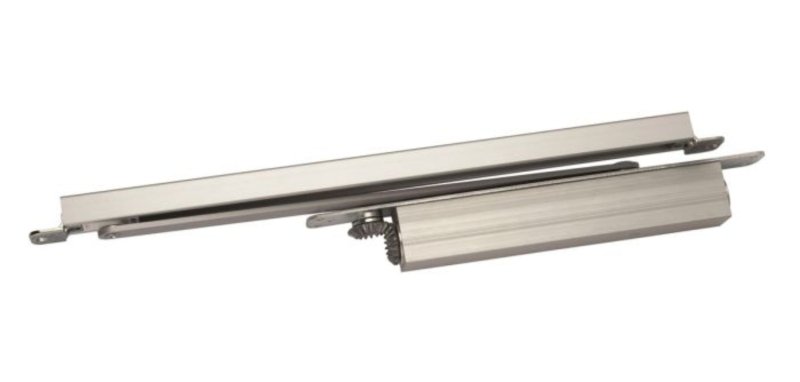

The Lockwood 8014/8015 Series is a concealed cam-action door closer fitted into the door and frame so it stays out of sight when the door is closed. Cam-action technology lowers the opening force while maintaining strong, controlled closing and latching.
Key Features
Specifications
| Series | 8000 Concealed Cam-Action Closer |
| Power / size | EN 1–4 |
| Technology | Cam action |
| Mounting | Concealed in door and frame |
| Finish | Satin Stainless Steel |
Door Closer Functions Explained
Power Size Guide
| Power size | Max door width (mm) | Max door leaf weight (kg) |
|---|---|---|
| EN 1 | up to 750 | 20 |
| EN 2 | up to 850 | 40 |
| EN 3 | up to 950 | 60 |
| EN 4 | up to 1100 | 80 |
| EN 5 | up to 1250 | 100 |
| EN 6 | up to 1400 | 120 |
Guide to the EN power sizes (EN 1154), which are defined by the door leaf width and weight. This closer covers the size range shown highlighted; heavier or wider doors need a higher power size.
Standards & Compliance
- Cam-action concealed closer for commercial doors.
Available Finishes
Swatch colours are indicative only. Living finishes develop a natural patina over time.
Warranty
Mechanical parts are warranted against defects in materials and workmanship under normal use, when correctly installed. Manufactured by ASSA ABLOY Australia. Lockwood warranty →
What size door does it suit?
Overhead closers are power-adjustable; the size range in the product title (e.g. EN 1–4) indicates the door widths/weights it covers. Contact Prime Hardware if you need help matching a size.
What do delayed action, hold-open and back-check do?
Delayed action pauses the door open before it closes; hold-open keeps it open at a set point; back-check cushions the door if it is thrown open. Only the functions named in this product's title are fitted.
Can it be mounted on either side?
Yes — these closers suit push or pull side; slide-rail and parallel-arm options give a lower-profile or flush installation.
What is backcheck?
Backcheck slows the door as it nears the fully open position so it can't be flung into an adjacent wall — protecting the hinges, frame, closer and wall. It is a cushioning feature, not a hold-open, and is useful in windy or exposed locations. Only closers whose title lists backcheck have this fitted.
What is delayed action?
Delayed action holds the door open, or closes it very slowly, through the first part of the swing before returning to normal speed — giving extra time for wheelchairs, prams, trolleys or moving furniture. It is common in hospitals and aged care. Only closers whose title lists delayed action (DA) have this fitted.
What do the EN power sizes mean?
The EN power size (EN 1154) sets the closing force, and each size is defined by the door leaf's width and weight. As a guide: EN1 up to 750 mm / 20 kg, EN2 up to 850 mm / 40 kg, EN3 up to 950 mm / 60 kg, EN4 up to 1100 mm / 80 kg, EN5 up to 1250 mm / 100 kg, EN6 up to 1400 mm / 120 kg. A range such as EN 1–4 means the closer is adjustable across those sizes — a wider or heavier door needs a higher power size.
Is this finish in stock?
Silver and Black finishes are normally held in stock with the supplier. All other finishes (and no-finish/raw components) are made to order — call Prime Hardware on 1800 329 028 to confirm availability and lead time before you order.
What warranty applies?
Lockwood products carry a 25-Year Mechanical Warranty against defects in materials and workmanship. Electrical/electronic components, where fitted, carry a separate electronic warranty. Manufactured by ASSA ABLOY Australia.
How can I get help?
Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156. We can confirm sizing, finishes and matching components before you order.
