Lockwood 8800 Series Size 3 Standard Floor Spring 90 Degree Hold Open Satin Stainless Steel 8843H90SSS - primehardware
Lockwood 8800 Series Size 3 Standard Floor Spring 90 Degree Hold Open Satin Stainless Steel 8843H90SSS - primehardware
Lockwood
SKU: 8843H90SSS

Lockwood 8800 Series Size 3 Standard Floor Spring 90 Degree Hold Open Satin Stainless Steel 8843H90SSS

$405.25 $417.80
You Save $12.55 (3% Off)
Tax included. Shipping calculated at checkout
Availability
Online: In Stock

Ships within 4–6 business days

Showroom: Check before visiting

Call us to confirm pickup availability.

Stock can move quickly. For urgent pickup, please call before visiting.
✓ Trusted by Builders, Designers & Renovators
🚚 Ships Australia Wide
↩ Easy 30 Day Returns
🔒 Secure Checkout Protection
Lockwood

Lockwood 8800 Series Size 3 Standard Floor Spring 90 Degree Hold Open Satin Stainless Steel 8843H90SSS

Product code: 8843H90SSS

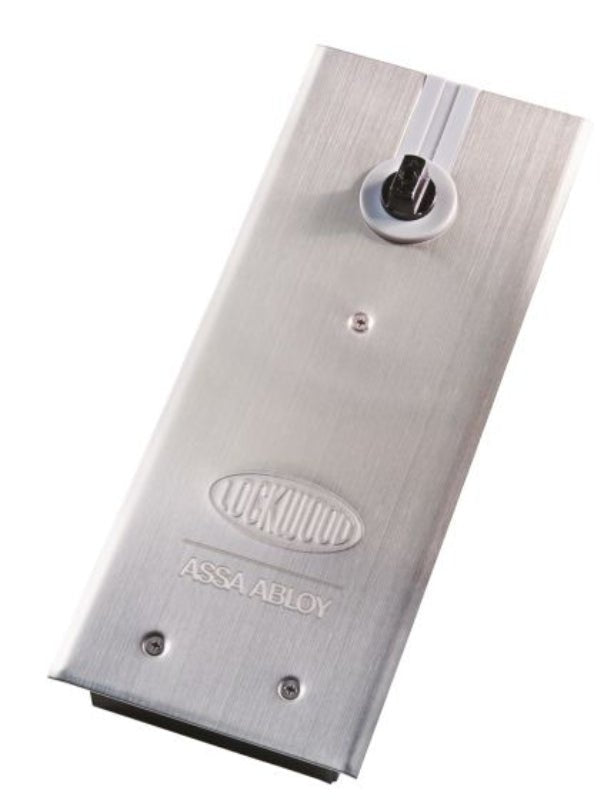

The Lockwood 8800 Series is a hydraulic floor spring (in-floor door closer) for single- or double-action doors. Concealed in the floor, it centres the door and controls closing speed, and suits timber, aluminium and glass doors.

Size 3Satin Stainless SteelIn-floor concealed

Key Features

✓Hold-open function — holds the door open at a set position until released.

Specifications

Series 8800 Standard Floor Spring
Power / size Size 3
Hold-open 90° hold-open
Action Single or double action
Suitable doors Timber, aluminium and glass doors
Cover finish Satin Stainless Steel
Finish Satin Stainless Steel

Door Closer Functions Explained

Floor spring. The closer is set into the floor rather than mounted on the door — suited to glass, heavy aluminium and double-action (swing-both-ways) doors.
Hold-open. The door can be held open at a chosen angle and closes normally once released. Note: a mechanical hold-open must not be used on a fire door unless it is an approved electromagnetic (fire-alarm released) hold-open.
Adjustable closing & latching speed. Separate valves let you tune the main closing sweep (about 180°–15°) and the final latching action (about 15°–0°).
Adjustable power (EN size). Sets how much force the closer uses to close the door, matched to the door's width and weight — see the power-size guide below.
Non hold-open versions of this closer simply close after every use, and are the type required on most fire-rated doors.
Other functions offered across this closer range: Backcheck slows the door as it nears the fully open position so it can't slam into an adjacent wall (protecting the hinges, frame and wall) and delayed action holds the door open, or closes it slowly, for the first part of the swing to give extra time for wheelchairs, prams and trolleys. This model includes the functions listed above.

Power Size Guide

Power size Max door width (mm) Max door leaf weight (kg)
EN 1 up to 750 20
EN 2 up to 850 40
EN 3 up to 950 60
EN 4 up to 1100 80
EN 5 up to 1250 100
EN 6 up to 1400 120

Guide to the EN power sizes (EN 1154), which are defined by the door leaf width and weight. This closer covers the size range shown highlighted; heavier or wider doors need a higher power size.

Standards & Compliance

  • Hydraulic floor spring for commercial door applications.

Available Finishes

Satin Stainless Steel

Swatch colours are indicative only. Living finishes develop a natural patina over time.

Warranty

✓25-Year Mechanical Warranty

Mechanical parts are warranted against defects in materials and workmanship under normal use, when correctly installed. Manufactured by ASSA ABLOY Australia. Lockwood warranty →

Made to order. This finish is made to order. Only Silver and Black are normally held in stock with the supplier — for this finish, call Prime Hardware on 1800 329 028 to confirm availability and lead time.
What is a floor spring?

A hydraulic door closer concealed in the floor. It centres the door and controls closing on single- or double-action doors, and suits timber, aluminium and glass doors.

What are the hold-open options?

This series is offered as non hold-open, 90° hold-open, or 105° hold-open depending on the model.

What does hold-open mean?

Hold-open lets the door be parked open at a chosen angle and it closes once released. Important: a plain mechanical hold-open must not be used on a fire door — a fire door may only be held open by an approved electromagnetic (fire-alarm released) device, which drops the door shut automatically on alarm or power failure.

What is backcheck?

Backcheck slows the door as it nears the fully open position so it can't be flung into an adjacent wall — protecting the hinges, frame, closer and wall. It is a cushioning feature, not a hold-open, and is useful in windy or exposed locations. Only closers whose title lists backcheck have this fitted.

What is delayed action?

Delayed action holds the door open, or closes it very slowly, through the first part of the swing before returning to normal speed — giving extra time for wheelchairs, prams, trolleys or moving furniture. It is common in hospitals and aged care. Only closers whose title lists delayed action (DA) have this fitted.

What do the EN power sizes mean?

The EN power size (EN 1154) sets the closing force, and each size is defined by the door leaf's width and weight. As a guide: EN1 up to 750 mm / 20 kg, EN2 up to 850 mm / 40 kg, EN3 up to 950 mm / 60 kg, EN4 up to 1100 mm / 80 kg, EN5 up to 1250 mm / 100 kg, EN6 up to 1400 mm / 120 kg. A range such as EN 1–4 means the closer is adjustable across those sizes — a wider or heavier door needs a higher power size.

Is this finish in stock?

Silver and Black finishes are normally held in stock with the supplier. All other finishes (and no-finish/raw components) are made to order — call Prime Hardware on 1800 329 028 to confirm availability and lead time before you order.

What warranty applies?

Lockwood products carry a 25-Year Mechanical Warranty against defects in materials and workmanship. Electrical/electronic components, where fitted, carry a separate electronic warranty. Manufactured by ASSA ABLOY Australia.

How can I get help?

Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156. We can confirm sizing, finishes and matching components before you order.
