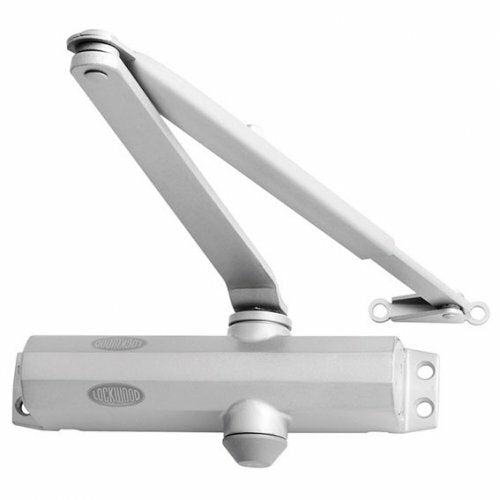

LOCKWOOD DOOR CLOSER HOLD OPEN 2024HSIL

Lockwood Door Closer Hold Open
2024HSIL

The Lockwood range of economy door closers is particularly quick and easy to install on most applications, ideally suitable where cost is a high priority. Multi position mounting template enables adjustment on site to meet most conditions also low stock holding as one model will cover 3 power sizes. Suitable for doors up to 1100mm in width.

Features:

• Hold-open range is 80° to 165°
• Non handed. Suitable for left or right hand doors
• Independent valves control closing and latching speeds which can be readily adjusted on site when required
• Backcheck available in this series, please see our store
• NOTE: Hold-open option is not approved on any fire door

Specifications:

• Mechanism: Rack and pinion design.
• Materials: High purity die cast aluminium housing with hardened steel rack and pinion mechanism.
• Finish: Silver baked enamel.
• Power Selection Charts: The power of the door closer is altered by adjusting the position of the door closer body on the mounting template.
• Functions in Detail: All products include parallel arm bracket; Multi strength mounting (one model covers size 2, 3, and 4); Parallel Arm Size 2 and 3.
