Description

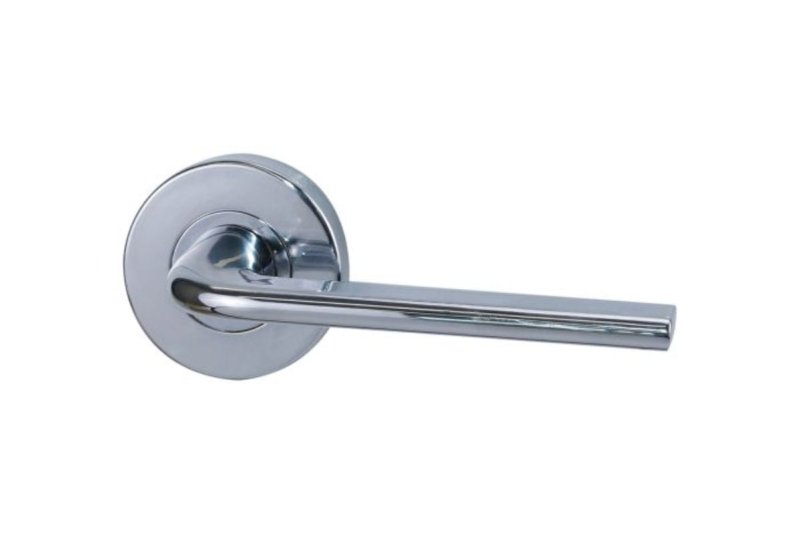

The Velocity 55mm Round Passage Set with Glide L4 Lever in Chrome Plate is a modern door hardware solution designed for residential and commercial connecting doors. Constructed from solid zinc die-cast, it features a 55mm diameter round rose suited for hinged doors with thickness from 32mm to 45mm. The chrome plate finish provides a polished, corrosion-resistant surface with a sleek aesthetic. The Glide L4 lever measures 121mm in length, projects 56.5mm, and offers a finger clearance of 33.5mm, ensuring ergonomic and comfortable operation. Passage sets come with or without a 60mm backset tubular latch to accommodate different door requirements. Installation is facilitated by Lockwood’s twist and tighten fixing system, which conceals fixings beneath removable rose trims for a clean, professional finish. Manufactured in Australia, the set includes a 25-year mechanical warranty, assuring durability and long-lasting performance.
| Model No | VSR1/L4CP |
|---|---|
| EAN | 9340116011882 |
| Fire Rating | up to 2 hours |
| Body / Case Material | Zinc |
| Handle Type | Glide L4 |
| Handing | Reversible |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
| Rose Diameter | 55mm |
| Rose Design | Round |
| Backset | 60mm |
| Door Type | Hinged |
| Tested to Standards | Tested to Australian Standard |
| Residential | Yes |
| Fixing Type | Concealed |
| Door Thickness Range | 32-45mm |
| Approved Standards Rating Level | Corrosion Security C3, Durability D8 |
