Description:

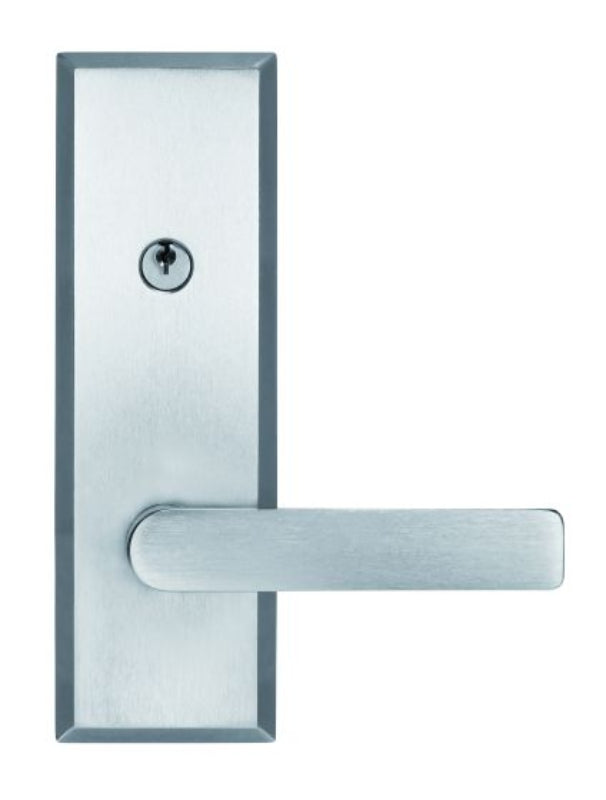

The Velocity Entrance Lock L3 SC No Cylinder Satin Chrome is a high-security entrance lock designed to meet Australian standards for residential and light commercial entryways. Featuring the Element L3 Lever with a satin chrome finish, this entrance set provides a contemporary look and excellent durability. It includes a high-security latch with a 60mm backset, is suitable for door thicknesses between 35mm and 45mm, and features a 13mm brass bolt for added strength. The lockset is constructed from solid zinc die-cast for reliable, long-term performance and offers concealed fixings for a clean, modern appearance. The 'No Cylinder' model is intended for applications where the end user will specify or install their own compatible cylinder, such as restricted or master key systems. Installation is straightforward, with all necessary templates and fixings included, and the lock can be keyed alike with other Lockwood locks for convenience.
The Velocity Entrance Lock L3 SC No Cylinder Satin Chrome is a high-security entrance lock designed to meet Australian standards for residential and light commercial entryways. Featuring the Element L3 Lever with a satin chrome finish, this entrance set provides a contemporary look and excellent durability. It includes a high-security latch with a 60mm backset, is suitable for door thicknesses between 35mm and 45mm, and features a 13mm brass bolt for added strength. The lockset is constructed from solid zinc die-cast for reliable, long-term performance and offers concealed fixings for a clean, modern appearance. The 'No Cylinder' model is intended for applications where the end user will specify or install their own compatible cylinder, such as restricted or master key systems. Installation is straightforward, with all necessary templates and fixings included, and the lock can be keyed alike with other Lockwood locks for convenience.
The Lockwood Velocity Entrance Lockset is the latest development in the Entrance Lockset range. Designed and manufactured to Australian Standards, the Velocity Entrance Lockset provides a simple and functional entrance lock to complement the Velocity Door Handle range.
* See ordering procedure for product range
Please refer to Lockwood Keying Catalogue or contact your local sales office or customer service for specific information.
Features and Specifications
- High security latch
- Box strike with concealed crossgrain door frame strengthening screw
- Installation template included
- Can be keyed alike to other Lockwood door locks
Product Details
| Backset | 60mm as supplied 70mm optional (order part 530-222SC) |
| Case | High purity zinc alloy |
| Door Thickness | 35 to 45mm |
| Finishes | Satin Chrome (SC) |
| Handles | Lever 3 |
| Latch | 13mm projection brass bolt |
| Strike | Box strike with concealed crossgrain door frame strengthening screw |
| Templates | Installation template included |
| Handing | Adjustable handing by set screw |
| Cylinder | Internal and external. 5 pin tumber mechanism with 6pin capability. Brass cylinders and brass barrels. |
Standards and Compliance
| (Security) Australian LockStandard (AS4145.2.2008) | |
| (Durability) Australian LockStandard (AS4145.2.2008) | |
| (Corrosion) Australian LockStandard (AS4145.2.2008) | |
| CE Approved | |
| Conforms to Australian Standard (AS4145.2‑2008 SL7D8C5K6) |
Keying
- Supplied individually keyed with twokeys per lock
- 78,000 key combinations
- Key blank KB2015P
Please refer to Lockwood Keying Catalogue or contact your local sales office or customer service for specific information.
|
Kinetic Defence® Bump and pick resistant. |
|
|
Safety Release™ Minimises the risk of being locked in. |
|
|
Safety Mode Securely locked from outside and free from inside. |
|
|
Secure Mode Securely locked from both inside and outside. For when nobody is home. |
|
|
Passage Mode Free to enter from outside and free to exit from inside. |
|
|
Deadlatch Bolt 13mm projection brass bolt. |
|
|
2 Keys Included Can be keyed alike to other Lockwood door locks. |
|
|
Quick Installation Suitable for door thicknesses between 35–45mm. |
|
|
Retrofitable Fits majority of doors with 54mm hole. |
| Model No | VEL0/L3SCNOCYL |
|---|---|
| EAN | 9340116035215 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
