Description

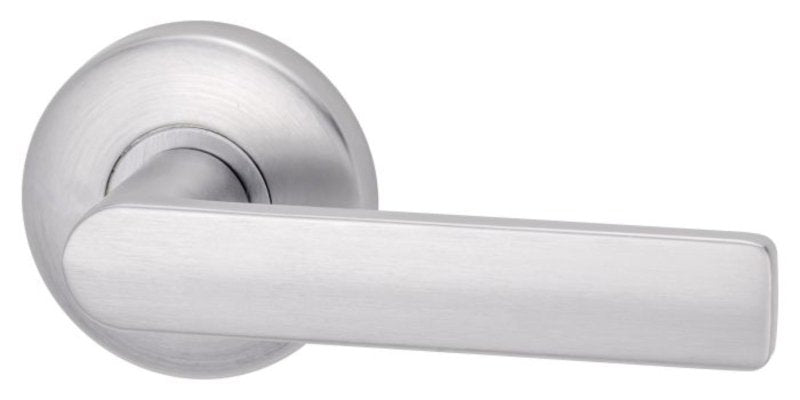

The Velocity Passage Set & L3 Lever TP Satin Chrome is part of the Lockwood Velocity Series, designed for internal connecting doors within residential environments. It features a 63mm round rose and an Element L3 lever crafted from solid zinc die-cast with a satin chrome finish, combining durability with a modern aesthetic. The set includes a pair of lever handles and is supplied with a 60mm backset tubular latch, ideal for passage doors where locking is not required. Installation is streamlined through a twist-and-tighten fixing method, with all fixings concealed beneath a removable rose trim for a clean and sleek look. The lever measures 122mm in length with a 54.5mm projection and 47.5mm finger clearance, offering ergonomic comfort. Suitable for hinged doors 32mm to 45mm thick, this passage set provides a consistent design aesthetic that complements the other products in the Velocity Series for a uniform home finish
Lockwood Velocity® Series 63mm Rose Door Handles offer home owners and builders a contemporary collection of levers on rose for use within a residential environment. Designed in Australia, the Velocity series encompasses the robust design and product quality that has become synonymous with Lockwood. An attractive yet unobtrusive rose design complemented with four modern lever designs. The Velocity Series captures the aesthetic tone of the residential market providing style whilst maintaining utilitarian desire.
With a design that transcends the basic functional and aesthetic requirements of residential hardware, the Velocity series sets a new benchmark in ease of installation. The Velocity Series includes passage sets for connecting doors, privacy sets for bathroom and toilet doors and dummy half sets for use on cupboard and wardrobe doors where a consistent styling is desired.
Velocity levers styles are common to the Lockwood Nexion and Lockwood Palladium ranges, facilitating a uniform design aesthetic throughout the home. It is also the perfect complement to the uncompromising Paradigm 005 deadbolt.
Functions
- Passage
- Privacy
Features of the Velocity Series Door Furniture
- All fixings are concealed beneath a removable rose trim providing a crisp and clean presentation desired by the discerning home owner
- A simple twist and tighten fixing method and lever set pre-assembly allows for super easy and super fast installation
- Available in a choice of six lever designs and two finishes
- The rose fits 50mm or 54mm diameter holes making it suitable for retrofit and common door preparations
- Designed in Australia for the specific needs of the Australian market
| Model No | VEL1/L3SC |
|---|---|
| EAN | 9311847124424 |
| Fire Rating | Not Tested |
| Body / Case Material | Zinc |
| Access and Mobility | No |
| Handle Type | Element L3 |
| Handing | Reversible |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
| Rose Diameter | 63mm |
| Rose Design | Round |
| Backset | 60mm |
| Door Type | Hinged |
| Residential | Yes |
| Fixing Type | Concealed |
| Door Thickness Range | 32-45mm |
| Approved Standards Rating Level | D1, Corrosion Security C3 |
