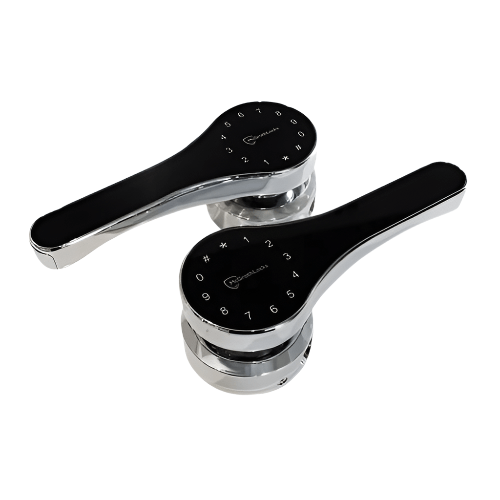

McGrath Ascot Digital Lock, Double Sided to suit Gate Installation, IP66 Rating, Polished Chrome Finish with 60mm Tubular Latch

The McGrath ASCOT is a durable 4-in-1 double-sided digital lock, purpose-built for external applications such as gates where both sides require independent locking. Suitable for residential, commercial, and access-controlled outdoor environments.

Access is granted via PIN code, RFID card, BLE eKey, or mechanical key override, with all user and lock settings managed through the TTLock App. Add the McGrath Wi-Fi Gateway for remote unlocking and access monitoring. With an IP66 rating and tempered glass screen, the ASCOT is ideal for exposed environments.

Key Features:

• 4-in-1 access: PIN, RFID, BLE eKey, mechanical key

• Double-sided locking – ideal for gates and outdoor use

• TTLock App: Manage users, send eKeys, and view audit trail

• IP66 rated – designed for external conditions

• Passage mode, anti-peep PIN, and lockout on incorrect attempts

• App-controlled reset button disable for extra security

• Mechanical override and tempered glass screen

• Supplied with tubular latch; mortice compatible

• Field-changeable handing

Specifications:

• Brand: McGrath Locks

• Finish: Polished Chrome

• IP Rating: IP66

• Biometric Access: No

• Fire Rated: No

• Door Compatibility: Standard stile gates

• Latch Type: Tubular latch (included)

• Power: 4 x AAA batteries per handle (not included)

• Lock Rose Diameter: 75 mm

• AS1428.1 Compliant Lever: No

• Assembly: With latch
