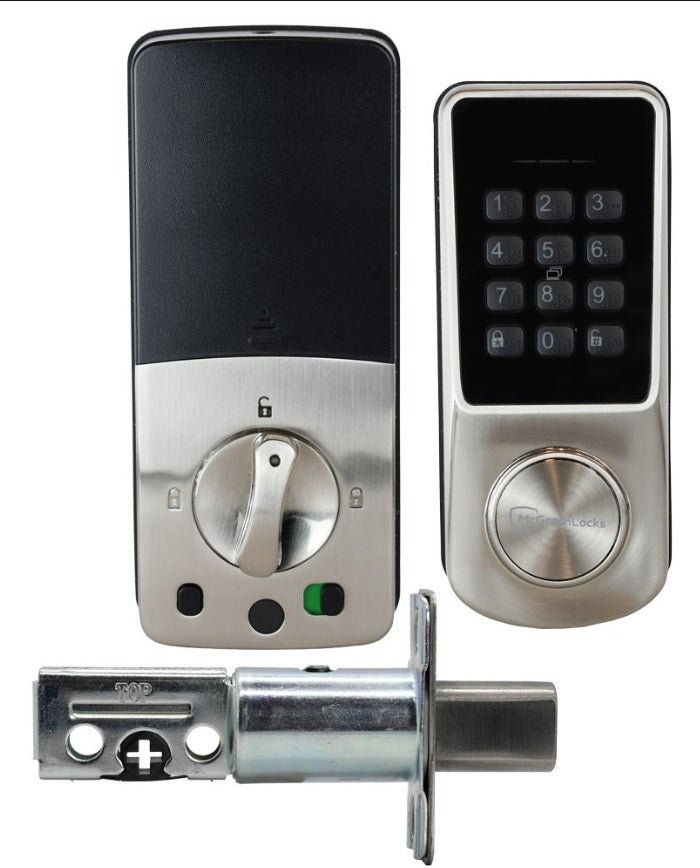

Digital door lock set with keypad and mechanical lever on a white background

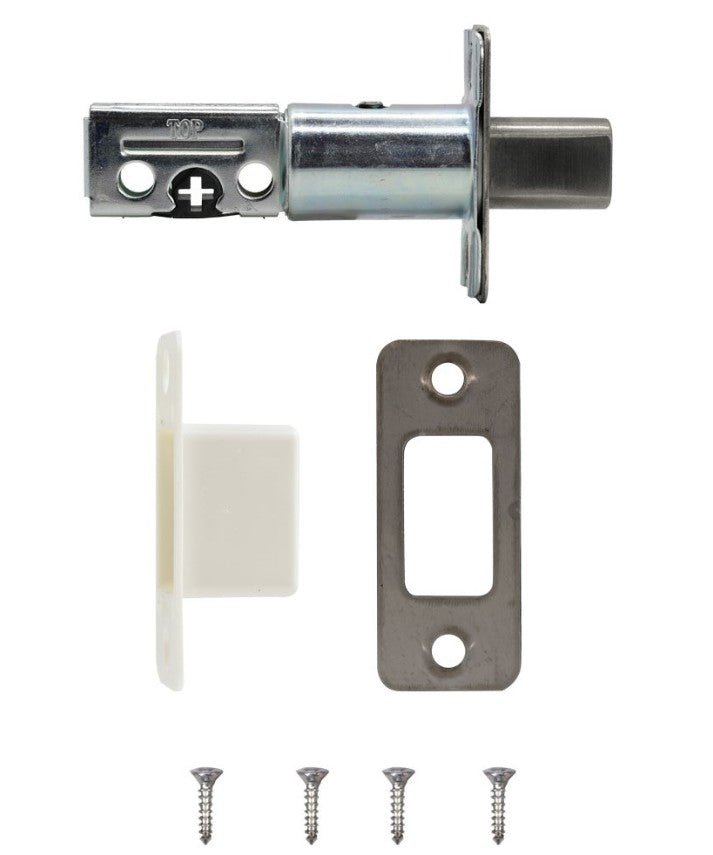

Door lock mechanism with components on a white background

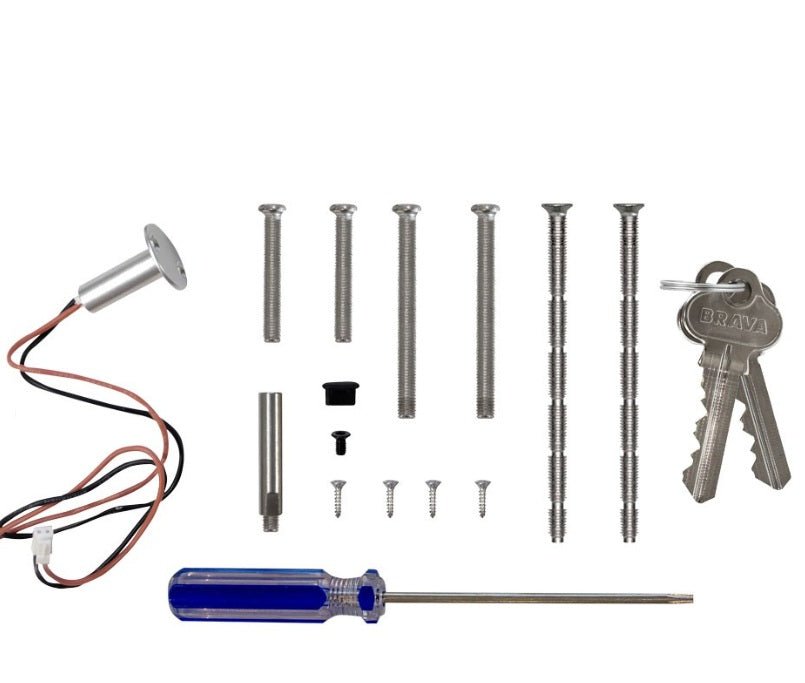

Set of screws, a screwdriver, and keys on a white background

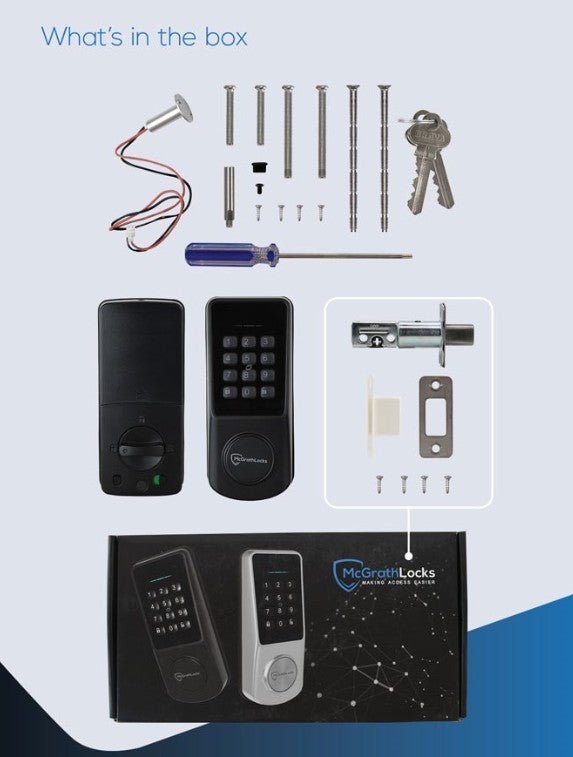

Lock installation kit with components and McGraw-Hill Locks branding on a light blue background.
McGrath Locks electronic door locks on a branded packaging background
Digital door lock set with keypad and mechanical lever on a white background
Door lock mechanism with components on a white background
Set of screws, a screwdriver, and keys on a white background
Lock installation kit with components and McGraw-Hill Locks branding on a light blue background.
McGrath Locks electronic door locks on a branded packaging background
McGrath Locks
SKU: MLASHSNT6070

McGrath Locks Ashgrove Smart Deadbolt - Braille Raised Buttons - Satin Nickel

$472
Tax included. Shipping calculated at checkout
Availability
Online: In Stock With Supplier

Ships within 4–8 business days

Showroom: Check before visiting

Call us to confirm pickup availability.

Stock can move quickly. For urgent pickup, please call before visiting.
✓ Trusted by Builders, Designers & Renovators
🚚 Ships Australia Wide
↩ Easy 30 Day Returns
🔒 Secure Checkout Protection

Overview

The McGrath Locks Ashgrove is a highly accessible 4-in-1 digital deadbolt tailored for the Australian market. It features a unique tempered glass screen with raised Braille buttons, ensuring ease of use for all users regardless of environment. Finished in Satin Nickel, this smart lock combines inclusive design with robust security, all managed via the McGrath Locks App.

Inclusive Access & Control

Designed for versatility, the Ashgrove provides four secure methods of entry:

  • Digital: Raised Braille buttons for tactile PIN code entry with Anti-Peep security.

  • RFID: Support for contactless cards and credentials.

  • Mobile: Bluetooth eKeys managed via the McGrath Locks App.

  • Manual: Mechanical key override featuring a rekeyable PD cylinder.

High-Performance Build

Constructed with fire-resistant materials and a scratch-resistant tempered glass interface, the Ashgrove is built for longevity. The external assembly carries an IP65 weather rating, while the internal hardware includes a 304 stainless steel anti-saw adjustable bolt for maximum physical security.

Technical Specifications

Feature Specification
Finish Satin Nickel
Interface Tempered Glass with Raised Braille Buttons
Entry Methods PIN, RFID, eKey, Mechanical Key
Security IP65 Rated, Fire Resistant Materials, Anti-Saw Bolt
Power 4 x AA Alkaline Batteries (Emergency USB-C Port)
Door Thickness Fits 35mm – 60mm
Backset 60/70mm Adjustable
Certification Australian Registered Design # 202513992
What makes the Ashgrove different from other smart locks? +
The Ashgrove is specifically designed for accessibility. It features raised buttons with Braille on a tempered glass screen, allowing for tactile navigation and easier use for the vision-impaired or in low-light conditions.
Can I manage the lock remotely? +
Yes. Using the McGrath Locks App via Bluetooth, you can manage users and settings. For full remote access (unlocking from anywhere), a McGrath Locks Wi-Fi Gateway (sold separately) is required.
How does the "Door Sensor" work? +
The Ashgrove comes with a door sensor that monitors the physical position of the door. This allows the lock to detect if the door is left ajar and enables precise Auto-Locking once the door is closed.
What happens if the batteries fail? +
The lock will alert you via the app and an audible sound when batteries are low. If they die completely, you can use the Mechanical Override Key or plug a power bank into the USB-C emergency port for temporary power.
Is this lock suitable for fire-rated doors? +
The Ashgrove is constructed using fire-resistant materials, making it a robust choice for demanding Australian residential applications.
