The McGrath Locks Z Chip is a TTLock operated 12 – 24v dry contact relay. It is perfect solution for expanding your TTLock ecosystem for roller doors, gates, bollards, or via a buffered relay - electric strikes and maglocks. The McGrath Locks wireless keypad can be connected to the Z Chip for Pincode access to your doors or gate.
Connecting a gateway also provides remote access through the TTLock App to your device making it perfect for deliveries behind gates or roller doors. The controller can be set to open / close the low voltage relay from 1 – 900 seconds via the TTLock App.

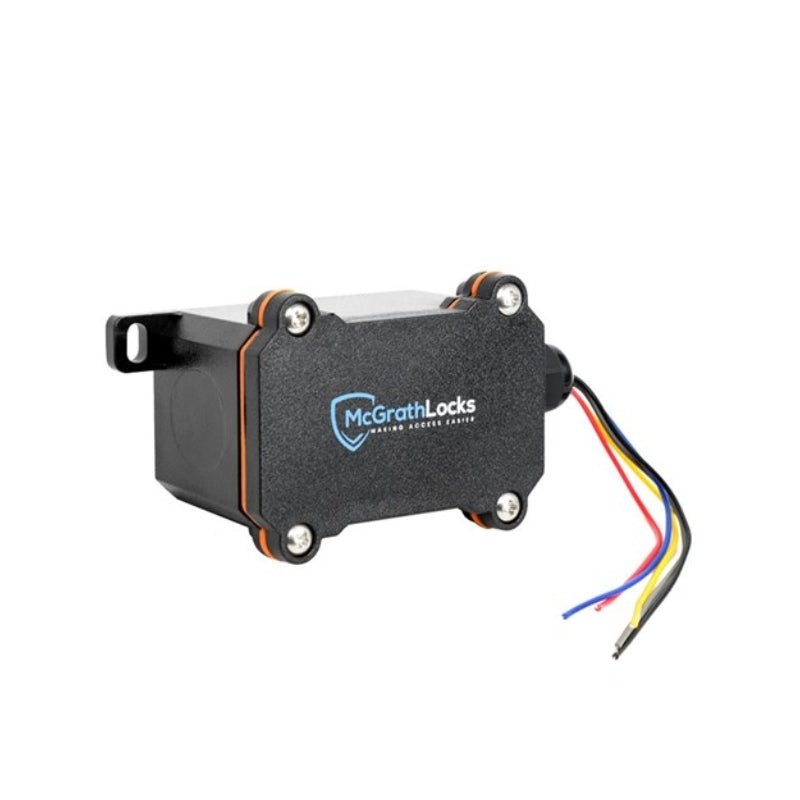

It is supplied with an IP68 weather enclosure for protection on external installations.
Z Chip
- 12- 24v DC.
- BLE 4.0 and above.
- Built-in real time chip.
- Built-in antenna.
- 38 L x 27 W mm.
- Can add one wireless keypad per Z Chip.
- Working temperature -20° ~ 70°.
Weather case enclosure
- 50 L x 30 H x 21 mm W.
- IP68.
Technical Specifications
- Brand McGrath Locks
