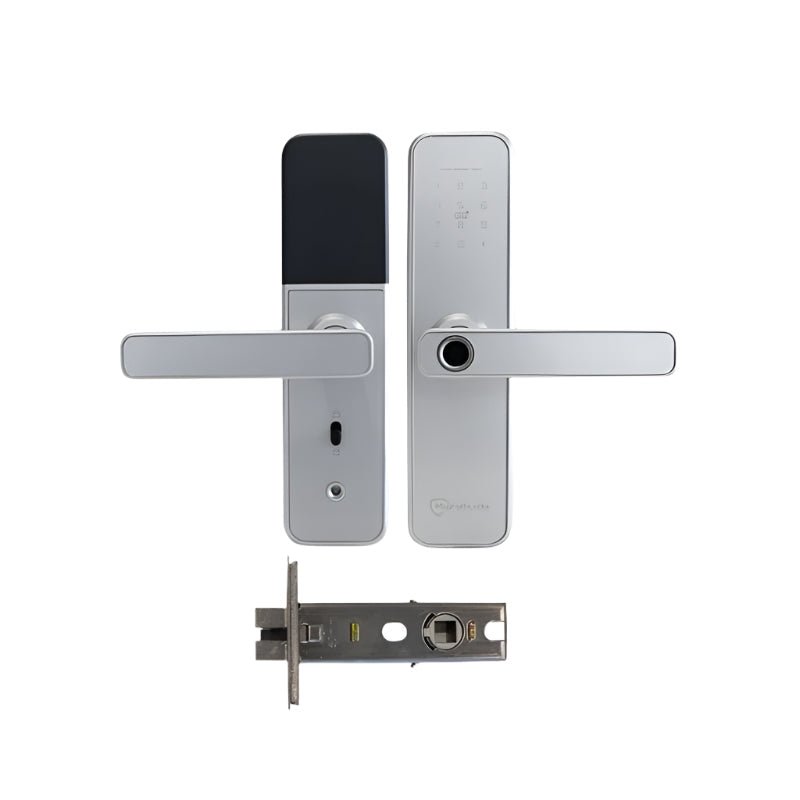

McGrath NX5 Digital Lock, Nickel Silver Finish with 60mm Backset Tubular Latch

The NX5 by McGrath Locks is a versatile 5-in-1 digital lock designed for residential, office, and commercial use. It provides secure access via PIN code, RFID card, fingerprint, Bluetooth eKey (via TTLock App), and mechanical key override.

Ideal for retrofit applications, the NX5 features a larger body to cover existing holes. Compatible with either a tubular latch or European mortice lock, it suits doors 38–54 mm thick.

Key Features

• 5 access methods: Fingerprint, PIN, RFID, Bluetooth eKey, mechanical key

• Managed via TTLock App: add/remove users, send eKeys, view access logs

• Remote access with McGrath Wi-Fi Gateway (sold separately)

• Privacy lock function (admin-only access mode)

• Passage mode and anti-peep code

• Lockout after incorrect attempts

• USB-C emergency power port

• Low battery alerts (in-app and audible)

• Field-changeable handing

Specifications

• Brand: McGrath Locks

• Model: NX5

• Finish: Nickel Silver

• IP Rating: IP65 (external handle)

• Fire Rated: No

• Accessibility (AS1428.1): Not compliant

• Fingerprint Access: Yes

• Latch Type: Tubular Latch (or mortice option)

• Assembly: With latch

• Door Thickness: 38–54 mm

• Power: 4 × AA Alkaline batteries (not included)

• Dimensions: 255 mm (H) × 65 mm (W) × 21 mm (D)
