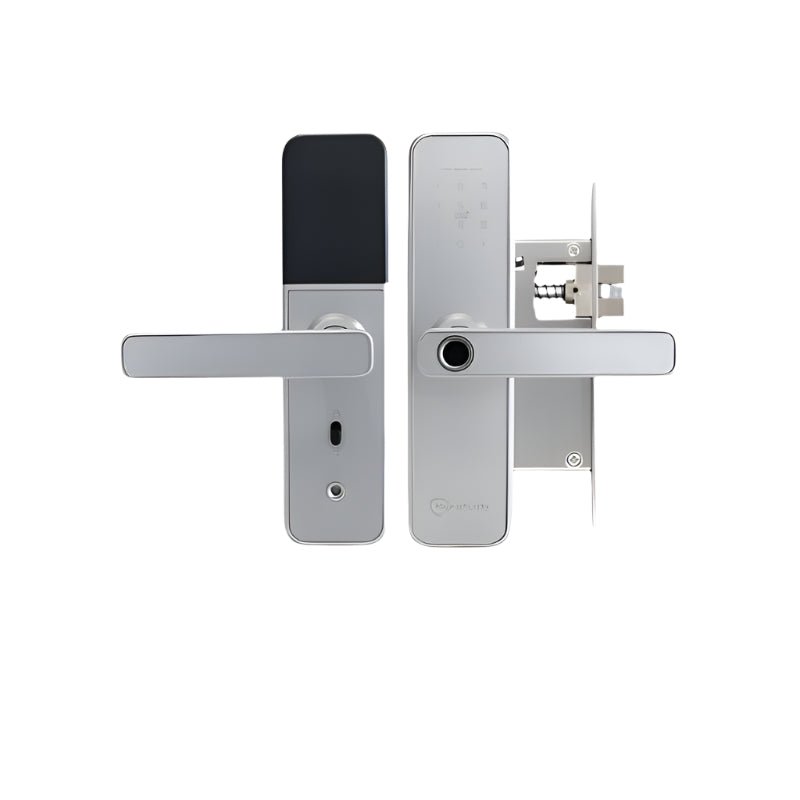

McGrath Locks NX5 Digital Door Lock – 5-in-1 Access, Mortice Lock, TTLock App Nickel Silver

The McGrath NX5 is a robust digital lock designed for residential and commercial use. It offers five access methods: fingerprint, PIN, RFID, Bluetooth eKey (via TTLock App), and mechanical key override. Its larger body suits retrofit installations on standard stile doors.

Compliance & Classification

• Ingress Protection: IP65 (external housing)

• Accessibility: Not AS1428.1 compliant

• Fire Rating: Not fire rated

• Suitable Use: Residential, commercial, retrofit applications

Key Features

• 5-in-1 access options

• Managed via TTLock App: user enrolment, audit trail, passage/privacy modes

• Anti-peep PIN, lockout after incorrect attempts

• USB-C emergency power

• Low battery alerts (in-app and audible)

• Field-changeable handing

Specifications

• Finish: Nickel Silver

• Door Thickness: 38–54 mm

• Lock Type: Mortice lock (included)

• Power: 4 × AA batteries (not included)

• Dimensions: 255 mm (H) × 65 mm (W) × 21 mm (D)

In the Box

• NX5 lock

• Mortice lock case

• Mechanical keys

• RFID cards

• Mounting hardware

• User manual
