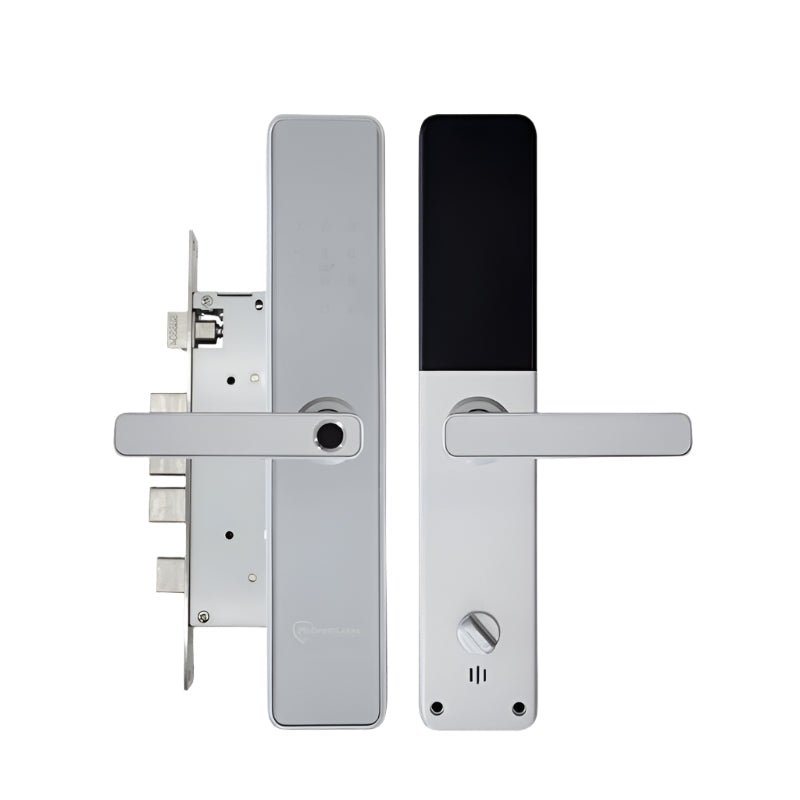

McGrath NX6 WIFI Digital Lock, Nickel Silver Euro Style 6068 60mm Backset Mortice Lock

The NX6 by McGrath Locks is a robust 5-in-1 digital door lock, designed for residential and commercial applications. With built-in Wi-Fi, it allows remote access and full control via the TTLock App—no additional gateway required.

Users can unlock via fingerprint, PIN, RFID card, Bluetooth eKey, or mechanical key override. Supplied with a European mortice lock, the NX6 also includes a manual privacy bolt and a wider lock body, ideal for retrofit installations.

Key Features

• Access methods: Fingerprint, PIN, RFID, Bluetooth eKey, mechanical key

• Wi-Fi built-in: No gateway required for remote control

• TTLock App: Full control of users, access logs, lock settings, and schedules

• Passage mode and manual privacy bolt

• Anti-peep PIN entry and incorrect attempt lockout

• Low battery alerts (App + audible)

• Reset button lockout via App

• USB-C emergency power and mechanical override

• Field-changeable handing

Technical Specifications

• Brand: McGrath Locks

• Model: NX6 (Wi-Fi)

• Finish: Nickel Silver

• IP Rating: IP65 (external components)

• Biometric Access: Yes

• Fire Rated: No

• AS1428.1 Compliant Lever: No

• Door Compatibility: Standard stile doors (38–110 mm thickness)

• Latch Type: Mortice lock with manual privacy bolt

• Power Source: 8 × AA alkaline batteries (not included)

• Emergency Power: USB-C port

• Dimensions: 370 mm (H) × 75 mm (W) × 24 mm (D)
