Metlam
SKU: 106_RHHO_SCP
Metlam Gravity Hinge Hold Open Right Hand Visible Screw Fix
✓ Trusted by Builders, Designers & Renovators
🚚 Ships Australia Wide
↩ Easy 30 Day Returns
🔒 Secure Checkout Protection
Metlam Australia

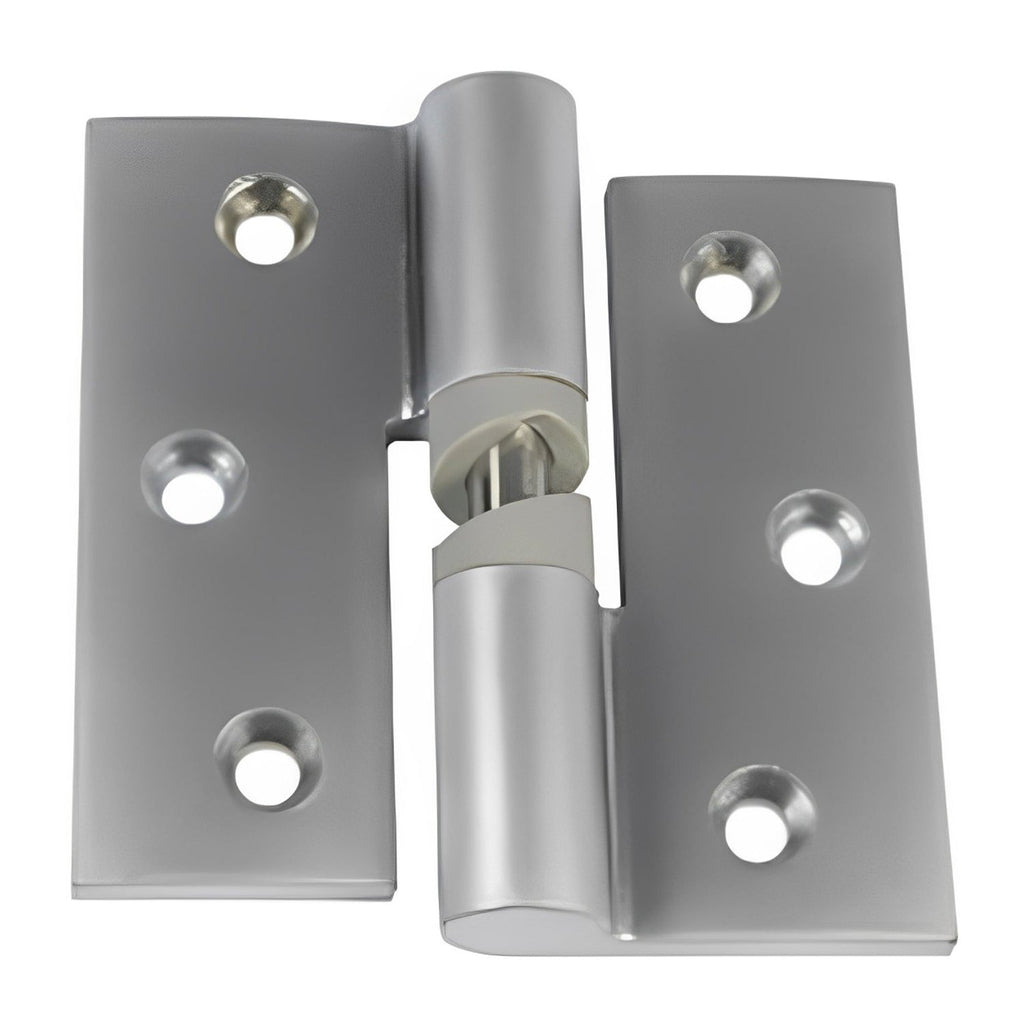

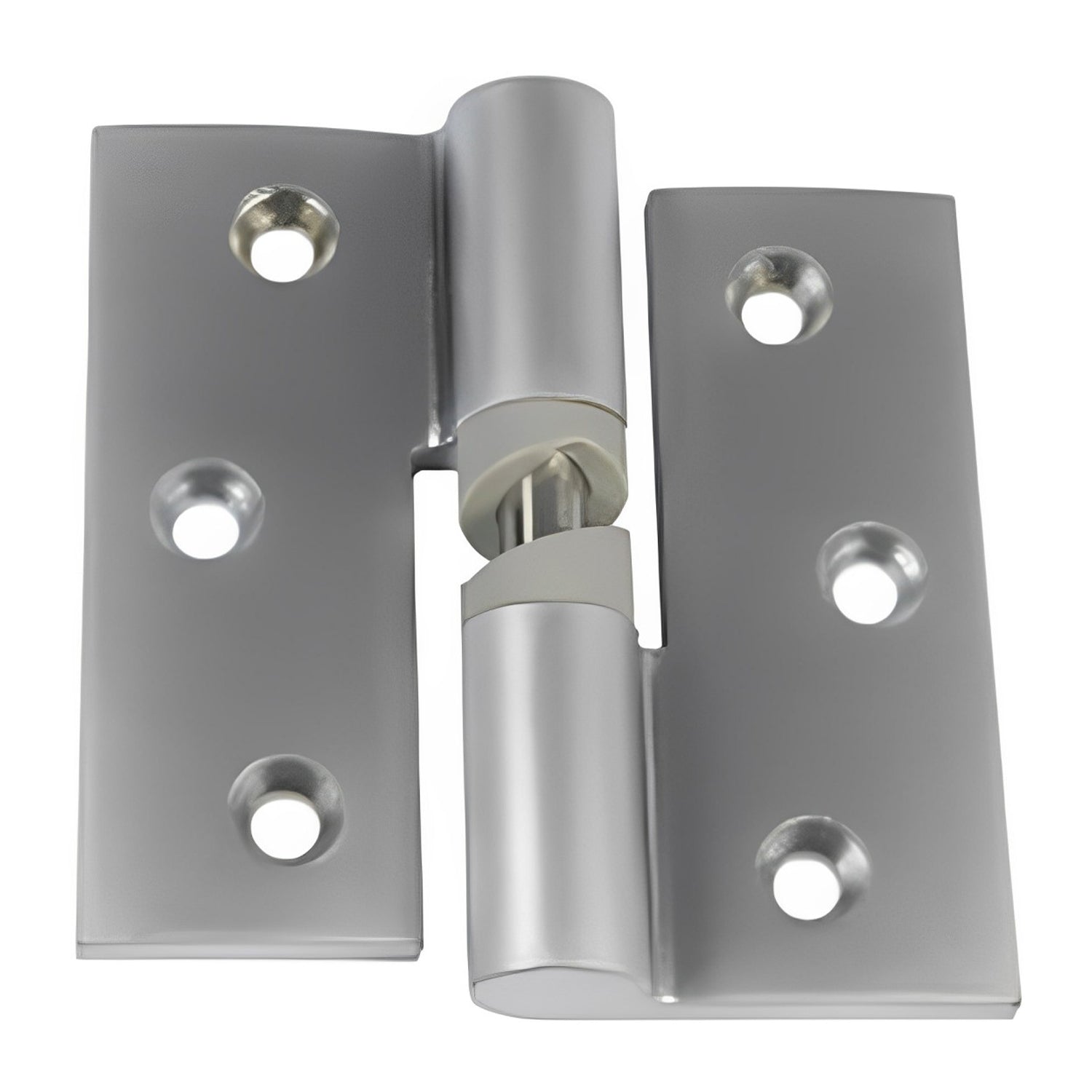

Metlam Gravity Hinge Hold Open Right Hand Visible Screw Fix
Product code (SKU): 106_RHHO_SCP
Metlam Gravity Hinge Gravity Hinge is a type of hinge that operates based on the weight of the door itself. Gravity Hinge Function - can be set to automatically open or close by utilizing the door's weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort
| Satin ChromeFinish | 82mmSize | |
| 15kg per HingeLoad Rating | Visible Screw FixFixing | |
Features
- Gravity-assisted door opening/door closing with lift-off capability
Specifications
| Product Code | 106_RHHO_SCP |
| Material | Diecast Zinc and Stainless Steel Shaft Minimum Hinge Clearance: 30mm |
| Load Rating | 15kg per Hinge |
| Function | Hold Open |

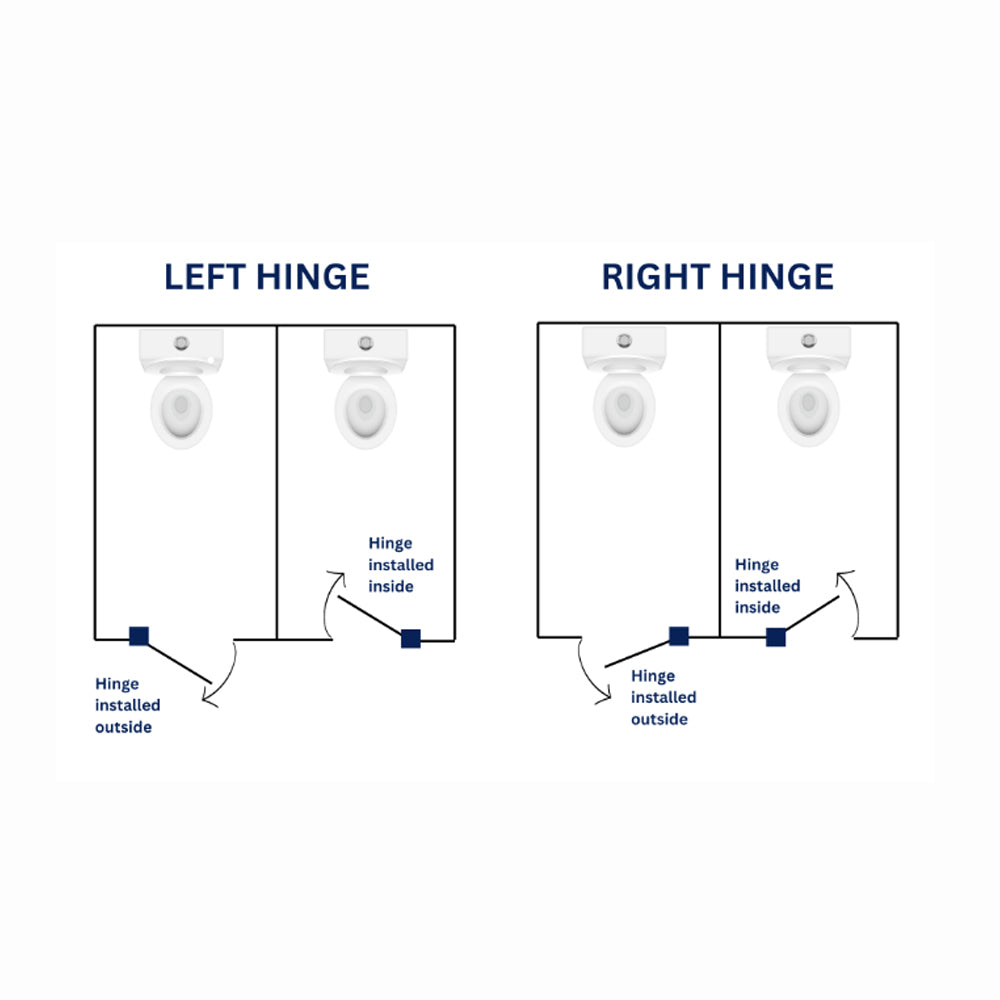

| Handing | Right Hand |
| Height | 80mm |
| Length | 82mm |
| Thickness | 5mm |
| Centre to Centre | 56mm |
| Fixing | Concealed Bolt Through Concealed Screw Fix Visible Bolt Through Visible Screw Fix |
| Finish | Satin Chrome |
No FAQs available for this product.
