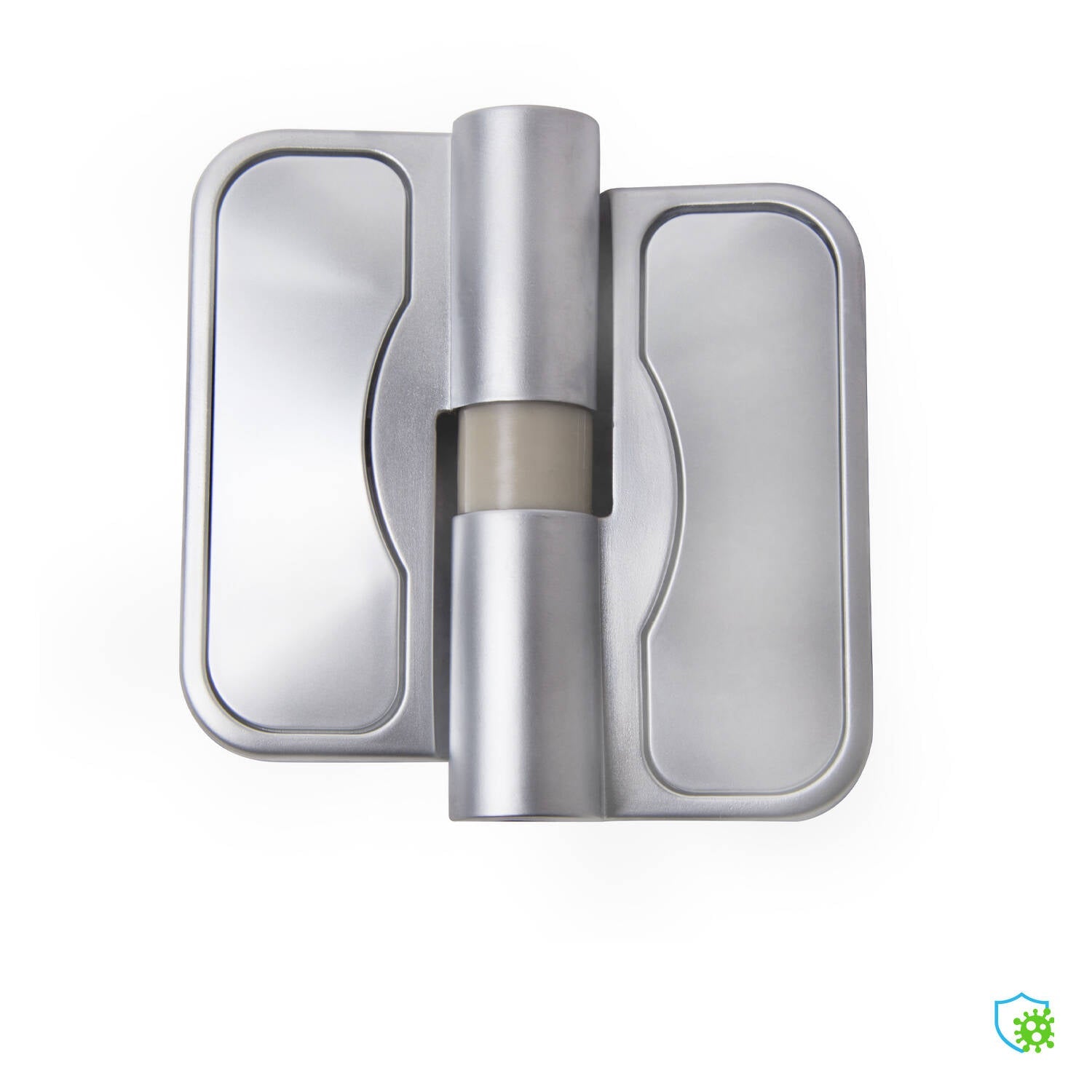

Metlam Moda Gravity Hinge Antimicrobial Right Hand
✓ Trusted by Builders, Designers & Renovators
🚚 Ships Australia Wide
↩ Easy 30 Day Returns
🔒 Secure Checkout Protection
Metlam Australia
Metlam Moda Gravity Hinge Antimicrobial Right Hand
Product code (SKU): MODA_RHGRAVITY_ANMB
Metlam Moda Gravity Hinge Gravity Hinge is a type of hinge that operates based on the weight of the door itself. Gravity Hinge Function - can be set to automatically open or close by utilizing the door's weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort.
| Antimicrobial CoatedFinish | Right HandHanding | |
Features
- - Step on the back of the hinge plus an increased vertical nylon drop allows for better movement from the gravity function. - Nylons are set so the door can move past 90degrees whilst still functioning correctly - Nylon cover on the barrel keeps foreign substances from penetrating the pins and nylons allowing for a smoother opening and closing - Interchangeable hinge covers including Moda Spring Hinge - The fixing holes correlate with the bolt-through faceplates making installation a breeze - Lift off capability
Specifications
| Product Code | MODA_RHGRAVITY_ANMB |
| Material | Diecast Zinc, Alloy ZP3, Brass Shaft, Nylon Inserts, ABS Snap-On Covers |
| Load Rating | 15Kg per hinge (for optimum performance 2 hinges per door up to 30Kgs for doors over 30Kg allow for 15Kg per hinge) |

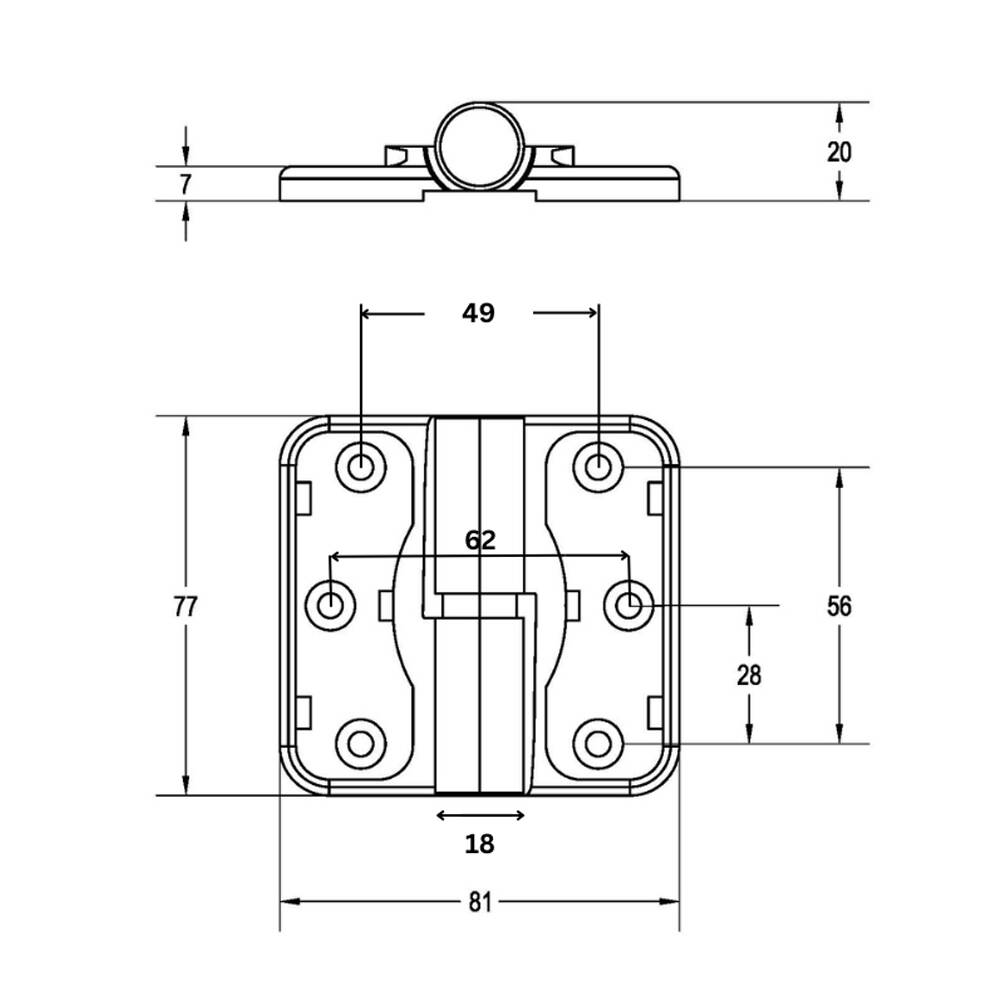

| Centre to Centre | 49mm |
| Projection | 20mm |
| Height | 77mm |
| Width | 81mm |
| Available Handing | Left Hand, Right Hand |
| Finish | Antimicrobial Coated |
| Handing | Right Hand |
