Intro

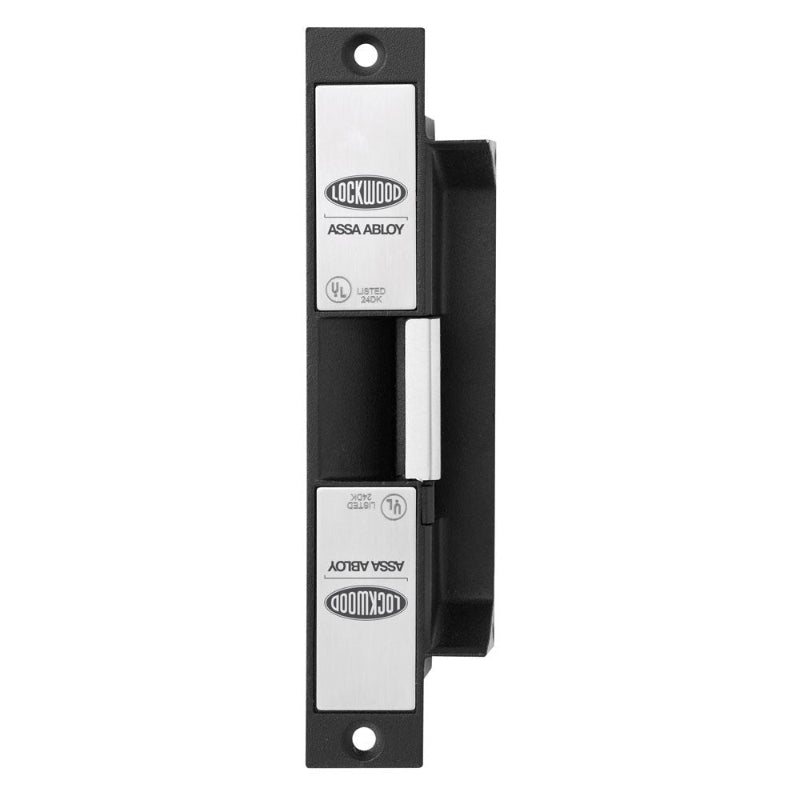

The Padde ES200 Electric Strike is a high-performance access control solution designed for hinged doors requiring enhanced fire safety and security. Compatible with all access control systems, it features a deep throat design, strong holding force, and field-changeable fail safe or fail secure operation for flexible installations.
Key Features & Benefits
-
✅ Function: Electric strike for access control door locking
-
✅ Monitoring: Non-monitored configuration
-
✅ Fire Rating: Certified fire rated up to 4 hours
-
✅ Material: Stainless steel striker with hardened locking pins
-
✅ Voltage: 12V DC operation
-
✅ Operation: Power to lock or power to open, changeable on site
-
✅ Design: Non-handed for left or right-hand doors
-
✅ Strength: Holding strength of 850kg for high-security applications
-
✅ Installation: Supplied with self-adhesive installation template and mounting kit
Specifications
-
Brand: Padde
-
Product Code: 05225002
-
Fire Rating: Up to 4 hours
-
Working Voltage: 12V DC
-
Current Draw: Maximum 175mA at 12V DC
-
Monitoring Type: Non-monitored
-
Holding Strength: 850kg
-
Locking Mode: Fail safe or fail secure, field selectable
-
Handing: Non-handed
-
Strike Construction: Stainless steel striker with three hardened locking pins
-
Body Depth: 27mm
-
Lip Extension: Drilled for optional lip extension
-
Door Type Compatibility: Hinged doors
-
Power Capability: Solenoid suitable for continuous power
Available Finishes
-
Stainless Steel
Applications
This electric strike is ideal for commercial buildings, offices, apartments, access-controlled entry points, and fire-rated door assemblies. Its robust construction and fire compliance make it suitable for both new installations and security upgrades.
Installation & Inclusions
-
Simple installation using the supplied self-adhesive template
-
Supplied with mounting kit
-
Drilled for optional lip extension
-
Compact body depth for easier frame installations
Why Choose Padde Es200 Electric Strike?
The Padde ES200 delivers a dependable combination of fire-rated compliance, strong holding force, and flexible on-site configuration. It is a trusted solution for professional access control installations requiring reliability and performance.
👉 This is a non-monitored electric strike designed for use with access control systems on hinged doors.
Q2. Can the locking mode be changed during installation?
👉 Yes, the ES200 allows on-site selection between fail safe and fail secure, as well as power to lock or power to open operation.
Q3. Is this electric strike fire rated?
👉 Yes, it is fire rated up to 4 hours when installed on approved fire-rated door assemblies.
Q4. What finishes are available for this model?
👉 The Padde ES200 Electric Strike is supplied in a stainless steel finish for durability and corrosion resistance.
Q5. What warranty applies to this electric strike?
👉 This electric strike is covered by the manufacturer’s warranty against faulty workmanship and materials from the date of purchase, subject to correct installation, normal use, and proper maintenance conditions.
