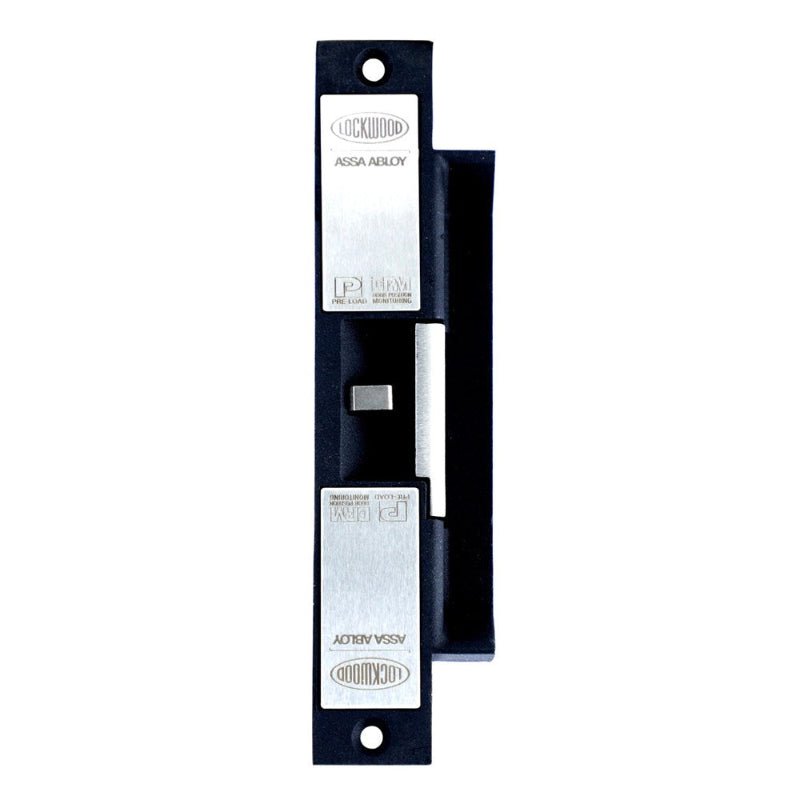

Padde Es9100 Electric Strike Fully Monitored 12Vdc To 30Vdc 25Kg Pre Load 4 Hour Fire Rated

lscSKU: LSCES9100
filler

Price:
$555.35

Tax included. Shipping calculated at checkout
Stock In stock with supplier - ships in 5 - 8 days
Easy 30-day returns
🔒 Secure checkout with multiple payment options

Intro

The Padde ES9100 Electric Strike is a premium, high-security access control solution engineered for harsh commercial and regulated environments. Built on the proven ES9000 platform, it adds advanced Door Position Monitoring via an integrated reed switch, delivering exceptional reliability, compliance, and long-term performance.


Key Features & Benefits

  • Function: High-security electric strike for access control systems

  • Monitoring: Fully monitored lock status, latch position, and door position (DPS)

  • Fire Rating: Certified fire rated up to 4 hours on approved door assemblies

  • Pre-Load Capability: Operates reliably under up to 25kg side pressure

  • Material: Solid stainless steel construction for extreme durability

  • Voltage: Multi-voltage operation from 10V DC to 30V DC

  • Operation: Field selectable fail safe or fail secure

  • Quiet Performance: Latch keeper designed for significantly quieter operation

  • Strength: 1300kg holding force for high-security installations

  • Reliability: Tested to over 2.5 million operating cycles


Specifications

  • Brand: Padde

  • Product Code: ES9100

  • Working Voltage: 10V DC to 30V DC

  • Current Draw: 250mA @ 12V DC, 130mA @ 24V DC

  • Monitoring Type: Lock status, latch position, and door position monitoring

  • Holding Strength: 1300kg

  • Pre-Load Rating: Operates under pre-load up to 25kg

  • Endurance Rating: 2.5 million cycles

  • Fire Rating: 4 hours

  • IP Rating: IP54

  • Locking Mode: Fail safe or fail secure (field selectable)

  • Latch Compatibility: Suits 15mm latch with a 3mm door gap

  • Handing: Non-handed

  • Construction: Solid stainless steel

  • Compliance: S8 & D8 approved to AS4145.2:2008


Available Finishes

  • Stainless Steel


Applications

This electric strike is ideal for government buildings, defence facilities, data centres, high-security commercial sites, hospitals, and fire-rated door assemblies where advanced monitoring, high endurance, and regulatory compliance are mandatory.


Installation & Inclusions

  • Supplied with mounting tabs

  • Pre-drilled for optional extension lips

  • Built-in protection diode

  • Solenoid rated for continuous duty

  • Designed for hinged doors with fire or security requirements


Why Choose Padde Es9100 Electric Strike?

The Padde ES9100 delivers an unmatched combination of advanced door position monitoring, high pre-load performance, extreme endurance, and fire-rated compliance. It is a trusted solution for critical access control environments where failure is not an option.

Frequently Asked Questions
Q1. What type of product is this?
👉 This is a fully monitored, high-security electric strike designed for professional access control systems on hinged doors.

Q2. What does door position monitoring mean?
👉 Door Position Monitoring (DPS) uses an integrated reed switch to confirm whether the door is physically open or closed, improving system visibility and security control.

Q3. What does pre-load capability mean for this electric strike?
👉 Pre-load capability allows the strike to release even when side pressure is applied to the door, such as from door weight, air pressure, or user force, up to 25kg.

Q4. Is this electric strike fire rated?
👉 Yes, it is certified fire rated up to 4 hours when installed on approved fire-rated door assemblies.

Q5. What warranty applies to this electric strike?
👉 This electric strike is covered by the Padde Series 5-Year Tricare Warranty, protecting against defects in materials and workmanship, subject to correct installation, normal use, and proper maintenance conditions.
