PROTECTOR 485 Series Mortice Sash Lock Pitch 85mm Backset 30mm Satin Stainless Steel - 726 - 30 - SSF PR48530SS - primehardware
PROTECTOR 485 Series Mortice Sash Lock Pitch 85mm Backset 30mm Satin Stainless Steel - 726 - 30 - SSF PR48530SS - primehardware
lsc
SKU: PR48530SS

PROTECTOR 485 Series Mortice Sash Lock Pitch 85mm Backset 30mm Satin Stainless Steel - 726-30-SSF PR48530SS

$100.80
Tax included. Shipping calculated at checkout
Availability
Online: In Stock

Ships within 4–6 business days

Showroom: Check before visiting

Call us to confirm pickup availability.

Stock can move quickly. For urgent pickup, please call before visiting.
✓ Trusted by Builders, Designers & Renovators
🚚 Ships Australia Wide
↩ Easy 30 Day Returns
🔒 Secure Checkout Protection

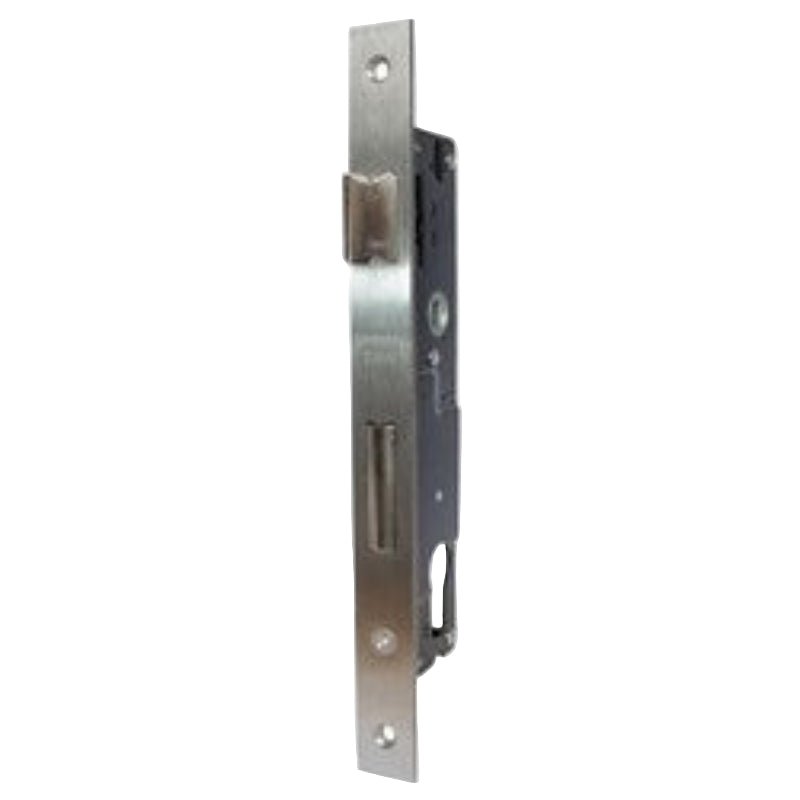

The PROTECTOR 485 Series is a robust mortice sash lock designed for commercial and residential doors, particularly those with narrow stiles. This lock combines a latch and a deadbolt function within a single body, providing both convenient latching and key security. A key feature is its short 30mm backset, which makes it ideal for installation in aluminium, steel, or other narrow-profile doors. The lock has an 85mm pitch, ensuring compatibility with a wide range of standard door furniture. Operated by a lever handle and a Euro profile cylinder (sold separately), the lock's reversible latch bolt allows it to be used on both left and right-hand doors. The faceplate is finished in a durable Satin Stainless Steel (SSF), providing excellent corrosion resistance and a modern, clean aesthetic.

Description

PROTECTOR heavy duty euro style mortice lock with 30 mm backset.

  • Euro cylinder operated mortice lock.
  • 30 mm backset.
  • Pitch 85 mm.
  • Face plate 240 (L) x 22 mm (W).
  • Case size 174 (H) x 45 mm (D) includes face plate.
  • Easily reversible without opening the case.
  • 8 mm spindle hub.
  • Single throw 15 mm deadbolt.
  • Key retracts latch.
  • Incorporates a fixed cam euro style cylinder.
  • Supplied less cylinder.
  • Supplied with Euro cylinder retaining screw
  • Supplied with black plastic escutcheons, strike plate & fixing screws.
  • Strike 170 (L) x 24 mm (W) with 16 mm lip.
  • Supplied boxed.
  • Finished in satin stainless steel.
Technical Specifications
Brand PROTECTOR
Compatible With Most Restricted Keying Systems Yes
Finish Satin Stainless Steel
Lock Grade Domestic
Lock Pitch In mm 85
Backset 30 mm
Uses Cylinder/Plug Type Euro Fixed Cam
