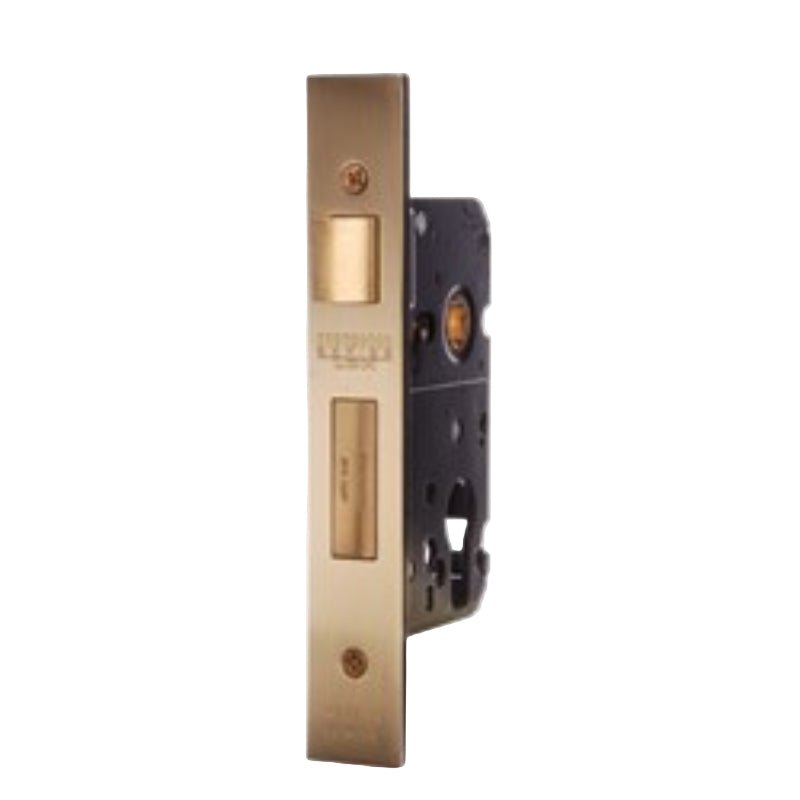

PROTECTOR 748 Series Euro Cylinder Mortice Sash Lock Pitch 48mm Backset 45mm Satin Brass - 735-2.5-SBF PR74845SB
PROTECTOR 748 Series Euro Cylinder Mortice Sash Lock Pitch 48mm Backset 45mm Satin Brass - 735-2.5-SBF PR74845SB
The PROTECTOR 748 Series is a high-quality Euro cylinder mortice sash lock designed for commercial and residential doors that require a specific fitting. This lock combines both a latch and a deadbolt function within a single body, providing both convenient latching and key security.
Overview
A key feature is its 48mm pitch, which is the distance between the handle spindle and the cylinder, making it suitable for a variety of door furniture. The lock has a 45mm backset, which is the distance from the faceplate to the centre of the keyhole. Operated by a lever handle and a Euro profile cylinder (sold separately), the lock's reversible latch bolt allows it to be used on both left and right-hand doors. PROTECTOR heavy duty euro style sash lock with 45 mm backset. Case size 108 (L) x 79 mm (D). Face plate 165 (L) x 25.5 mm (W).
Key Features
- 45 mm backset.
- Case size 108 (L) x 79 mm (D).
- Face plate 165 (L) x 25.5 mm (W).
- Pitch 48 mm.
- Incorporates fixed cam euro cylinder (not included).
- Retrofits most lever locks locks such as Yale, Union and Legge.
- Meets AS4145.2 - 1993. S3.
- Reversible latchbolt.
Specifications
| Brand | Lsc |
| Type | Lock Cylinder |
| Backset | 48mm |
Available Finishes
Swatch colours are indicative only. Living finishes develop a natural patina over time.
Warranty
| ✓12-Month Mechanical Warranty | Covers defects in materials and workmanship, in line with your rights under Australian Consumer Law. |
What is the PROTECTOR 748 Series Euro Cylinder Mortice Sash Lock Pitch 48mm Backset 45mm Satin Brass - 735-2.5-SBF PR74845SB?
It is a Lsc lock cylinder.
What's the difference between passage, privacy and entrance?
Passage: The latch operates from both sides at all times and does not lock. Ideal for hallways, walk-in robes, linen cupboards and other doors that don't need privacy or security. Privacy: Locks from the inside with a turn or push button, with an emergency release on the outside. Designed for bathrooms, ensuites and bedrooms. Entrance: Key-lockable from the outside and released by a turn or button on the inside. Suited to main entry doors and any door that needs keyed security.
What backset does it need?
It has a 48mm backset — the distance from the door edge to the centre of the hole. Check your door preparation matches before ordering.
What warranty does it come with, and how do I care for it?
Lsc locksets are covered by a 12-month mechanical warranty under normal use when correctly installed. Wipe with a soft, damp cloth and avoid abrasive cleaners to protect the finish.
How can I get help choosing the right function?
Our team is happy to help. Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156.
