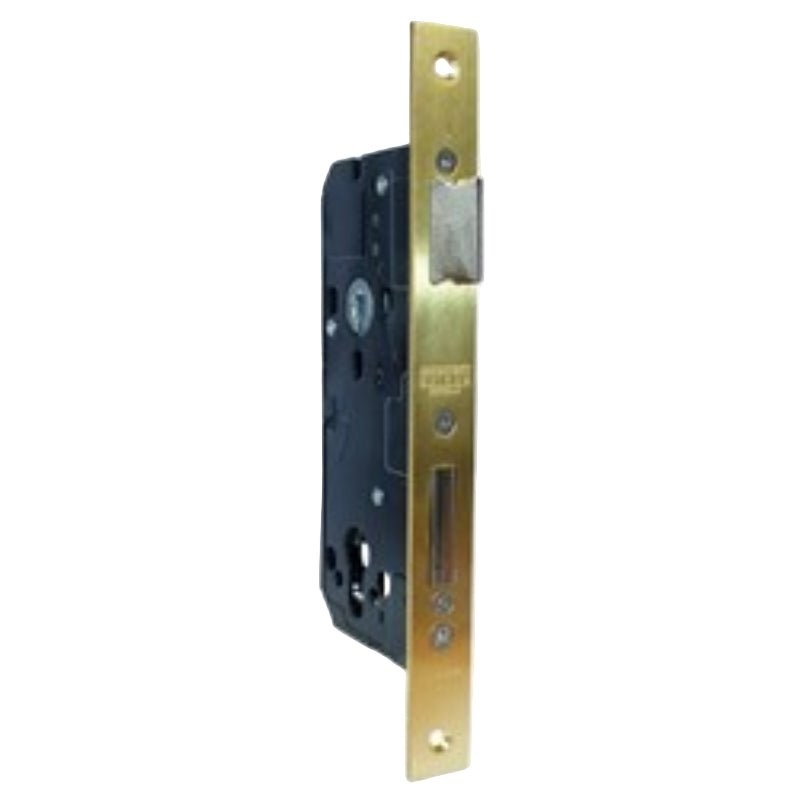

PROTECTOR 785 Series Mortice Sash Lock Pitch 85mm Backset 60mm Satin Brass - 785-60-SBF PR78560SB

lscSKU: PR78560SB
filler

Price:
$91

The PROTECTOR 785 Series is a robust Euro cylinder mortice sash lock designed for commercial and residential doors. This lock combines both a latch and a deadbolt function within a single body, providing both convenient latching and key security. A key feature is its 85mm pitch, which is the distance between the handle spindle and the cylinder, making it compatible with a wide range of standard door furniture. The lock has a 60mm backset, which is the distance from the faceplate to the centre of the keyhole. Operated by a lever handle and a Euro profile cylinder (sold separately), the lock's reversible latch bolt allows it to be used on both left and right-hand doors. The faceplate is finished in a durable and classic Satin Brass (SBF), providing excellent corrosion resistance and a timeless aesthetic.

Description

PROTECTOR heavy duty euro style mortice lock with 60 mm backset.

  • Euro cylinder operated heavy duty mortice lock.
  • 60 mm backset.
  • Pitch 85 mm.
  • Face plate 240 (L) x 23 mm (W).
  • Case size 168 (H) x 88 mm (D) includes face plate.
  • Handle fixing centres 41 mm.
  • Easily reversible without opening the case.
  • 8 mm spindle hub.
  • Double throw 21 mm deadbolt with anti-saw protection.
  • Key retracts latch.
  • Incorporates a fixed cam euro style cylinder.
  • Supplied less cylinder.
  • Supplied less escutcheons.
  • Strike 200 (L) x 24 mm (W) with 16 mm lip.
  • Finished in satin brass.
Technical Specifications
Compatible With Most Restricted Keying Systems Yes
Finish Satin Brass
Lock Grade Domestic
Lock Pitch In mm 85
Backset 60 mm
Uses Cylinder/Plug Type Euro Fixed Cam
