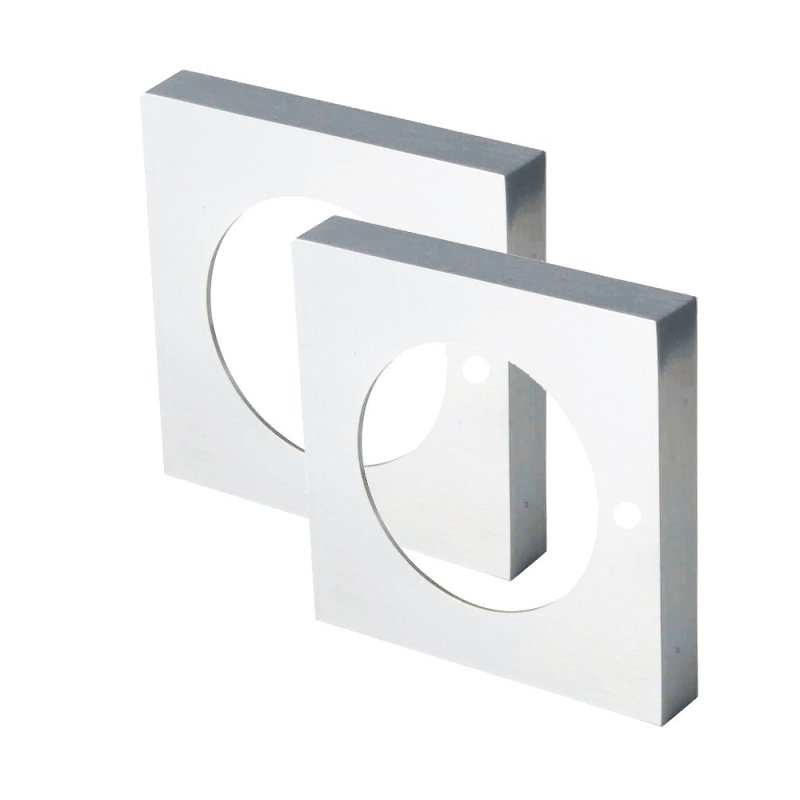

Austyle Square Adaptor Privacy Rose for Builders Choice Levers Chrome Plated
You May Also Need
This product is included in the bundle below
Superior Brass Butt Hinge Fixed‑pin Chrome Plated Polished Chrome 76x41mm (Pair)
Superior Brass Door Stop & Holder Chrome Plated Polished Chrome 65mm
Austyle Square Adaptor Privacy Rose for Builders Choice Levers Chrome Plated
This is a Superior Brass door lever handle in zinc alloy.
Door Functions Explained
The handle set is the same in each case — the latch or lock behind it is what changes.
| Function | What it does |
|---|---|
| Passage | The latch operates from both sides at all times and does not lock. For bedrooms, living areas, studies — any door that simply opens and closes. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release on the outside. For bathrooms, ensuites and bedrooms. |
| Entrance / Euro | Key-lockable using a euro-profile cylinder in a euro mortice lock. For front, back and any door that must lock with a key. |
| Skeleton Key (Traditional) | A traditional 3 lever mortice lock operated by a skeleton key, with a key escutcheon on each face. For period doors. |
| Dummy / Fixed | A fixed handle with no latch. Used as a pull on a fixed panel or the inactive leaf of a double door. |
Matching Lock Bodies
Austyle and Superior Brass share one lock platform, so the lock body is chosen by the door function and the backset you need. Codes below are the matching Polished Chrome.
| Function | Lock body | Centre distance | Code & backset | Use |
|---|---|---|---|---|
| Passage | Passage Tube Latch | — | 39028 45mm 39031 60mm | Bedrooms, living areas — no lock |
| Privacy | Privacy Mortice Lock | 57mm | 39062 45mm 39022 60mm | Bathrooms, ensuites, bedrooms |
| Entrance / Euro | Euro Mortice Lock | 85mm | 9000 47.6mm 9300 60mm | Front and back doors — keyed |
| Skeleton Key | 3 Lever Mortice Lock | 57mm | 39020 45mm 49021 60mm | Traditional key lock |
| Rebated (Double Doors) | Rebated 3 Lever Mortice Lock | 57mm | 39047 45mm 39048 60mm | Double doors with a rebated meeting stile |
Backset is the distance from the door edge to the centre of the spindle. Measure the existing lock before ordering.
Complete Your Set — Sold Separately
This set includes the handles and fixings only. The items below are required depending on the function you need. Codes shown are the matching Polished Chrome.
Specifications
| Finish | Chrome Plated (CP) |
| Material | Zinc Alloy |
Warranty
Covers defects in materials and workmanship under normal use, when correctly installed. Applied as a Builders Choice lever set.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes patina naturally over time.
What is the Austyle Square Adaptor Privacy Rose for Builders Choice Levers Chrome Plated?
It is a Superior Brass door handle set in zinc alloy, finished in Chrome Plated (CP). Product code 33539P.
What is included?
The lever set only — a pair of levers, with the spindle and fixing screws. The latch or lock body for your chosen function is NOT included and is ordered separately, because the same handle set is used for every function. Hinges, door stops and euro cylinders are also sold separately.
Which lock body do I need?
It depends on the door function. Passage doors take a passage tube latch (9028 45mm / 9031 60mm). Privacy doors take a privacy mortice lock (9062 45mm / 9022 60mm). Entrance doors take a euro mortice lock (9000 47.6mm / 9300 60mm) plus a euro cylinder. A traditional skeleton key door takes a 3 lever mortice lock (9020 45mm / 9021 60mm). Rebated double doors take a rebated 3 lever lock (9047 / 9048). Austyle and Superior Brass share one lock platform, so the code carries the same finish as the handle — see the Matching Lock Bodies table in the description for the codes in this finish.
What is the difference between Passage, Privacy, Entrance and Skeleton Key?
Passage: the latch operates from both sides and never locks. Privacy: locks from the inside with a turn or snib, with an emergency release outside. Entrance / Euro: key-lockable using a euro cylinder in a euro mortice lock. Skeleton Key: a traditional 3 lever mortice lock operated by a skeleton key, with a key escutcheon on each face. Dummy / Fixed: a fixed handle with no latch, used as a pull.
What is backset, and which do I choose?
Backset is the distance from the edge of the door to the centre of the spindle. The lock bodies come in 45mm and 60mm (and 47.6mm on the euro lock). Measure the existing lock, or the position of the handle on the door, before ordering.
How many hinges do I need?
Three hinges per door is the standard. Hinges are supplied as a pair, so a standard door takes two pairs. Concealed 3D hinges are the exception and are sold singly. Heavier or taller doors may need a fourth hinge.
What warranty does it carry?
15-Year Mechanical Warranty, covering defects in materials and workmanship under normal use when correctly installed. It is applied as a Builders Choice lever set.
How do I care for the finish?
Wipe with a soft, damp cloth and dry. Avoid abrasive cleaners and solvents. Living finishes such as antique and unlacquered brass are designed to develop a natural patina over time.
How can I get help?
Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156.
