Intro

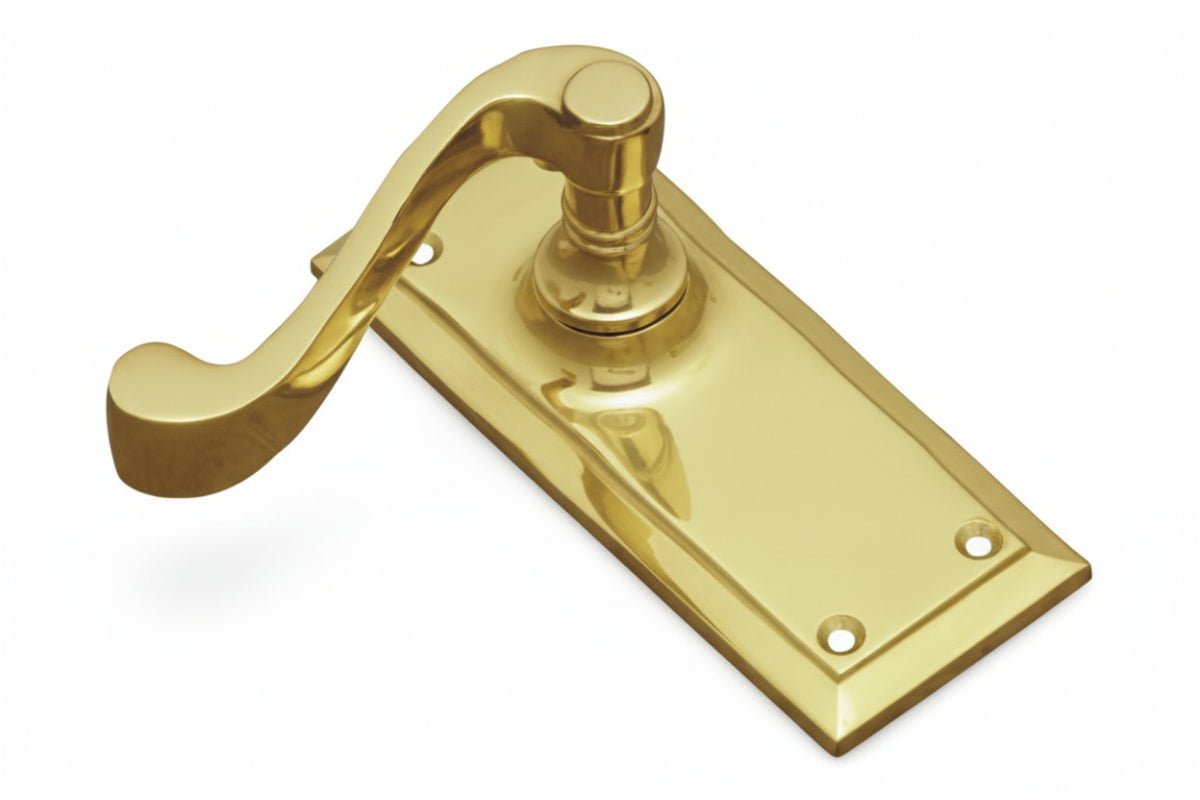

The Superior Brass Lever Latch Forged Virgin Brass Polished Brass 125x50mm is a compact, premium passage door solution designed for smooth, non-locking access. Crafted from forged virgin solid brass and engineered with a patented stainless steel ball bearing mechanism, it delivers exceptional durability, refined aesthetics, and fire-rated performance for high-quality interiors.
Key Features & Benefits
-
✅ Function: Passage lever set for non-locking internal doors
-
✅ Design: Classic lever design in a compact backplate size
-
✅ Finish: Polished Brass for a timeless, elegant appearance
-
✅ Material: Forged Virgin Solid Brass for superior strength and longevity
-
✅ Mechanism: Patented stainless steel ball bearing mechanism for ultra-smooth operation
-
✅ Fire Rating: Tested and rated for up to 4 hours fire resistance
-
✅ Compatibility: Designed for use with standard passage latches
Specifications
-
Backplate Size: 125mm x 50mm
-
Projection: 65mm
-
Function: Passage
-
Base Material: Forged Virgin Solid Brass
-
Finish: Polished Brass
-
Fire Rating: Up to 4 hours
-
Unit of Measure: Pair
-
Compatible Latches: Passage Latch x9028 (45mm) or x9031 (60mm)
Applications
This lever latch passage set is ideal for internal doors such as bedrooms, living areas, offices, corridors, and meeting rooms where locking is not required. Its compact backplate makes it especially suitable for smaller doors while maintaining fire-rated compliance.
Installation & Inclusions
-
Suitable for standard internal door installation
-
Recommended installation by a qualified tradesperson, particularly for fire-rated doors
-
Includes pair of passage levers and fixing components (latch supplied separately)
Available Finishes
-
Polished Brass
Why Choose Superior Brass?
Superior Brass is trusted for premium forged solid brass architectural hardware that combines classic design with advanced engineering. This compact passage lever set offers smooth operation, exceptional durability, and certified fire-rated assurance.
👉 This is a passage lever latch set designed for internal doors that do not require locking.
Q2. What does forged virgin brass mean?
👉 Forged virgin brass refers to high-purity solid brass that is forged for enhanced strength, density, and long-lasting performance compared to cast alternatives.
Q3. Is this lever set fire rated?
👉 Yes, this lever latch passage set is tested and rated for up to 4 hours fire resistance when installed correctly with compatible fire-rated doors and latches.
Q4. What warranty does this product come with?
👉 This product falls under locks, cylinders and latches and includes a 10 Years Mechanical Warranty and 5 Years Finish Warranty, applicable under normal residential use with correct installation and maintenance.
Q5. What finish is available for this model?
👉 This model is available in a Polished Brass finish, offering a classic and refined look for traditional and premium interior spaces.
