Tradco DoorKnob Classic Center 85mm
This is a Tradco door knob in zinc alloy. Projection 60mm. Available in 7 finishes.
Door Functions Explained
| Passage | The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes. |
| Privacy | Locks from the inside with a snib or turn, with an emergency release outside — for bathrooms, ensuites and bedrooms. |
| Euro | Takes a euro-profile cylinder and is key-lockable — for entrance doors and any door you want to lock with a key. |
| Skeleton Key | A traditional lock operated by a skeleton (lever) key — suits heritage and period doors. |
| Dummy | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete the Set — Sold Separately
This handle set includes the handles, backplates, spindle and screws only. The items below are required depending on the function, with the product code for each finish.
| Finish | 45 mm | 60 mm | 70 mm |
|---|---|---|---|
| Antique Brass | 9573 | 9574 | 9575 |
| Antique Copper | 9576 | 9577 | 9578 |
| Chrome Plated | 9579 | 9580 | 9581 |
| Matt Black | 9585 | 9586 | 9587 |
| Polished Brass | 9570 | 9571 | 9572 |
| Satin Chrome | 9582 | 9583 | 9584 |
A hard-sprung tube latch is also available for heavier handles and high-use doors.
Available Finishes (7) & Product Codes
| Finish | Handle set |
|---|---|
| Unlacquered Polished Brass | 21378 |

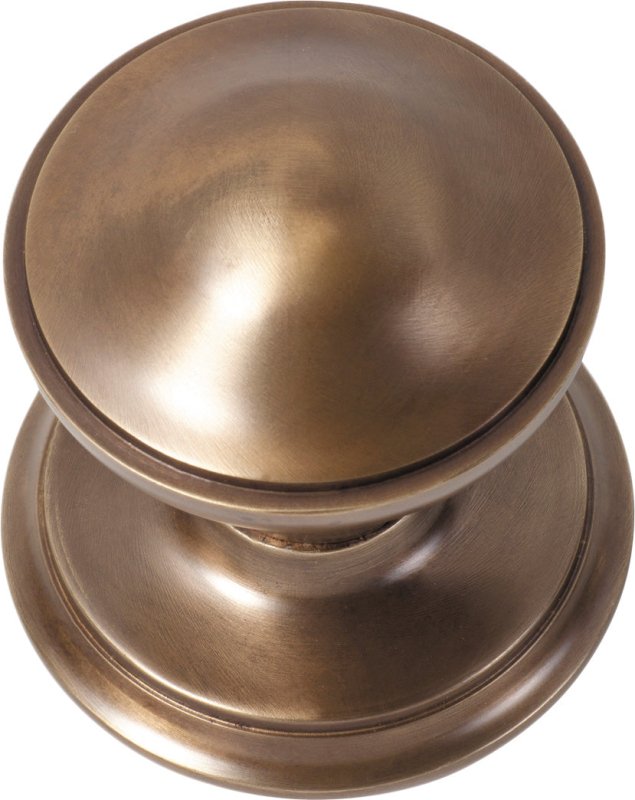

| Antique Brass | 2366 |

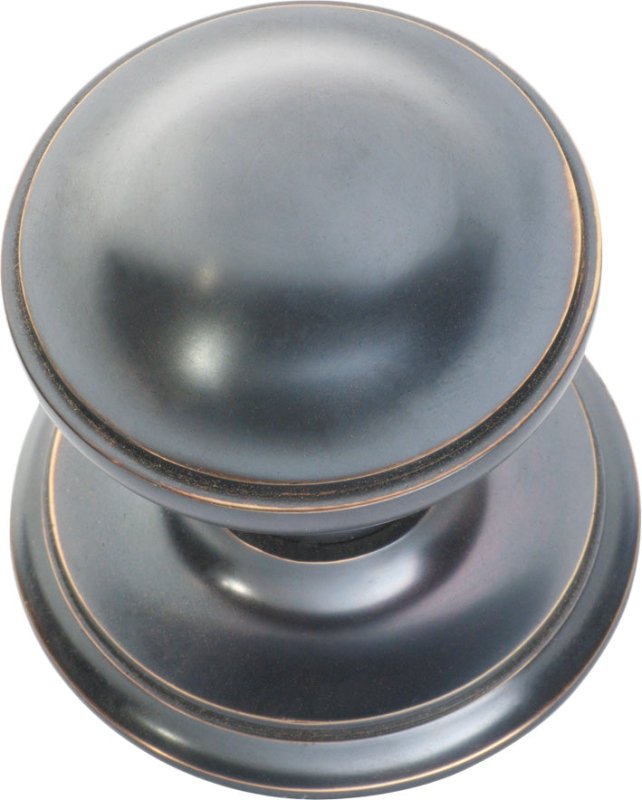

| Antique Copper | 1305 |

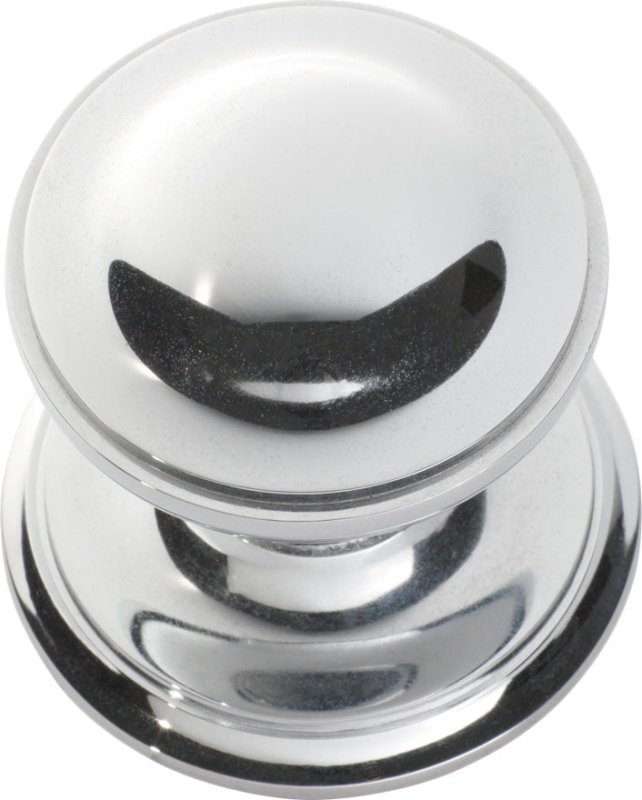

| Chrome Plated | 1308 |

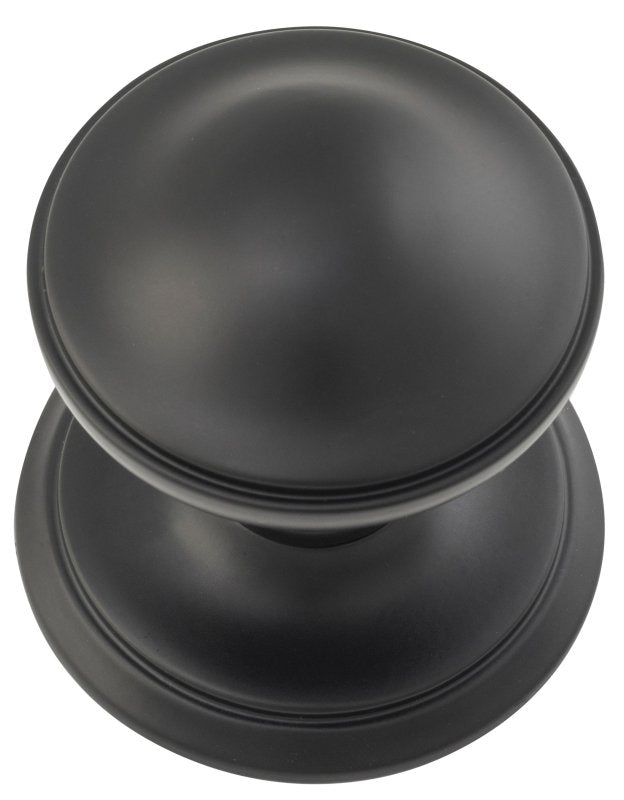

| Matt Black | 9679 |

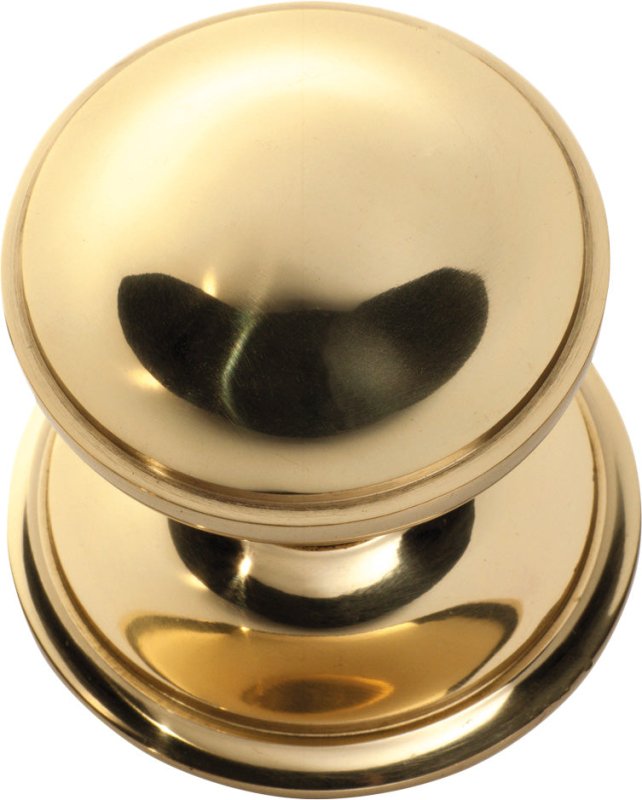

| Polished Brass | 1306 |

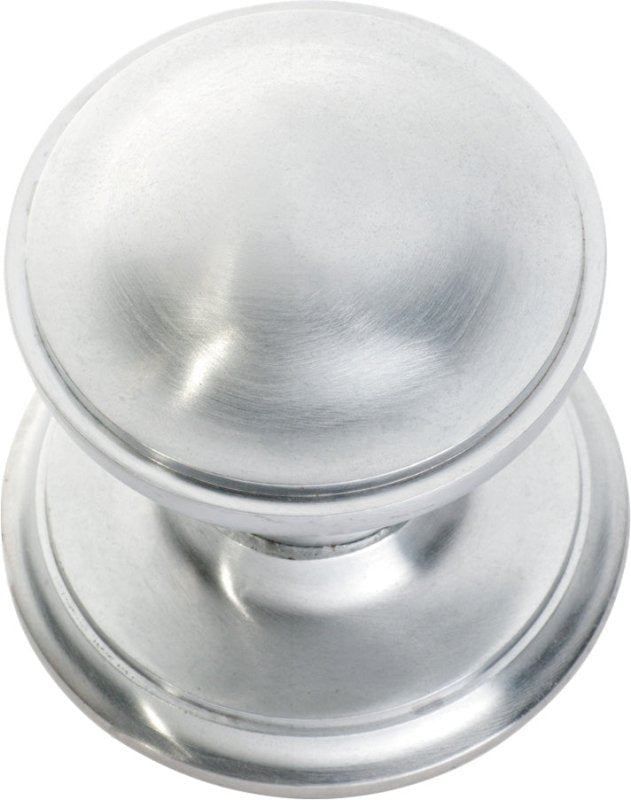

| Satin Chrome | 1309 |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Projection | 60mm |
| Door Thickness | 32–50mm |
| Material | Zinc Alloy |
| Warranty | 10-Year Mechanical Warranty |
Warranty
Covers defects in materials and workmanship under normal use, when correctly installed.
✓Lifetime Finish WarrantyApplies to plated finishes — Chrome Plated, Polished Chrome, Satin Chrome, Polished Nickel and Satin Nickel.
ⓘLiving finishesUnlacquered, antique and aged finishes such as Antique Brass, Antique Copper, Polished Brass, Satin Brass and Rumbled Nickel are living finishes. They age and patina naturally over time and are excluded from finish-defect cover.
What is the Tradco DoorKnob Classic Center 85mm?
It is a Tradco door handle set in zinc alloy.
What's the difference between Passage, Privacy, Euro and Skeleton Key?
Passage: The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes. Privacy: Locks from the inside with a snib or turn, with an emergency release outside — for bathrooms, ensuites and bedrooms. Euro: Takes a euro-profile cylinder and is key-lockable — for entrance doors and any door you want to lock with a key. Skeleton Key: A traditional lock operated by a skeleton (lever) key — suits heritage and period doors.
What is included in the box?
A pair of handles on backplates, the spindle and fixing screws, plus the latch or lock for the function you select. Hinges and flush bolts are not included.
Which hinges do I need?
Ball bearing for entrance and heavier doors (reduces friction and wear); fixed pin for internal and lighter entrance doors; loose pin for internal use, ideal for bathrooms since the door can be lifted off in an emergency. Use 3 hinges per door as a general rule.
Do I need flush bolts?
Only on double doors, to secure the inactive leaf. Under 2100 mm: 150 mm bolts top and bottom. 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
What finishes are available?
This model is available in Unlacquered Polished Brass, Antique Brass, Antique Copper, Chrome Plated, Matt Black, Polished Brass, Satin Chrome. Each finish has its own product code — see the finishes table in the description.
What door thickness does it suit?
It suits doors 32–50mm. Check your door thickness before choosing a mortice lock — 35–40 mm takes a standard lock and 40–55 mm a heavy-duty or long-case lock.
What warranty applies?
Tradco hardware carries a 10-Year Mechanical Warranty against defects in materials and workmanship, plus a Lifetime Finish Warranty on plated finishes (Chrome Plated, Polished Chrome, Satin Chrome, Polished Nickel and Satin Nickel). Living finishes such as Antique Brass, Antique Copper, Polished Brass, Satin Brass and Rumbled Nickel patina naturally over time and are excluded from finish-defect cover.
