Tradco Fitzroy Door Knob on Backplate | 2 Finishes Available
You May Also Need
This product is included in the bundle below
Tradco Fitzroy Door Knob on Backplate | 2 Finishes Available
Tradco · Door Knob Fitzroy Door Knob on Backplate The Tradco Fitzroy Door Knob is an ornate design made from sheet brass, blending various period influences to suit classic and time-honoured homes. Available in two finishes, it is well suited to older homes and traditional interiors, from internal doors through to entrance sets. Sheet brass Ornate heritage design Sold as a pair Whats in the Box ✓ 1 pair of Fitzroy knobs ✓ Long backplates (205mm × 63mm) ✓ Spindle ✓ Fixing screws Latches and locks are sold separately and selected to suit the function you require. Hinges and flush bolts are also not included — use the bundle guide below to select what you need.
Functions, Kits & Whats Included
Each kit is built on the same lever set — only the latch or lock changes.
| Function | What’s included | |
|---|---|---|

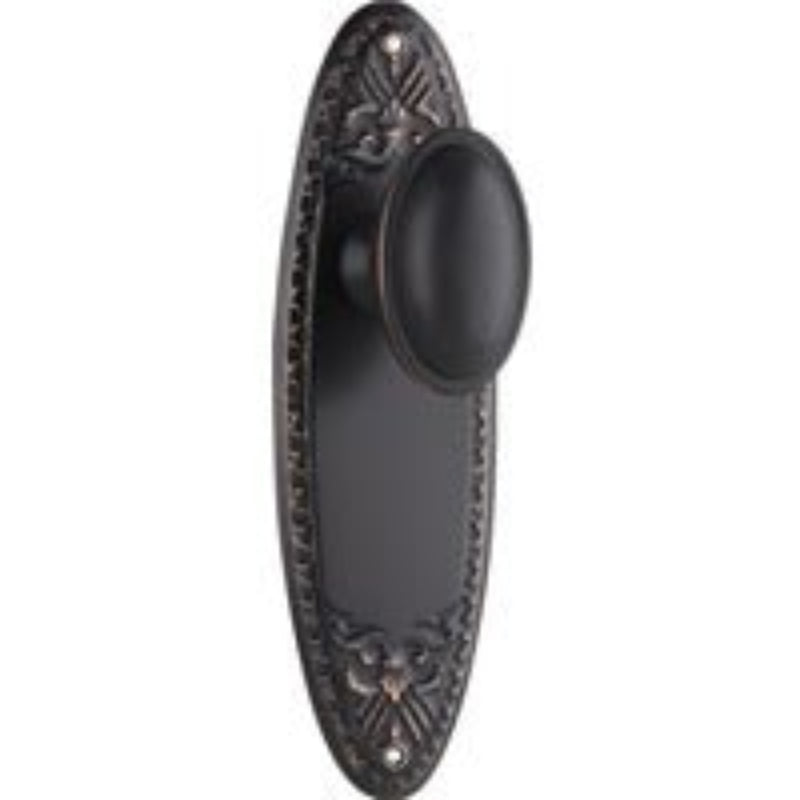

| Passage | Includes the handle set on backplates, spindle and fixing screws, with a passage latch — the door does not lock. | finish code only |

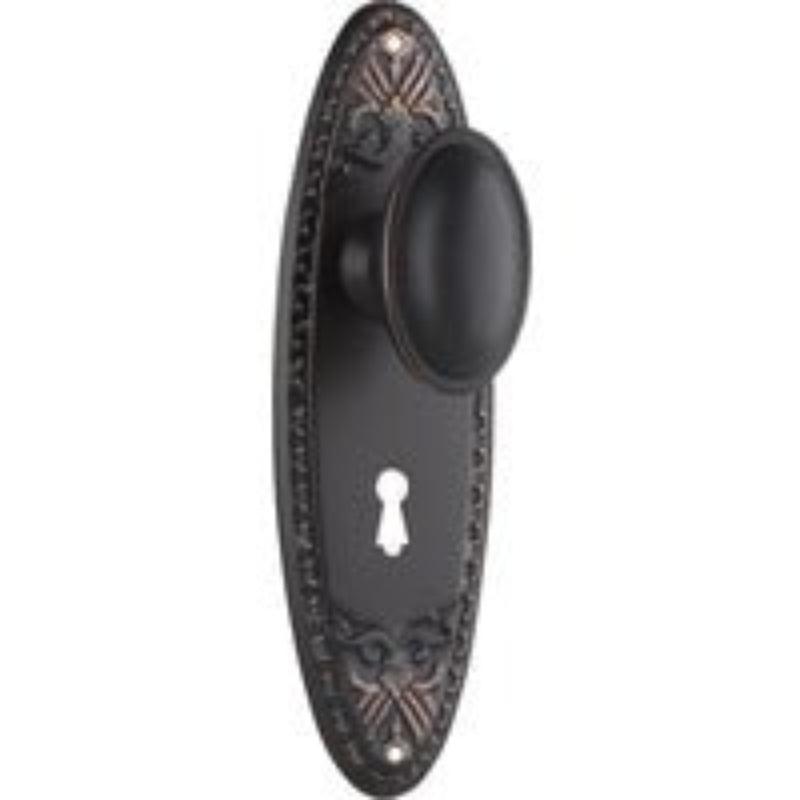

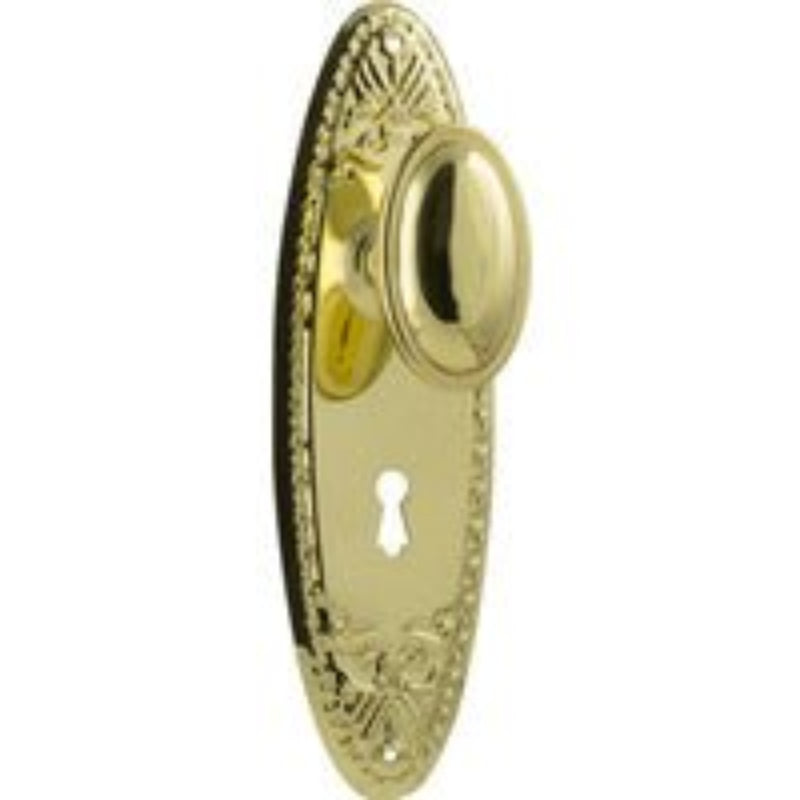

| 57mm Bitkey Entrance | Includes the handle set on backplates, spindle and fixing screws. | finish code only |

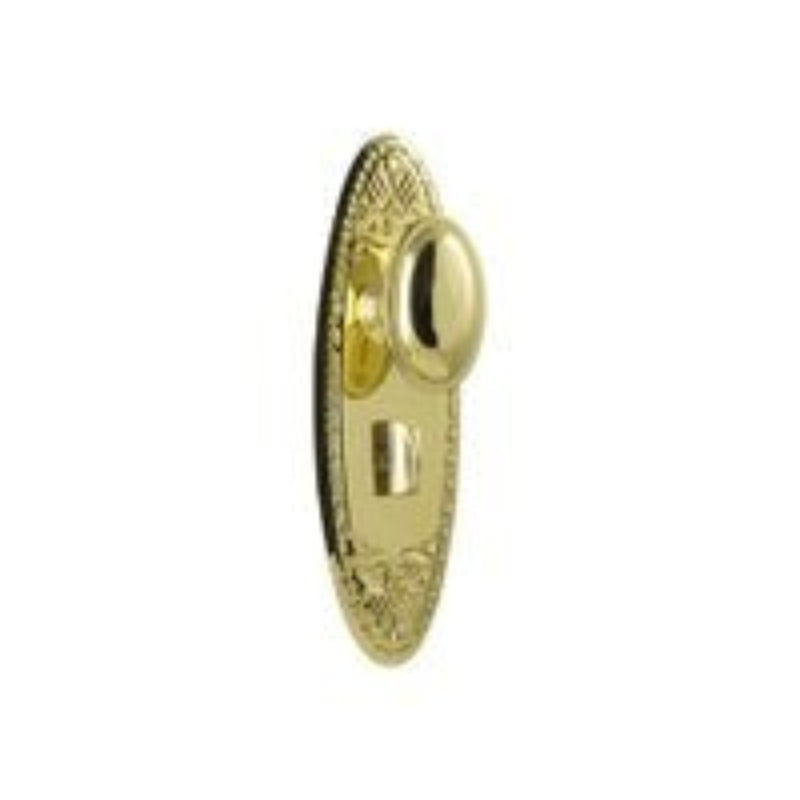

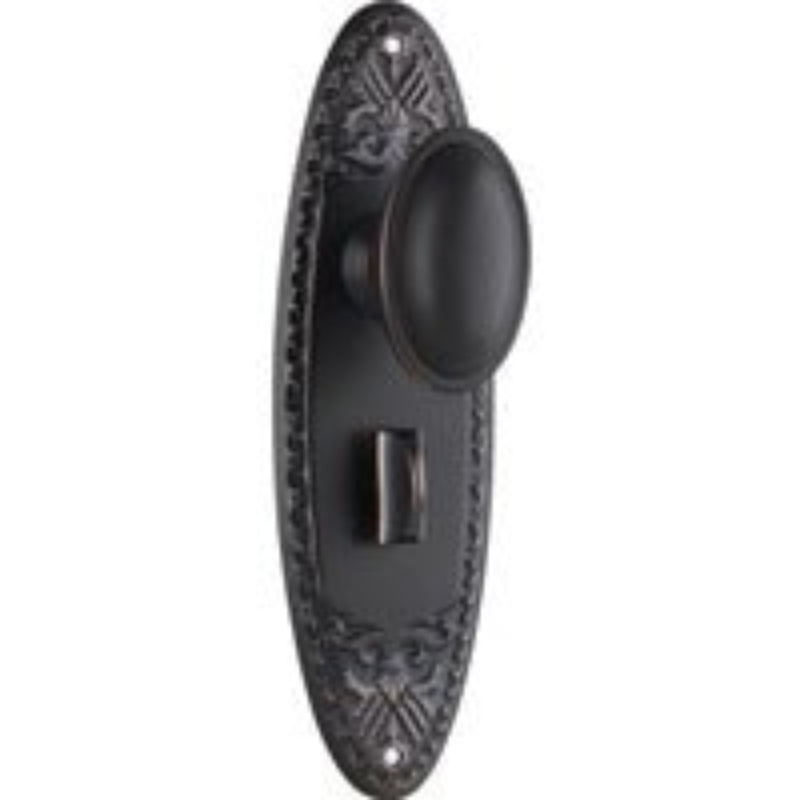

| Privacy | Includes the handle set on backplates, spindle and fixing screws, with a privacy latch and an inside turn/snib. | P |

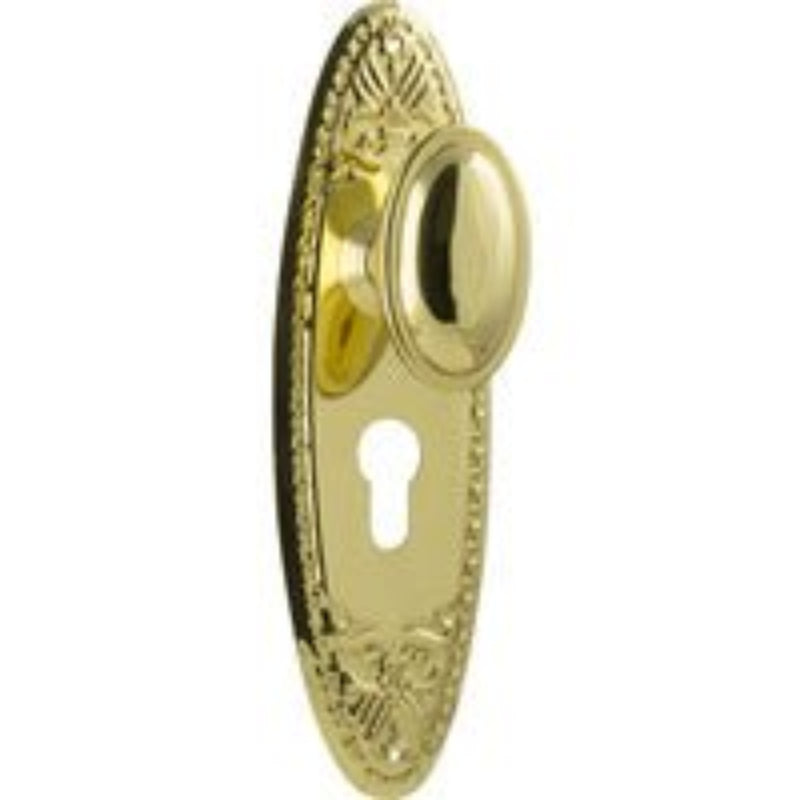

| Euro | Includes the handle set on backplates, spindle and fixing screws, prepared for a euro-profile cylinder mortice lock. | E |
Each finish and function has its own product code.
Door Functions Explained
| Passage | The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes. |
| Privacy | Locks from the inside with a snib or turn, with an emergency release outside — for bathrooms, ensuites and bedrooms. |
| Euro | Takes a euro-profile cylinder and is key-lockable — for entrance doors and any door you want to lock with a key. |
| Skeleton Key | A traditional lock operated by a skeleton (lever) key — suits heritage and period doors. |
| Dummy | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
Whats in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Entrance kits on rose handles also include a matching escutcheon to cover the keyhole
- Not included: hinges and flush bolts
Complete the Set — Sold Separately
This handle set includes the handles, backplates, spindle and screws only. The items below are required depending on the function, with the product code for each finish.
| Finish | 45 mm | 60 mm | 70 mm |
|---|---|---|---|
| Antique Copper | 9576 | 9577 | 9578 |
| Polished Brass | 9570 | 9571 | 9572 |
| Finish | Turn |
|---|---|
| Antique Copper | 1167 |
| Polished Brass | 1157 |
| Finish | 44 mm | 57 mm |
|---|---|---|
| Antique Copper | 1145 | 1146 |
| Polished Brass | 1135 | 1136 |
| Finish | 46 mm | 57 mm | Rebated 46 mm |
|---|---|---|---|
| Antique Copper | 2160 | 2161 | 2164 |
| Polished Brass | 2144 | 2145 | 2148 |
| Finish | Key / Thumb | Dual Function |
|---|---|---|
| Antique Copper | 21612 | 21602 |
| Polished Brass | 21610 | 21600 |
| Finish | Euro escutcheon |
|---|---|
| Antique Copper | 2041 |
| Polished Brass | 2040 |
| Finish | 3 lever, 44 mm | 5 lever, 46 mm |
|---|---|---|
| Antique Copper | 1140 | 2158 |
| Polished Brass | 1130 | 2142 |
| Finish | Covered | Pressed |
|---|---|---|
| Antique Copper | 1244 | 1185 |
| Polished Brass | 1242 | 1184 |
A hard-sprung tube latch is also available for heavier handles and high-use doors.
Available Finishes (2) & Product Codes
| Finish | Passage | 57mm Bitkey Entrance | Privacy | Euro |
|---|---|---|---|---|
| Antique Copper | 0996 | 0997 | 0996P | 0996E |
| Polished Brass | 0986 | 0987 | 0986P | 0986E |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Material | Sheet brass |
| Height | 205mm |
| Width | 63mm |
| Sold As | Pair |
| Warranty | 10-Year Mechanical Warranty |
Warranty
Covers defects in materials and workmanship under normal use, when correctly installed.
✓Lifetime Finish WarrantyApplies to plated finishes — Chrome Plated, Polished Chrome, Satin Chrome, Polished Nickel and Satin Nickel.
ⓘLiving finishesUnlacquered, antique and aged finishes such as Antique Brass, Antique Copper, Polished Brass, Satin Brass and Rumbled Nickel are living finishes. They age and patina naturally over time and are excluded from finish-defect cover.
What is the Tradco Fitzroy Door Knob on Backplate | 2 Finishes Available?
It is a Tradco door handle set in sheet brass.
What's the difference between Passage, Privacy, Euro and Skeleton Key?
Passage: The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes. Privacy: Locks from the inside with a snib or turn, with an emergency release outside — for bathrooms, ensuites and bedrooms. Euro: Takes a euro-profile cylinder and is key-lockable — for entrance doors and any door you want to lock with a key. Skeleton Key: A traditional lock operated by a skeleton (lever) key — suits heritage and period doors.
What is included in the box?
A pair of handles on backplates, the spindle and fixing screws, plus the latch or lock for the function you select. Hinges and flush bolts are not included.
Which hinges do I need?
Ball bearing for entrance and heavier doors (reduces friction and wear); fixed pin for internal and lighter entrance doors; loose pin for internal use, ideal for bathrooms since the door can be lifted off in an emergency. Use 3 hinges per door as a general rule.
Do I need flush bolts?
Only on double doors, to secure the inactive leaf. Under 2100 mm: 150 mm bolts top and bottom. 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
What finishes are available?
This model is available in Antique Copper, Polished Brass. Each finish has its own product code — see the finishes table in the description.
What warranty applies?
Tradco hardware carries a 10-Year Mechanical Warranty against defects in materials and workmanship, plus a Lifetime Finish Warranty on plated finishes (Chrome Plated, Polished Chrome, Satin Chrome, Polished Nickel and Satin Nickel). Living finishes such as Antique Brass, Antique Copper, Polished Brass, Satin Brass and Rumbled Nickel patina naturally over time and are excluded from finish-defect cover.
