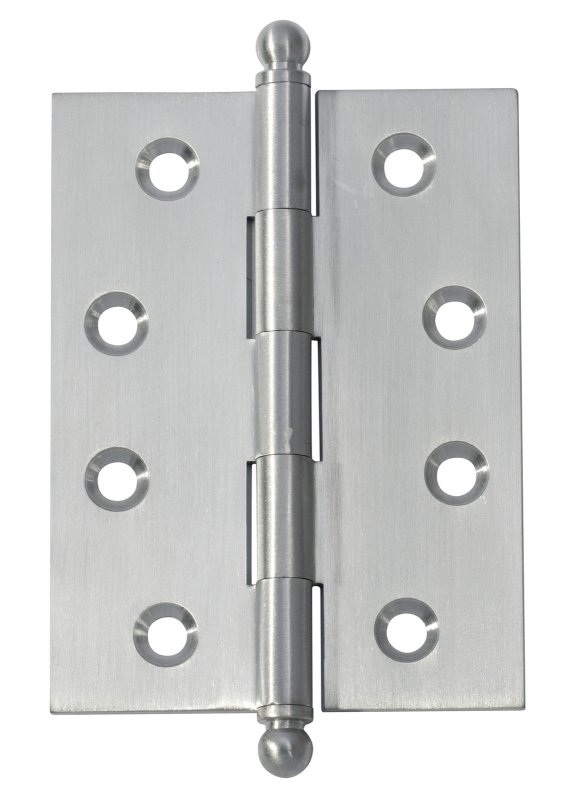

Tradco Td2778 Satin Chrome Hinge Loose Pin Ball 100 X 75 Mm
You May Also Need
This product is included in the bundle below
Tradco Henley Solid Brass Door Lever | Long Backplate, 6 Finishes
Tradco Td2778 Satin Chrome Hinge Loose Pin Ball 100 X 75 Mm
This is a Tradco loose pin hinge in solid brass. Size 100 × 75 mm.
Hinge Type: Loose pin hinge
The pin can be withdrawn so the door lifts off without unscrewing the hinge. Internal use — handy for bathrooms and for removing doors during work.
Hinge types explained:
| Hinge type | What it does |
|---|---|
| Parliament hinge | Projects the door clear of the frame or architrave so it can swing back fully against the wall — used where a door must open 180° or clear deep reveals. |
| Ball bearing hinge | Bearings between the knuckles carry the load, reducing friction and wear. Best for heavy and high-use doors, including entrance doors. |
| Loose pin hinge | The pin can be withdrawn so the door lifts off without unscrewing the hinge. Internal use — handy for bathrooms and for removing doors during work. |
| Fixed pin hinge | The pin is fixed in the knuckle. A reliable all-rounder for most internal doors. |
| Butt hinge | The standard door hinge, mortised into the door edge and frame. |
| Lift-off hinge | The leaves separate so the door lifts off. Handed — order left or right hand to suit the door. |
Three hinges per door is standard for internal and entrance doors. Heavier and taller doors may require a fourth.
Specifications
| Material | Solid Brass |
| Finish | Satin Chrome Thickness: 3mm Includes: Matching screws |
| Warranty | 10-Year Mechanical Warranty |
Warranty
Covers defects in materials and workmanship under normal use, when correctly installed.
✓Lifetime Finish WarrantyApplies to plated finishes — Chrome Plated, Polished Chrome, Satin Chrome, Polished Nickel and Satin Nickel.
ⓘLiving finishesUnlacquered, antique and aged finishes such as Antique Brass, Antique Copper, Polished Brass, Satin Brass and Rumbled Nickel are living finishes. They age and patina naturally over time and are excluded from finish-defect cover.
What is the Tradco Td2778 Satin Chrome Hinge Loose Pin Ball 100 X 75 Mm?
It is a Tradco hinge in solid brass.
What warranty applies?
Tradco hardware carries a 10-Year Mechanical Warranty against defects in materials and workmanship, plus a Lifetime Finish Warranty on plated finishes (Chrome Plated, Polished Chrome, Satin Chrome, Polished Nickel and Satin Nickel). Living finishes such as Antique Brass, Antique Copper, Polished Brass, Satin Brass and Rumbled Nickel patina naturally over time and are excluded from finish-defect cover.
