Intro

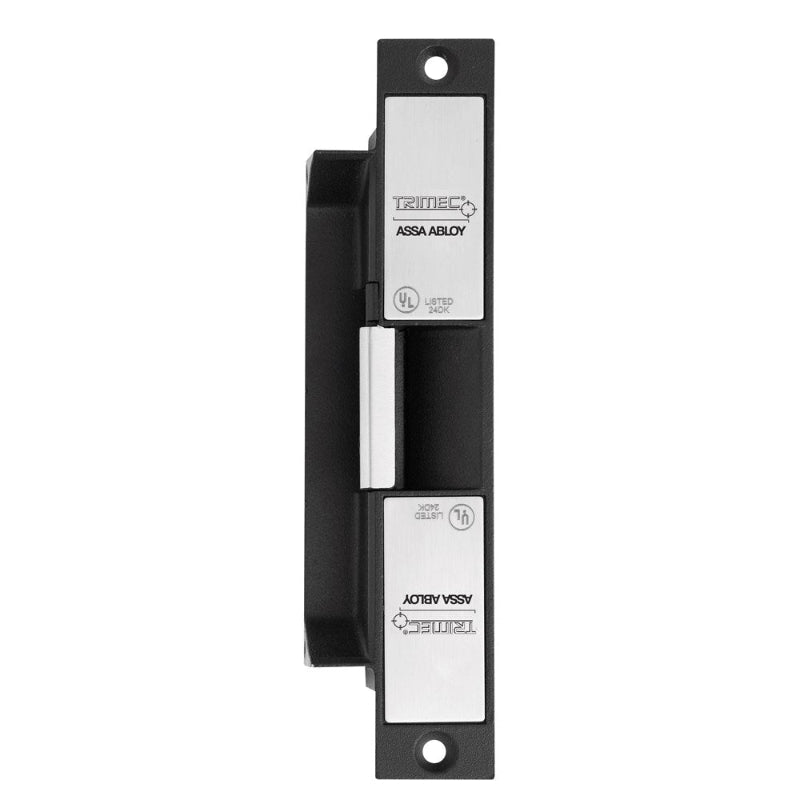

The TRIMEC ES200 Electric Strike is a compact, high-reliability access control solution designed for fire-rated and high-security hinged door applications. Engineered to work with all access control systems, it combines low current consumption, strong holding force, and field-changeable fail safe or fail secure operation for maximum installation flexibility.
Key Features & Benefits
-
✅ Function: Electric strike for access control door locking
-
✅ Monitoring: Non-monitored configuration
-
✅ Fire Rating: Certified fire rated up to 4 hours
-
✅ Material: Stainless steel striker with hardened locking pins
-
✅ Voltage: 12V DC operation
-
✅ Operation: Power to open or power to lock, field changeable
-
✅ Design: Non-handed design suitable for left or right-hand doors
-
✅ Strength: Holding strength of 850kg for secure applications
-
✅ Efficiency: Low current consumption for energy-efficient operation
-
✅ Installation: Supplied with self-adhesive installation template and mounting kit
Specifications
-
Brand: TRIMEC
-
Product Code: TRI200
-
Fire Rating: Up to 4 hours
-
Working Voltage: 12V DC
-
Current Draw: Maximum 175mA at 12V DC
-
Monitoring Type: Non-monitored
-
Holding Strength: 850kg
-
Locking Mode: Fail safe or fail secure, field selectable
-
Handing: Non-handed
-
Strike Construction: Stainless steel striker with 3 hardened locking pins
-
Body Depth: 27mm
-
Lip Extension: Drilled and ready for lip extension
-
Door Type Compatibility: Hinged doors
-
Power Capability: Solenoid suitable for continuous power
Available Finishes
-
Stainless Steel
Applications
This electric strike is ideal for commercial buildings, fire-rated door assemblies, offices, apartments, and secure access-controlled areas. Its compact, industrial design makes it suitable for both new installations and retrofit security upgrades.
Installation & Inclusions
-
Easy installation using the supplied self-adhesive template
-
Supplied with mounting kit
-
Drilled for optional lip extension
-
Compact body depth for tight frame installations
Why Choose TRIMEC ES200 Electric Strike?
The TRIMEC ES200 offers a proven balance of fire-rated compliance, compact design, and dependable holding strength. Trusted in professional access control installations, it delivers consistent performance while allowing flexible configuration on site.
👉 This is a non-monitored electric strike designed for use with access control systems on hinged doors requiring fire or security compliance.
Q2. Can the locking mode be changed during installation?
👉 Yes, the ES200 allows on-site selection between fail safe and fail secure, as well as power to open or power to lock operation.
Q3. Is this electric strike fire rated?
👉 Yes, it is fire rated up to 4 hours when installed on approved fire-rated door assemblies.
Q4. What finishes are available for this model?
👉 The TRIMEC ES200 Electric Strike is supplied in a stainless steel finish for durability and corrosion resistance.
Q5. What warranty applies to this electric strike?
👉 This electric strike is covered under the manufacturer’s warranty against faulty workmanship and materials, valid from the date of purchase and subject to correct installation, normal use, and proper maintenance conditions.
