Whitco Leichhardt Sliding Security Door Lock – No Cylinder, Magnolia N863824
Whitco Leichhardt Sliding Security Door Lock – No Cylinder, Magnolia N863824

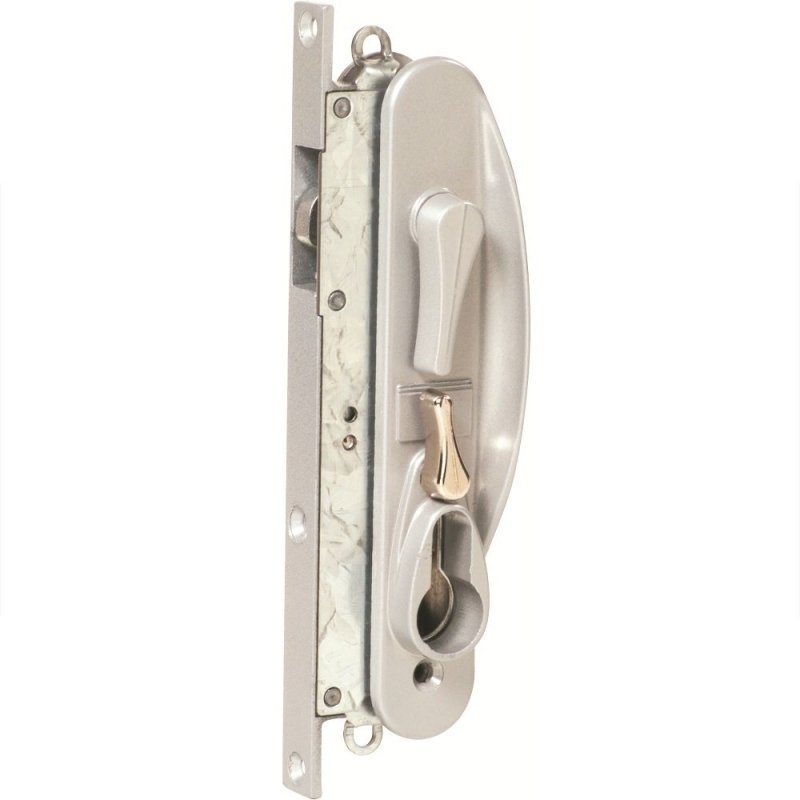

The Whitco Leichhardt Sliding Security Door Lock (code N863824) is a single- or multi-point mortice sliding security door lock for aluminium security screen doors. It uses a parrot-beak deadlock that key-deadlocks from both sides, is self-latching with an inside snib (the key overrides the snib), and accepts a Whitco Euro-profile lazy-cam cylinder. Furniture and lock mechanism are zinc diecast with a steel zinc-plated cover plate. This listing is the No Cylinder configuration in Magnolia finish.
Key Features
Specifications
| Configuration | No Cylinder |
| Deadlock | Parrot-beak, keyed both sides |
| Cylinder | Whitco Euro-profile lazy cam (2×5-pin or 2×10-disc) |
| Type | Leichhardt Sliding Security Door Lock |
| Whitco code | N863824 |
| Finish | Magnolia |
Leichhardt Sliding Security Door Lock Variations & Codes
| Configuration | What it does | Whitco code |
|---|---|---|
| Standard (with cylinder) | Complete lock with furniture, striker and cylinder — key-deadlocks both sides. | W866x |
| No Cylinder (less cylinder) | Lock and furniture supplied without a cylinder, so you can add your own. | W865x / W869017 |
| Snib Only Mechanism (LH / RH) | Non-keyed snib mechanism only, handed left or right. | W866417 (RH) / W866517 (LH) |
| 2-Point / 3-Point Lock Kit | Adds auxiliary locking points up the door for extra security or taller doors. | W867317 (2-pt) / W867117, W867217 (3-pt) |
| Multi-Point / Pool Kit | Multi-point kit; pool kit suits doors on a pool fence. | W867917 / W867317 |
The last two digits of a Whitco code are the finish (e.g. 17 = Black, 16 = White). Suffixes: KD = keyed different, KA / 5KA / 10KA = keyed alike, LC = less cylinder.
Available Finishes
Swatch colours are indicative only. Living/soft finishes develop a natural patina over time. Powder-coat colours may vary between batches.
10-Year Warranty
What variations does the Leichhardt Sliding Security Door Lock come in, and what are the codes?
The main difference between the variations is the cylinder and the number of locking points. A standard lock includes the cylinder and deadlocks from both sides; a 'no cylinder' version lets you supply your own; a snib-only mechanism has no cylinder at all (handed left or right); and the 2-point, 3-point and multi-point kits add extra locking points up the door for taller doors or higher security. Range: • Standard (with cylinder) (W866x) — Complete lock with furniture, striker and cylinder — key-deadlocks both sides. • No Cylinder (less cylinder) (W865x / W869017) — Lock and furniture supplied without a cylinder, so you can add your own. • Snib Only Mechanism (LH / RH) (W866417 (RH) / W866517 (LH)) — Non-keyed snib mechanism only, handed left or right. • 2-Point / 3-Point Lock Kit (W867317 (2-pt) / W867117, W867217 (3-pt)) — Adds auxiliary locking points up the door for extra security or taller doors. • Multi-Point / Pool Kit (W867917 / W867317) — Multi-point kit; pool kit suits doors on a pool fence.
How do I read the Whitco code?
The last two digits are the finish (e.g. 17 = Black, 16 = White, 08 = Bright Chrome, 11 = Silver, 19 = Primrose, 99 = non-standard). A trailing K means keyed alike; D5 or 5-disc refers to the cylinder; LC means less cylinder.
Is this finish in stock?
Silver and Black finishes are normally held in stock with the supplier. All other finishes are made to order — call Prime Hardware on 1800 329 028 to confirm availability and lead time.
What warranty applies?
Whitco products carry a 10-Year Warranty against defects in materials and workmanship, under the Australian Consumer Law. (Screen-door products and pneumatic closers carry 12 months.) Manufactured by ASSA ABLOY Australia.
How can I get help?
Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156. Tell us your window or door type and we'll match the right variation, hand and finish.
