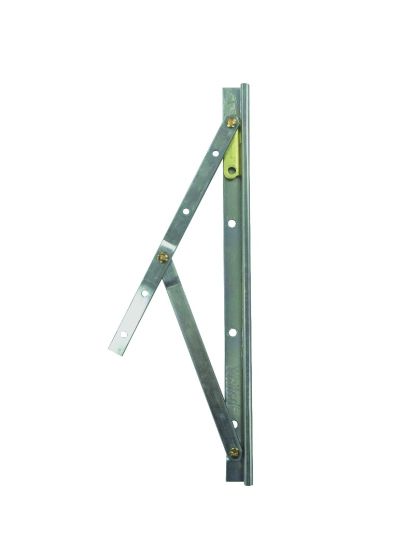

Whitco Window Stay – Standard Non Friction Steel Silver 200mm, Silver W010401
Whitco Window Stay – Standard Non Friction Steel Silver 200mm, Silver W010401
The Whitco Window Stay is a robust metal window stay for casement or awning windows, available in Standard (wide) and Narrow track designs for timber or aluminium joinery. Friction versions suit manually operated sashes; non-friction versions suit mechanically operated sashes. This listing is the Standard Non Friction Steel Silver 200mm configuration in Silver finish.
Key Features
Specifications
| Configuration | Standard Non Friction Steel Silver 200mm |
| Track lengths | 200 / 300 / 400 / 500 mm |
| Track designs | Standard (wide) and Narrow |
| Type | Friction (manual sash) or non-friction (mechanical sash) |
| Max sash weight | 12.3 kg |
| Max casement sash height | 1350 mm |
| Max awning sash width | 900 mm |
| Track rebate — standard | 27.0 × 9.5 mm |
| Track rebate — narrow | 20.5 × 8.0 mm |
| Corrosion | 96-hour neutral salt-spray tested |
| Material | Passivated zinc-plated steel (01) or stainless steel (04), bronze foot |
| Whitco code | W010401 |
| Finish | Silver |
Window Size & Weight Guide
| Track length | Casement width | Casement weight | Awning height | Awning weight |
|---|---|---|---|---|
| 200 mm | up to 635 mm | 10.0 kg | up to 535 mm | 6.3 kg |
| 300 mm | 636–790 mm | 11.8 kg | 536–710 mm | 7.8 kg |
| 400 mm | 791–840 mm | 12.3 kg | 711–990 mm | 10.0 kg |
| 500 mm | not recommended | — | 991–1220 mm | 11.8 kg |
Available Finishes
Swatch colours are indicative only. Living/soft finishes develop a natural patina over time. Powder-coat colours may vary between batches.
10-Year Warranty
What size stay do I need?
Match the track length to your sash: 200 mm suits casement widths up to 635 mm, 300 mm up to 790 mm, 400 mm up to 840 mm; awning heights run from 535 mm (200 mm) up to 1220 mm (500 mm). Maximum sash weight is 12.3 kg.
Friction or non-friction — which one?
Friction stays hold a manually operated sash open at any position. Non-friction stays are used where the sash is opened and held by a mechanical winder or operator.
Standard or narrow track?
Standard (wide) versions suit a 27.0 x 9.5 mm track rebate; narrow versions suit a 20.5 x 8.0 mm rebate. Both come in zinc-plated steel or stainless steel.
How do I read the Whitco code?
The last two digits are the finish (e.g. 17 = Black, 16 = White, 19 = Primrose, 11 = Silver, 08 = Bright Chrome, 99 = non-standard). Suffixes mean: KD = keyed different, KA/5KA/10KA = keyed alike, LC = less cylinder (supplied without a cylinder).
Is this finish in stock?
Silver and Black finishes are normally held in stock with the supplier. All other finishes (and no-finish/raw components) are made to order — call Prime Hardware on 1800 329 028 to confirm availability and lead time before you order.
What warranty applies?
Whitco products carry a 10-Year Warranty against defects in materials and workmanship, under the Australian Consumer Law. Manufactured by ASSA ABLOY Australia.
How can I get help?
Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156. We can confirm the right configuration, finish and matching cylinder or strike before you order.
