Whitco Blaxland Sliding Patio Door Lock – No Cylinder, Offset Outer Pull, No Strike 32mm, Non Standard W502199
Whitco Blaxland Sliding Patio Door Lock – No Cylinder, Offset Outer Pull, No Strike 32mm, Non Standard W502199

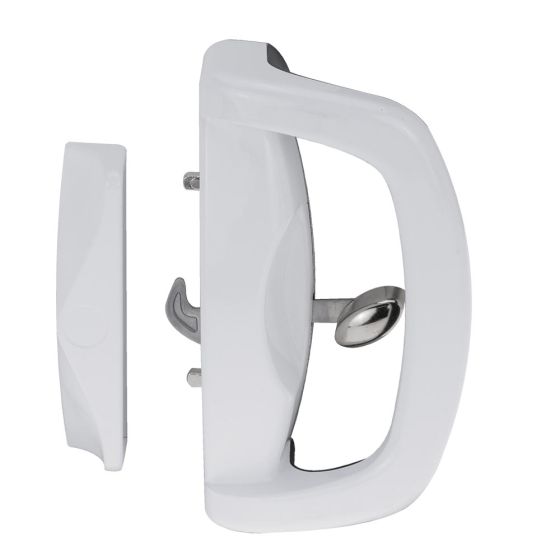

The Whitco Blaxland Sliding Patio Door Lock is a zinc diecast internal D-handle deadlock with a diecast outer pull, surface-mounted for residential aluminium or timber sliding patio doors. It meets Australian Lock Standard AS 4145.2-2008 to S4 and D8, uses standard 82 mm fixing holes, and has an adjustable stainless-steel locking beak with 6 mm of closing adjustment plus a self-retracting beak to avoid accidental lockout. This listing is the No Cylinder, Offset Outer Pull, No Strike 32mm configuration in Non Standard finish.
Key Features
Specifications
| Configuration | No Cylinder, Offset Outer Pull, No Strike 32mm |
| Backplate height | 180 mm |
| Backplate width | 99 mm |
| Handle projection | 48 mm |
| Fixing hole centres | 82 mm (standard) |
| Mounting | Surface mounted |
| Cylinder | C4 5-pin standard; 10-disc optional |
| Locking beak | Adjustable stainless steel, 6 mm adjustment, self-retracting |
| Handing | Non-handed (left or right) |
| Compliance | AS 4145.2-2008 — S4 / D8 |
| Suits doors | Aluminium or timber sliding patio |
| Material | Zinc diecast handle and outer pull |
| Whitco code | W502199 |
| Finish | Non Standard |
Blaxland Variations & Codes
| Configuration | What it does | Whitco code |
|---|---|---|
| Double Cylinder | Keyed from both inside and outside. | W5002 / W500x (5-pin) · W5028/W5029 (10-disc) |
| External Single Cylinder | Keyed outside, snib/turn inside. | W5020 / W501x (5-pin) · W5083 (10-disc) |
| Internal Single Cylinder | Keyed inside only, no external key. | W5016 |
| Snib Only (non-keyed) | Snib latch only, no cylinder fitted. | W5021 |
| Dummy | Fixed pull only, no lock mechanism. | W5024 (17.5 mm strike) · W5023 (14 mm strike) |
| No Cylinder (less cylinder) | Lock body supplied without the cylinder — add your own. | codes ending LC |
The last two digits of a Whitco code are the finish (e.g. 17 = Black, 16 = White). Suffixes: KD = keyed different, KA / 5KA / 10KA = keyed alike, LC = less cylinder.
Compatible Strikes, Pulls, Packers & Cylinders
| Reversible universal face-fix strike | W5665 |
| Reversible universal front-fix strike | W5662 |
| Extra-width front-fix strike | W5658 |
| Offset outer pull — with cylinder hole | W5480 |
| Offset outer pull — no cylinder hole | W5481 |
| Handle packer, 5 mm | W5050 |
| Strike packer, plastic 5 mm | W564117 |
| Strike packer, diecast 9.5 mm | W564617 |
| 5-pin inside cylinder (suits Blaxland/Lawson/Mawson) | W531100 KD / W531000 10KA |
| 10-disc external cylinder | W532700 10KA |
Available Finishes
Swatch colours are indicative only. Living/soft finishes develop a natural patina over time. Powder-coat colours may vary between batches.
10-Year Warranty
Which Blaxland configurations are available, and what are the codes?
The Blaxland comes in these configurations (the last two digits of each code are the finish): • Double Cylinder (W5002 / W500x (5-pin) · W5028/W5029 (10-disc)) — Keyed from both inside and outside. • External Single Cylinder (W5020 / W501x (5-pin) · W5083 (10-disc)) — Keyed outside, snib/turn inside. • Internal Single Cylinder (W5016) — Keyed inside only, no external key. • Snib Only (non-keyed) (W5021) — Snib latch only, no cylinder fitted. • Dummy (W5024 (17.5 mm strike) · W5023 (14 mm strike)) — Fixed pull only, no lock mechanism. • No Cylinder (less cylinder) (codes ending LC) — Lock body supplied without the cylinder — add your own.
What's the difference between double, external and internal cylinder?
Double cylinder is keyed from both inside and outside. External single cylinder is keyed outside with a snib/turn inside. Internal single cylinder is keyed inside only. Snib-only has no cylinder at all, a dummy is a fixed pull with no lock, and a 'no cylinder / less cylinder' (LC) version is the lock body supplied without a cylinder so you can add your own.
What strikes, outer pulls, packers and cylinders can I add?
Compatible accessories for this range include: • Reversible universal face-fix strike (W5665) • Reversible universal front-fix strike (W5662) • Extra-width front-fix strike (W5658) • Offset outer pull — with cylinder hole (W5480) • Offset outer pull — no cylinder hole (W5481) • Handle packer, 5 mm (W5050) • Strike packer, plastic 5 mm (W564117) • Strike packer, diecast 9.5 mm (W564617) • 5-pin inside cylinder (suits Blaxland/Lawson/Mawson) (W531100 KD / W531000 10KA) • 10-disc external cylinder (W532700 10KA) Call Prime Hardware if you'd like help matching the right strike, pull or cylinder to your door.
What cylinder does it use — can I key alike?
Blaxland uses C4 5-pin cylinders as standard and can be keyed alike to other C4 and CYL4 Whitco and Lockwood products. Also available with 10-disc cylinders.
What are the key dimensions and fixing?
It is surface mounted with standard 82 mm fixing hole centres and suits residential aluminium or timber sliding patio doors. See the Specifications table on this page for backplate size, projection and cylinder details. It is non-handed, so it fits left- or right-hand sliding doors.
How do I read the Whitco code?
The last two digits are the finish (e.g. 17 = Black, 16 = White, 19 = Primrose, 11 = Silver, 08 = Bright Chrome, 99 = non-standard). Suffixes mean: KD = keyed different, KA/5KA/10KA = keyed alike, LC = less cylinder (supplied without a cylinder).
Is this finish in stock?
Silver and Black finishes are normally held in stock with the supplier. All other finishes (and no-finish/raw components) are made to order — call Prime Hardware on 1800 329 028 to confirm availability and lead time before you order.
What warranty applies?
Whitco products carry a 10-Year Warranty against defects in materials and workmanship, under the Australian Consumer Law. Manufactured by ASSA ABLOY Australia.
How can I get help?
Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156. We can confirm the right configuration, finish and matching cylinder or strike before you order.
