Whitco Oxley Sliding Patio Door Lock – Snib Only Int, Plastic Outer Pull, No Cylinder, No Strike, Black W554BB/P0BLK
Whitco Oxley Sliding Patio Door Lock – Snib Only Int, Plastic Outer Pull, No Cylinder, No Strike, Black W554BB/P0BLK

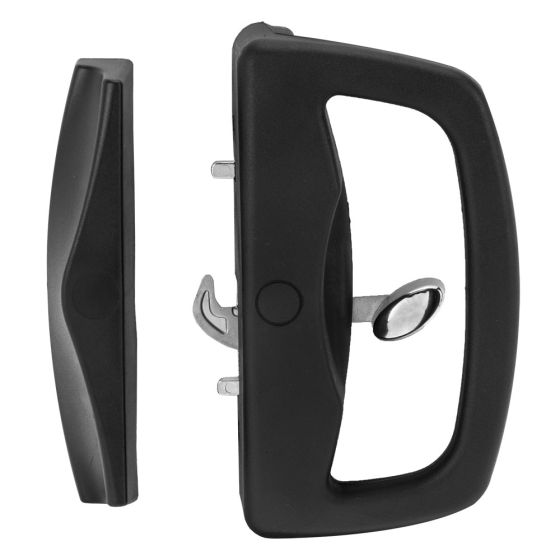

The Whitco Oxley Sliding Patio Door Lock is a one-piece moulded polymer internal D-handle on a metal lock base with a polymer external pull, surface-mounted for residential aluminium or timber sliding patio doors. The solid polymer handle gives superior resistance in corrosive/coastal environments. This listing is the Snib Only Int, Plastic Outer Pull, No Cylinder, No Strike configuration in Black finish.
Key Features
Specifications
| Configuration | Snib Only Int, Plastic Outer Pull, No Cylinder, No Strike |
| Backplate height | 180 mm |
| Backplate width | 95 mm |
| Handle projection | 47 mm |
| Fixing hole centres | 82 mm (standard) |
| Mounting | Surface mounted |
| Cylinder | 10-disc standard; 5-pin C4 optional |
| Locking beak | Adjustable stainless steel, 6 mm adjustment, self-retracting |
| Handing | Non-handed (left or right) |
| Suits doors | Aluminium or timber sliding patio |
| Material | One-piece moulded polymer handle on metal base |
| Whitco code | W554BB/P0BLK |
| Finish | Black |
Oxley Variations & Codes
| Configuration | What it does | Whitco code |
|---|---|---|
| Double Cylinder | Keyed both sides, plastic outer pull, plastic universal strike. | W554DD/P7BLK |
| External Single Cylinder | Keyed outside, plastic outer pull. | W554BD/P7BLK |
| Snib Only (non-keyed) | Snib latch only, plastic outer pull. | W554BB/P0BLK |
| Dummy | Fixed pull only, 14 mm strike. | W564BB/P6BLK (plastic) · W562BB/Z6BLK (diecast) |
| No Cylinder (less cylinder) | Lock body without cylinder. | codes ending LC |
The last two digits of a Whitco code are the finish (e.g. 17 = Black, 16 = White). Suffixes: KD = keyed different, KA / 5KA / 10KA = keyed alike, LC = less cylinder.
Compatible Strikes, Pulls, Packers & Cylinders
| Oxley handle packer, 5 mm | W555017 |
Available Finishes
Swatch colours are indicative only. Living/soft finishes develop a natural patina over time. Powder-coat colours may vary between batches.
10-Year Warranty
Which Oxley configurations are available, and what are the codes?
The Oxley comes in these configurations (the last two digits of each code are the finish): • Double Cylinder (W554DD/P7BLK) — Keyed both sides, plastic outer pull, plastic universal strike. • External Single Cylinder (W554BD/P7BLK) — Keyed outside, plastic outer pull. • Snib Only (non-keyed) (W554BB/P0BLK) — Snib latch only, plastic outer pull. • Dummy (W564BB/P6BLK (plastic) · W562BB/Z6BLK (diecast)) — Fixed pull only, 14 mm strike. • No Cylinder (less cylinder) (codes ending LC) — Lock body without cylinder.
What's the difference between double, external and internal cylinder?
Double cylinder is keyed from both inside and outside. External single cylinder is keyed outside with a snib/turn inside. Internal single cylinder is keyed inside only. Snib-only has no cylinder at all, a dummy is a fixed pull with no lock, and a 'no cylinder / less cylinder' (LC) version is the lock body supplied without a cylinder so you can add your own.
What strikes, outer pulls, packers and cylinders can I add?
Compatible accessories for this range include: • Oxley handle packer, 5 mm (W555017) Call Prime Hardware if you'd like help matching the right strike, pull or cylinder to your door.
What cylinder does it use — can I key alike?
Oxley uses 10-disc cylinders as standard; 5-pin C4 cylinders can be supplied as an option. C4 versions can be keyed alike to other C4 and CYL4 Whitco and Lockwood products.
What are the key dimensions and fixing?
It is surface mounted with standard 82 mm fixing hole centres and suits residential aluminium or timber sliding patio doors. See the Specifications table on this page for backplate size, projection and cylinder details. It is non-handed, so it fits left- or right-hand sliding doors.
How do I read the Whitco code?
The last two digits are the finish (e.g. 17 = Black, 16 = White, 19 = Primrose, 11 = Silver, 08 = Bright Chrome, 99 = non-standard). Suffixes mean: KD = keyed different, KA/5KA/10KA = keyed alike, LC = less cylinder (supplied without a cylinder).
Is this finish in stock?
Silver and Black finishes are normally held in stock with the supplier. All other finishes (and no-finish/raw components) are made to order — call Prime Hardware on 1800 329 028 to confirm availability and lead time before you order.
What warranty applies?
Whitco products carry a 10-Year Warranty against defects in materials and workmanship, under the Australian Consumer Law. Manufactured by ASSA ABLOY Australia.
