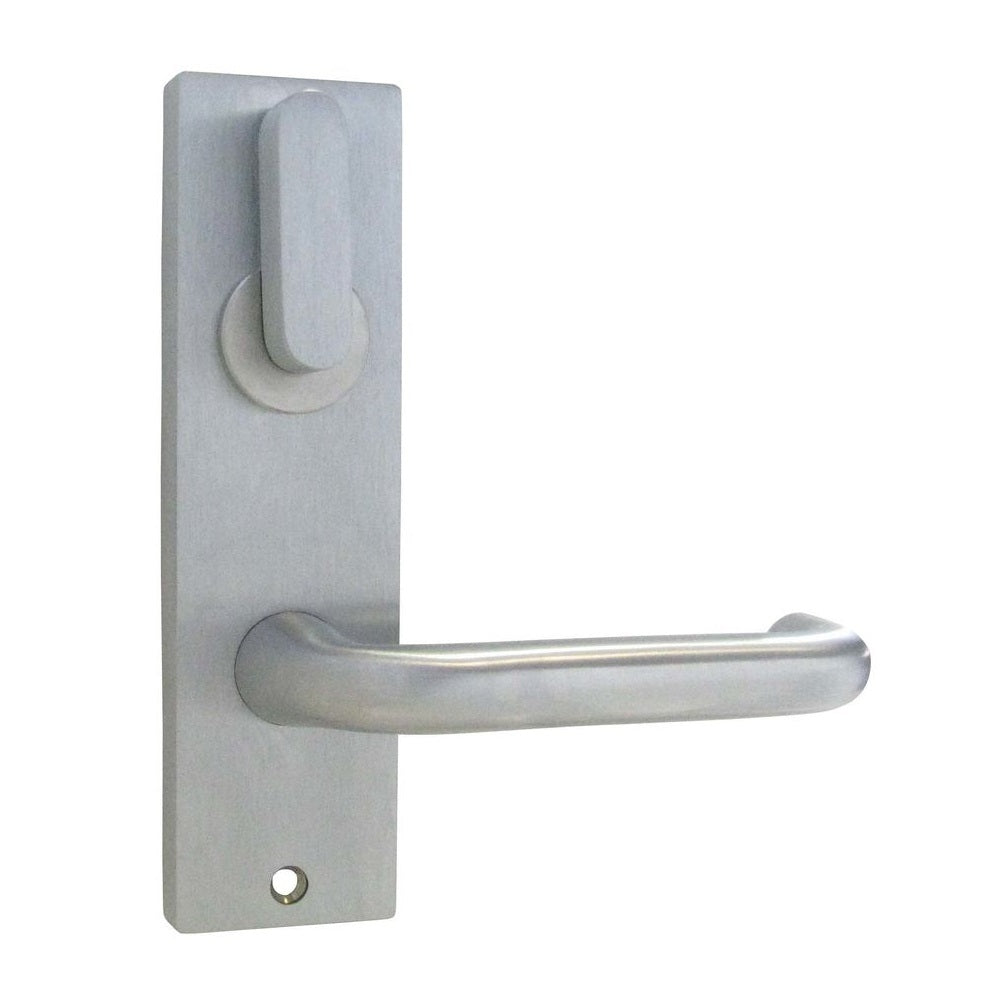

KABA DOOR HANDLE 600 SERIES PLATE AMBULANT TURN SATIN CHROME PLATE 613VDA25SCP

Kaba 600 Series Squared Edge Plate Furniture w/ Ambulant Turn & 25 Lever
613VDA-25SCP

The Kaba 600 series square end solid forged brass door furniture is designed for use with contemporary Australian style mortice locks and latches

Features:

• Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag.
• Fixing: Plates are 12mm thick and are designed to fit back to back with either concealed or visible fixing to outside plate. Tiebolt M5 fixing screws have a cross-recessed head.
• Handing: Non-handed with levers reversible on site
• Door Thickness: Plate door furniture suits door thickness from 32mm minimum to 50mm maximum. Thicker doors require extended spindles, turn bars and longer tiebolt fixing screws
• BCA AS1428.1 -2009 compliant leverset Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard
• AS 1905.1- 2005, Part 1: Fire Resistant Doorsets

Specifications:

• Brand: Kaba

• Height: 165mm
• Wide: 44mm
• Thick: 12mm
• Finish: Satin Chrome Plate
