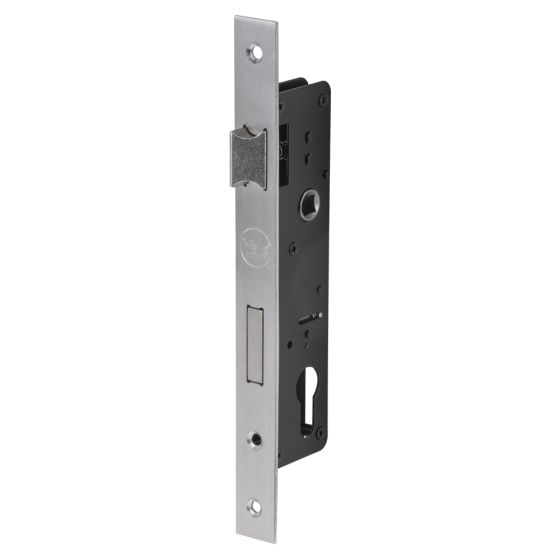

Yale Narrow Backset Mortice Lock The Yale Y7730 offers a familiar footprint to our retrofit solutions. Designed to be used in conjunction with Verona and Palladium furniture ranges.
Overview
240mm forend plate (Optimum is 210mm) Stainless steel forend plate
Key Features
- Single Point locking
- 30mm backset
- 240mm forend plate (Optimum is 210mm)
- Bolt throw 14mm
- 85mm pitch
- Latch can be reversed
- Stainless steel forend plate
- Accepts Euro cylinders
Specifications
| Brand | Yale |
| Type | Door Hardware |
| Backset | 30mm |
Available Finishes
Swatch colours are indicative only. Living finishes develop a natural patina over time.
Warranty
Mechanical parts against defects in materials and workmanship.
Electronic and electrical components are covered for 3 years; keys for 12 months from purchase.
Batteries, finishes/cosmetic damage, normal wear and tear, misuse or improper installation, and corrosion from coastal or salt-air environments (roughly within 5 km of the coast) unless the product is designed for such areas. Manufactured by ASSA ABLOY Australia Pty Ltd and covered under Australian Consumer Law. Yale warranty →
What is the Yale 85Mm Pitch Euro Mortice Lock 30Mm Backset Satin?
It is a Yale door hardware.
What's the difference between passage, privacy and entrance?
Passage: The latch operates from both sides at all times and does not lock. Ideal for hallways, walk-in robes, linen cupboards and other doors that don't need privacy or security. Privacy: Locks from the inside with a turn or push button, with an emergency release on the outside. Designed for bathrooms, ensuites and bedrooms. Entrance: Key-lockable from the outside and released by a turn or button on the inside. Suited to main entry doors and any door that needs keyed security.
What backset does it need?
It has a 30mm backset — the distance from the door edge to the centre of the hole. Check your door preparation matches before ordering.
What warranty does it come with, and how do I care for it?
Yale products carry a 10-year mechanical warranty; electronic and electrical components are covered for 3 years and keys for 12 months. Batteries, cosmetic/finish damage and coastal corrosion are excluded. Manufactured by ASSA ABLOY Australia under Australian Consumer Law.
