Yale Pinnacle 40Mm 2P Bifold Satin Stainless
Yale Pinnacle 40Mm 2P Bifold Satin Stainless

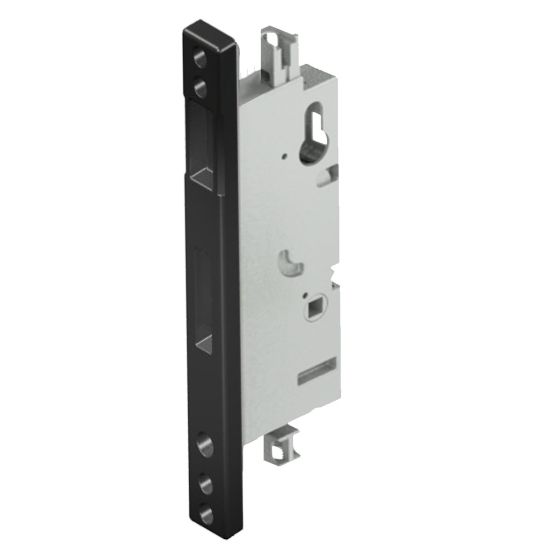

Yale Pinnacle Frecnh Door Lock The Pinnacle Mortice lock has been designed for use on Fench doors. The Pinnacle lock combines security features with a practical design, fulfilling the needs created by architectural innovations within the residential market.
Overview
Can be used with an Aria or Uno handle for French door applications. Both handles available in a wide range of powdercoat colours or satin chrome finish. 40mm backset mortice lock with standard forend plate 22mm throw on rods from mortice lock Handle turning angle of 90 degree from locked to unlocked (n0t included) Accepts 7.6mm square spindle
Key Features
- 40mm backset mortice lock with standard forend plate
- 22mm throw on rods from mortice lock
- Handle turning angle of 90 degree from locked to unlocked (n0t included)
- Accepts 7.6mm square spindle
- Provides two points of security with throw rods top and bottom
- Standard rod length 1m + 1.3m available (not included)
- Multipoint rod extension kit available (not included)
- Threaded rod connection provides easy adjustment
Specifications
| Brand | Yale |
| Series | Pinnacle |
| Type | Door Hardware |
Warranty
Mechanical parts against defects in materials and workmanship.
Electronic and electrical components are covered for 3 years; keys for 12 months from purchase.
Batteries, finishes/cosmetic damage, normal wear and tear, misuse or improper installation, and corrosion from coastal or salt-air environments (roughly within 5 km of the coast) unless the product is designed for such areas. Manufactured by ASSA ABLOY Australia Pty Ltd and covered under Australian Consumer Law. Yale warranty →
Documents
What is the Yale Pinnacle 40Mm 2P Bifold Satin Stainless?
It is a Yale door hardware.
What's the difference between passage, privacy and entrance?
Passage: The latch operates from both sides at all times and does not lock. Ideal for hallways, walk-in robes, linen cupboards and other doors that don't need privacy or security. Privacy: Locks from the inside with a turn or push button, with an emergency release on the outside. Designed for bathrooms, ensuites and bedrooms. Entrance: Key-lockable from the outside and released by a turn or button on the inside. Suited to main entry doors and any door that needs keyed security.
What warranty does it come with, and how do I care for it?
Yale products carry a 10-year mechanical warranty; electronic and electrical components are covered for 3 years and keys for 12 months. Batteries, cosmetic/finish damage and coastal corrosion are excluded. Manufactured by ASSA ABLOY Australia under Australian Consumer Law.
How can I get help choosing the right function?
Our team is happy to help. Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156.
