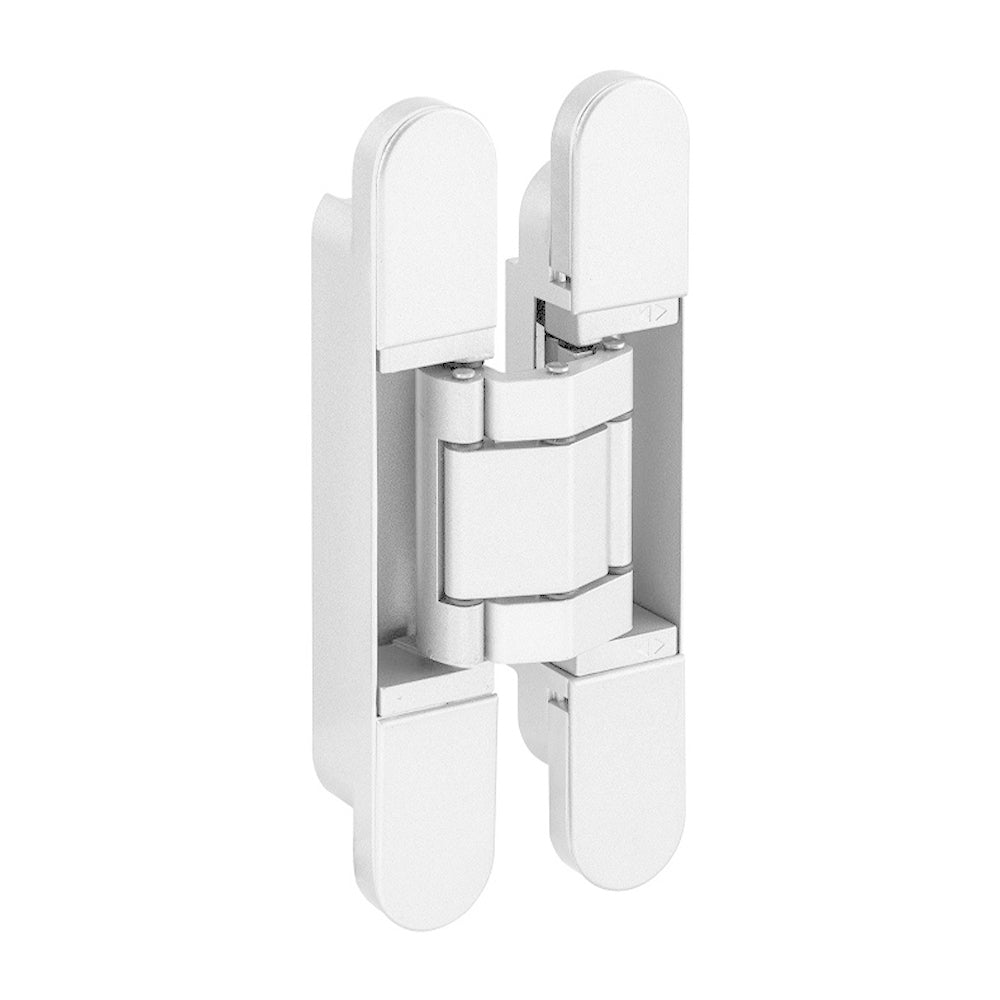

Zanda 3D Adjustable Concealed Hinges — 152mm
Zanda 3D Adjustable Concealed Hinges — 152mm
The Zanda 3D Adjustable Concealed Hinges — 152mm is a Zanda door hinge, available in Matt White. Zanda product code shown below.
Available Finishes (1) & Product Codes
| Finish | 152mm |
|---|---|
| Matt White | 5970.WHT |
Specifications
| Brand | Zanda |
| Product type | 3D adjustable concealed hinge |
| Product code | 5970.WHT |
| Finish | Matt White |
| Dimensions | 25 x 152mm, min. door thickness 36mm, 3 hinges carry 60kg |
| Adjustment | 3D (depth, vertical and horizontal) |
| Opening angle | Up to 180° |
| Sizes | 5970: 25 x 152mm, min. door 36mm, 3 hinges carry 60kg; 5972: 28 x 177mm, min. door 40mm, 3 hinges carry 90kg |
| Available Size (Height) | 152mm |
| Warranty | 7-year manufacturer mechanical warranty |
Warranty
7-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda 3D Adjustable Concealed Hinges — 152mm?
It is a Zanda 3D adjustable concealed hinge. Product code: 5970.WHT.
What finishes is it available in?
This listing is finished in Matt White. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
Dimensions: 25 x 152mm, min. door thickness 36mm, 3 hinges carry 60kg; Sizes: 5970: 25 x 152mm, min. door 36mm, 3 hinges carry 60kg; 5972: 28 x 177mm, min. door 40mm, 3 hinges carry 90kg.
How many hinges do I need per door?
Three hinges per door is standard for internal and entrance doors. Taller or heavier doors may need a fourth. Hinges are priced as listed — check whether the listing is each, a pair or a pack.
What warranty does it have?
7-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
How can I get help choosing the right product?
Call Prime Hardware on 1800 329 028 (Mon–Fri 10am–5pm), email sales@primehardware.com.au, or visit our showroom at 2/249 Annangrove Road, Annangrove NSW 2156, where over 6,000 products are on display. Send us your door type, thickness and the function you need and we will confirm the right parts.
