Zanda 3D Adjustable Concealed Hinges 60kg and 120kg Rated
Zanda 3D Adjustable Concealed Hinges 60kg and 120kg Rated

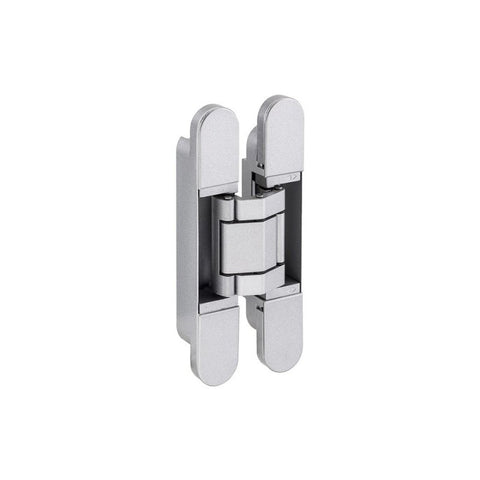

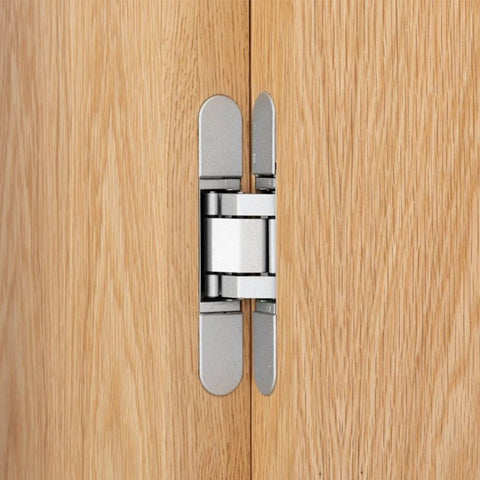

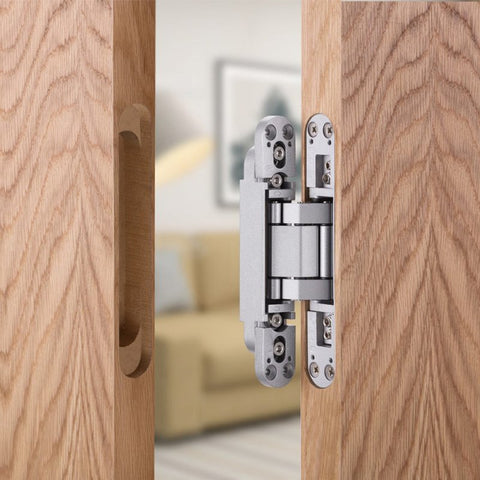

Zanda 3D Adjustable Concealed Hinges allow depth, vertical and horizontal post-installation adjustment for perfect door alignment. Ideal for frameless architecture, rated to 60kg (5970) or 120kg (5972) per set of 3 hinges. 5970: 25x152mm, 150 degree opening, 60kg rated (3 hinges) 5972: 29x177mm, 150 degree opening, 120kg rated (3 hinges) 3D adjustment: depth, vertical and horizontal Maximum opening angle: 180 degrees Self-lubricating anti-friction washers
Sizes & Product Codes
O/A is the overall length; CRS is the centre-to-centre distance between fixings.
| Code | O/A length | CRS | Section | Projection |
|---|---|---|---|---|
| 5970 | 152 mm | |||
| 5972 | 177 mm |
Available Finishes (2) & Product Codes
| Finish | 152mm | 177mm |
|---|---|---|
| Matt Black | 5970BLK | — |
| Stainless Steel | 5970SS | 5972SS |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Hinge Type: Butt hinge
The standard door hinge, mortised into the door edge and frame.
Hinge types explained:
| Hinge type | What it does |
|---|---|
| Parliament hinge | Projects the door clear of the frame or architrave so it can swing back fully against the wall — used where a door must open 180° or clear deep reveals. |
| Ball bearing hinge | Bearings between the knuckles carry the load, reducing friction and wear. Best for heavy and high-use doors, including entrance doors. |
| Loose pin hinge | The pin can be withdrawn so the door lifts off without unscrewing the hinge. Internal use — handy for bathrooms and for removing doors during work. |
| Fixed pin hinge | The pin is fixed in the knuckle. A reliable all-rounder for most internal doors. |
| Butt hinge | The standard door hinge, mortised into the door edge and frame. |
| Lift-off hinge | The leaves separate so the door lifts off. Handed — order left or right hand to suit the door. |
Three hinges per door is standard for internal and entrance doors. Heavier and taller doors may require a fourth.
Specifications
| Material | Stainless Steel |
| Finishes | Matt Black, Stainless Steel |
| Sizes | 2 sizes — 152 mm to 177 mm overall |
| Warranty | 10-Year Mechanical Warranty |
Warranty
Zanda hardware is warranted against defects in materials and workmanship under normal use, when correctly installed. The warranty period varies by product range.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda 3D Adjustable Concealed Hinges 60kg and 120kg Rated?
It is a Zanda hinge in stainless steel.
What finishes are available?
This model is available in Matt Black, Stainless Steel. Each finish has its own product code — see the finishes table in the description.
What warranty applies?
Zanda hardware is warranted against defects in materials and workmanship under normal use, when correctly installed. The warranty period varies by product range and is stated on the product where applicable.
