Zanda Alto Lever Handle The Zanda Alto lever handle is set on a 65mm rose. The larger rose is retrofittable, making it a practical choice when replacing existing hardware and covering previous fixing marks. Available in passage, privacy and entrance configurations across multiple finishes to suit every door in the home.
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (2) & Product Codes

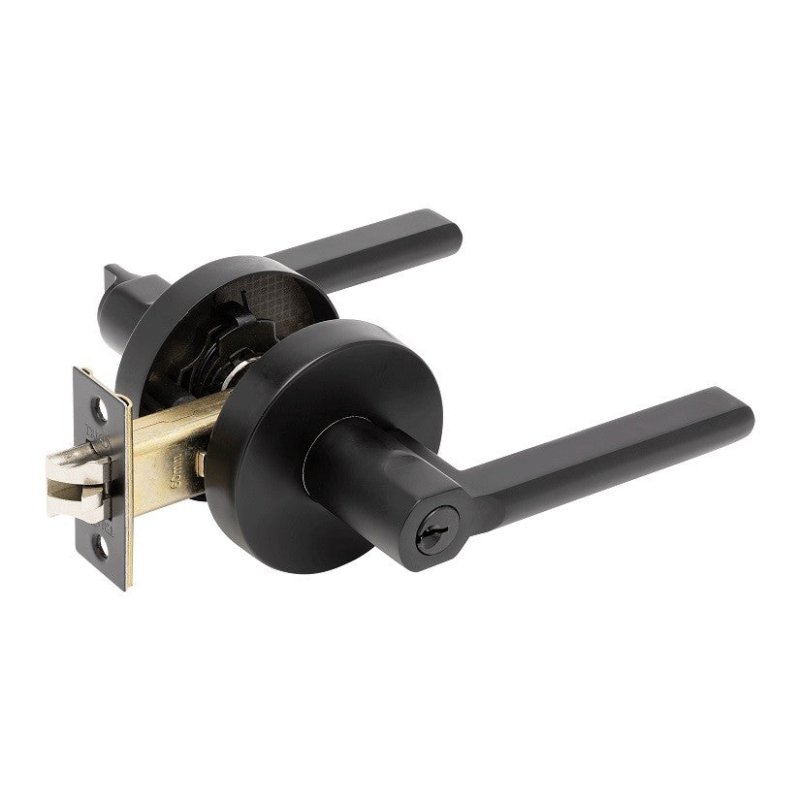

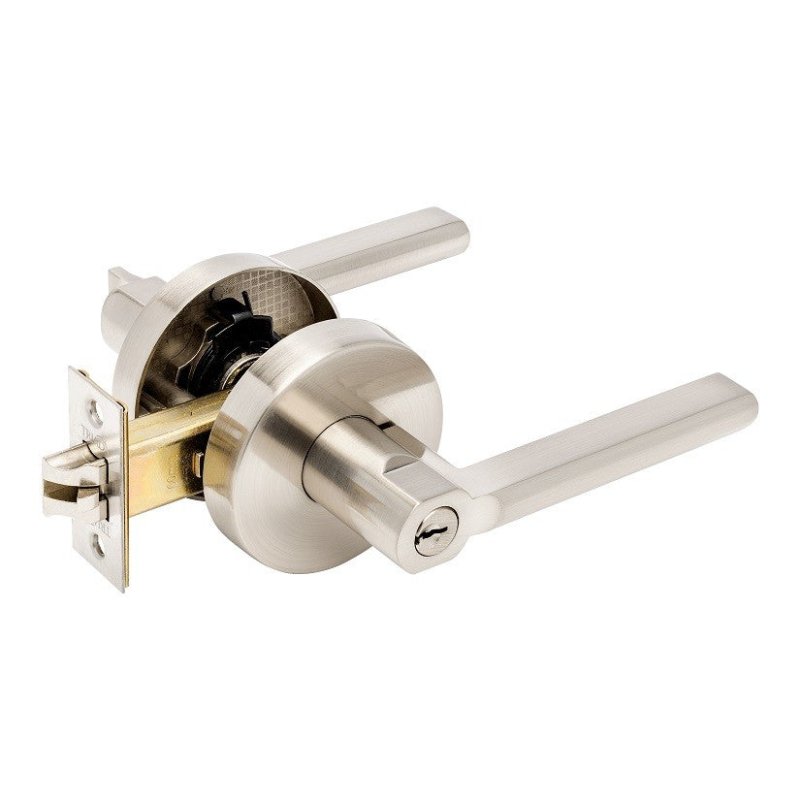

| Finish | 9134 - Alto Entrance Set - Key in Lever | 9135 - Alto Combination Set includes Entrance Set & Double Cylinder Deadbolt |
|---|---|---|
| Brushed Nickel | 9134.BN | 9135.BN |
| Matt Black | 9134.BLK | 9135.BLK |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Jura Elite |
| Product type | Door lever on round rose |
| Function | Entrance set, Combination set |
| Product code | 9134.BLK, 9134.BN, 9135.BLK, 9135.BN |
| Set 9134 | Aldo Entrance Set - Key in Lever |
| Set 9134.BN | Aldo Entrance Set |

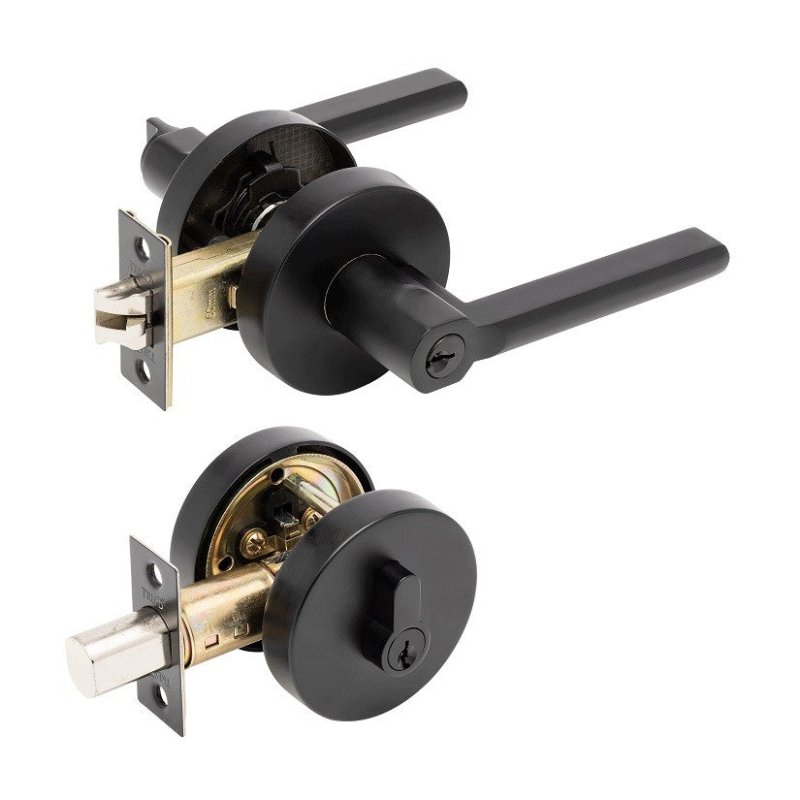

| Set 9135 | Aldo Combination Set, includes Entrance Set & Double Cylinder Deadbolt |
| Set 9135.BN | Aldo Combination Set, Double Cylinder Deadbolt |
| Finish | Matt Black, Brushed Nickel |
| Rose / plate | 65mm round rose (retrofits over existing 55mm holes) |
| Warranty | 7-year manufacturer mechanical warranty |
Warranty
7-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Alto Lever Handle — 65mm Rose?
It is a Zanda door lever on round rose from the Jura Elite range. Function: entrance set, Combination set. Product code: 9134.BLK, 9134.BN, 9135.BLK, 9135.BN.
What does each option include?
9134: Aldo Entrance Set - Key in Lever; 9134.BN: Aldo Entrance Set; 9135: Aldo Combination Set, includes Entrance Set & Double Cylinder Deadbolt; 9135.BN: Aldo Combination Set, Double Cylinder Deadbolt.
What finishes is it available in?
It is available in Matt Black, Brushed Nickel. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
Rose / plate: 65mm round rose (retrofits over existing 55mm holes).
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
Will it fit over my existing door holes?
Yes — 65mm round rose (retrofits over existing 55mm holes). The larger rose covers the marks and holes left by most existing 55mm furniture.
What warranty does it have?
7-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
