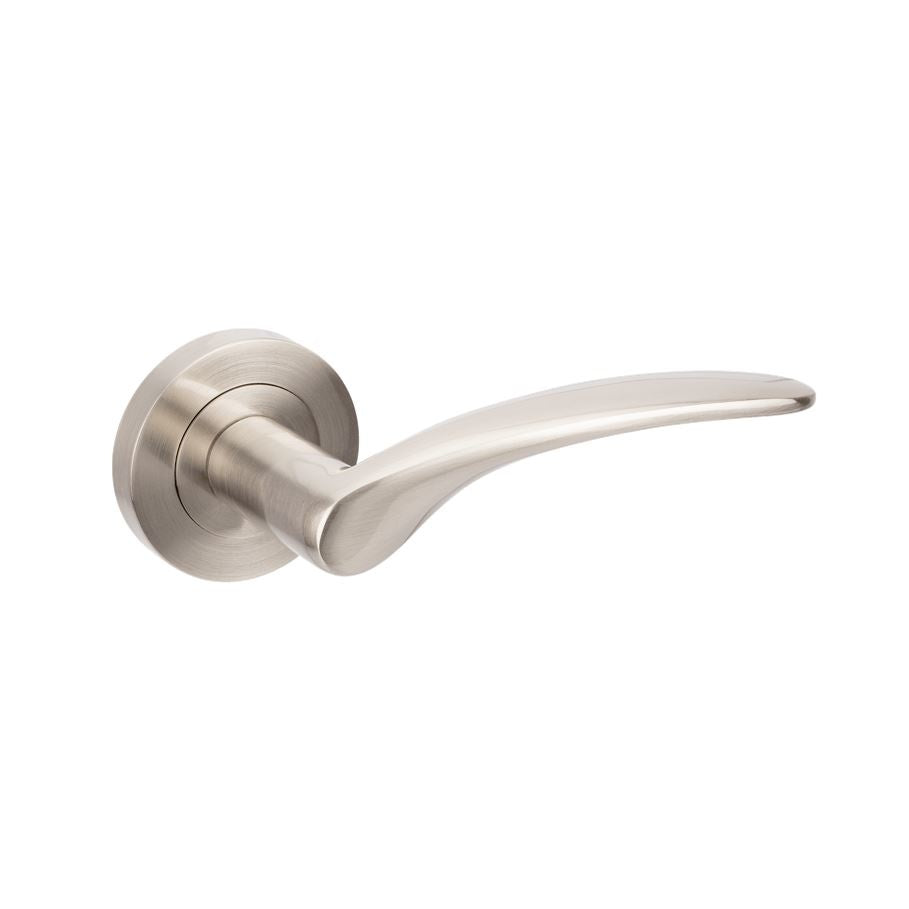

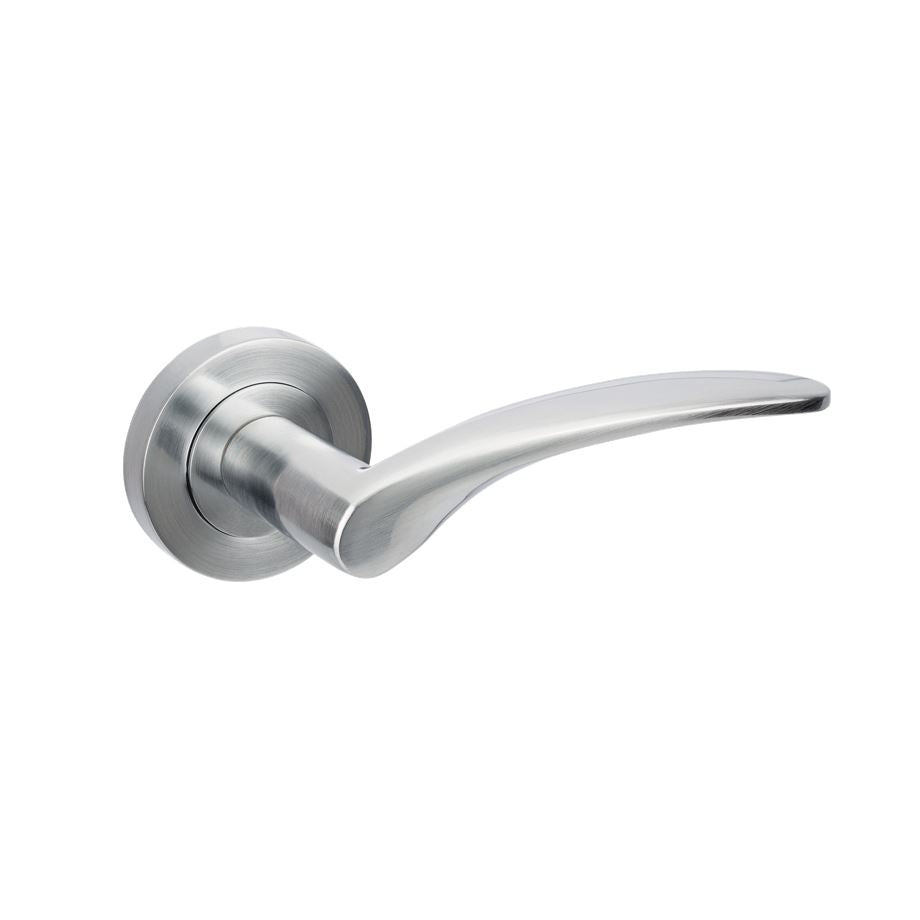

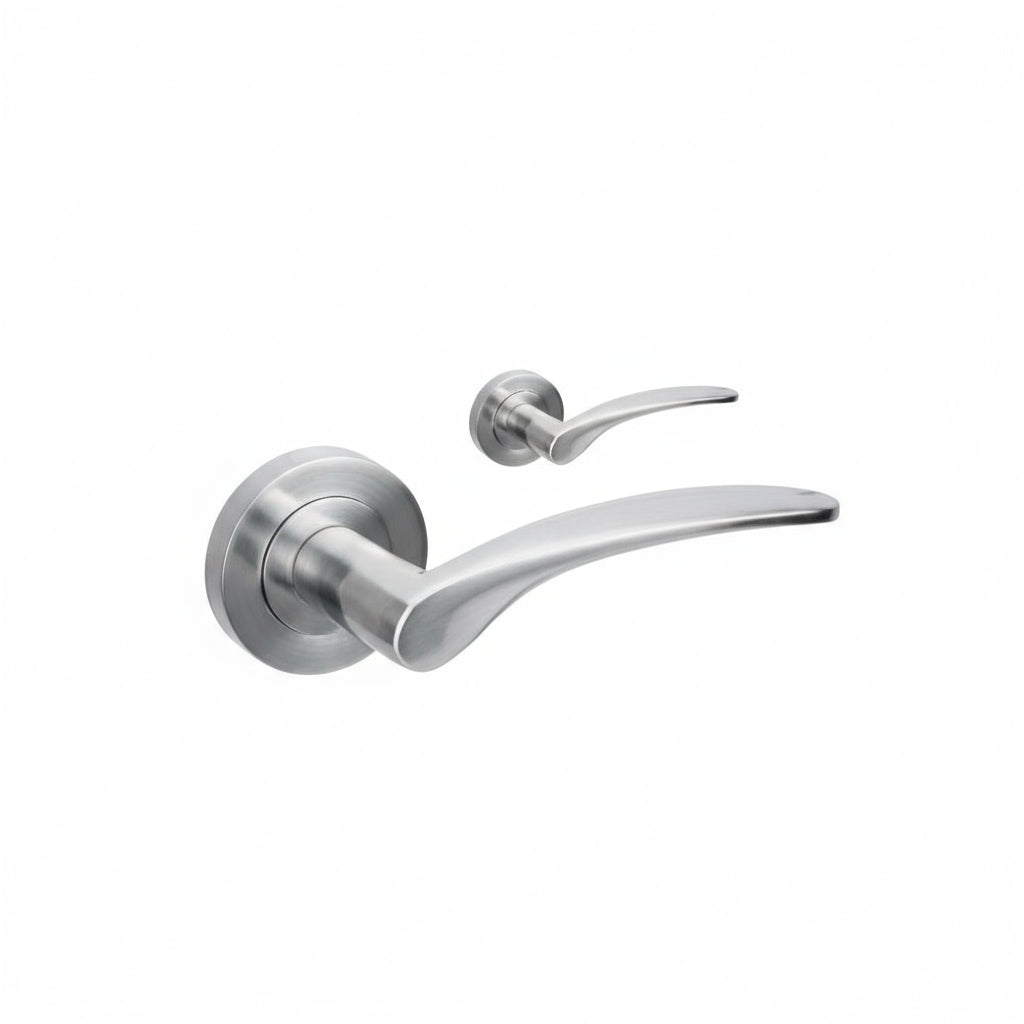

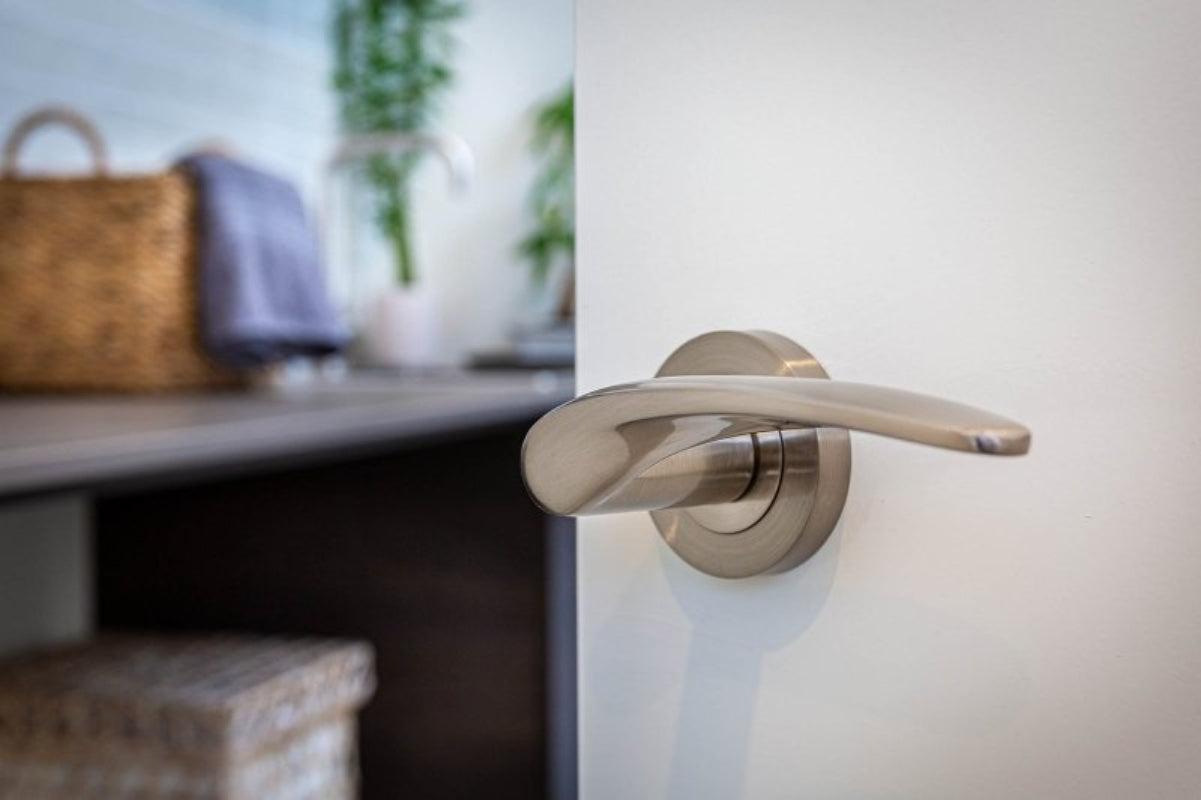

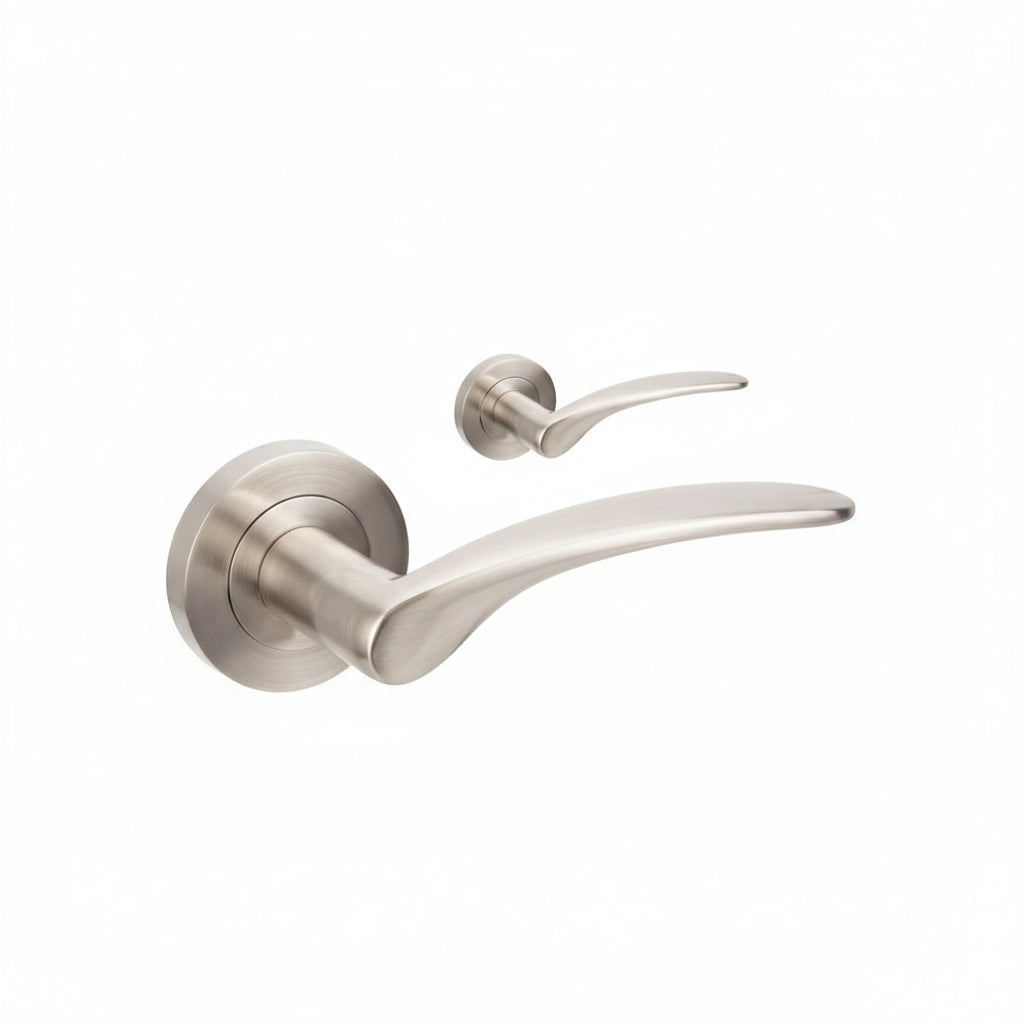

Zanda Apollo Door Lever — Brushed Nickel & Satin Chrome (Futura Range) The Zanda Apollo is part of the Futura range — a contemporary door lever on a round rose, available in Brushed Nickel and Satin Chrome at the same price point. Available across lever set only, passage, integrated privacy, separate privacy, dummy (left and right hand), residential entrance, and apartment entrance configurations — covering every door in the project from a single range. Fire rated and backed by a 10-year product guarantee. Fire Rated · 10-Year Product Guarantee · Brushed Nickel & Satin Chrome at One Price RANGE Futura FINISHES BN & SC ROSE Round GUARANTEE 10 Years Specification Detail Brand Zanda Range Futura Lever Name Apollo
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (2) & Product Codes

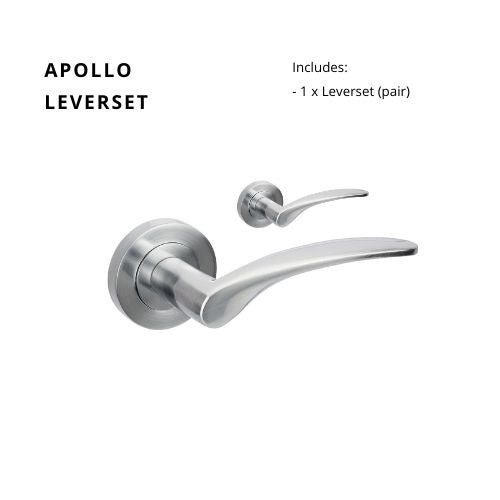

| Finish | 7015 Apollo Leverset Only | Passage | Privacy | Dummy | Dummy | 7080.1 Apollo Rose Entrance Set - includes 7015 1143 7020 & 1121 (60mm Key/Key) | 7080.2 Apollo Rose Entrance Set - includes 7015 1143 7020 & 1122 (60mm Key/Turn) | 7080.3 Apollo Rose Entrance Set - includes 7015 1143 7020 & 1147 (70mm Key/Key) | 7080.4 Apollo Rose Entrance Set - includes 7015 1143 7020 & 1148 (70mm Key/Turn) | Privacy |
|---|---|---|---|---|---|---|---|---|---|---|
| Brushed Nickel | 7015.BN | 7033.BN | 7034.BN | 7015.DL.BN | 7015.DR.BN | 7080.1.BN | 7080.2.BN | 7080.3.BN | 7080.4.BN | 7191.BN |
| Satin Chrome | 7015.SC | 7033.SC | 7034.SC | 7015.DL.SC | 7015.DR.SC | 7080.1.SC | 7080.2.SC | 7080.3.SC | 7080.4.SC | — |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Futura |
| Product type | Door lever on round rose |
| Function | Leverset only (no latch), Passage set, Dummy set, Entrance set, Integrated privacy set |
| Product code | 7015, 7033, 7034, 7080, 7191 (finish suffix varies — see table above) |

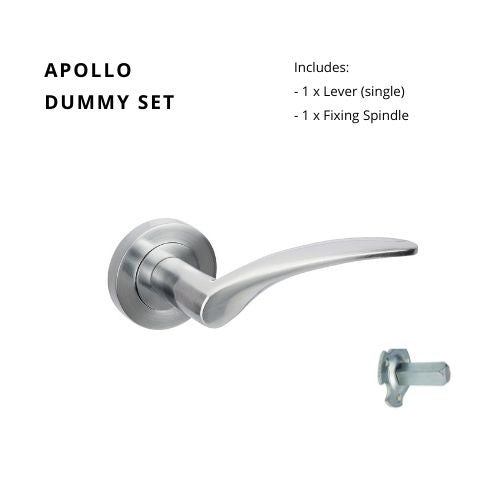

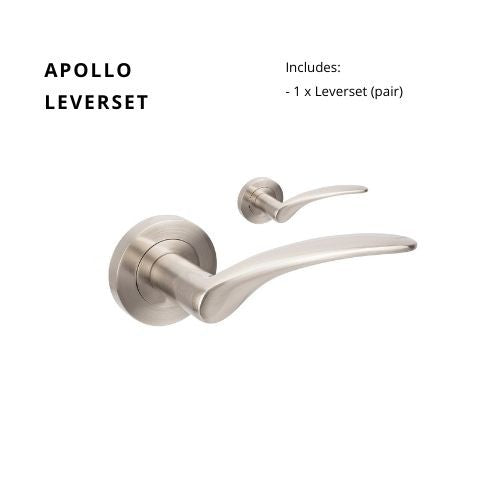

| Set 7015 | DR Apollo Dummy Set - Right Hand |

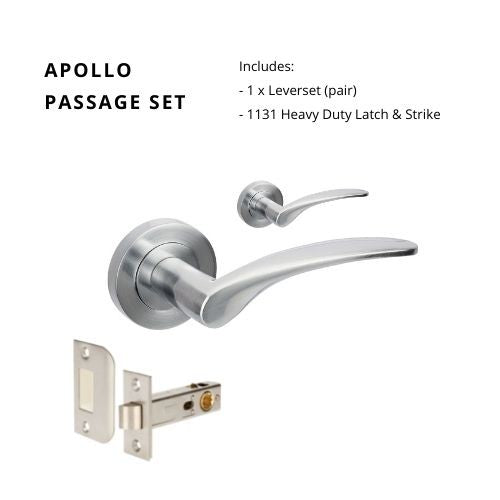

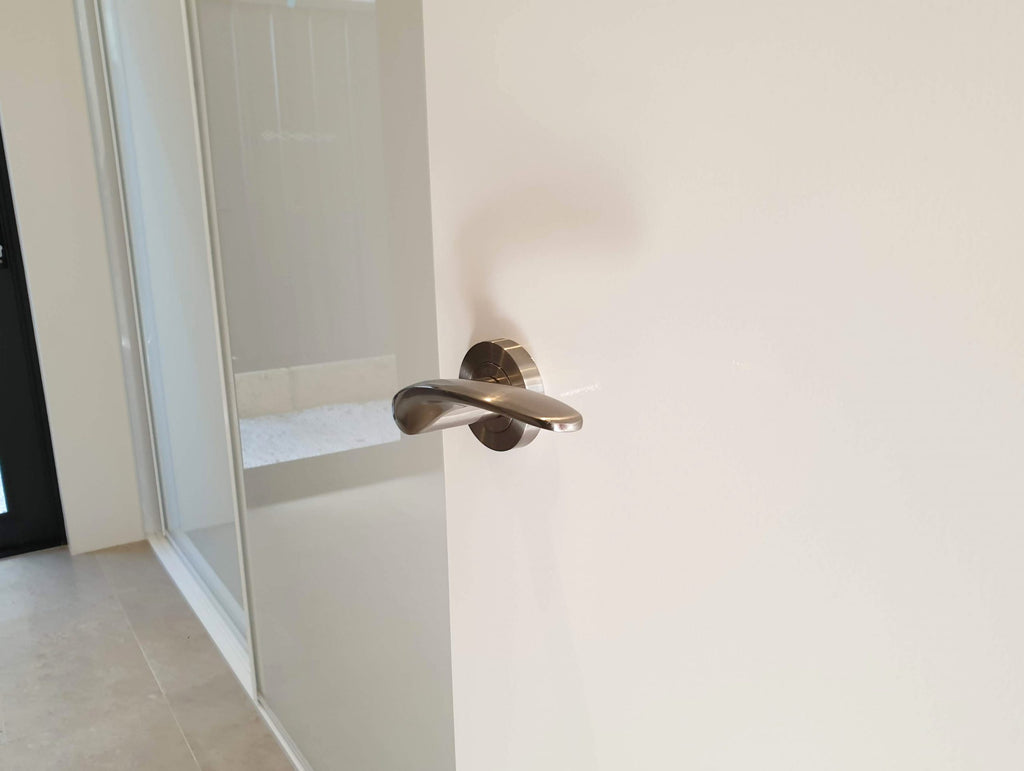

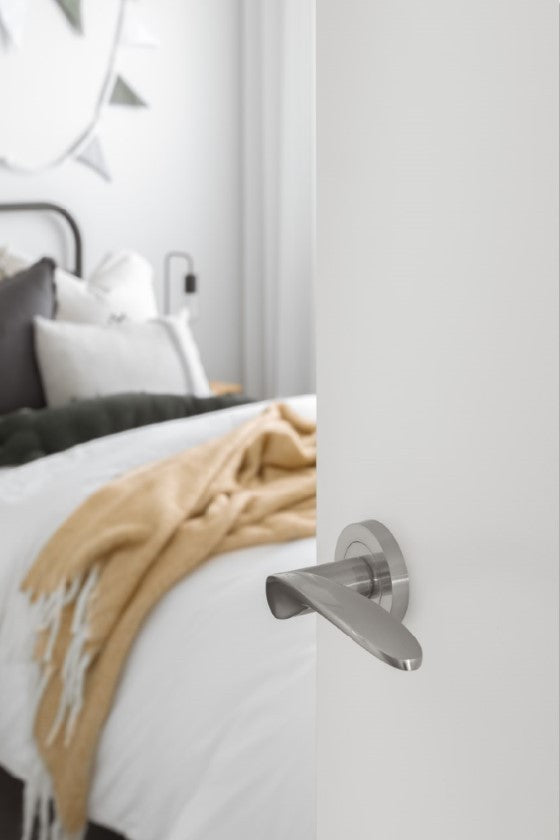

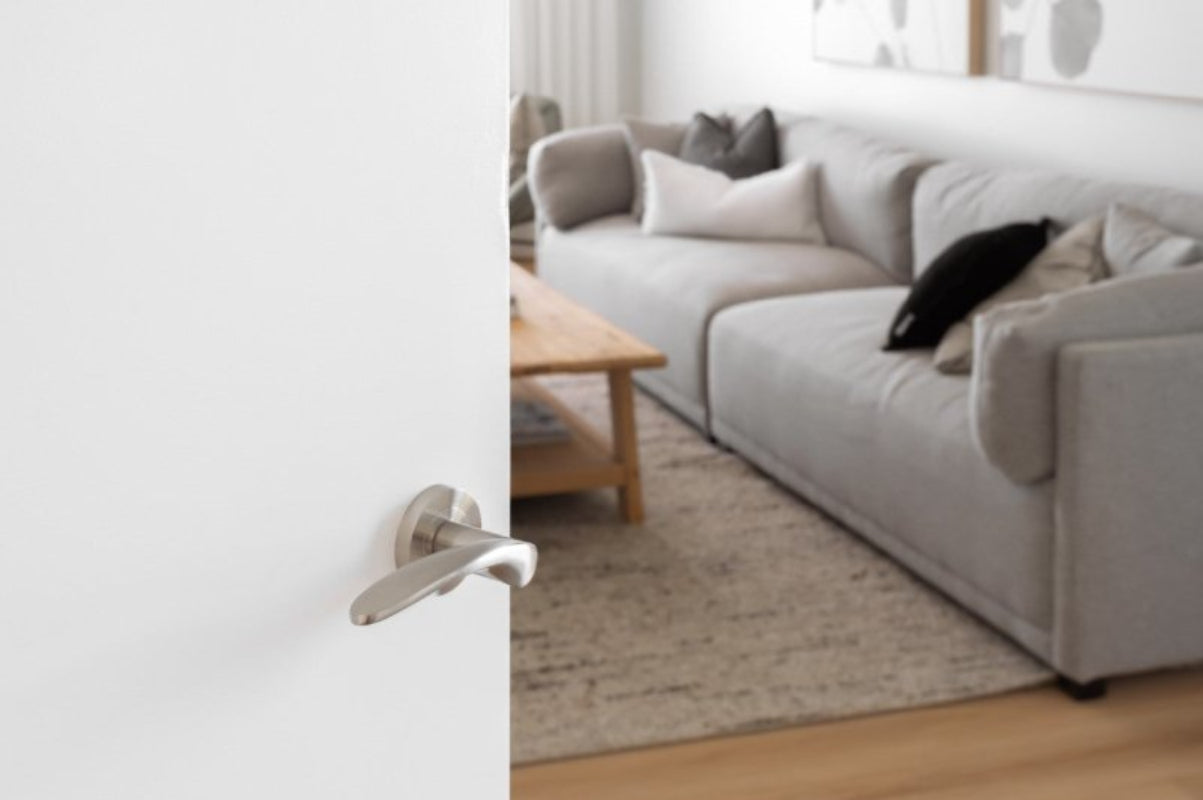

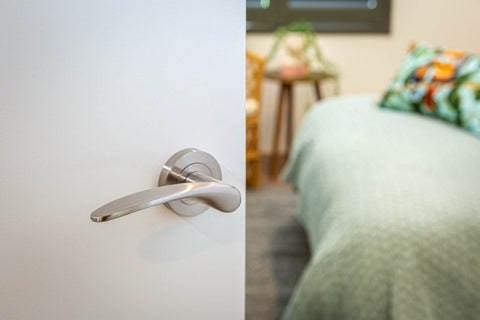

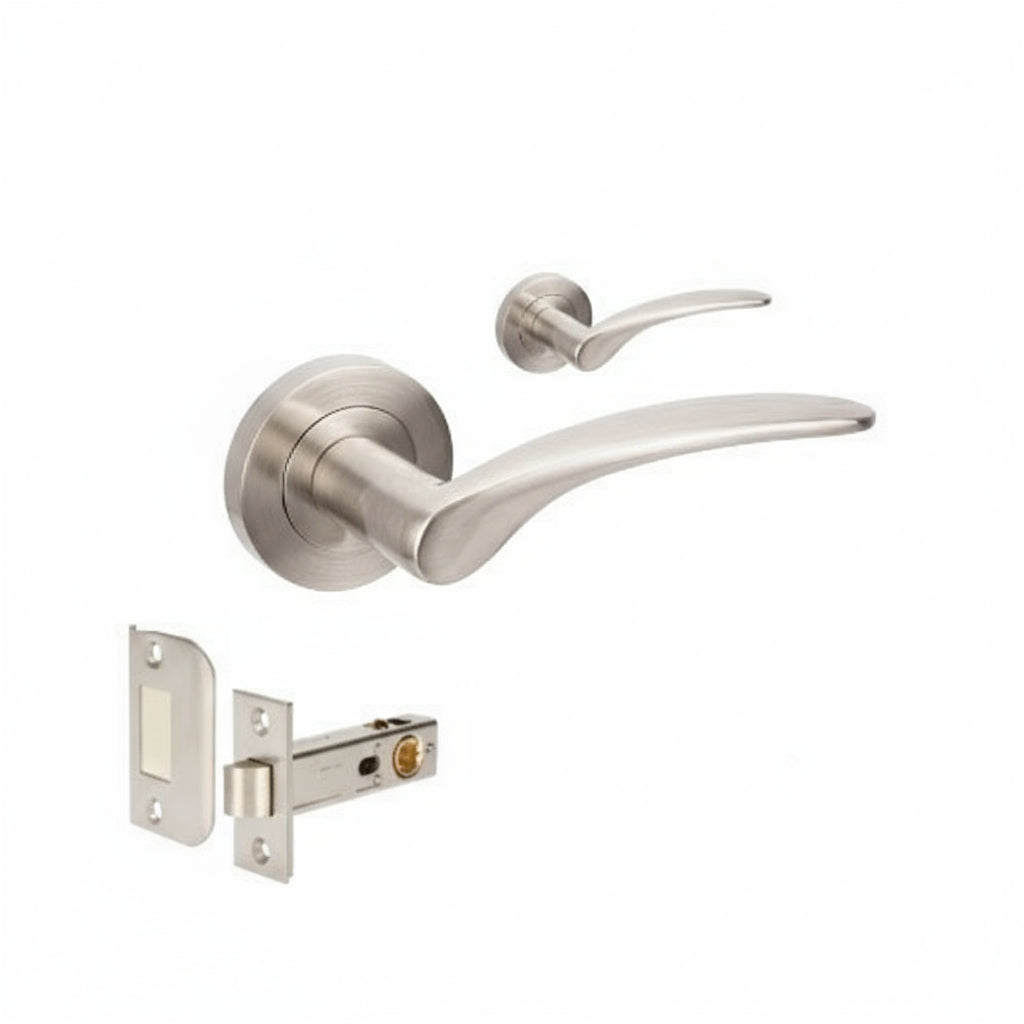

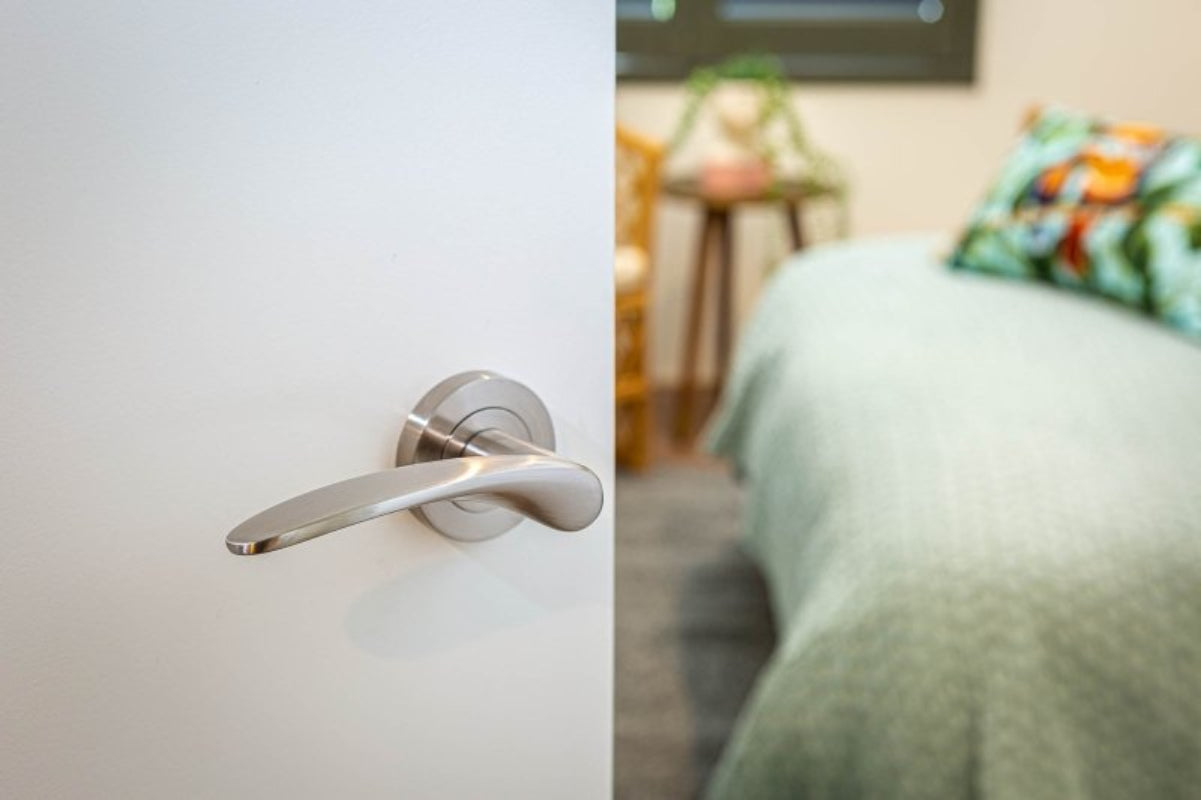

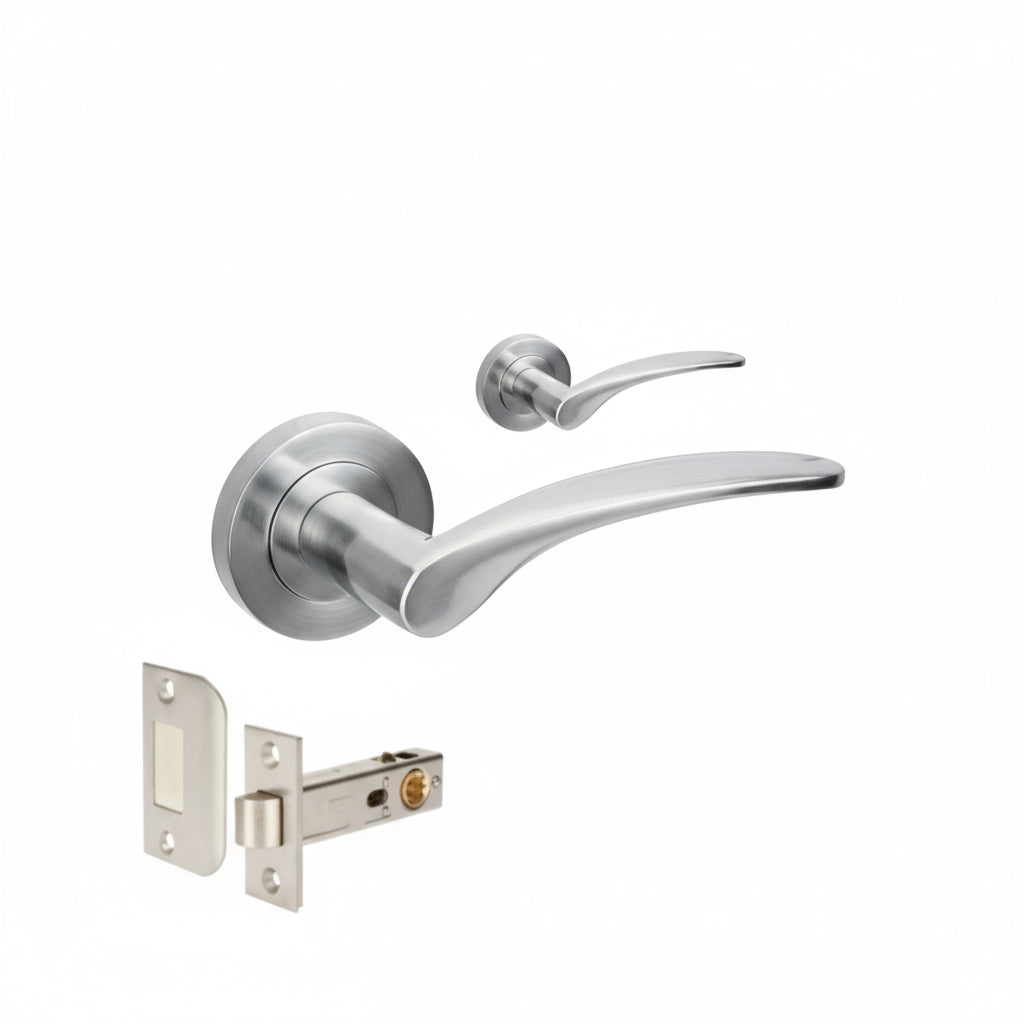

| Set 7033 | Apollo Passage Set, includes 1131 latch |

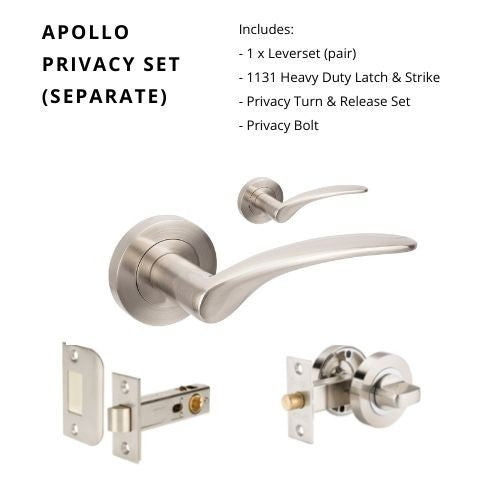

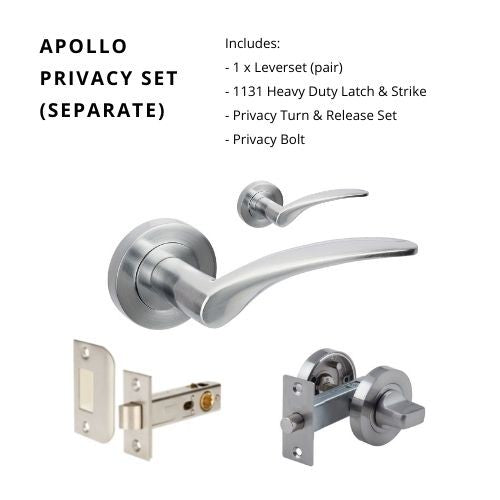

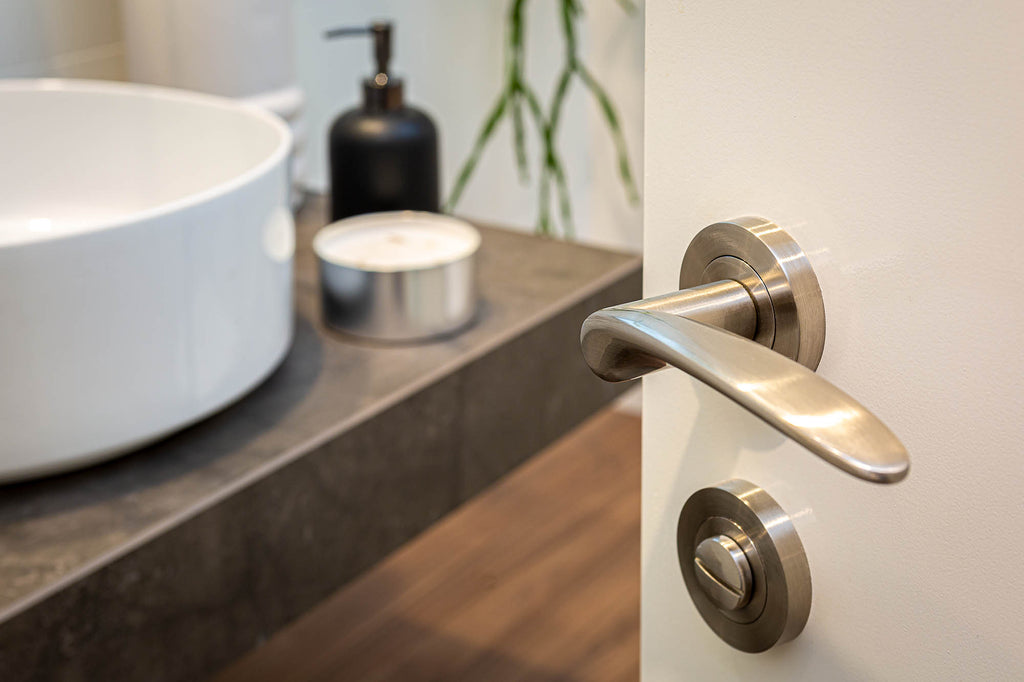

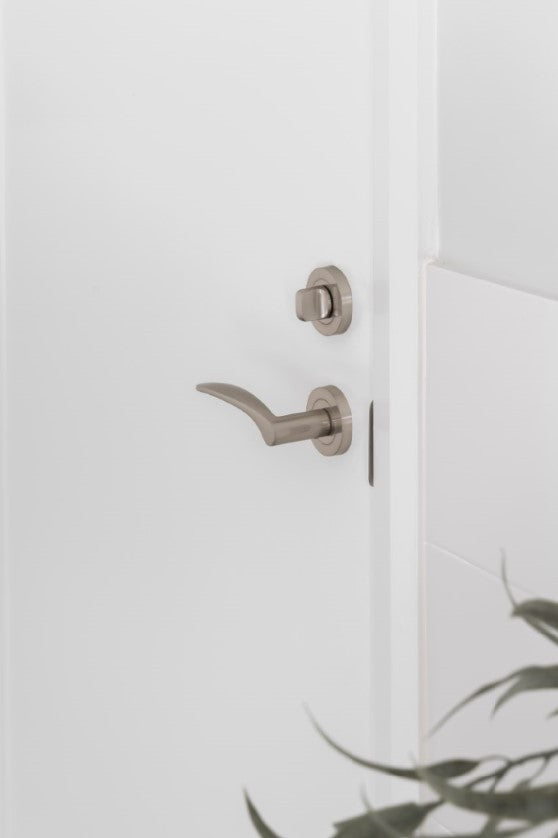

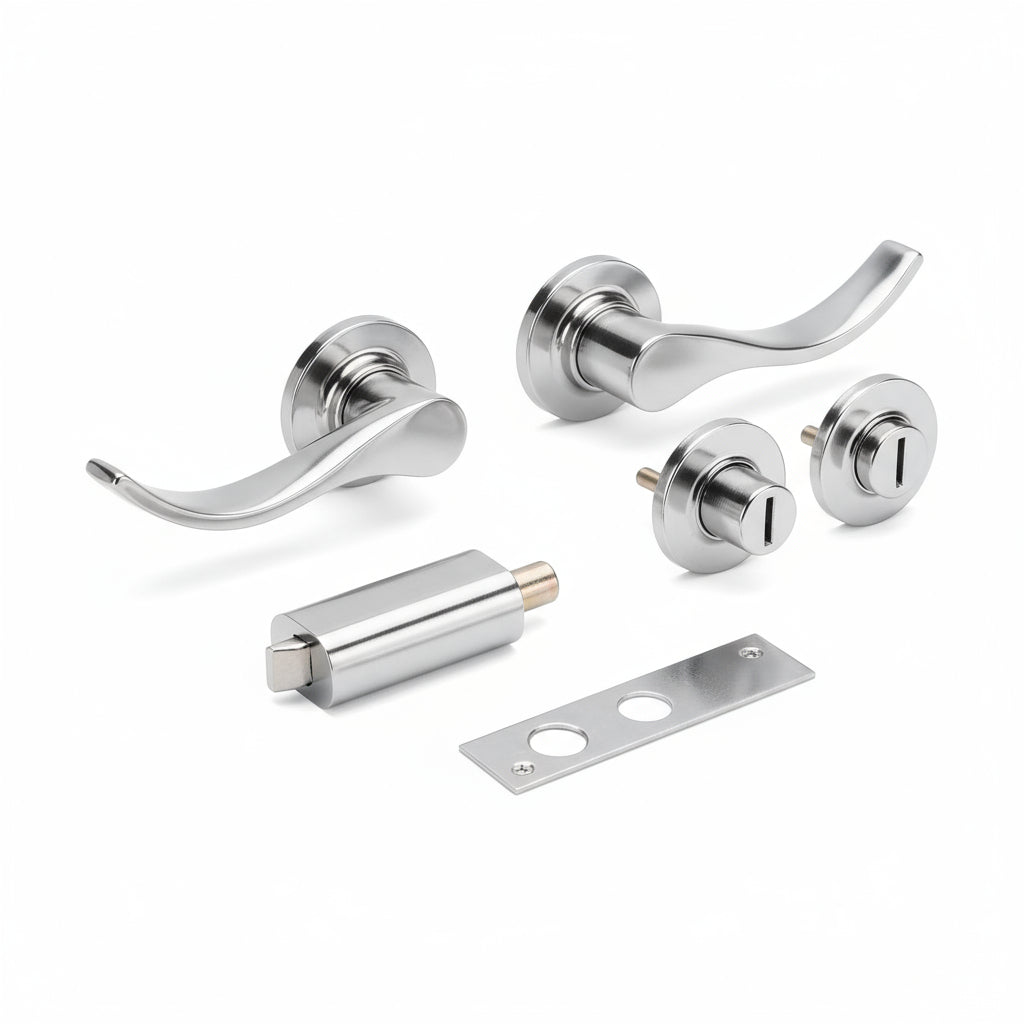

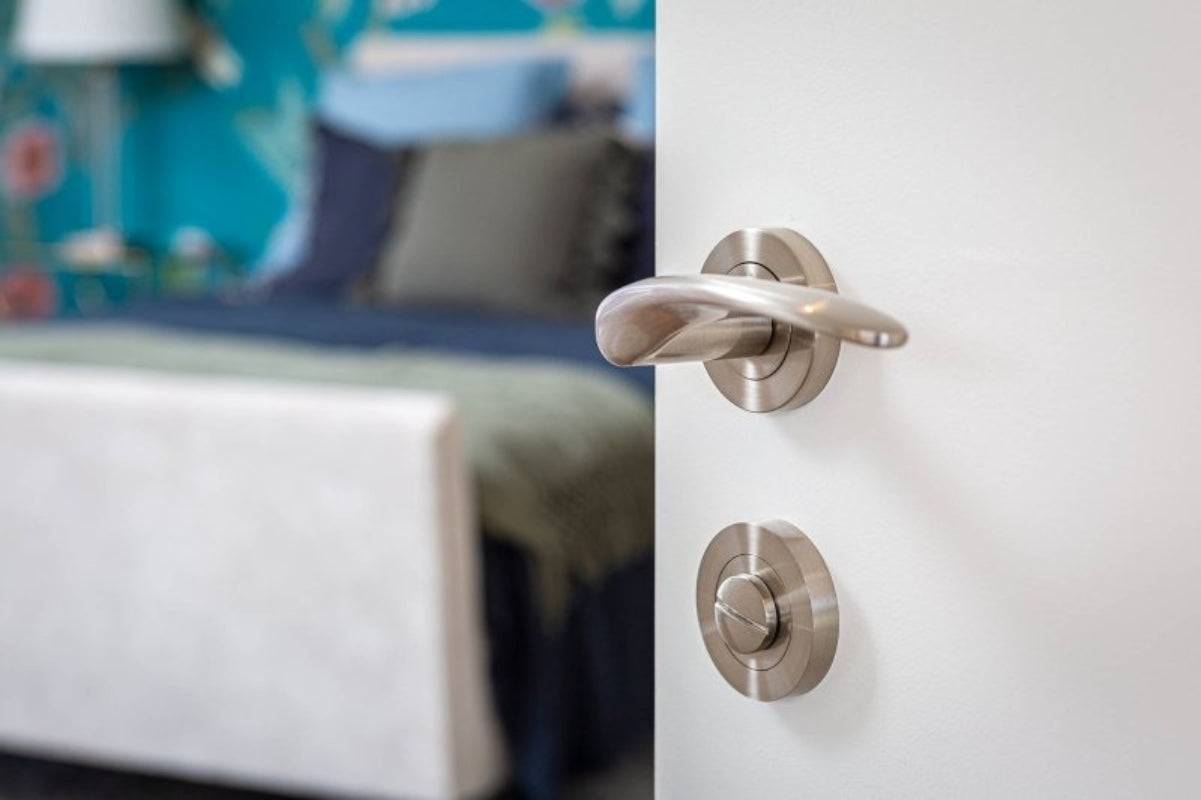

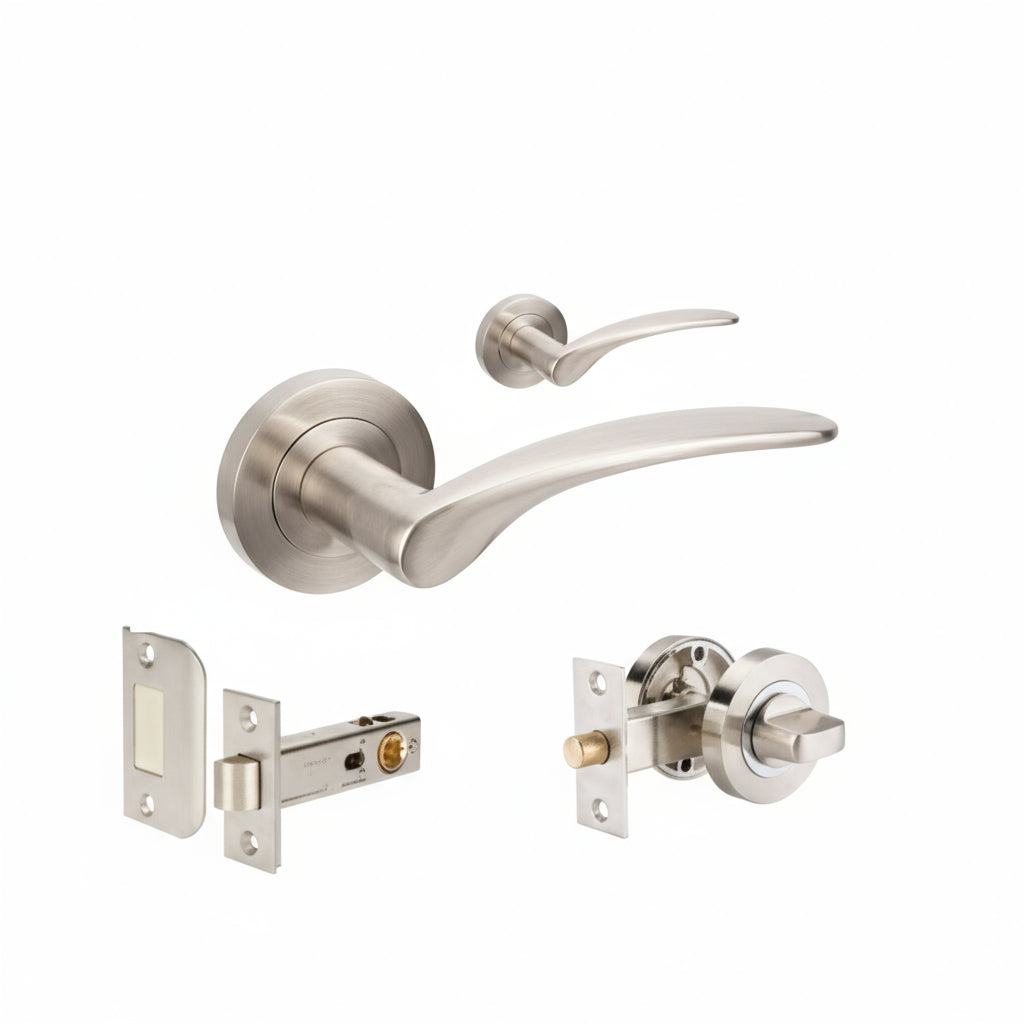

| Set 7034 | Apollo Separate Privacy Set, includes 1131 tube latch & 7032 separate privacy kit (turn and release) |

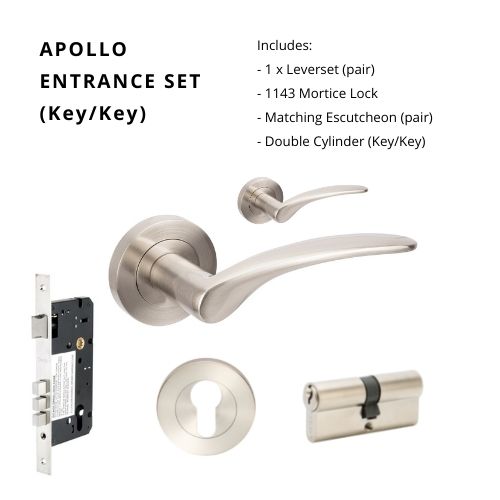

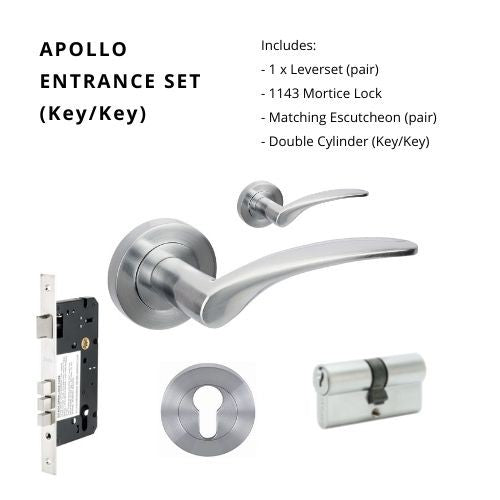

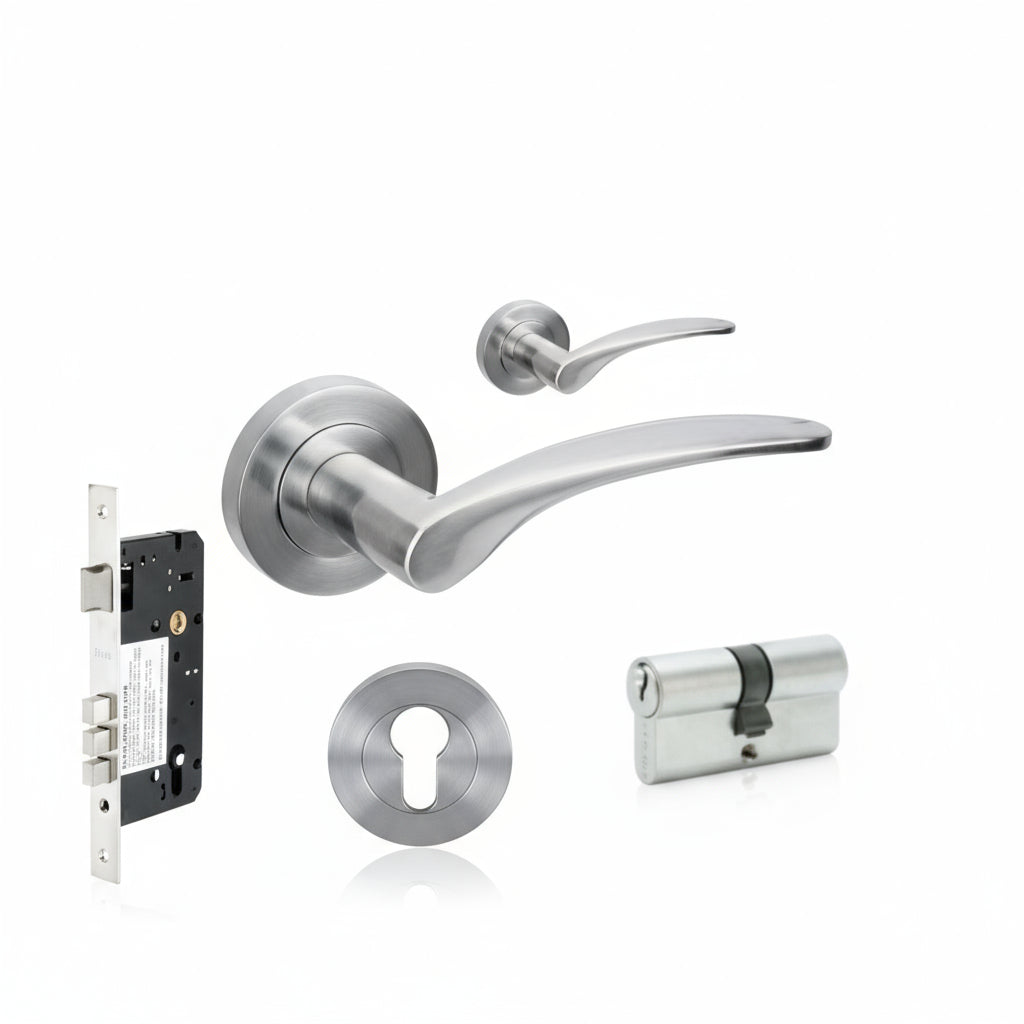

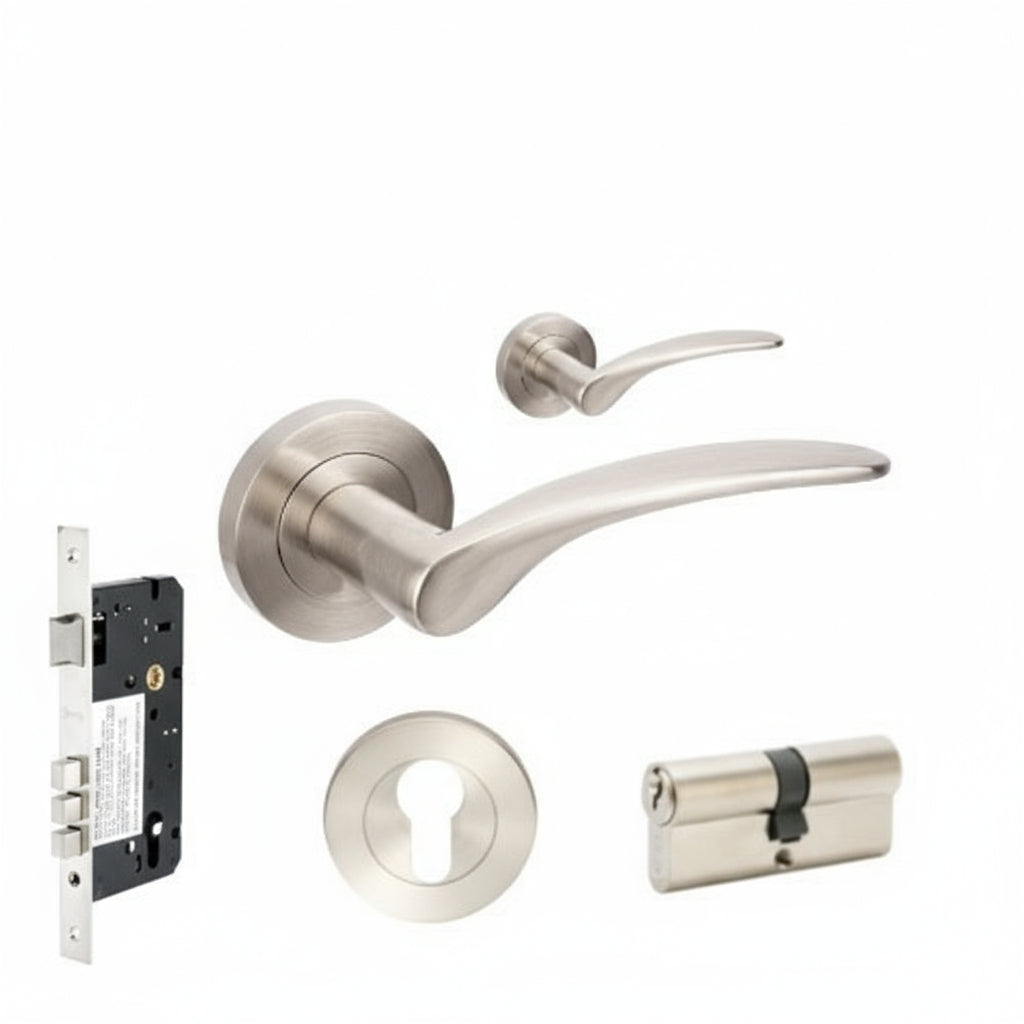

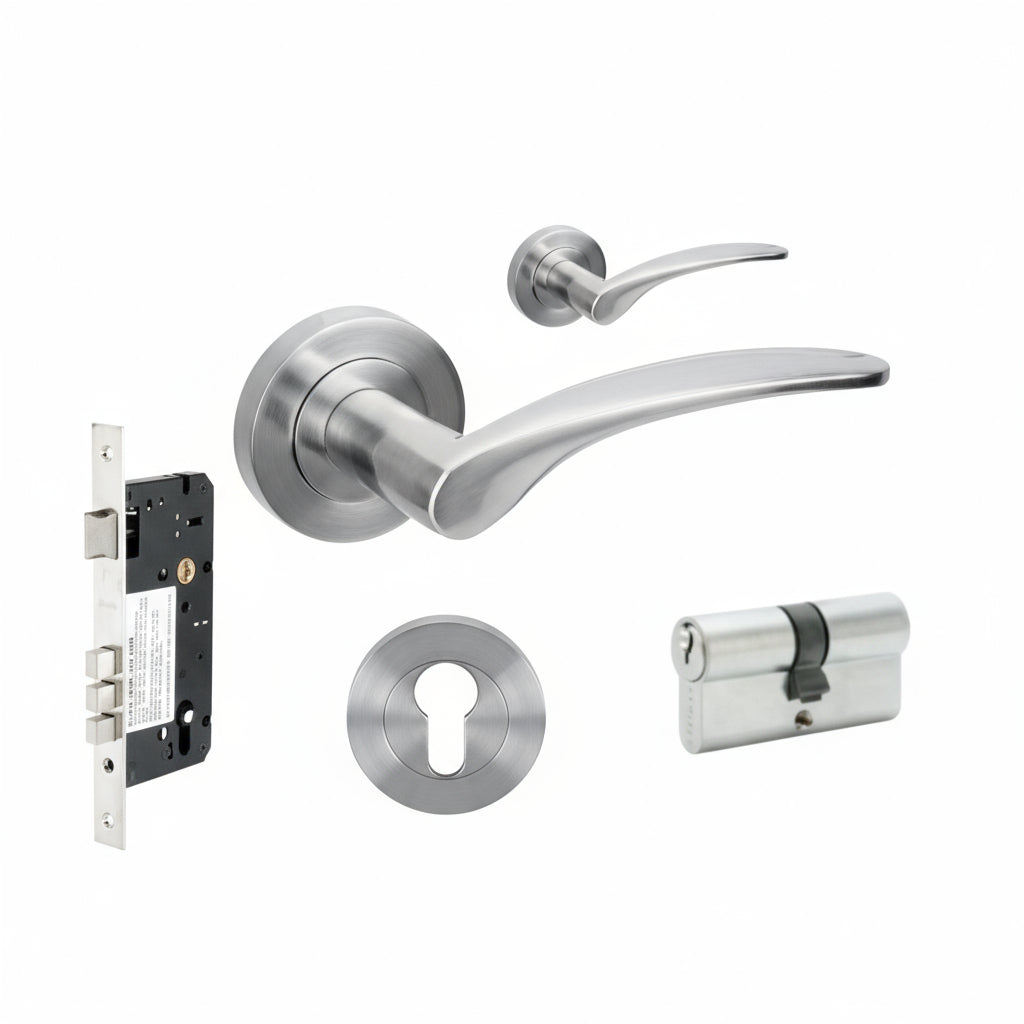

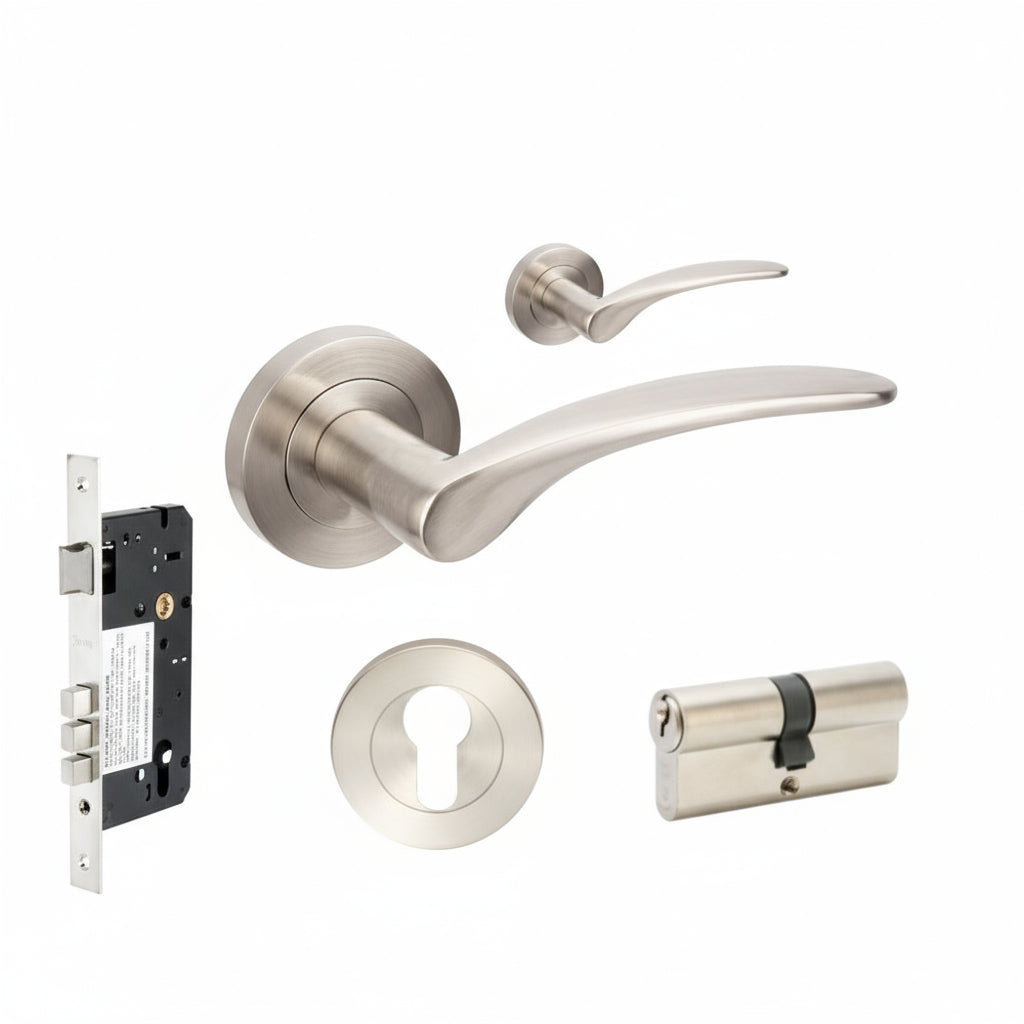

| Set 7080.1 | Apollo Rose Entrance Set - includes 7015, 1143 euro mortice lock, 7020 round euro escutcheons & 1121 60mm double cylinder (60mm Key/Key) |

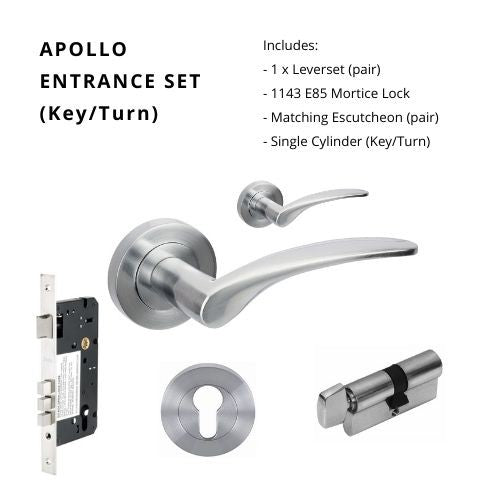

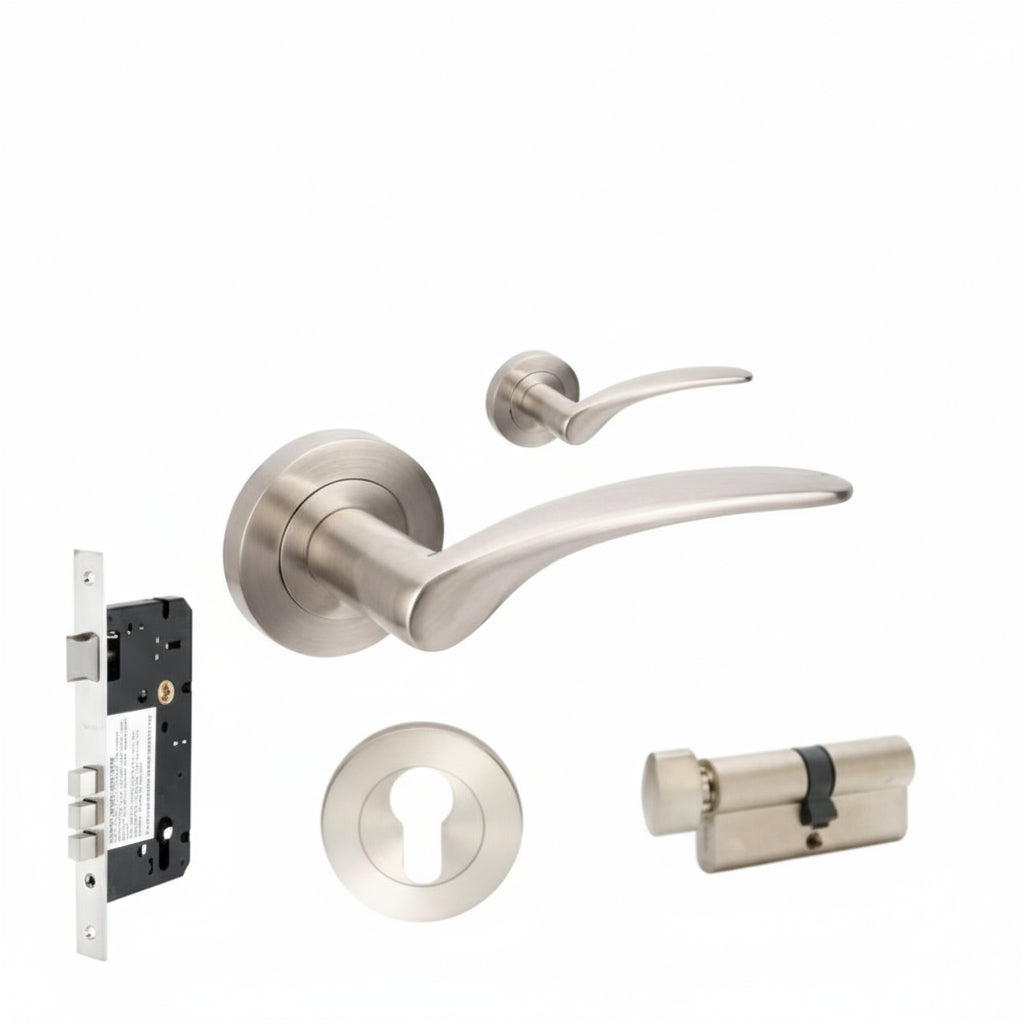

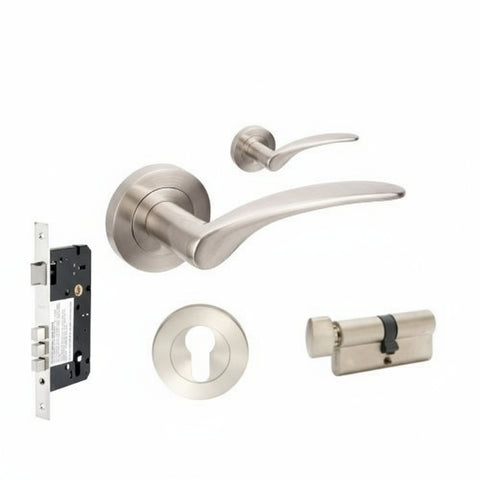

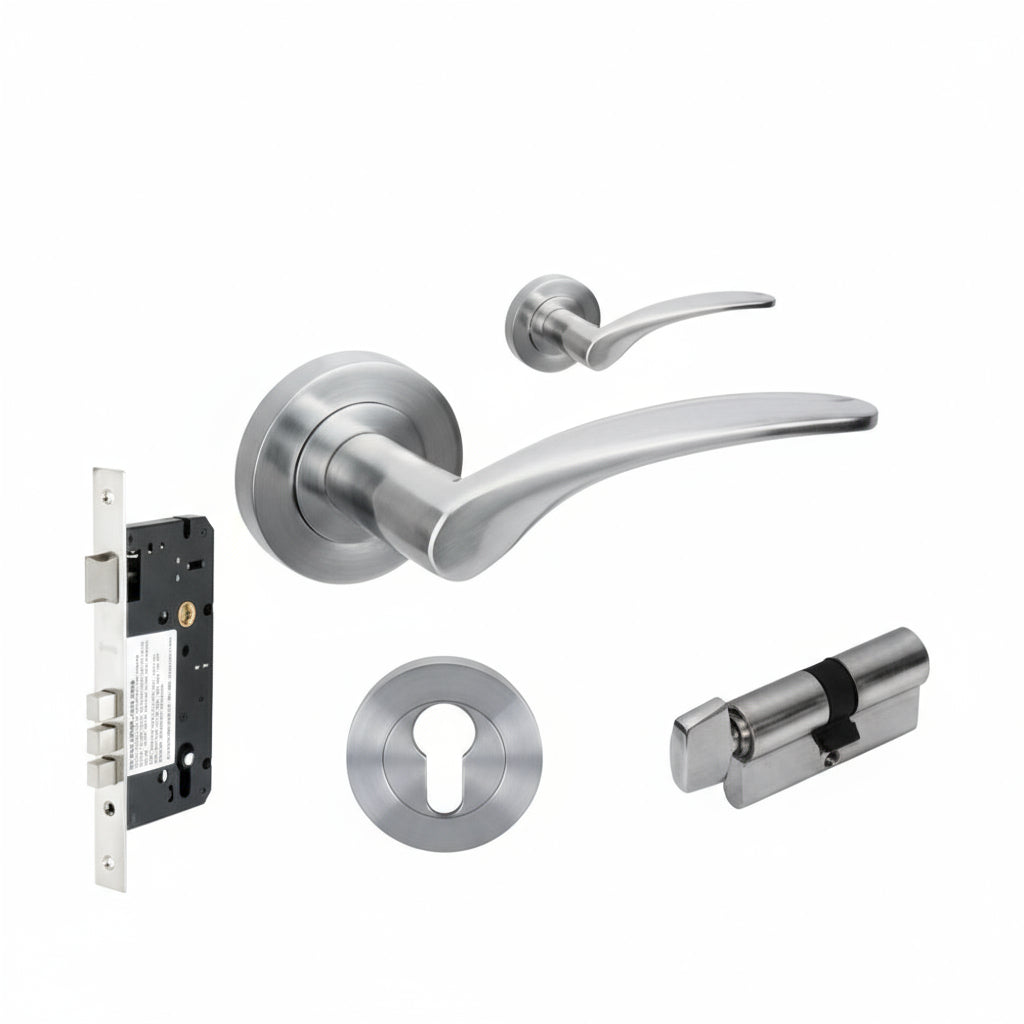

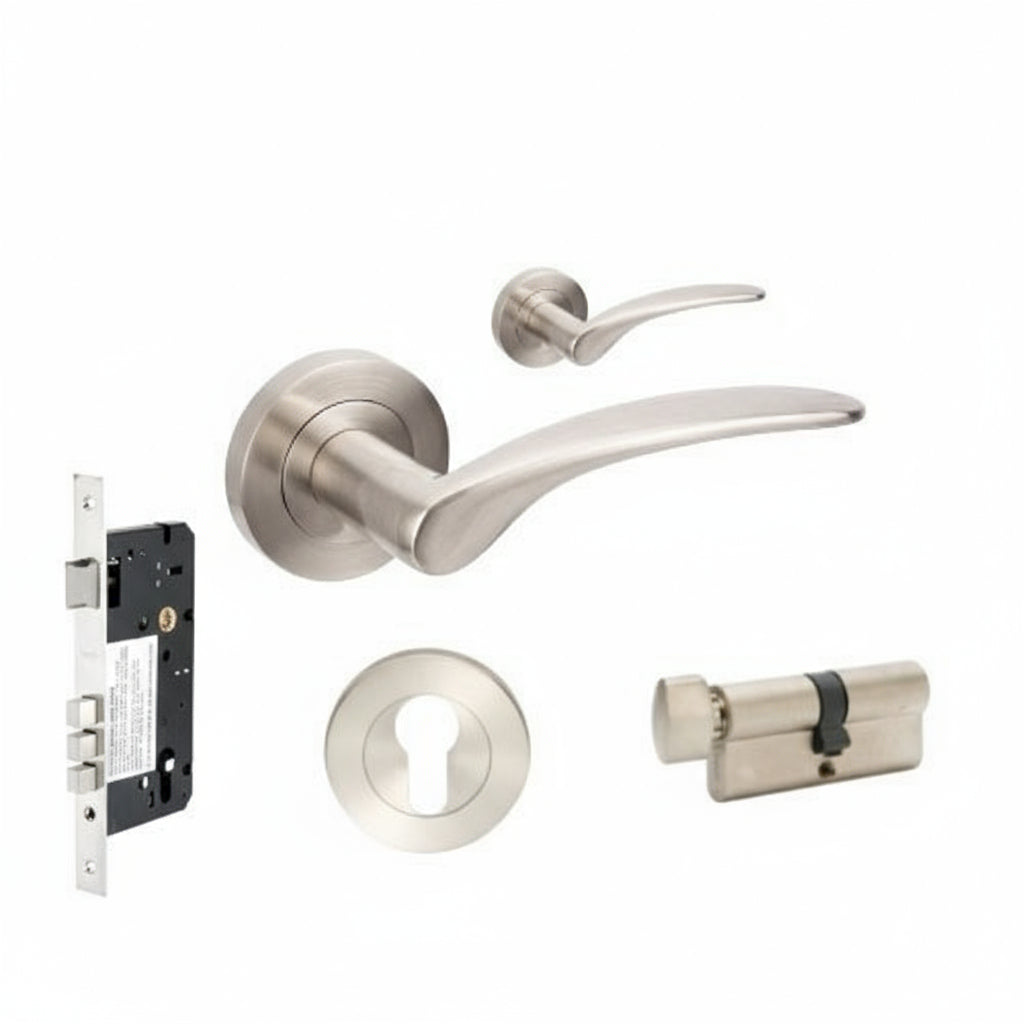

| Set 7080.2 | Apollo Rose Entrance Set - includes 7015, 1143 euro mortice lock, 7020 round euro escutcheons & 1122 60mm single cylinder (60mm Key/Turn) |
| Set 7080.3 | Apollo Rose Entrance Set - includes 7015, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key) |
| Set 7080.4 | Apollo Rose Entrance Set - includes 7015, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn) |
| Set 7191 | Apollo Integrated Privacy Set - includes integrated privacy kit |
| Finish | Brushed Nickel, Satin Chrome |
| Rose / plate | 54mm round, screw-on rose with concealed fixing |
| Backset | 60mm (passage, privacy and entrance sets) |
| Fixing | Concealed screw-on rose with through-door bolts (will not twist out of square) |

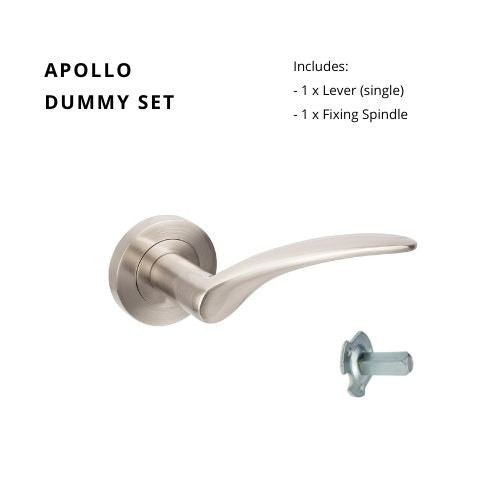

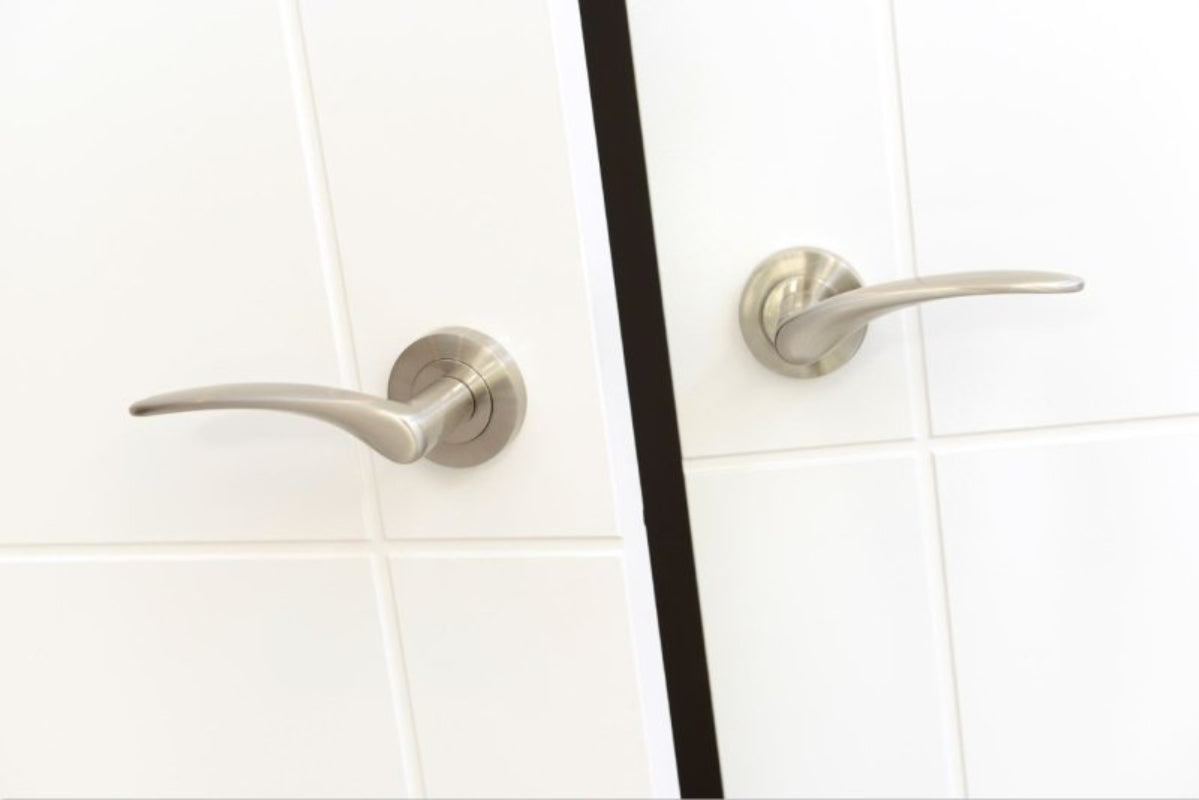

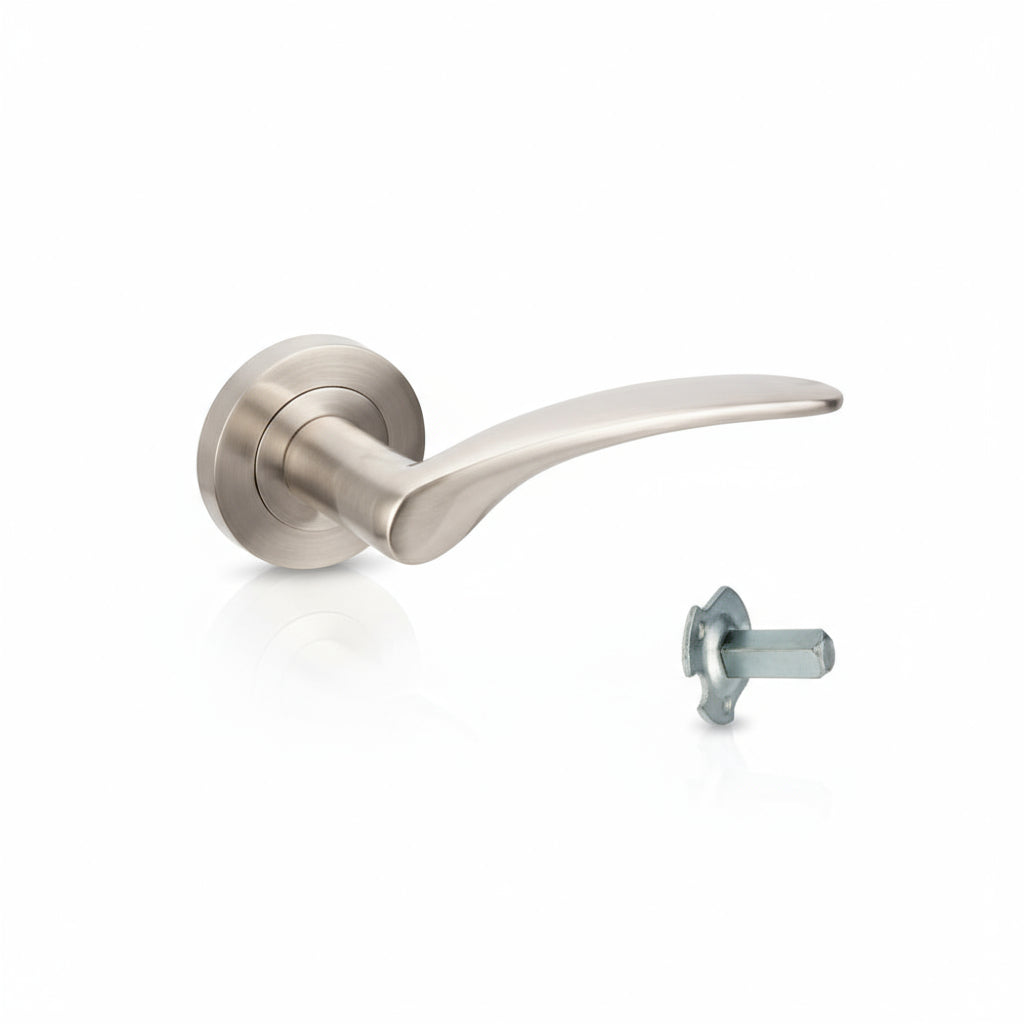

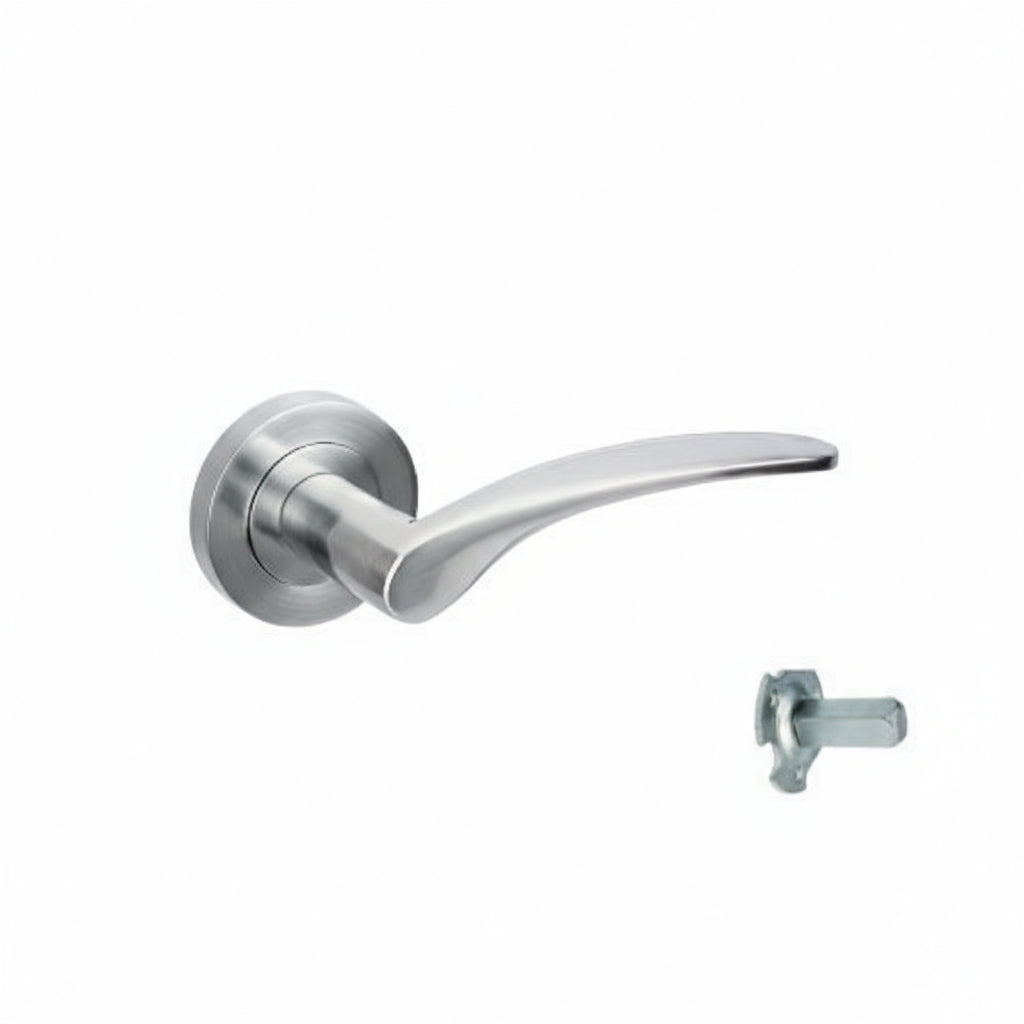

| Dummy sets | Fixed, with rear fixing plate; left or right hand |
| Rebate kits | 1102.A (passage and privacy sets); 1146 (entrance sets) |
| Application | Domestic and light commercial doors |
| Warranty | 15-year manufacturer warranty (internal use); 10 years for external use |
Warranty
15-year manufacturer warranty (internal use); 10 years for external use. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Apollo Door Lever — Brushed Nickel & Satin Chrome?
It is a Zanda door lever on round rose from the Futura range. Function: leverset only (no latch), Passage set, Dummy set, Entrance set, Integrated privacy set. Product code: 7015, 7033, 7034, 7080, 7191 (finish suffix varies — see table above).
What does each option include?
7015: DR Apollo Dummy Set - Right Hand; 7033: Apollo Passage Set, includes 1131 latch; 7034: Apollo Separate Privacy Set, includes 1131 tube latch & 7032 separate privacy kit (turn and release); 7080.1: Apollo Rose Entrance Set - includes 7015, 1143 euro mortice lock, 7020 round euro escutcheons & 1121 60mm double cylinder (60mm Key/Key); 7080.2: Apollo Rose Entrance Set - includes 7015, 1143 euro mortice lock, 7020 round euro escutcheons & 1122 60mm single cylinder (60mm Key/Turn); 7080.3: Apollo Rose Entrance Set - includes 7015, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key); 7080.4: Apollo Rose Entrance Set - includes 7015, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn); 7191: Apollo Integrated Privacy Set - includes integrated privacy kit.
What finishes is it available in?
It is available in Brushed Nickel, Satin Chrome. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?

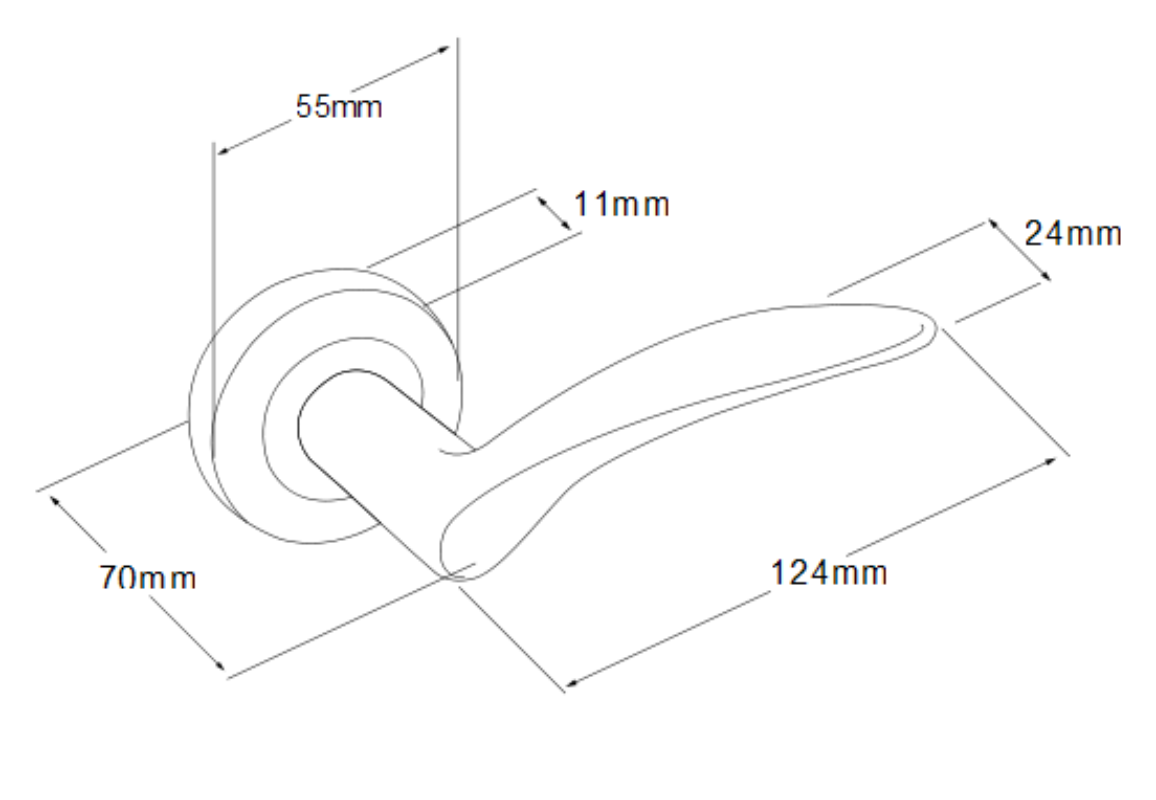

Rose / plate: 54mm round, screw-on rose with concealed fixing.
What backset does it suit?
Backset: 60mm (passage, privacy and entrance sets). Backset is the distance from the door edge to the centre of the spindle — measure your existing latch before ordering.
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
What warranty does it have?
15-year manufacturer warranty (internal use); 10 years for external use, covering defects in materials and workmanship under normal use when correctly installed.
