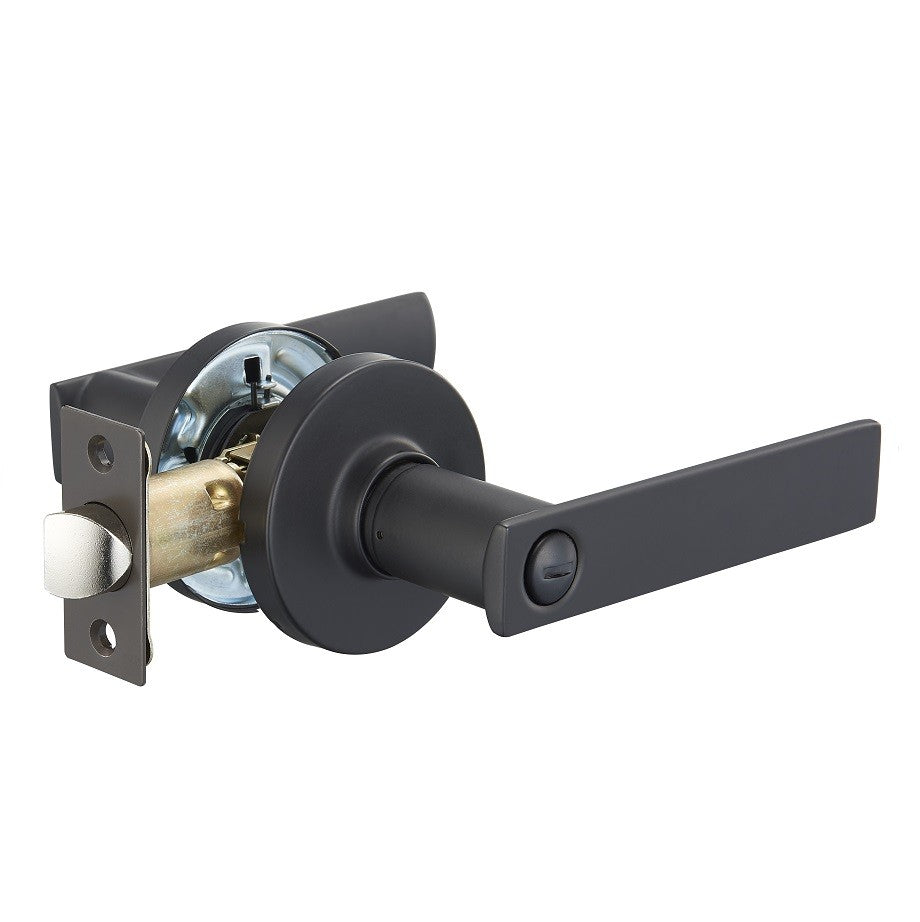

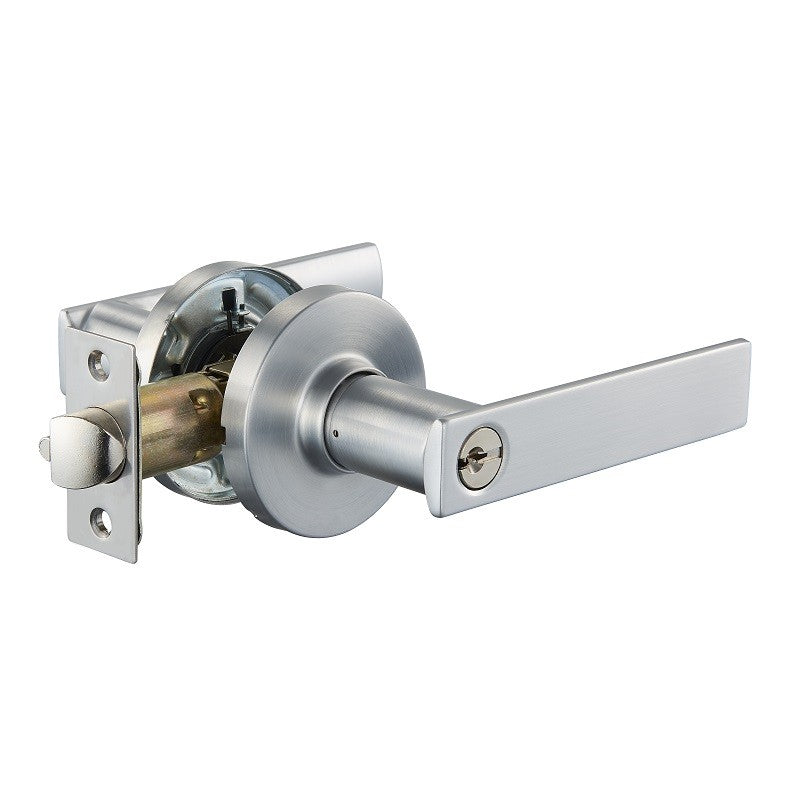

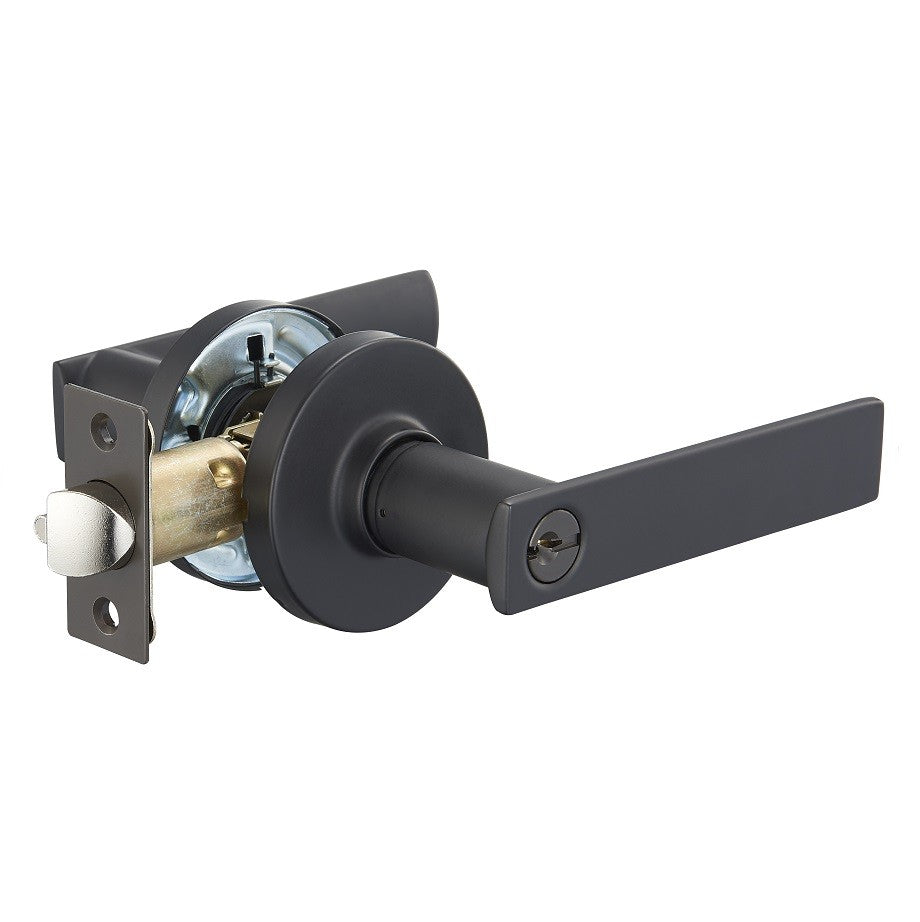

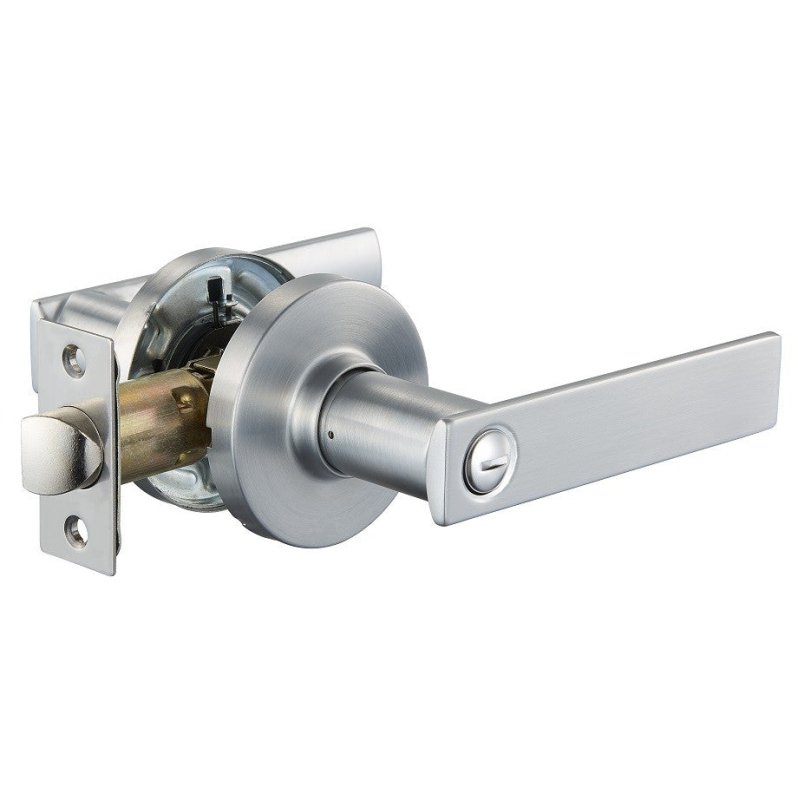

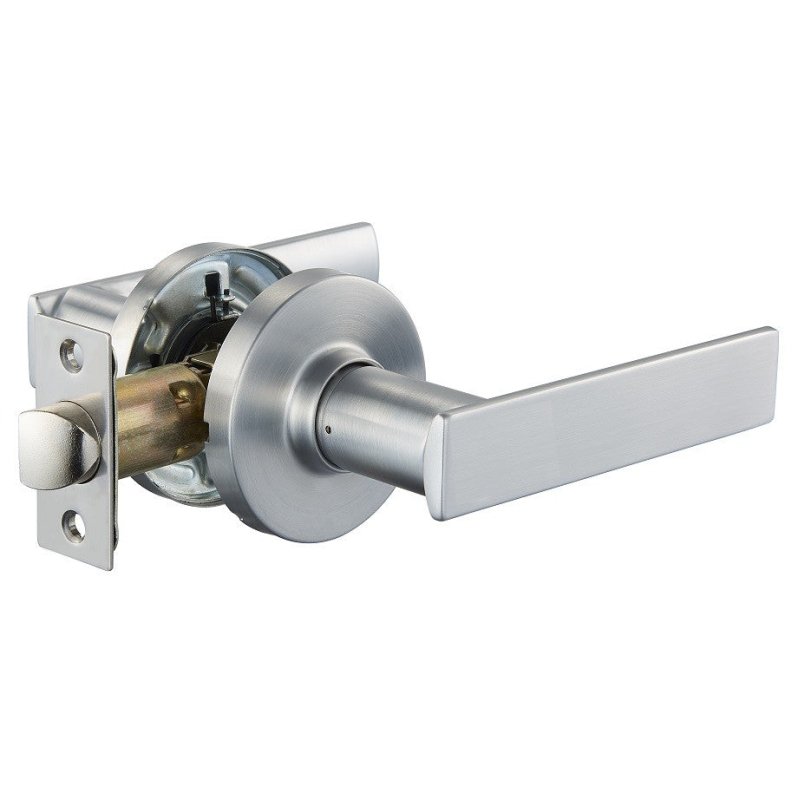

Zanda Austin Round Lever Handle — Jura Elite Range The Zanda Austin round lever handle is part of the Jura Elite range, set on a 65mm rose with a low 25mm projection that sits close to the door. The larger rose is retrofittable, making it a practical choice when replacing existing hardware and covering previous fixing marks. Available in passage, privacy, entrance and dummy configurations across two finishes.
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (2) & Product Codes
| Finish | Dummy | Privacy | Passage | A4000 Austin Entrance Set |
|---|---|---|---|---|
| Brushed Nickel | 9052.D.BN | 9051.BN | 9050.BN | 9053.BN |
| Matt Black | 8052.D.BLK | 9051.BLK | 9050.BLK | 9053.BLK |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Finishes | Brushed Nickel, Matt Black |
| Projection | 25mm |
| Warranty | 7-Year Mechanical Warranty |
| Warranty | 10-Year Mechanical Warranty |
Warranty
Covers defects in materials and workmanship under normal use, when correctly installed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Austin Round Lever Handle BN Matt Black Passage Privacy Entrance Jura Elite?
It is a Zanda door handle in the stated material.
What's the difference between Passage, Privacy, Euro and Skeleton Key?
Passage: The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes. Privacy: Locks from the inside with a snib or turn, with an emergency release outside — for bathrooms, ensuites and bedrooms. Euro: Takes a euro-profile cylinder and is key-lockable — for entrance doors and any door you want to lock with a key. Skeleton Key: A traditional lock operated by a skeleton (lever) key — suits heritage and period doors.
What is included in the box?
A pair of handles on backplates, the spindle and fixing screws, plus the latch or lock for the function you select. Hinges and flush bolts are not included.
Which hinges do I need?
Ball bearing for entrance and heavier doors (reduces friction and wear); fixed pin for internal and lighter entrance doors; loose pin for internal use, ideal for bathrooms since the door can be lifted off in an emergency. Use 3 hinges per door as a general rule.
Do I need flush bolts?
Only on double doors, to secure the inactive leaf. Under 2100 mm: 150 mm bolts top and bottom. 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
What finishes are available?
This model is available in Brushed Nickel, Matt Black. Each finish has its own product code — see the finishes table in the description.
What warranty applies?
Zanda hardware is warranted against defects in materials and workmanship under normal use, when correctly installed. The warranty period varies by product range and is stated on the product where applicable.
