Zanda Boston Lever Handle Graphite Nickel Passage Privacy and Entrance Futura Range
The Zanda Boston Lever Handle in Graphite Nickel is part of the Futura range with three finishes at one price. Backed by a 10 year product guarantee and fire rated.
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (1) & Product Codes
| Finish | 10080 - Boston Leverset Only | Passage | Privacy | Dummy | 10084.3 - Boston Entrance Set - includes 10080 Lever set 1143 7020 & 1147 (70mm Key/Key) | 10084.4 - Boston Entrance Set - includes 10080 Lever set 1143 7020 & 1148 (70mm Key/Turn) |
|---|---|---|---|---|---|---|
| Graphite Nickel | 10080.GN | 10081.GN | 10082.GN | 10083.D.GN | 10084.3.GN | 10084.4.GN |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Futura |
| Product type | Door lever on round rose |
| Function | Passage set, Entrance set, Leverset only (no latch), Integrated privacy set, Dummy set |
| Product code | 10080.GN, 10081.GN, 10082.GN, 10083.D.GN, 10084.3.GN, 10084.4.GN |

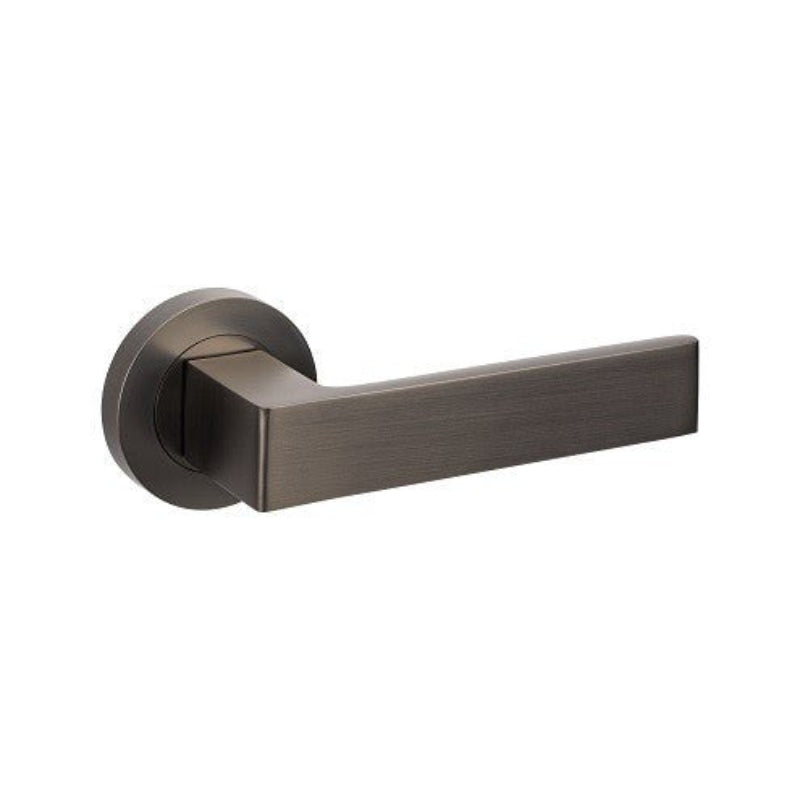

| Set 10080 | Boston Leverset Only |

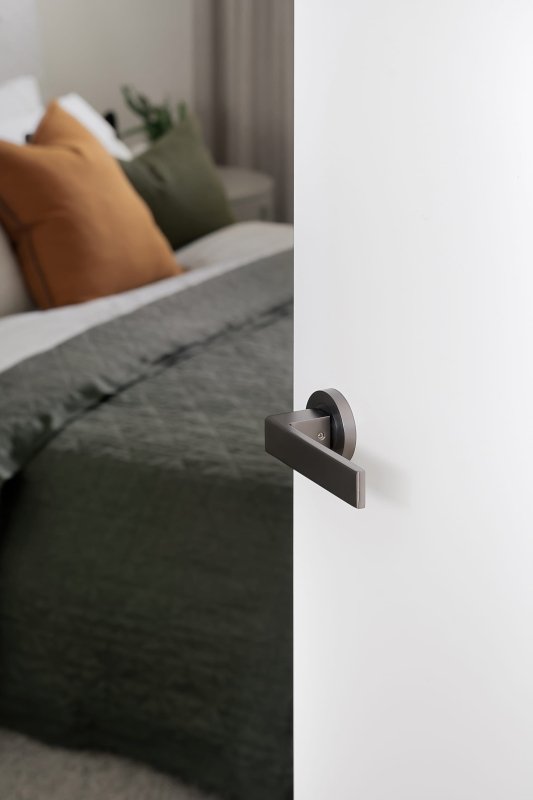

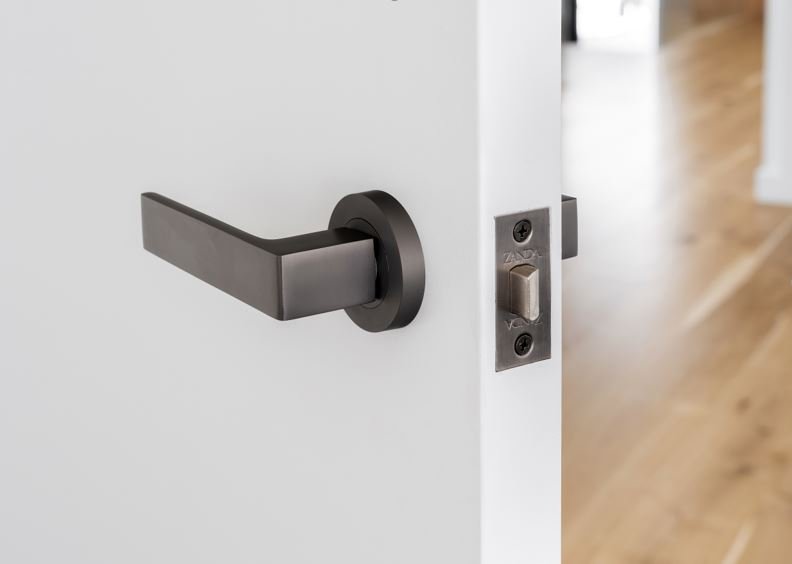

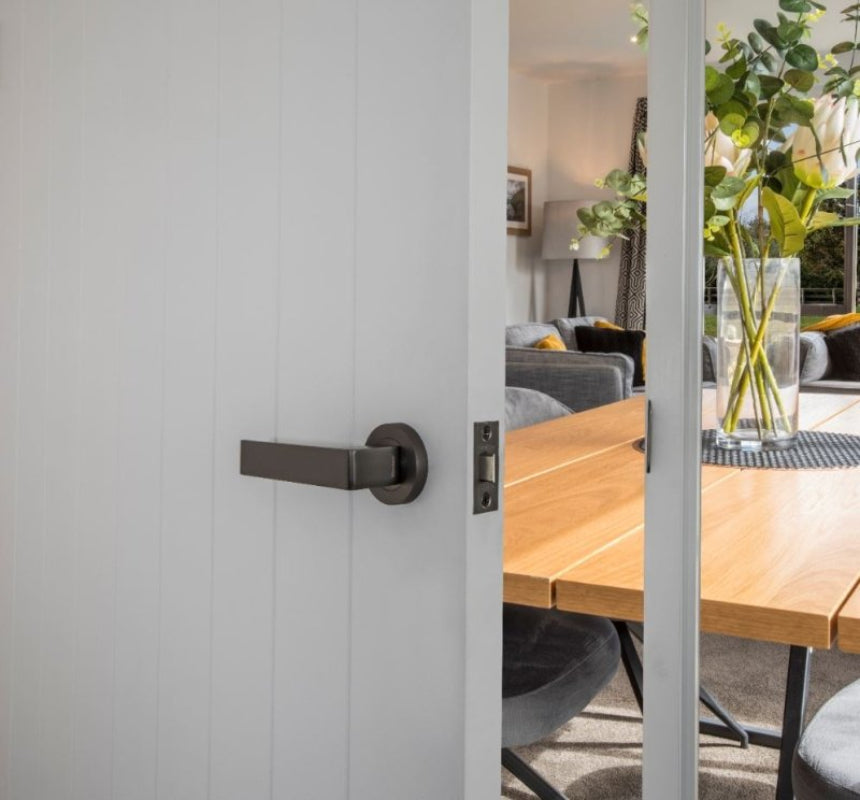

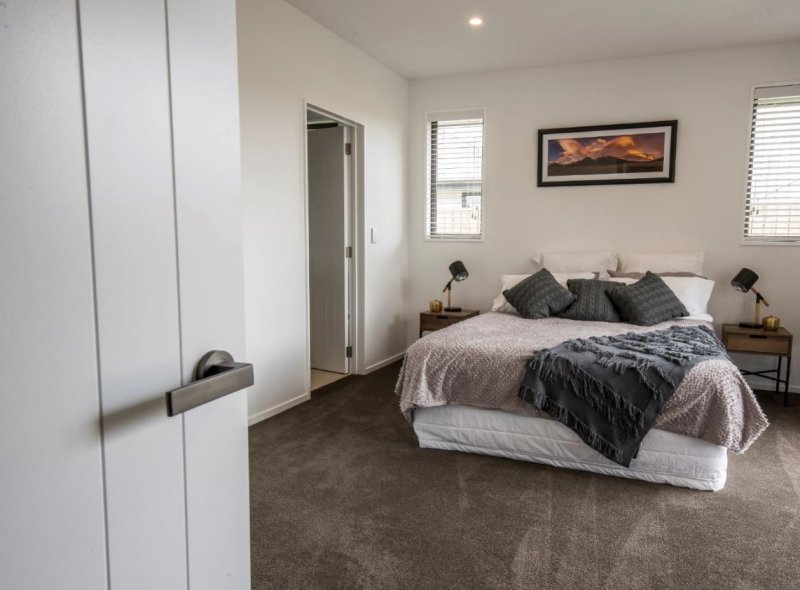

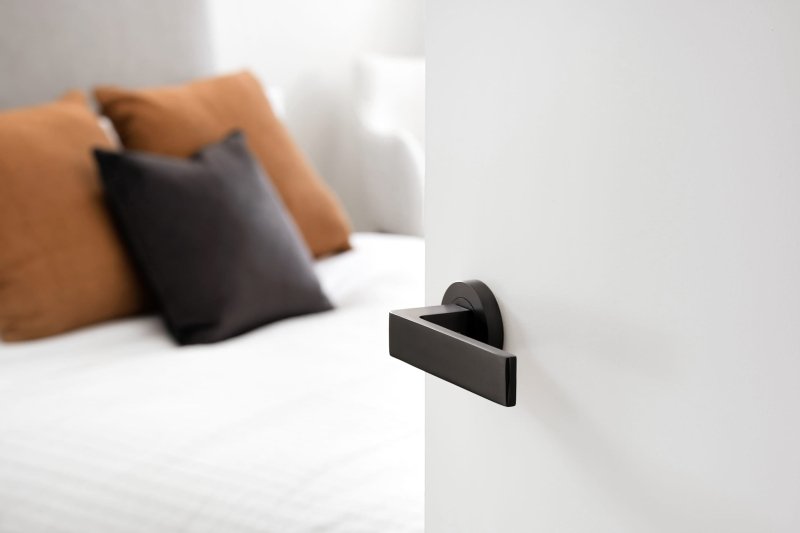

| Set 10081 | Boston Passage Set, includes 1131 latch |

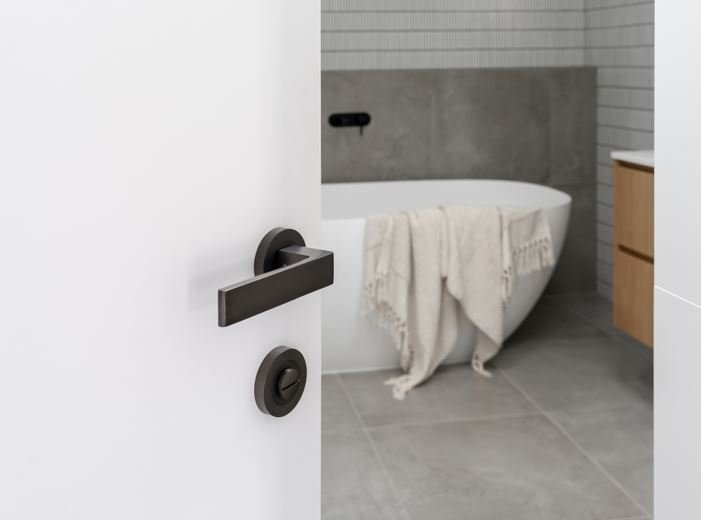

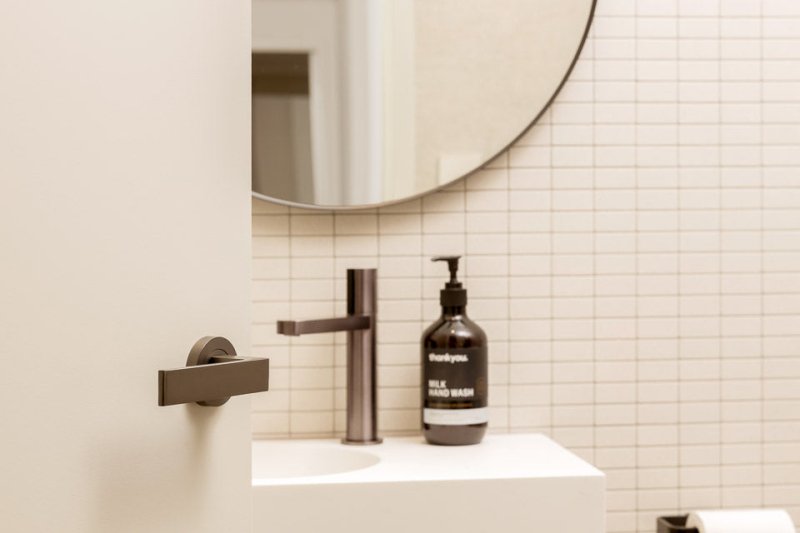

| Set 10082 | Boston Privacy Set, includes integrated privacy kit |
| Set 10083.D | Boston Dummy Set - Non Handed |

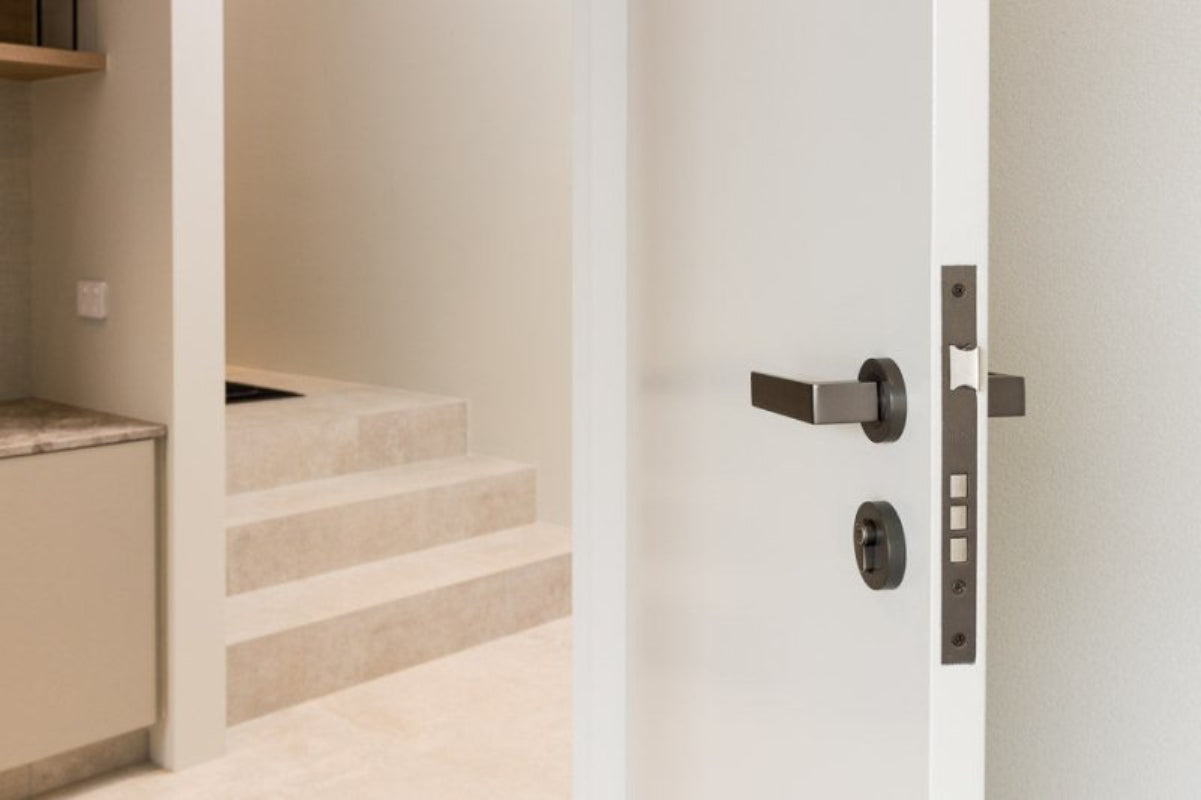

| Set 10084.3 | Boston Entrance Set - includes 10080 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key) |
| Set 10084.4 | Boston Entrance Set - includes 10080 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn) |
| Finish | Graphite Nickel |
| Rose / plate | 54mm round, screw-on rose with concealed fixing |
| Backset | 60mm (passage, privacy and entrance sets) |
| Fixing | Concealed screw-on rose with through-door bolts (will not twist out of square) |
| Spindle hole | 25mm diameter; fixing holes 6mm, 21mm above and below spindle centre |
| Rebate kits | 1102.A (passage and privacy sets); 1146 (entrance sets) |
| Application | Domestic and light commercial doors |
| Warranty | 15-year manufacturer warranty (internal use); 10 years for external use |
Warranty
15-year manufacturer warranty (internal use); 10 years for external use. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Boston Lever Handle Graphite Nickel Passage Privacy and Entrance Futura Range?
It is a Zanda door lever on round rose from the Futura range. Function: passage set, Entrance set, Leverset only (no latch), Integrated privacy set, Dummy set. Product code: 10080.GN, 10081.GN, 10082.GN, 10083.D.GN, 10084.3.GN, 10084.4.GN.
What does each option include?
10080: Boston Leverset Only; 10081: Boston Passage Set, includes 1131 latch; 10082: Boston Privacy Set, includes integrated privacy kit; 10083.D: Boston Dummy Set - Non Handed; 10084.3: Boston Entrance Set - includes 10080 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key); 10084.4: Boston Entrance Set - includes 10080 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn).
What finishes is it available in?
This listing is finished in Graphite Nickel. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
Rose / plate: 54mm round, screw-on rose with concealed fixing.
What backset does it suit?
Backset: 60mm (passage, privacy and entrance sets). Backset is the distance from the door edge to the centre of the spindle — measure your existing latch before ordering.
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
What warranty does it have?
15-year manufacturer warranty (internal use); 10 years for external use, covering defects in materials and workmanship under normal use when correctly installed.
