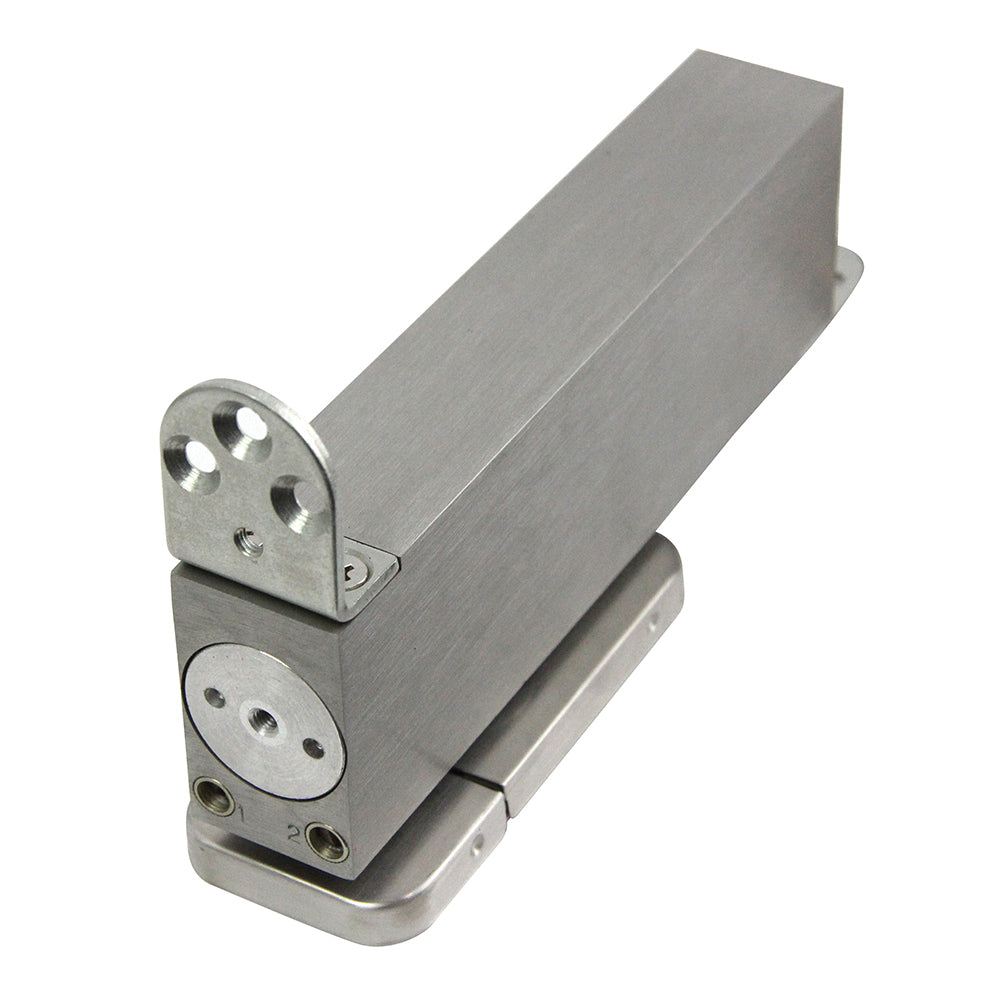

Zanda Concealed Heel Floor Spring Pivot Non-Hold Open
Zanda Concealed Heel Floor Spring Pivot Non-Hold Open
The Zanda Concealed Heel Floor Spring Pivot Non-Hold Open is a Zanda door closer component for controlled, quiet door closing, available in Stainless Steel. Zanda product code shown below.
Available Finishes (1) & Product Codes
| Finish | Product code |
|---|---|
| Stainless Steel | ITS.H3.NHO.SS |
Specifications
| Brand | Zanda |
| Product type | Concealed heel floor spring pivot |
| Product code | ITS.H3.NHO.SS |
| Finish | Stainless Steel |
| Opening angle | 150° |
| Max door | 100kg, 1000mm wide |
| Min door thickness | 40mm |
| Hold open | Hold-open version holds at 90° |
| Adjustments | Closing speed |
| Door Type | Pivot doors |
| Max Door Width | 1000mm |
| Maximum Door Weight | 100kg |
| Minimum Door Thickness | 40mm |
| Maximum Opening Angle | 150° |
| Closing Speed | Adjustable |
| Version | Non-hold-open |
| Included Components | Cover and top pivot |
| Installation | Concealed fitting without cutting into the floor |
| Warranty | Zanda manufacturer warranty — contact us to confirm the period for this item |
Warranty
Zanda manufacturer warranty — contact us to confirm the period for this item. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Concealed Heel Floor Spring Pivot Non-Hold Open?
It is a Zanda concealed heel floor spring pivot. Product code: ITS.H3.NHO.SS.
What finishes is it available in?
This listing is finished in Stainless Steel. Other Zanda finishes may be available — contact us to check.
What warranty does it have?
It is covered by the Zanda manufacturer warranty against defects in materials and workmanship under normal use when correctly installed. Contact us and we will confirm the warranty period for this item.
How can I get help choosing the right product?
Call Prime Hardware on 1800 329 028 (Mon–Fri 10am–5pm), email sales@primehardware.com.au, or visit our showroom at 2/249 Annangrove Road, Annangrove NSW 2156, where over 6,000 products are on display. Send us your door type, thickness and the function you need and we will confirm the right parts.
