Zanda Ball Bearing Door Hinges 100x75mm and 100x100mm Stainless Steel
Zanda Ball Bearing Door Hinges 100x75mm and 100x100mm Stainless Steel
Zanda Ball Bearing Hinges are engineered for heavy-use and external door applications, incorporating precision ball bearings for smooth, durable operation across 100x75mm and 100x100mm sizes. Sizes: 100x75mm (5904/5905) and 100x100mm (5927) Precision ball bearing mechanism 2.5mm steel thickness Fire rated - suitable for external doors
Sizes & Product Codes
O/A is the overall length; CRS is the centre-to-centre distance between fixings.
| Code | O/A length | CRS | Section | Projection |
|---|---|---|---|---|
| 5904 | 100 mm | |||
| 5905 | 100 mm | |||
| 5927 | 100 mm |

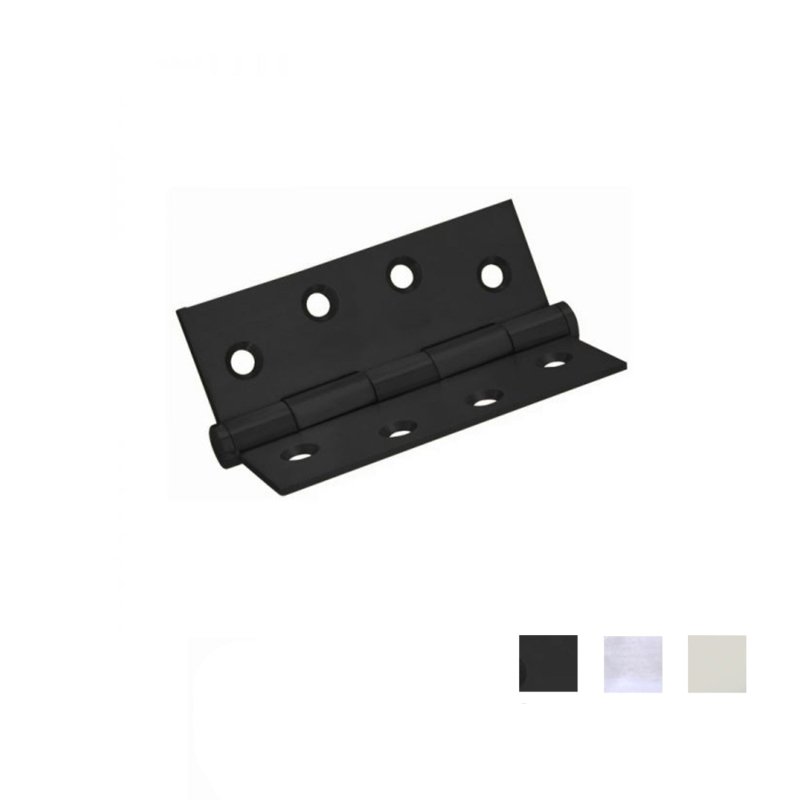

Available Finishes (3) & Product Codes
| Finish | 100mm x 75mm x 3mm | 100mm x 75mm x 2.5mm | 100mm x 100mm x 3mm |
|---|---|---|---|

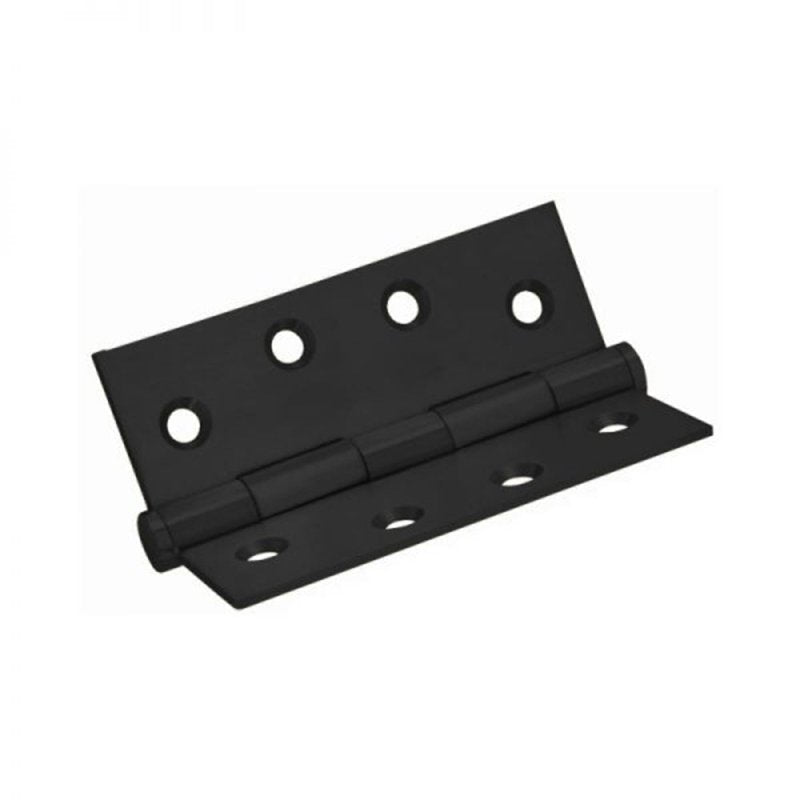

| Matt Black | 5904BLK | — | — |

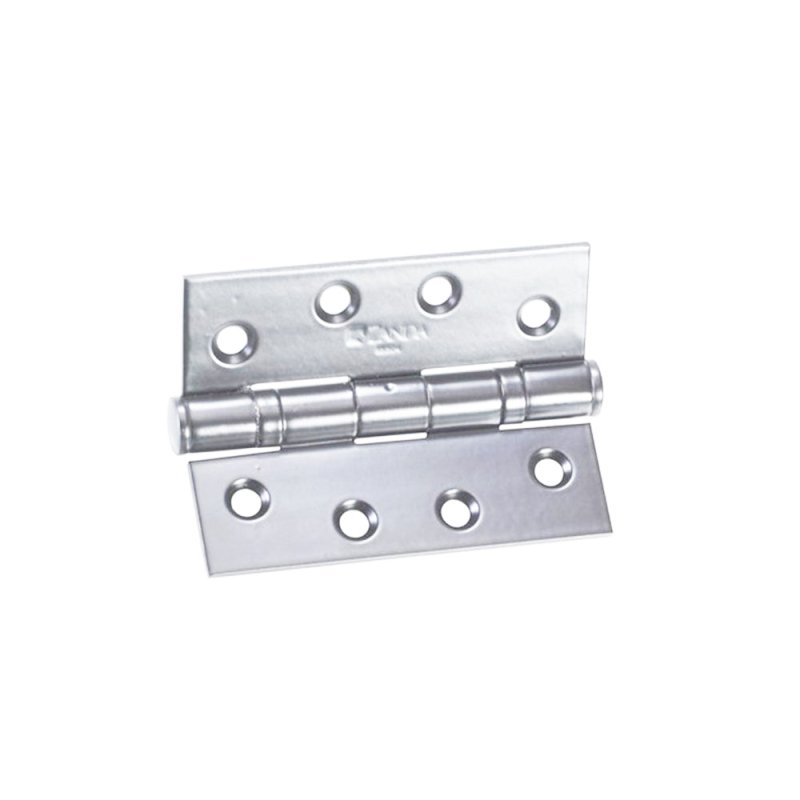

| Stainless Steel | 5904SS | — | 5927SS |

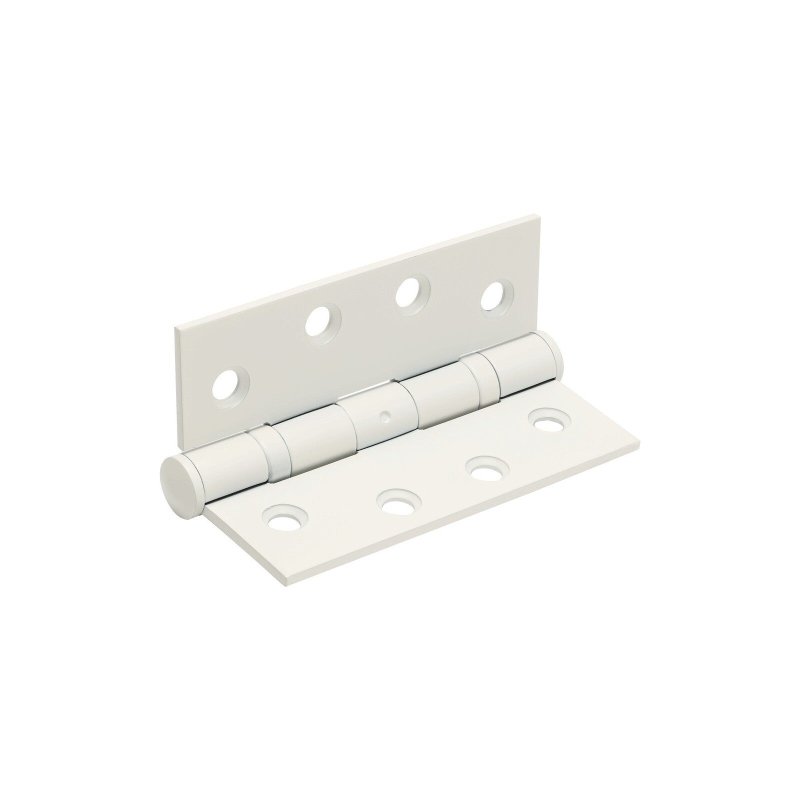

| White | — | 5904WH | — |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Hinge Type: Ball bearing hinge
Bearings between the knuckles carry the load, reducing friction and wear. Best for heavy and high-use doors, including entrance doors.
Hinge types explained:
| Hinge type | What it does |
|---|---|
| Parliament hinge | Projects the door clear of the frame or architrave so it can swing back fully against the wall — used where a door must open 180° or clear deep reveals. |
| Ball bearing hinge | Bearings between the knuckles carry the load, reducing friction and wear. Best for heavy and high-use doors, including entrance doors. |
| Loose pin hinge | The pin can be withdrawn so the door lifts off without unscrewing the hinge. Internal use — handy for bathrooms and for removing doors during work. |
| Fixed pin hinge | The pin is fixed in the knuckle. A reliable all-rounder for most internal doors. |
| Butt hinge | The standard door hinge, mortised into the door edge and frame. |
| Lift-off hinge | The leaves separate so the door lifts off. Handed — order left or right hand to suit the door. |
Three hinges per door is standard for internal and entrance doors. Heavier and taller doors may require a fourth.
Specifications
| Brand | Zanda |
| Product type | Bearing hinge |
| Product code | 5904BLK, 5905SS, 5904SS, 5904WH, 5927SS |
| Finish | Matt Black, Stainless Steel, White |
| Material | 304 stainless steel |
| Size — 5904 | 100 x 75 x 2.5mm, bearing, fixed pin |
| Size — 5905 | 100 x 75 x 2.5mm, bearing, loose pin |
| Screws | Timber and metal thread screws included |
| Warranty | 7-year manufacturer mechanical warranty |
Warranty
7-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Ball Bearing Door Hinges 100x75mm and 100x100mm Stainless Steel?
It is a Zanda bearing hinge, made from 304 stainless steel. Product code: 5904BLK, 5905SS, 5904SS, 5904WH, 5927SS.
What finishes is it available in?
It is available in Matt Black, Stainless Steel, White. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
code 5904: 100 x 75 x 2.5mm, bearing, fixed pin; code 5905: 100 x 75 x 2.5mm, bearing, loose pin.
How many hinges do I need per door?
Three hinges per door is standard for internal and entrance doors. Taller or heavier doors may need a fourth. Hinges are priced as listed — check whether the listing is each, a pair or a pack.
What warranty does it have?
7-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
