Zanda Double Action Spring Hinges — Brushed Nickel

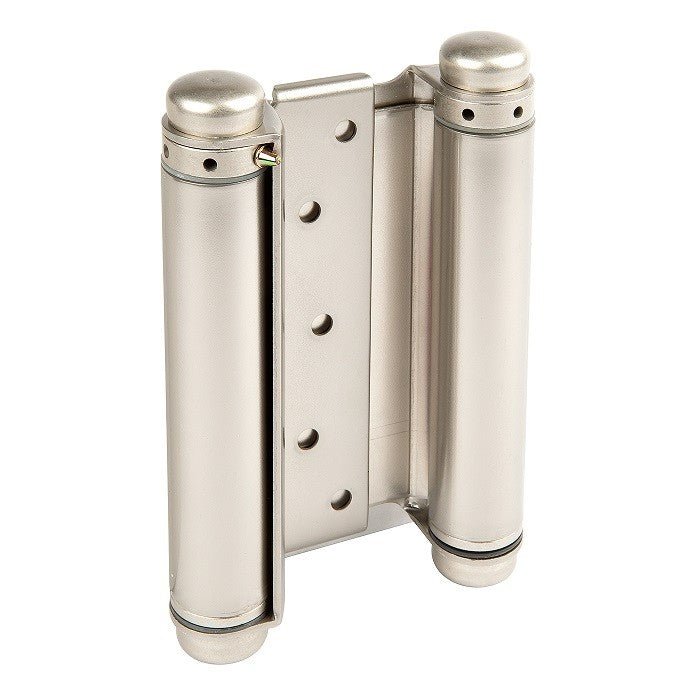

Zanda Double Action Spring Hinges — Brushed Nickel Zanda Double Action Spring Hinges allow a door to swing in both directions and automatically return to the closed position via a built-in spring mechanism. They suit kitchen pass-through doors, commercial doors, and any high-traffic application where the door needs to swing freely both ways without manual closing. Available in 5" (125mm) and 6" (150mm) sizes in Brushed Nickel, sold as a single hinge. Double Action Swing · Automatic Spring Close · Sold as Single FINISH Brushed Nickel FUNCTION Double Action SIZES 5" or 6" SOLD AS Single Specification Detail Brand Zanda Product Type Double Action Spring Hinge Finish Brushed Nickel (BN) Model — 5" DASH.5.BN — 125mm, up to 30kg per pair Model — 6" DASH.6.BN — 150mm, up to 35kg per pair Function Double action swing with automatic spring return to close Unit of Sale Sold as single (each) Application Kitchen pass-through doors, commercial doors, high-traffic doors
Available Finishes (1) & Product Codes
| Finish | Handle set |
|---|---|
| Brushed Nickel | DASH.6.BN |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Hinge Type: Butt hinge
The standard door hinge, mortised into the door edge and frame.
Hinge types explained:
| Hinge type | What it does |
|---|---|
| Parliament hinge | Projects the door clear of the frame or architrave so it can swing back fully against the wall — used where a door must open 180° or clear deep reveals. |
| Ball bearing hinge | Bearings between the knuckles carry the load, reducing friction and wear. Best for heavy and high-use doors, including entrance doors. |
| Loose pin hinge | The pin can be withdrawn so the door lifts off without unscrewing the hinge. Internal use — handy for bathrooms and for removing doors during work. |
| Fixed pin hinge | The pin is fixed in the knuckle. A reliable all-rounder for most internal doors. |
| Butt hinge | The standard door hinge, mortised into the door edge and frame. |
| Lift-off hinge | The leaves separate so the door lifts off. Handed — order left or right hand to suit the door. |
Three hinges per door is standard for internal and entrance doors. Heavier and taller doors may require a fourth.
Specifications
| Brand | Zanda |
| Product type | Double action spring hinge |
| Product code | DASH.5.BN, DASH.6.BN |
| Finish | Brushed Nickel |
| Sizes | DASH.5: 125mm, up to 30kg per pair; DASH.6: 150mm, up to 35kg per pair |
| Warranty | 7-year manufacturer mechanical warranty |
Warranty
7-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Double Action Spring Hinges — Brushed Nickel?
It is a Zanda double action spring hinge. Product code: DASH.5.BN, DASH.6.BN.
What finishes is it available in?
This listing is finished in Brushed Nickel. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
Sizes: DASH.5: 125mm, up to 30kg per pair; DASH.6: 150mm, up to 35kg per pair.
How many hinges do I need per door?
Three hinges per door is standard for internal and entrance doors. Taller or heavier doors may need a fourth. Hinges are priced as listed — check whether the listing is each, a pair or a pack.
What warranty does it have?
7-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
How can I get help choosing the right product?
Call Prime Hardware on 1800 329 028 (Mon–Fri 10am–5pm), email sales@primehardware.com.au, or visit our showroom at 2/249 Annangrove Road, Annangrove NSW 2156, where over 6,000 products are on display. Send us your door type, thickness and the function you need and we will confirm the right parts.
