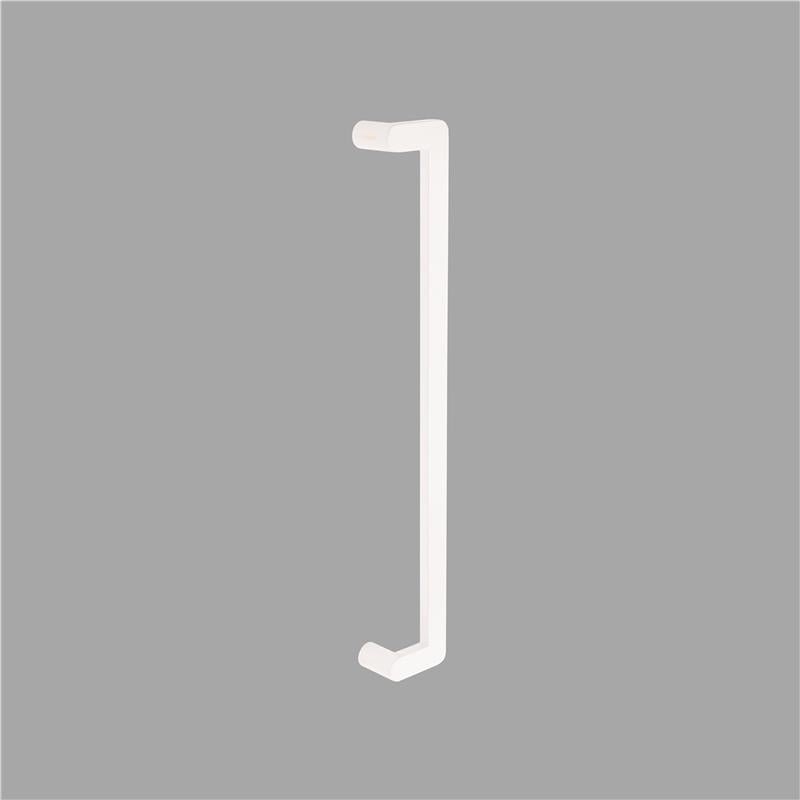

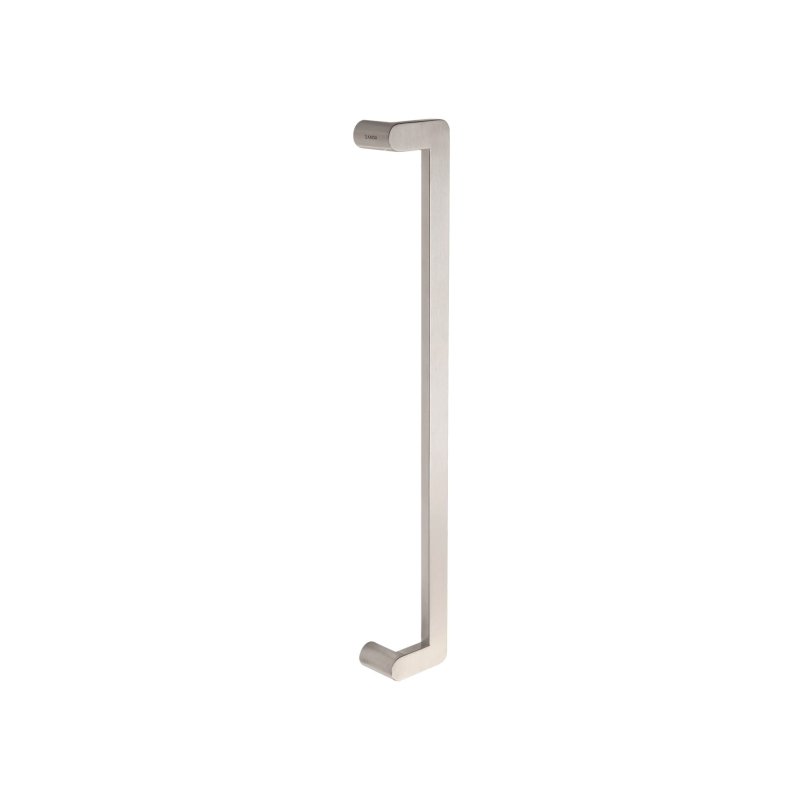

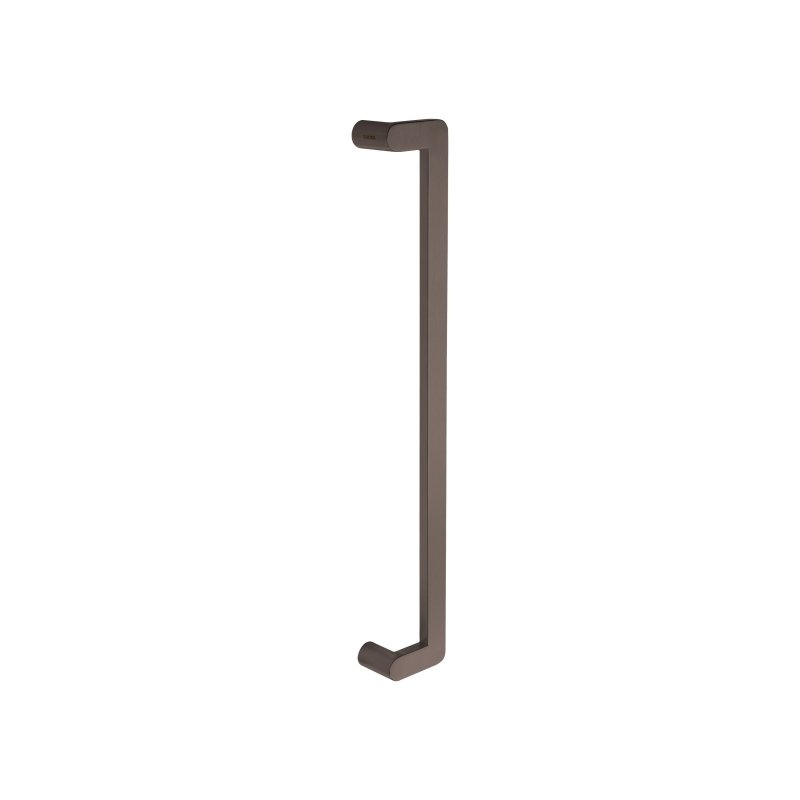

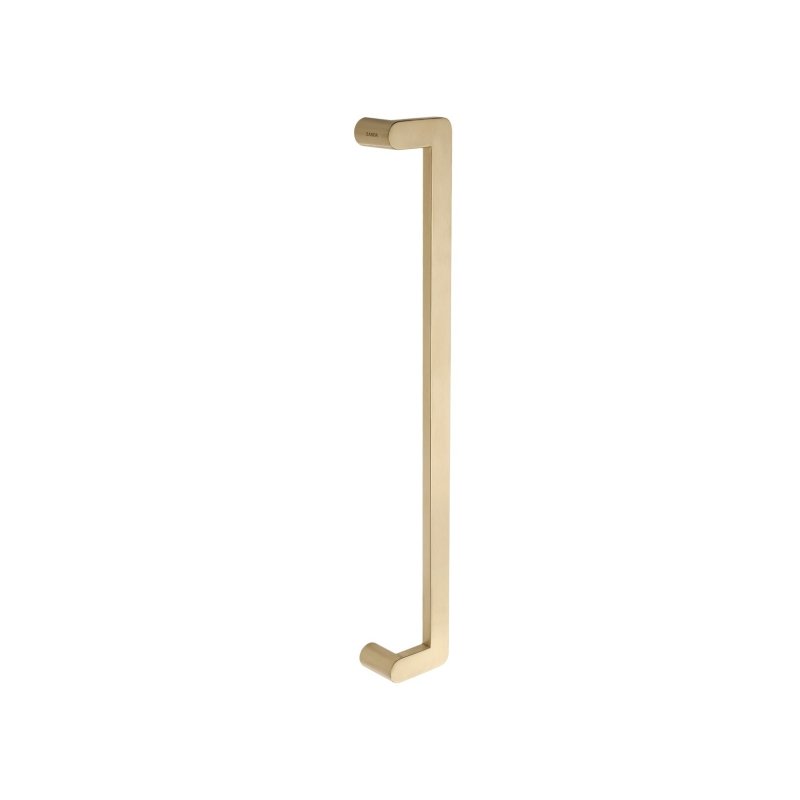

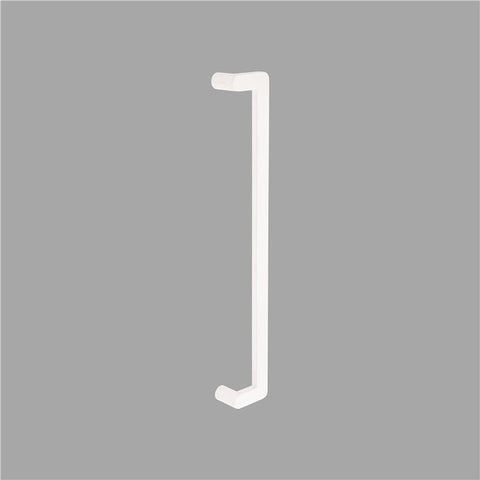

Zanda Duke Offset Pull Handle 7117 | Marine Grade 316SS 630mm 90mm Offset Marine Grade 316 Stainless Steel offset pull handle for double door applications. 630mm overall / 600mm C2C / 30x10mm bar / 55mm projection / 90mm offset. Available in Stainless Steel, Graphite Nickel, Matt Black, Satin Brass, and White. Pairs with Duke straight pull handles for double door sets.
Complete Your Set
The items below are sold separately. The product code for each finish is listed.
| Finish | Key / Key (1147) | Key / Turn (1148) |
|---|---|---|
| Matt Black | — | 1125.BLK |
| Satin Brass | 1147.SB | 1148SB |
| Graphite Nickel | 1147.GN | 1148.GN |
Available Finishes (5) & Product Codes
| Finish | Handle set |
|---|---|
| Matt Black | 7117.BB.BLK |
| Satin Brass | 7117.BB.SB |
| Graphite Nickel | 7117.BB.GN |
| Stainless Steel | 7117.BB.SS |
| White | 7117.BB.WHT |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |
| Range | Duke |
| Product type | Offset entrance pull handle |
| Product code | 7117.BB.BLK, 7117.BB.WHT, 7117.BB.GN, 7117.BB.SS, 7117.BB.SB |
| Zanda set | 7117 — Duke Offset Pull Handle, 640mm (600mm Crs) |
| Finish | Matt Black, White, Graphite Nickel, Stainless Steel, Satin Brass |
| Material | 316 marine grade stainless steel |
| Dimensions | 600mm centres, 630mm overall, 30 x 15mm bar, 55mm projection, 90mm offset |
| Fixing | Back to back (pair) — suits timber, aluminium and glass doors |
| Compliance | AS1428.1 disabled access compliant (per Zanda) |
| Application | Internal and external doors; ideal for aluminium doors and glass infills |
| Warranty | 20-year manufacturer mechanical warranty |
Warranty
20-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Duke Offset Pull Handle 7117?
It is a Zanda offset entrance pull handle from the Duke range, made from 316 marine grade stainless steel. Product code: 7117.BB.BLK, 7117.BB.WHT, 7117.BB.GN, 7117.BB.SS, 7117.BB.SB.
What is included in this set?
Duke Offset Pull Handle, 640mm (600mm Crs). Hinges, door stops and flush bolts are sold separately.
What finishes is it available in?
It is available in Matt Black, White, Graphite Nickel, Stainless Steel, Satin Brass. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
Dimensions: 600mm centres, 630mm overall, 30 x 15mm bar, 55mm projection, 90mm offset.
What is the difference between back to back, face fix and rear fix?
Back to back (pair) joins two handles through the door and suits timber, aluminium and glass doors. Face fix (single) screws through the handle into the door face and suits timber doors. Rear fix (single) fixes from the back of the door and suits timber and aluminium doors. Zanda's rear-fixing bolts are 7312 (M8) and 7340 (M6) for timber and aluminium doors, and 7304 (M8) and 7305 (M6) for glass doors.
How do I lock a door that uses a pull handle?
Pull handles have no latch, so pair them with a lock kit — Zanda's roller lock kits (roller bolt with deadbolt, 57mm backset) or double turn lock kits (1143 euro mortice lock with turn snibs) are made for this.
Is it disabled access compliant?
AS1428.1 disabled access compliant (per Zanda). Always confirm requirements with your certifier for the specific project.
Can it be used outdoors?
Yes. 316 marine grade stainless steel resists corrosion, making it suitable for external and coastal doors. Clean it regularly with fresh water and a soft cloth.
What warranty does it have?
20-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
