Zanda Duke Return Lever Set – Ember Bronze | AS1428 Compliant
Zanda Duke Return Lever Set – Ember Bronze Zanda Duke Return Lever Set in Micronized Ember Bronze. Return-to-door design fully compliant with AS1428 disabled access standards. 54mm screw-on rose with concealed fixings. Through-door bolt installation for secure no-twist fit.
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (1) & Product Codes
| Finish | Handle set |
|---|---|
| Ember Bronze | 10053.D.EB |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Futura |
| Product type | Door lever on round rose (return lever) |
| Function | Leverset only (no latch), Passage set, Integrated privacy set, Entrance set, Dummy set |
| Product code | 10050.EB, 10051.EB, 10052.EB, 10054.3.EB, 10054.4.EB, 10053.D.EB |
| Set 10050 | Duke Return Leverset Only |

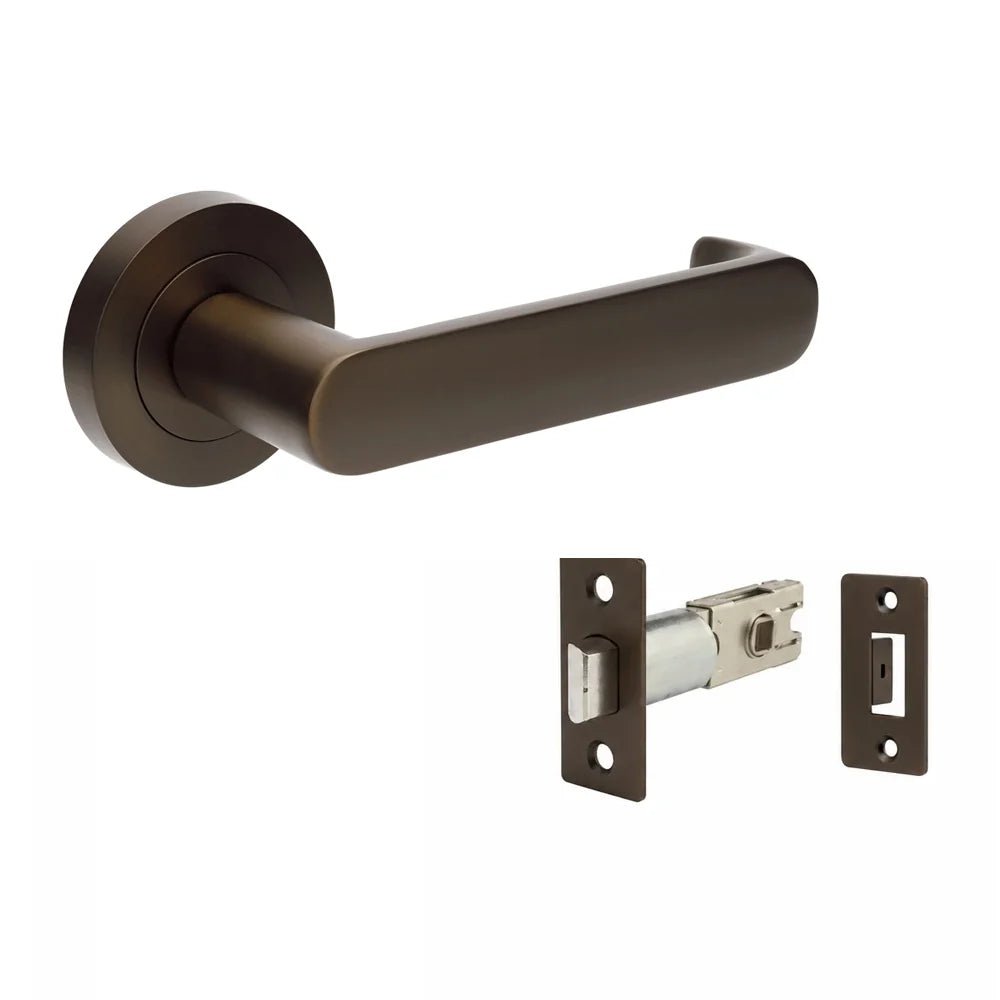

| Set 10051 | Duke Return Passage Set, includes 1131 latch |

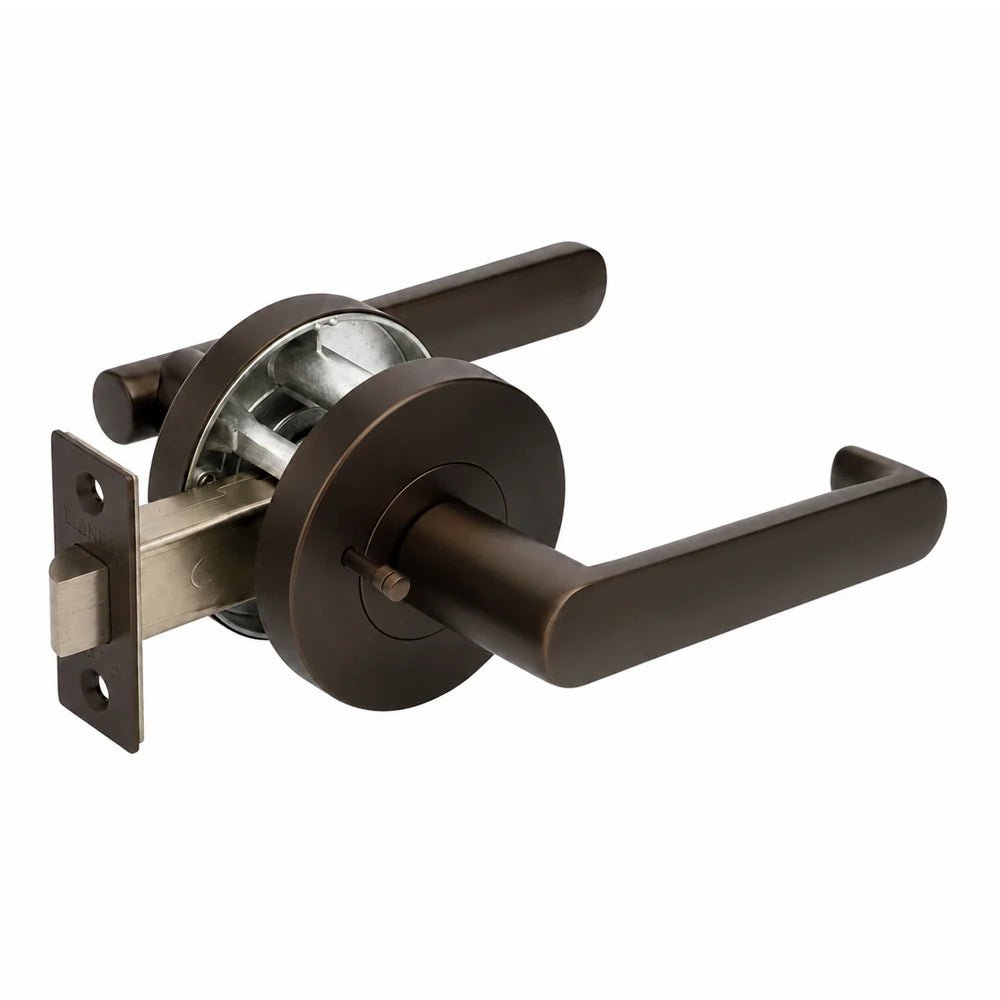

| Set 10052 | Duke return Privacy Set, includes integrated privacy kit |

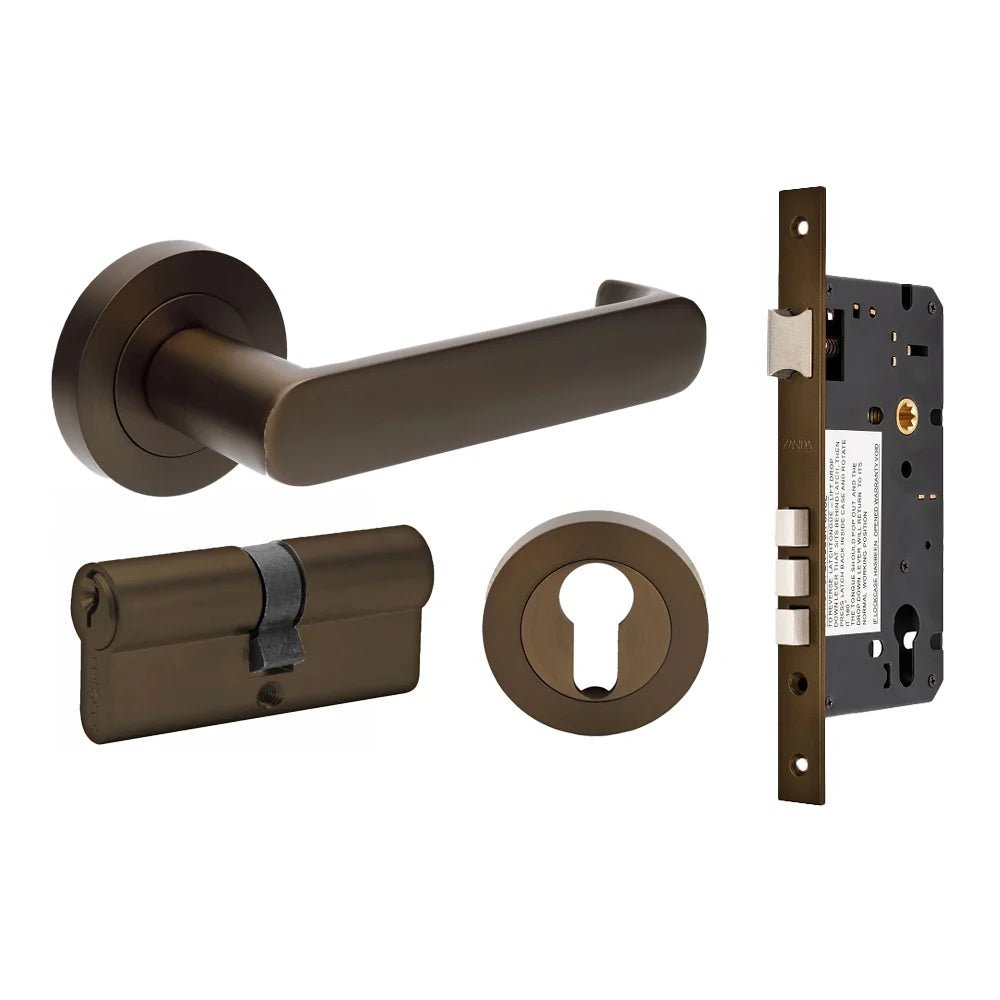

| Set 10054.3 | Duke Return Entrance Set - Includes 10050, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key) |

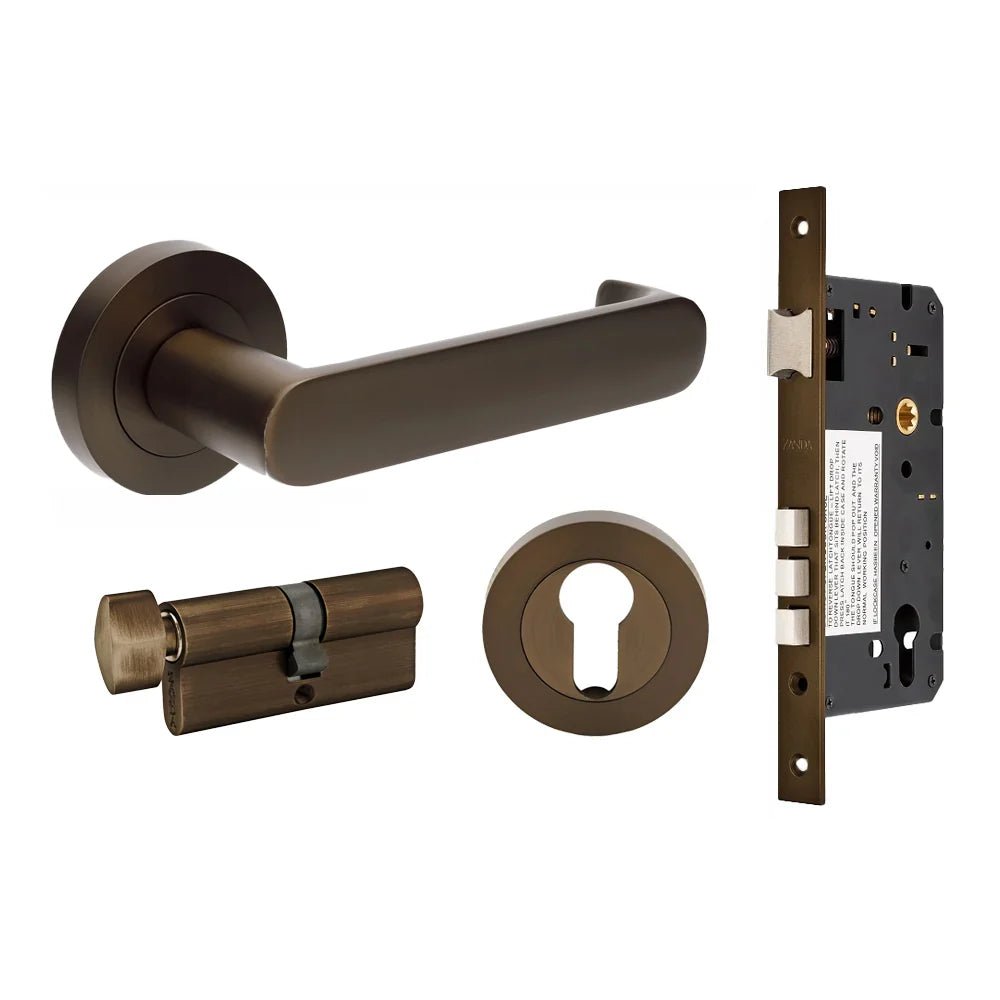

| Set 10054.4 | Duke Return Entrance Set - Includes 10090, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn) |
| Set 10053.D | Duke Return Dummy Set, Non Handed |
| Finish | Ember Bronze |

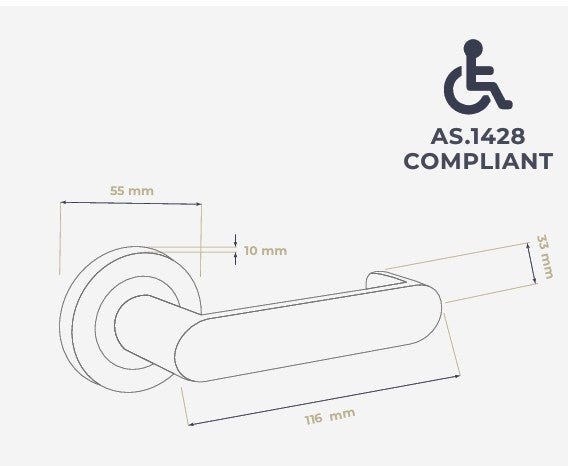

| Rose / plate | 54mm round, screw-on rose with concealed fixing |
| Backset | 60mm (passage, privacy and entrance sets) |
| Fixing | Concealed screw-on rose with through-door bolts (will not twist out of square) |
| Spindle hole | 25mm diameter; fixing holes 6mm, 21mm above and below spindle centre |
| Rebate kits | 1102.A (passage and privacy sets); 1146 (entrance sets) |
| Compliance | AS1428.1 disabled access compliant (return-to-door lever) |
| Application | Internal and external doors; suitable for accessible bathrooms and commercial projects |
| Warranty | 15-year manufacturer warranty (internal use); 10 years for external use |
Warranty
15-year manufacturer warranty (internal use); 10 years for external use. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Duke Return Lever Set – Ember Bronze?
It is a Zanda door lever on round rose (return lever) from the Futura range. Function: leverset only (no latch), Passage set, Integrated privacy set, Entrance set, Dummy set. Product code: 10050.EB, 10051.EB, 10052.EB, 10054.3.EB, 10054.4.EB, 10053.D.EB.
What does each option include?
10050: Duke Return Leverset Only; 10051: Duke Return Passage Set, includes 1131 latch; 10052: Duke return Privacy Set, includes integrated privacy kit; 10054.3: Duke Return Entrance Set - Includes 10050, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key); 10054.4: Duke Return Entrance Set - Includes 10090, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn); 10053.D: Duke Return Dummy Set, Non Handed.
What finishes is it available in?
This listing is finished in Ember Bronze. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
Rose / plate: 54mm round, screw-on rose with concealed fixing.
What backset does it suit?
Backset: 60mm (passage, privacy and entrance sets). Backset is the distance from the door edge to the centre of the spindle — measure your existing latch before ordering.
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
Is it disabled access compliant?
AS1428.1 disabled access compliant (return-to-door lever). Always confirm requirements with your certifier for the specific project.
What warranty does it have?
15-year manufacturer warranty (internal use); 10 years for external use, covering defects in materials and workmanship under normal use when correctly installed.
