Zanda Epic Door Lever Matt Black — Passage, Privacy & Entrance | Fire Rated | 10-Year Guarantee
Zanda Epic Door Lever in Matt Black — Fire Rated, 54mm Rose, 10-Year Guarantee | Futura Range The Zanda Epic is a fire-rated architectural door lever from the Futura range, available in Matt Black and five additional finishes — all at the same price. Designed for residential and commercial applications, it suits every door function from passage and privacy through to entrance configurations. Featuring a 54mm rose, a clean lever profile, and backed by a 10-year product guarantee, the Epic is a practical choice for projects where consistent quality and finish variety matter. Sold as a leverset only or as a complete set with all locking hardware included.
Door Functions Explained

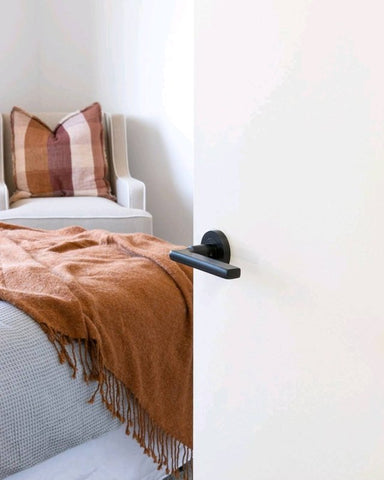

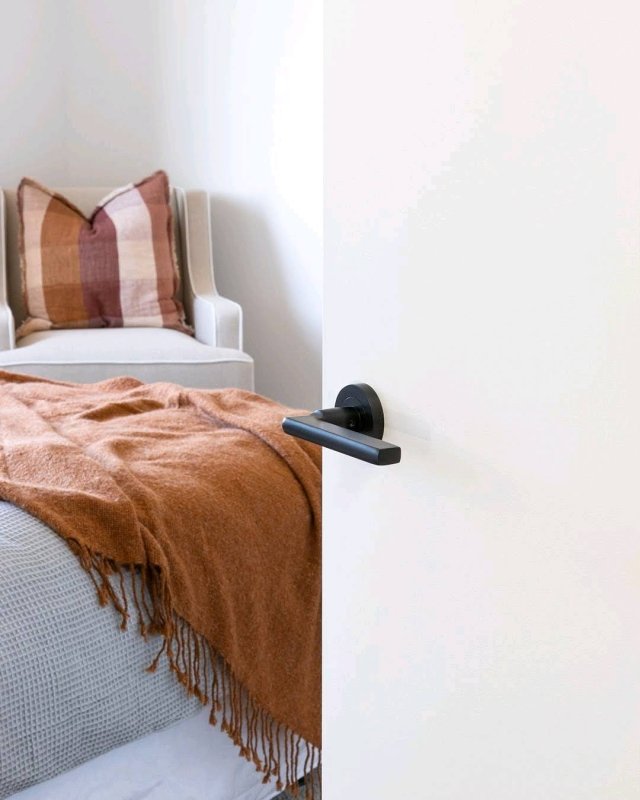

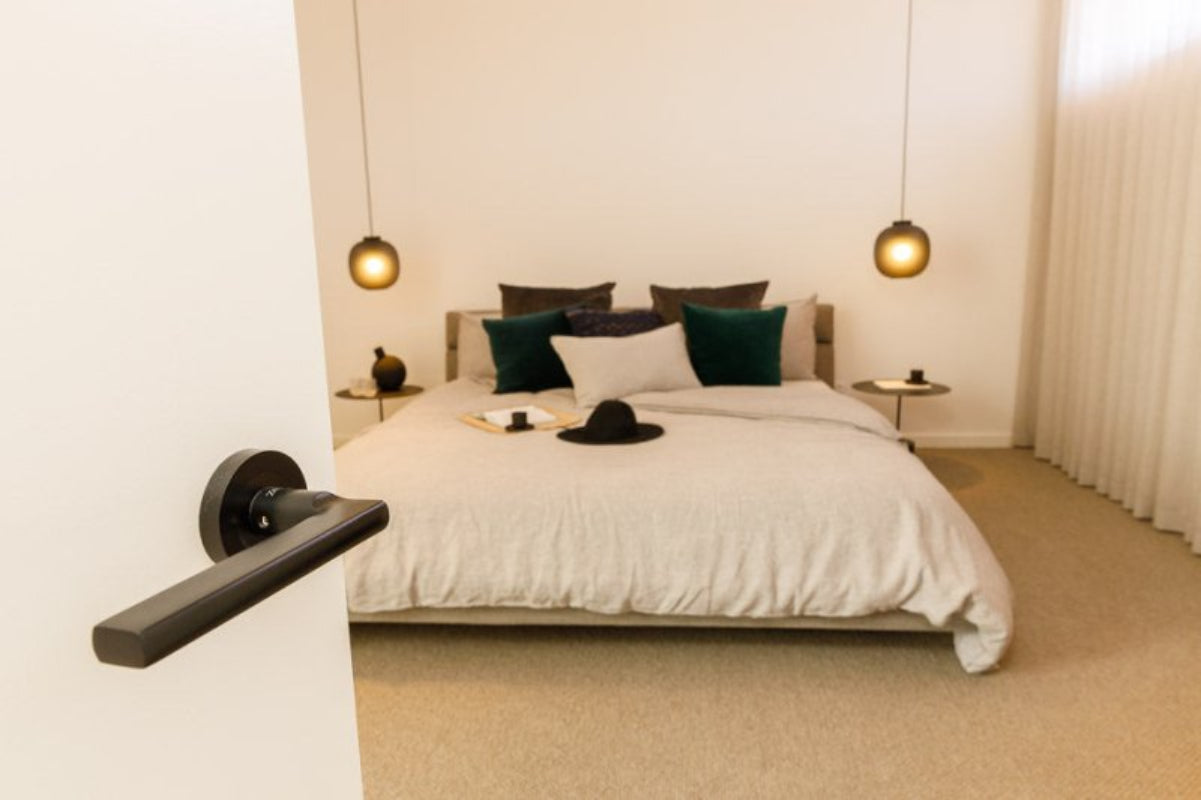

| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |

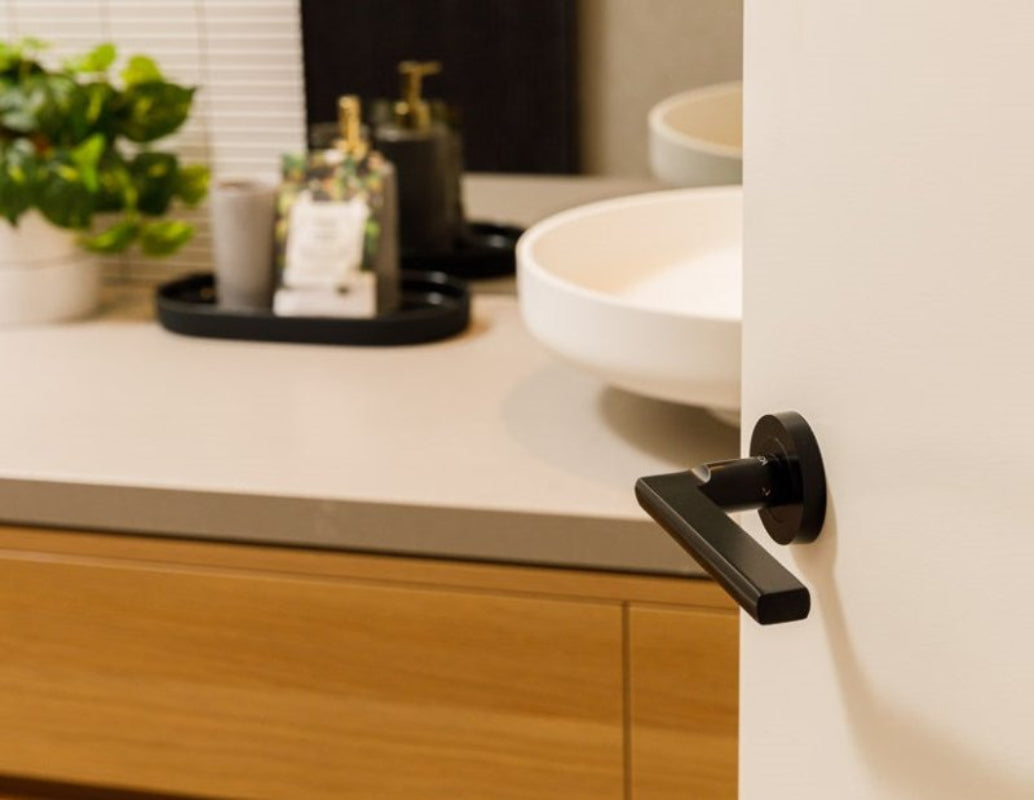

| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (1) & Product Codes
| Finish | 10020 - Epic Leverset Only | Passage | Privacy | Dummy | 10024.3.BLK Epic Entrance Set - includes 10020 Lever set 1143 7020 & 1147 (70mm Key/Key) | 10024.4.BLK Epic Entrance Set - includes 10020 Lever set 1143 7020 & 1148 (70mm Key/Turn) |
|---|---|---|---|---|---|---|
| Matt Black | 10020.BLK | 10021.BLK | 10022.BLK | 10023.D.BLK | 10024.3.BLK | 10024.4.BLK |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Futura |
| Product type | Door lever on round rose |
| Function | Passage set, Entrance set, Leverset only (no latch), Integrated privacy set, Dummy set |
| Product code | 10020.BLK, 10021.BLK, 10022.BLK, 10023.D.BLK, 10024.3.BLK, 10024.4.BLK |

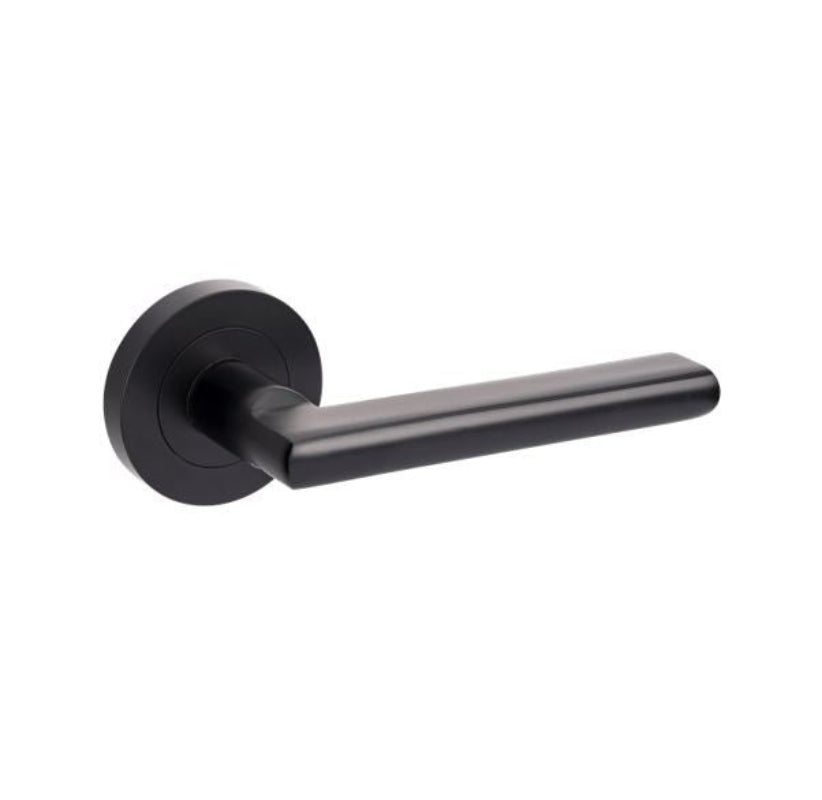

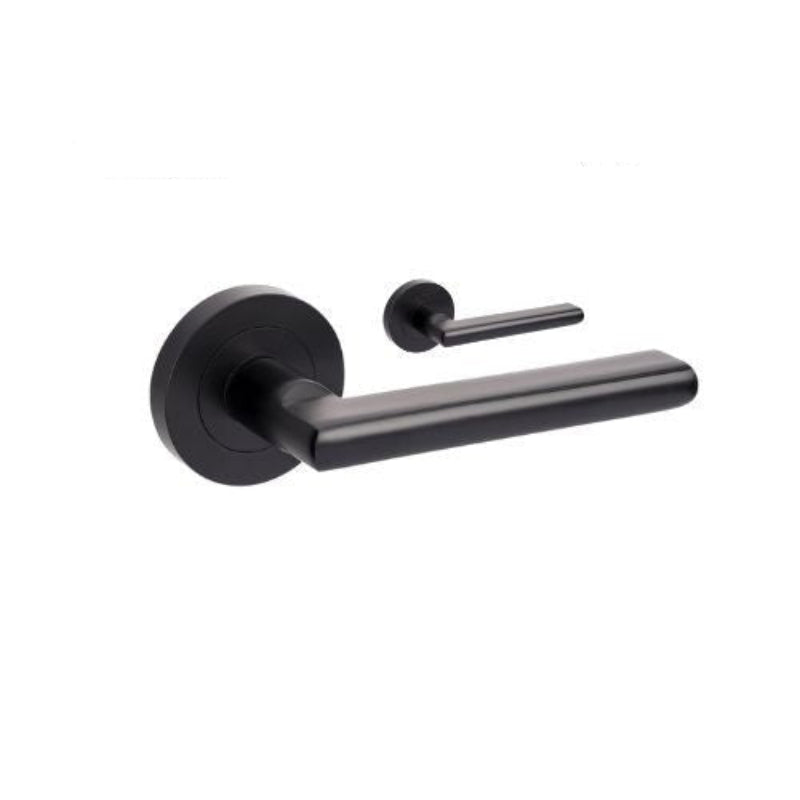

| Set 10020 | Epic Leverset Only |

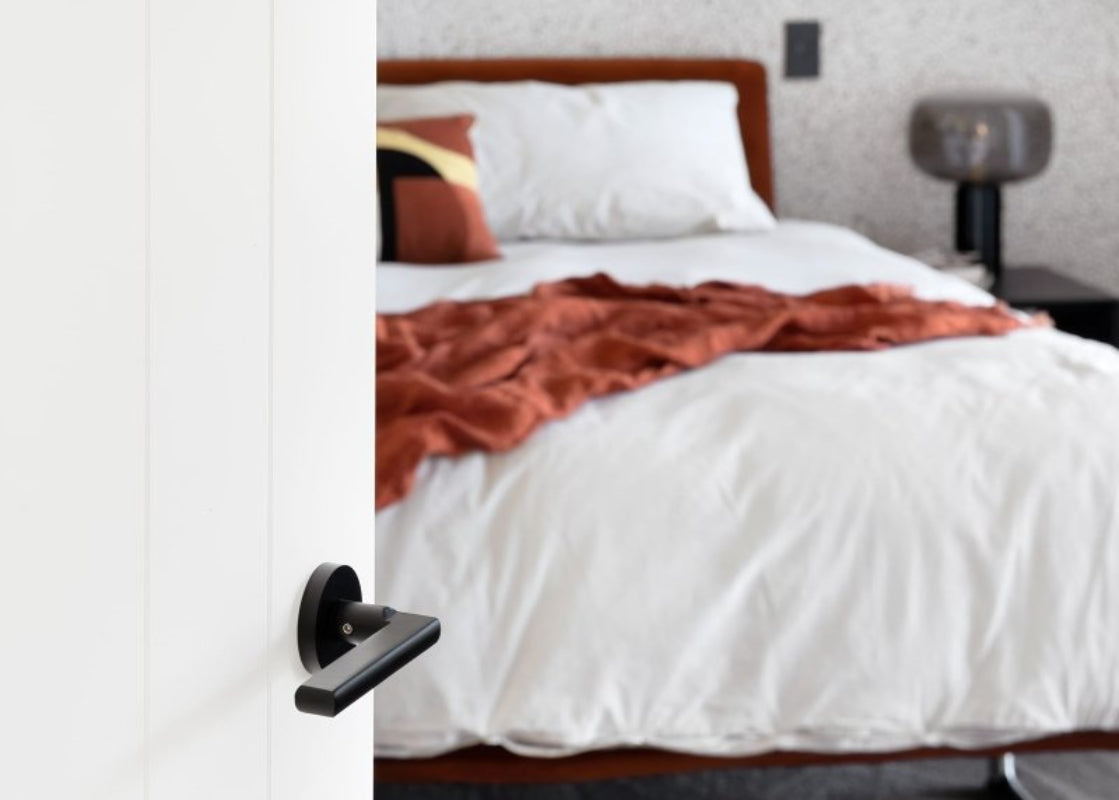

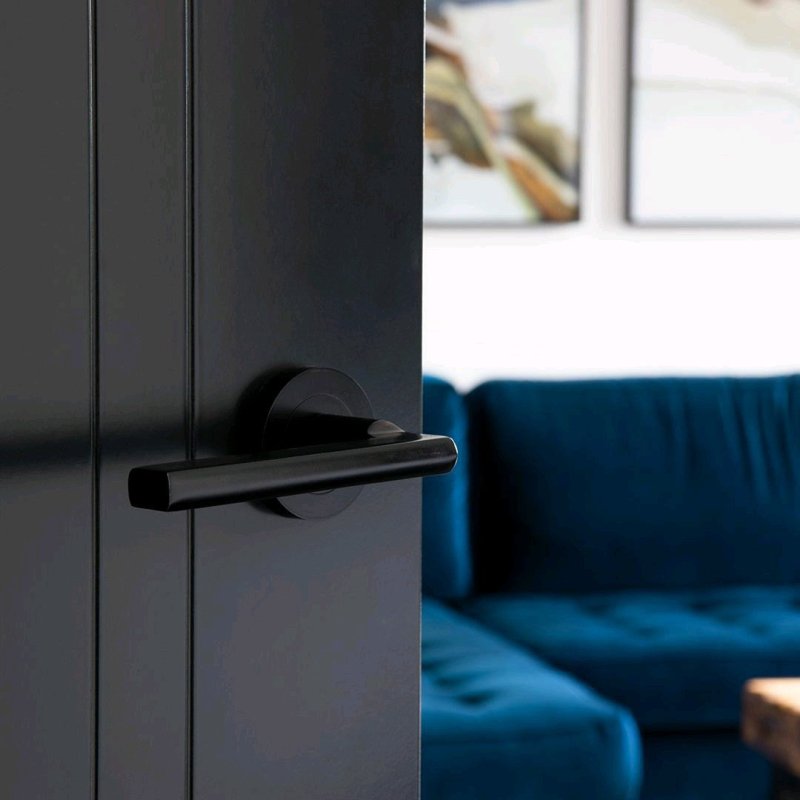

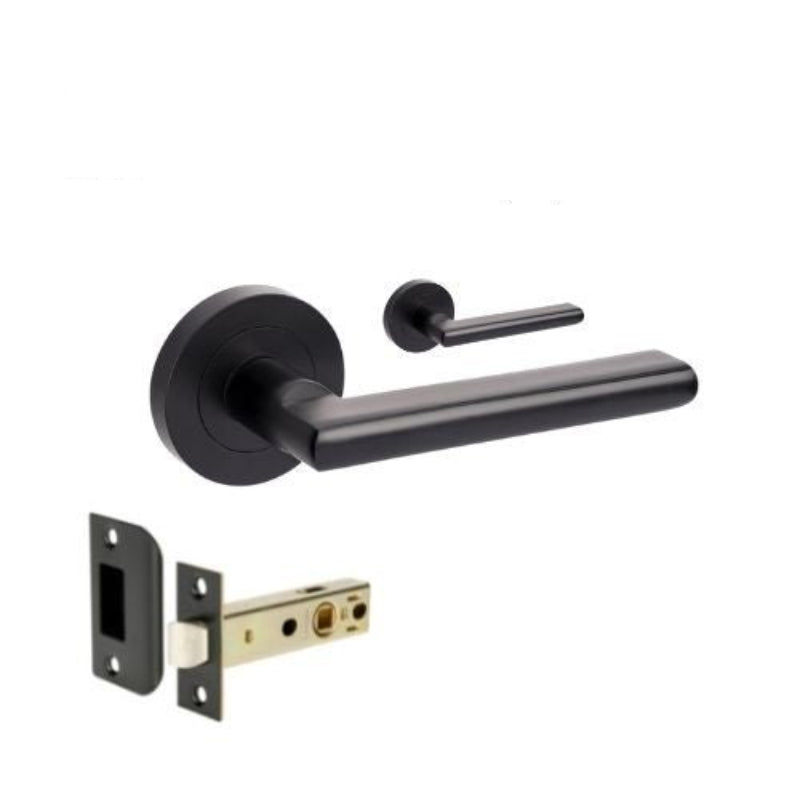

| Set 10021 | Epic Passage Set, includes 1131 latch |

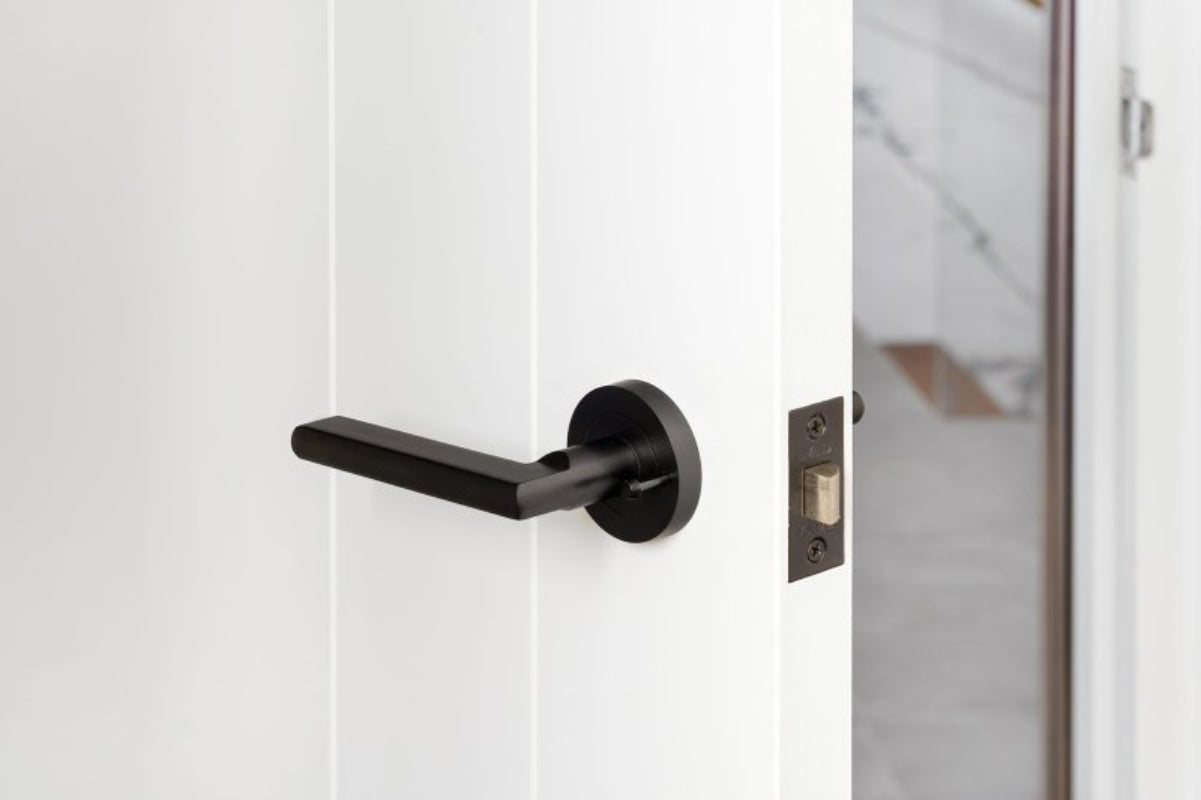

| Set 10022 | Epic Privacy Set, includes integrated privacy kit |

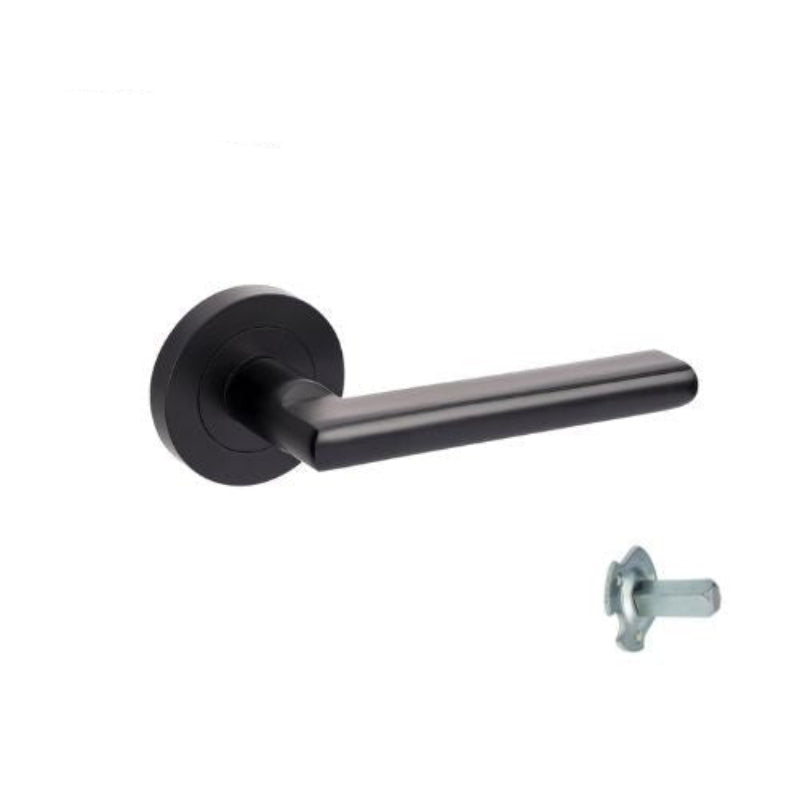

| Set 10023.D | Epic Dummy Set - Non Handed |

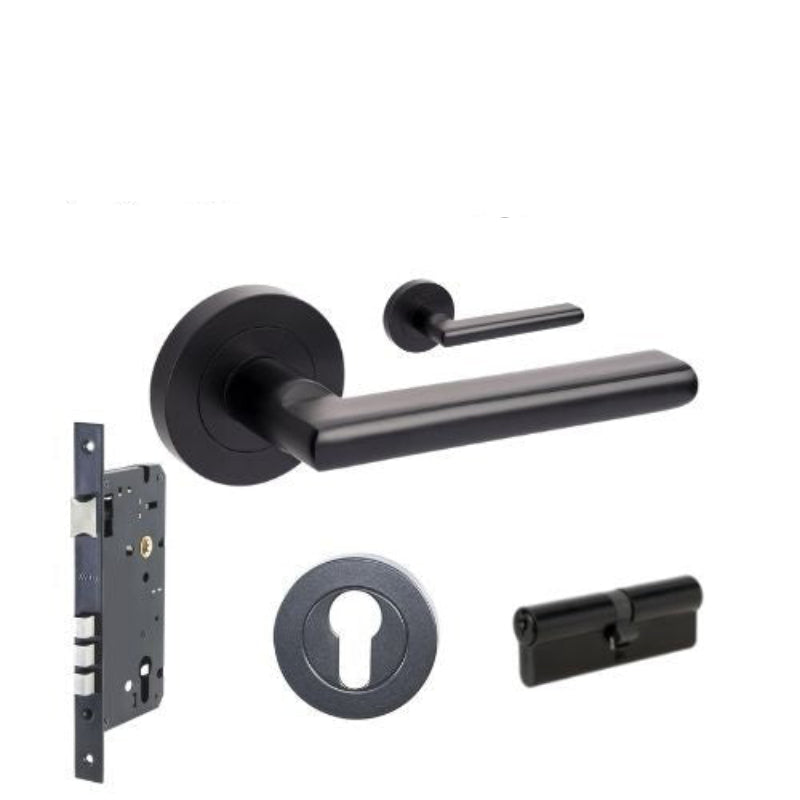

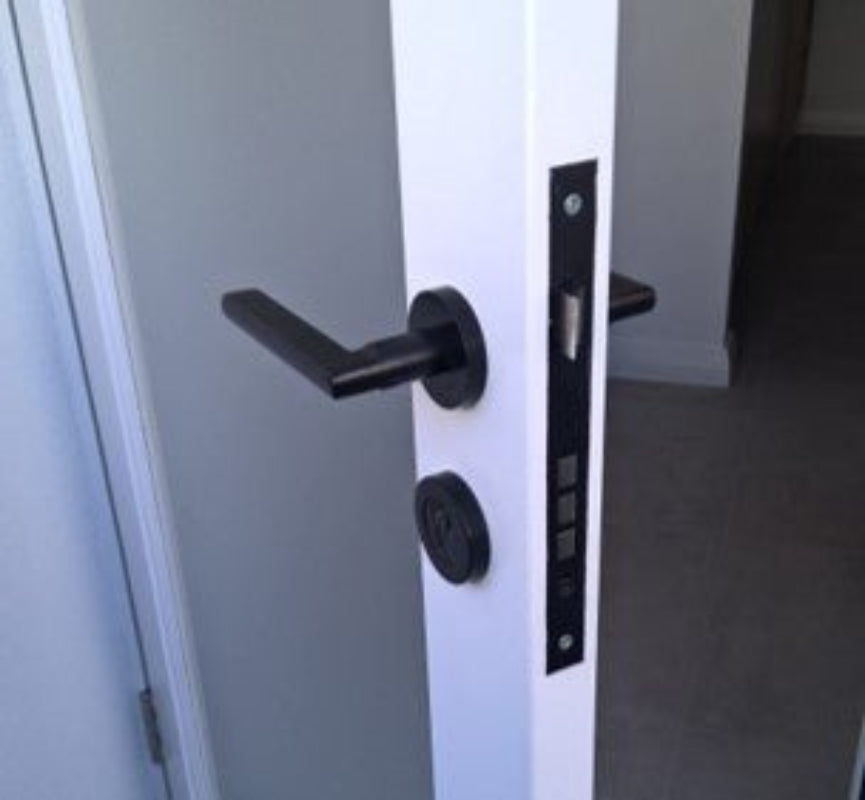

| Set 10024.3.BLK | Epic Entrance Set - includes 10020 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key) |

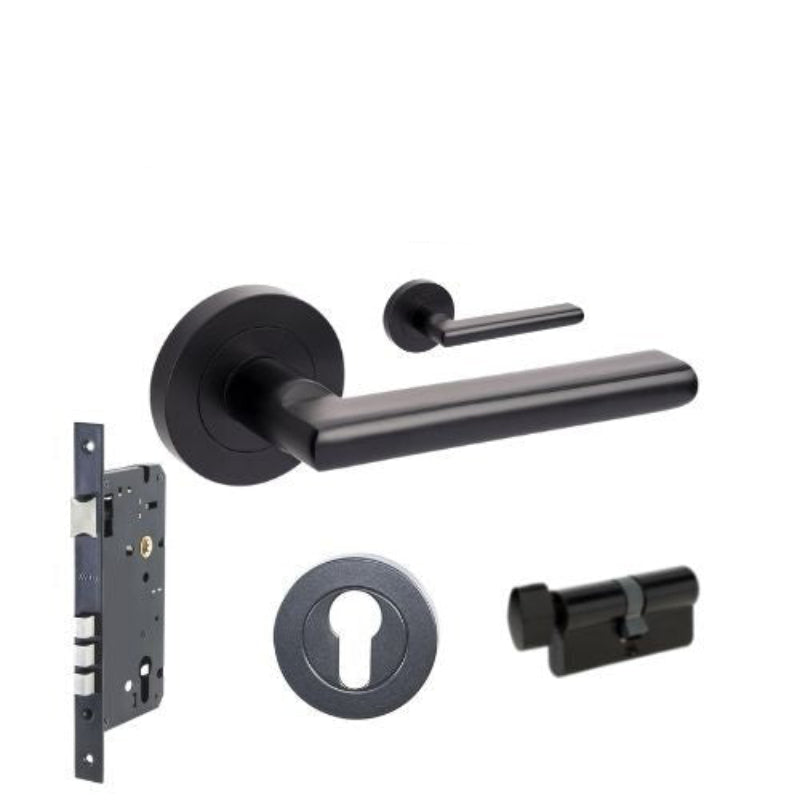

| Set 10024.4.BLK | Epic Entrance Set - includes 10020 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn) |
| Finish | Matt Black |
| Material | Solid Brass |
| Rose / plate | 54mm round, screw-on rose with concealed fixing |
| Backset | 60mm (passage, privacy and entrance sets) |
| Fixing | Concealed screw-on rose with through-door bolts (will not twist out of square) |
| Spindle hole | 25mm diameter; fixing holes 6mm, 21mm above and below spindle centre |
| Rebate kits | 1102.A (passage and privacy sets); 1146 (entrance sets) |
| Application | Domestic and light commercial doors |
| Warranty | 15-year manufacturer warranty (internal use); 10 years for external use |
Warranty
15-year manufacturer warranty (internal use); 10 years for external use. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Epic Door Lever Matt Black — Passage, Privacy & Entrance?
It is a Zanda door lever on round rose from the Futura range, made from solid brass. Function: passage set, Entrance set, Leverset only (no latch), Integrated privacy set, Dummy set. Product code: 10020.BLK, 10021.BLK, 10022.BLK, 10023.D.BLK, 10024.3.BLK, 10024.4.BLK.
What does each option include?
10020: Epic Leverset Only; 10021: Epic Passage Set, includes 1131 latch; 10022: Epic Privacy Set, includes integrated privacy kit; 10023.D: Epic Dummy Set - Non Handed; 10024.3.BLK: Epic Entrance Set - includes 10020 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key); 10024.4.BLK: Epic Entrance Set - includes 10020 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn).
What finishes is it available in?
This listing is finished in Matt Black. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
Rose / plate: 54mm round, screw-on rose with concealed fixing.
What backset does it suit?
Backset: 60mm (passage, privacy and entrance sets). Backset is the distance from the door edge to the centre of the spindle — measure your existing latch before ordering.
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
What warranty does it have?
15-year manufacturer warranty (internal use); 10 years for external use, covering defects in materials and workmanship under normal use when correctly installed.
How can I get help choosing the right product?
Call Prime Hardware on 1800 329 028 (Mon–Fri 10am–5pm), email sales@primehardware.com.au, or visit our showroom at 2/249 Annangrove Road, Annangrove NSW 2156, where over 6,000 products are on display. Send us your door type, thickness and the function you need and we will confirm the right parts.
