Zanda Euro Double Cylinder Key Key 5 Pin Multiple Finishes Multiple Lengths
Zanda Euro Double Cylinder Key Key 5 Pin Multiple Finishes Multiple Lengths

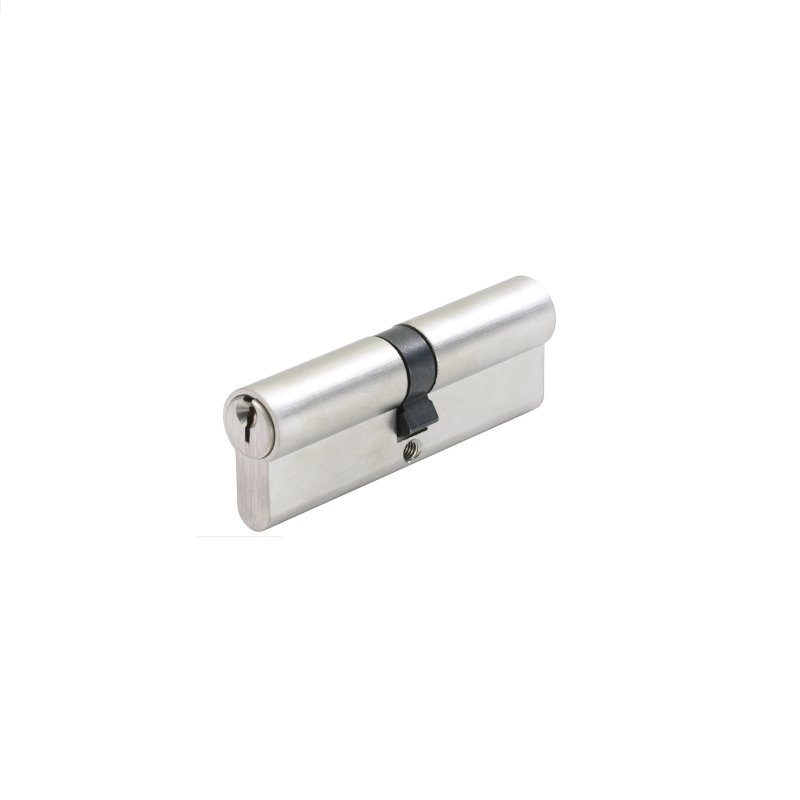

Zanda Euro Double Cylinder (key/key) 5-pin for euro profile mortice locks requiring key access from both sides. Key/key, 5-pin C4 profile, solid brass Multiple lengths: 60mm, 70mm, 90mm
Available Finishes (3) & Product Codes
| Finish | Handle set |
|---|---|
| Brushed Nickel | 1224.KA.BN |
| Satin Brass | 1147.KA.SB |
| Satin Chrome | 1224.KA.SC |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |
| Product type | Euro profile double cylinder (key/key) |
| Product code | 1121, 1147, 1224 (finish suffix varies — see table above) |
| Finish | Brushed Nickel, Satin Chrome, Satin Brass |
| Material | Extruded brass |
| Size — 1121 | 60mm, double (key/key) |
| Size — 1147 | 70mm, double (key/key) |
| Size — 1224 | 90mm, double (key/key) |
| Keying | Keyed to differ or keyed alike |
| Re-keying | Stainless steel grub screws |
| Warranty | 10-year manufacturer mechanical warranty |
Warranty
10-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Euro Double Cylinder Key Key 5 Pin Multiple Finishes Multiple Lengths?
It is a Zanda euro profile double cylinder (key/key), made from extruded brass. Product code: 1121, 1147, 1224 (finish suffix varies — see table above).
What finishes is it available in?
It is available in Brushed Nickel, Satin Chrome, Satin Brass. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
code 1121: 60mm, double (key/key); code 1147: 70mm, double (key/key); code 1224: 90mm, double (key/key).
How do I choose the right cylinder length?
Measure the door thickness and the lock position. Zanda cylinders are sold in fixed lengths (for example 40, 60, 70 and 90mm); the cylinder should sit flush with, or slightly proud of, the escutcheons on both sides. If unsure, send us the door thickness and lock model.
What does keyed alike or keyed to differ mean?
Keyed alike cylinders all open with the same key — handy for front and back doors. Keyed to differ cylinders each have a unique key.
What warranty does it have?
10-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
How can I get help choosing the right product?
Call Prime Hardware on 1800 329 028 (Mon–Fri 10am–5pm), email sales@primehardware.com.au, or visit our showroom at 2/249 Annangrove Road, Annangrove NSW 2156, where over 6,000 products are on display. Send us your door type, thickness and the function you need and we will confirm the right parts.
