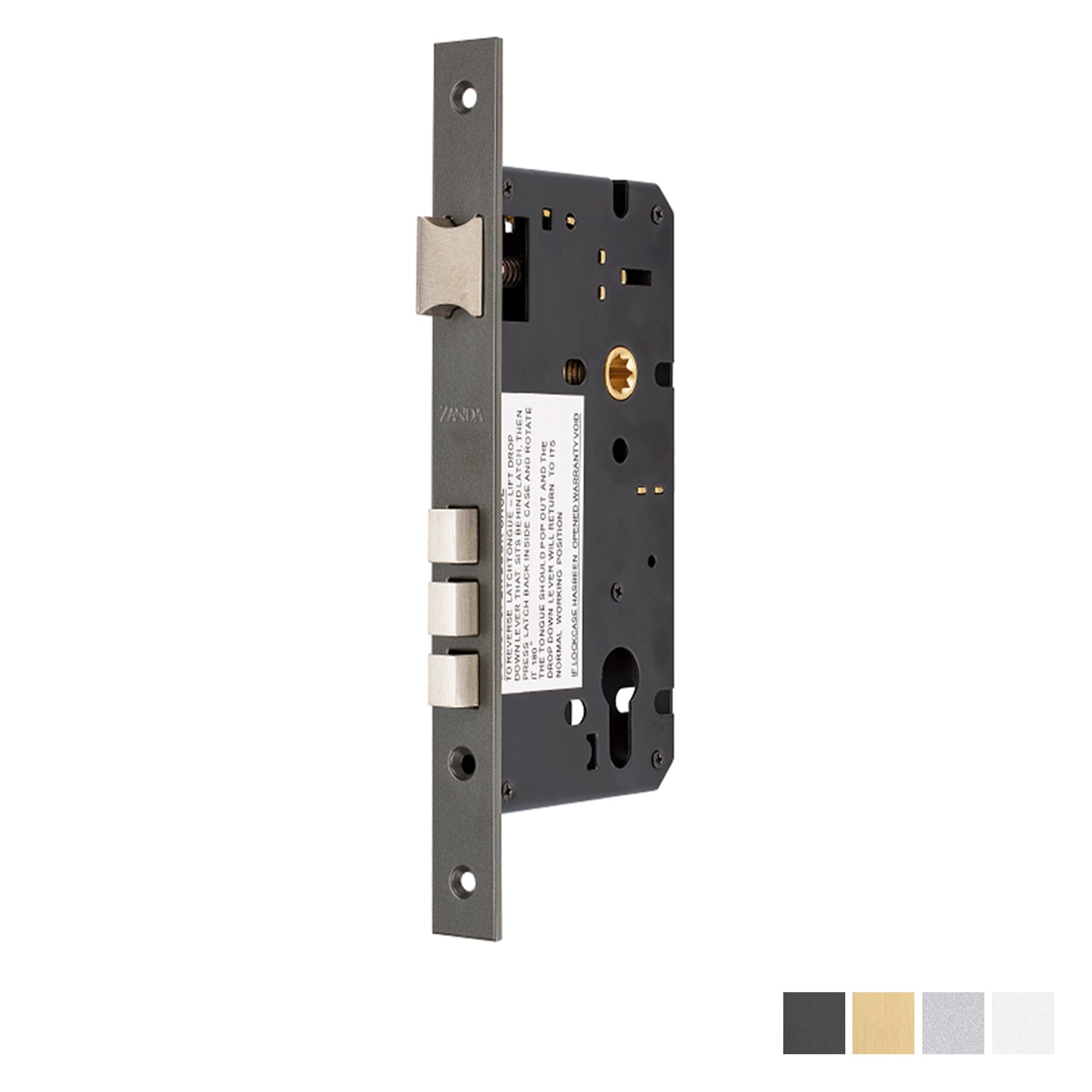

Zanda Euro Mortice Lock — 60mm Backset
Zanda Euro Mortice Lock — 60mm Backset

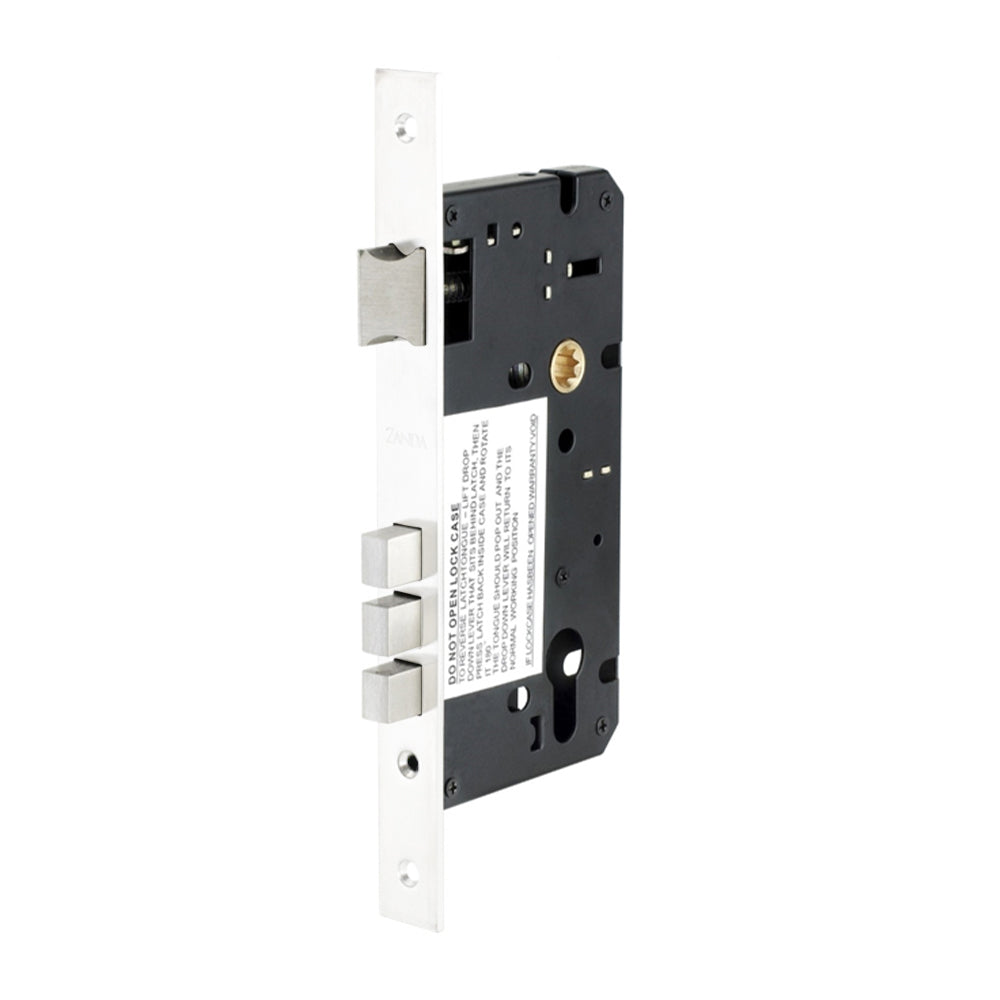

The Zanda Euro Mortice Lock — 60mm Backset is a Zanda lock and door hardware component, available in Matt White. Key dimensions: backset . Zanda product code shown below.
Available Finishes (1) & Product Codes
| Finish | 60mm Backset |
|---|---|
| Matt White | 1143.WHT |
Specifications
| Brand | Zanda |
| Product type | Euro mortice lock |
| Product code | 1143.WHT |
| Zanda set | 1143 — 60mm backset, 86mm case size |
| Finish | Matt White |

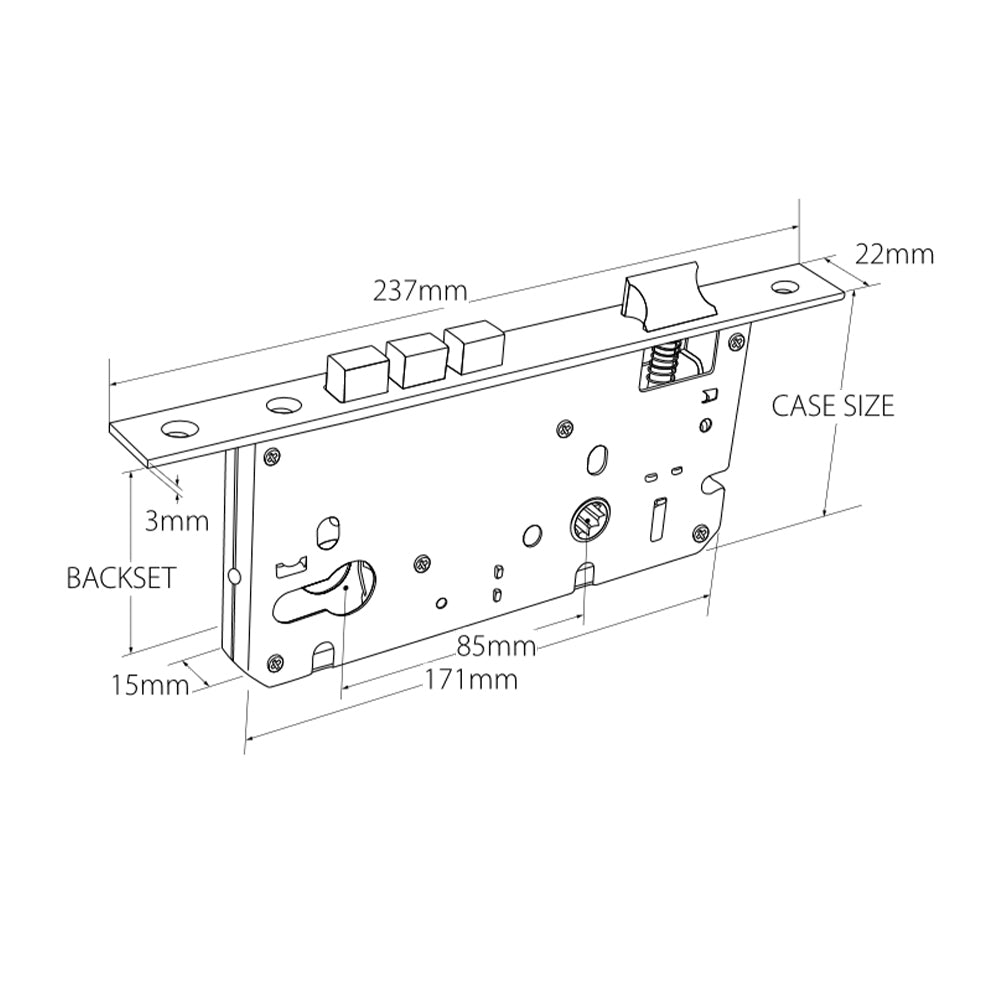

| Dimensions | 60mm backset, 86mm case, 85mm pitch |
| Backset | 60mm (1143) / 45mm (1142) |
| Case size | 86mm (1143) / 71mm (1142) |
| Pitch | 85mm (cylinder to spindle centre) |
| Bolt | 2-stage deadbolt throw; latch retracts on key |
| Face Length | 237mm |
| Face Width | 22mm |
| Case Length | 171mmm |
| Case Width | 15mm |
| Warranty | 10-year manufacturer mechanical warranty |
Warranty
10-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Euro Mortice Lock — 60mm Backset?
It is a Zanda euro mortice lock. Product code: 1143.WHT.
What is included in this set?
60mm backset, 86mm case size. Hinges, door stops and flush bolts are sold separately.
What finishes is it available in?
This listing is finished in Matt White. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
Dimensions: 60mm backset, 86mm case, 85mm pitch; Backset: 60mm (1143) / 45mm (1142); Case size: 86mm (1143) / 71mm (1142); Pitch: 85mm (cylinder to spindle centre).
What backset is it?
Backset: 60mm (1143) / 45mm (1142). Backset is measured from the door edge to the centre of the cylinder or spindle.
What warranty does it have?
10-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
