Zanda Euro Profile Cylinder — Graphite Nickel | 5-Pin C4
Zanda Euro Profile Cylinder — Graphite Nickel Solid brass 5-pin euro profile cylinders in a Graphite Nickel PVD finish, designed for euro profile mortice locks. Available in multiple lengths, and supplied keyed to differ or keyed alike to suit single or multi-door setups. Uses the C4 keyway profile. Solid Brass 5-Pin C4 — Keyed to Differ or Keyed Alike MATERIAL Solid Brass FINISH Graphite Nickel PROFILE 5-Pin C4 LENGTHS Multiple Specification Detail Type Euro profile cylinder
Available Finishes (1) & Product Codes
| Finish | 1178.GN - Double Cylinder - 40mm | 1147.GN - Double Cylinder - 70mm | 1148.GN - Single Cylinder - 70mm | 1225.GN - Single Cylinder - 90mm |
|---|---|---|---|---|
| Graphite Nickel | 1178.GN | 1147.GN | 1148.GN | 1225.KA.GN |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |

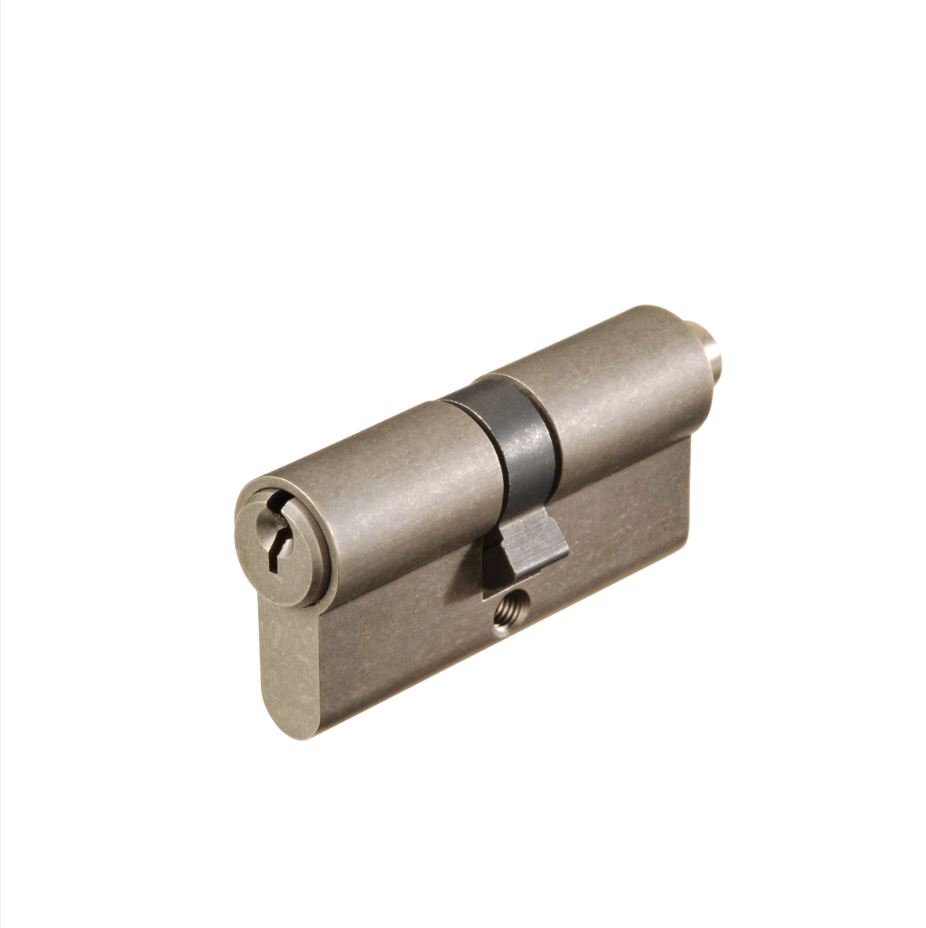

| Product type | Euro profile double cylinder (key/key) |
| Product code | 1178.GN, 1147.GN, 1148.GN, 1225.KA.GN |
| Finish | Graphite Nickel |
| Material | Extruded brass |
| Size — 1178 | 40mm, double (key/key), 3 pin |
| Size — 1147 | 70mm, double (key/key) |

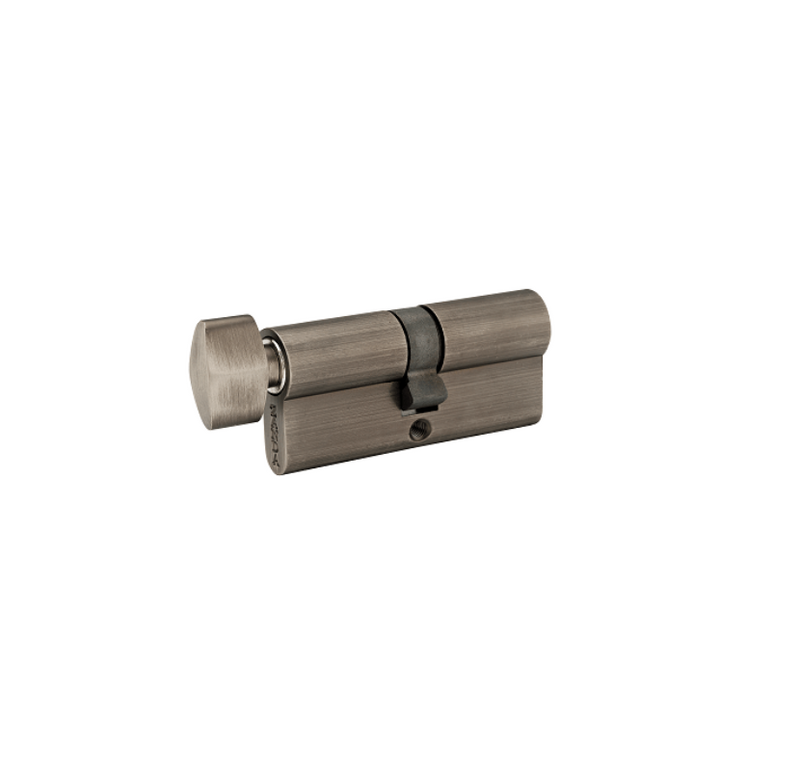

| Size — 1148 | 70mm, single (key/turn) |
| Size — 1225 | 90mm, single (key/turn) |
| Keying | Keyed to differ or keyed alike |
| Re-keying | Stainless steel grub screws |
| Warranty | 10-year manufacturer mechanical warranty |
Warranty
10-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Euro Profile Cylinder — Graphite Nickel?
It is a Zanda euro profile double cylinder (key/key), made from extruded brass. Product code: 1178.GN, 1147.GN, 1148.GN, 1225.KA.GN.
What finishes is it available in?
This listing is finished in Graphite Nickel. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
code 1178: 40mm, double (key/key), 3 pin; code 1147: 70mm, double (key/key); code 1148: 70mm, single (key/turn); code 1225: 90mm, single (key/turn).
How do I choose the right cylinder length?
Measure the door thickness and the lock position. Zanda cylinders are sold in fixed lengths (for example 40, 60, 70 and 90mm); the cylinder should sit flush with, or slightly proud of, the escutcheons on both sides. If unsure, send us the door thickness and lock model.
What does keyed alike or keyed to differ mean?
Keyed alike cylinders all open with the same key — handy for front and back doors. Keyed to differ cylinders each have a unique key.
What warranty does it have?
10-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
