Zanda Fast Fix Bearing Hinges White 100x70x2.5mm Timber and Aluminium
Zanda Fast Fix Bearing Hinges White 100x70x2.5mm Timber and Aluminium

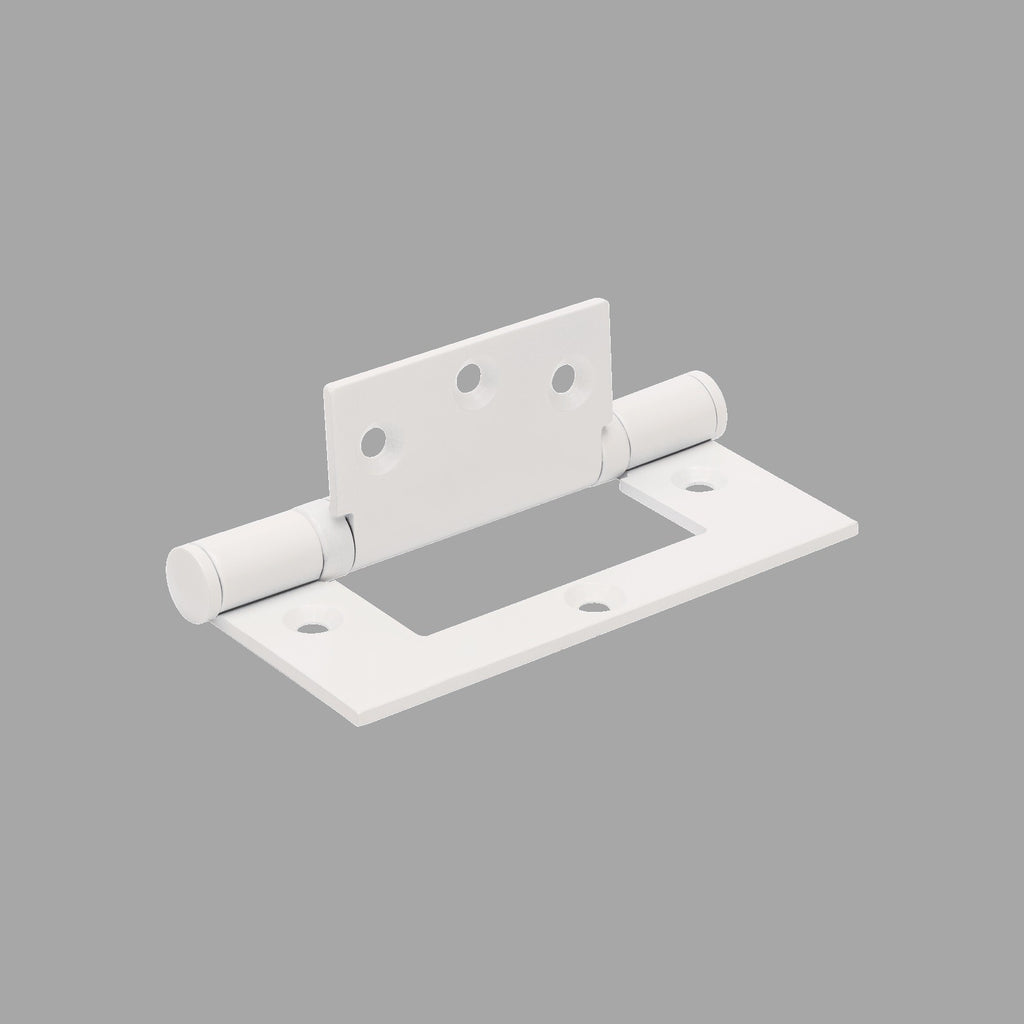

Zanda Fast Fix Bearing Hinges in White for timber (5908.WHT) and aluminium (5908.2.WHT) doors.
Fixing Types Explained
| Fixing | What it means |
|---|---|
| Back to Back (Pair) | Two handles fixed through the door, one each side, bolted to each other. The strongest fixing and the usual choice for entry doors. |
| Face Fix (Single) | A single handle fixed from the front, with the screws visible on the face of the handle. |
| Rear Fix (Single) | A single handle fixed from behind the door, so no screws are visible on the handle face. |
Available Finishes (3) & Product Codes
| Finish | 5908.2 - Satin White Fast Fix Bearing Hinge (Aluminium) - 100 x 70 x 2.5mm | 5908-100x70x2.5mm (Type #9 - Timber) | 5908-2:100x70x2.5mm (Type #3 - Aluminium) |
|---|---|---|---|

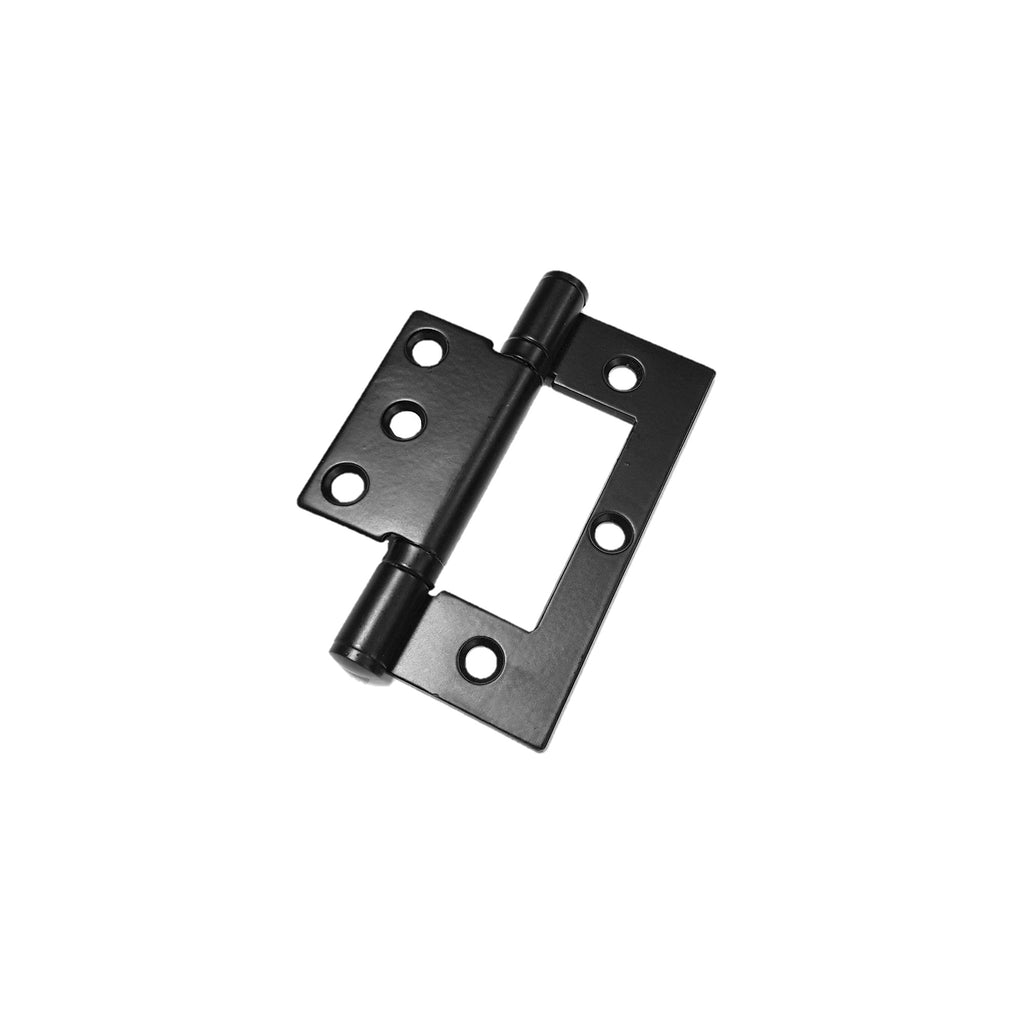

| Matt Black | — | 5908.BLK | — |
| Satin White | 5908.2.WHT | — | — |

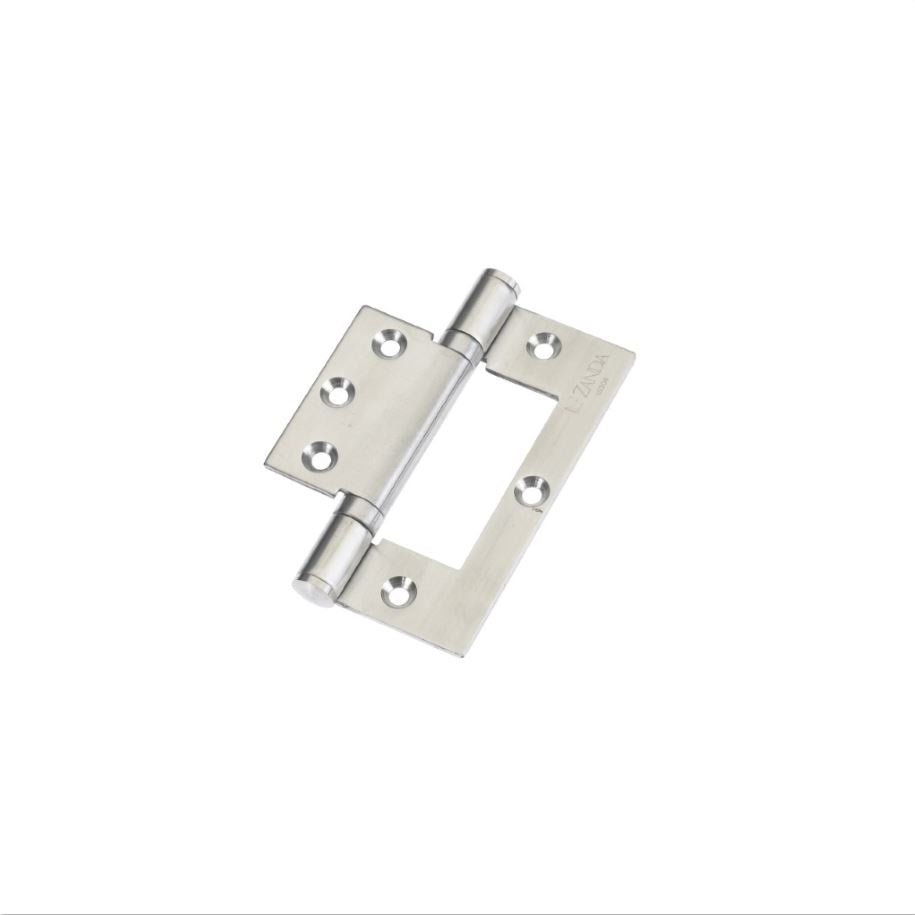

| Stainless Steel (304 Grade) | — | 5908.SS | 5908.2.SS |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Hinge Type: Butt hinge
The standard door hinge, mortised into the door edge and frame.
Hinge types explained:
| Hinge type | What it does |
|---|---|
| Parliament hinge | Projects the door clear of the frame or architrave so it can swing back fully against the wall — used where a door must open 180° or clear deep reveals. |
| Ball bearing hinge | Bearings between the knuckles carry the load, reducing friction and wear. Best for heavy and high-use doors, including entrance doors. |
| Loose pin hinge | The pin can be withdrawn so the door lifts off without unscrewing the hinge. Internal use — handy for bathrooms and for removing doors during work. |
| Fixed pin hinge | The pin is fixed in the knuckle. A reliable all-rounder for most internal doors. |
| Butt hinge | The standard door hinge, mortised into the door edge and frame. |
| Lift-off hinge | The leaves separate so the door lifts off. Handed — order left or right hand to suit the door. |
Three hinges per door is standard for internal and entrance doors. Heavier and taller doors may require a fourth.
Specifications
| Brand | Zanda |
| Product type | Fast fix (hirline) bearing hinge, fixed pin |
| Product code | 5908.2.WHT, 5908.SS, 5908.BLK, 5908.2.SS |
| Finish | Satin White, Stainless Steel (304 Grade), Matt Black |
| Material | Stainless steel |
| Dimensions | 100 x 70 x 2.5mm, fast fix bearing (timber door) |
| Size | 100 x 70 x 2.5mm |
| Versions | 5908 timber door; 5908.2 aluminium door |
| Warranty | 7-year manufacturer mechanical warranty |
Warranty
7-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Fast Fix Bearing Hinges White 100x70x2.5mm Timber and Aluminium?
It is a Zanda fast fix (hirline) bearing hinge, fixed pin, made from stainless steel. Product code: 5908.2.WHT, 5908.SS, 5908.BLK, 5908.2.SS.
What finishes is it available in?
It is available in Satin White, Stainless Steel (304 Grade), Matt Black. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
Dimensions: 100 x 70 x 2.5mm, fast fix bearing (timber door); Size: 100 x 70 x 2.5mm.
How many hinges do I need per door?
Three hinges per door is standard for internal and entrance doors. Taller or heavier doors may need a fourth. Hinges are priced as listed — check whether the listing is each, a pair or a pack.
What warranty does it have?
7-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
